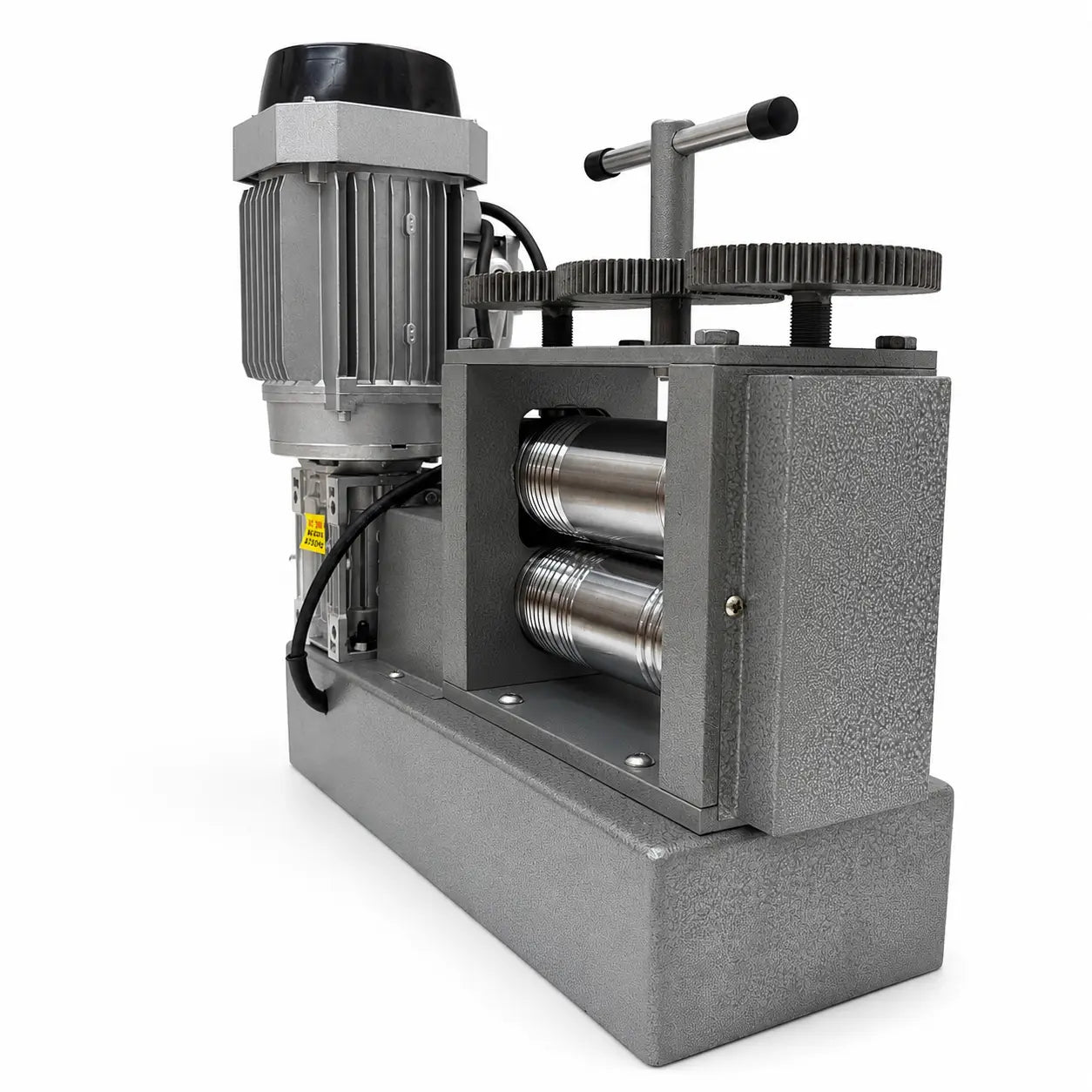

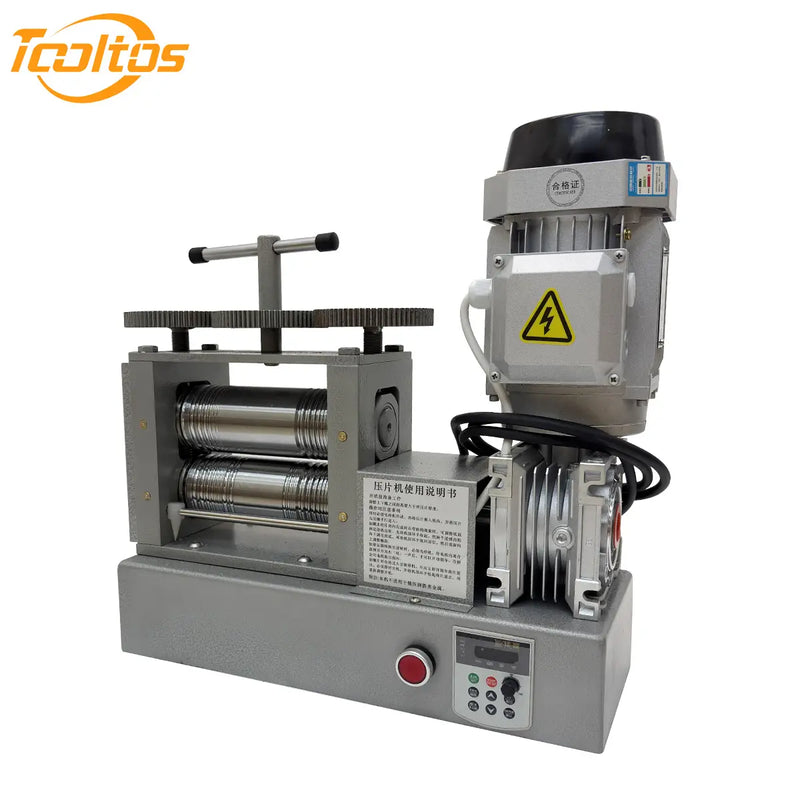

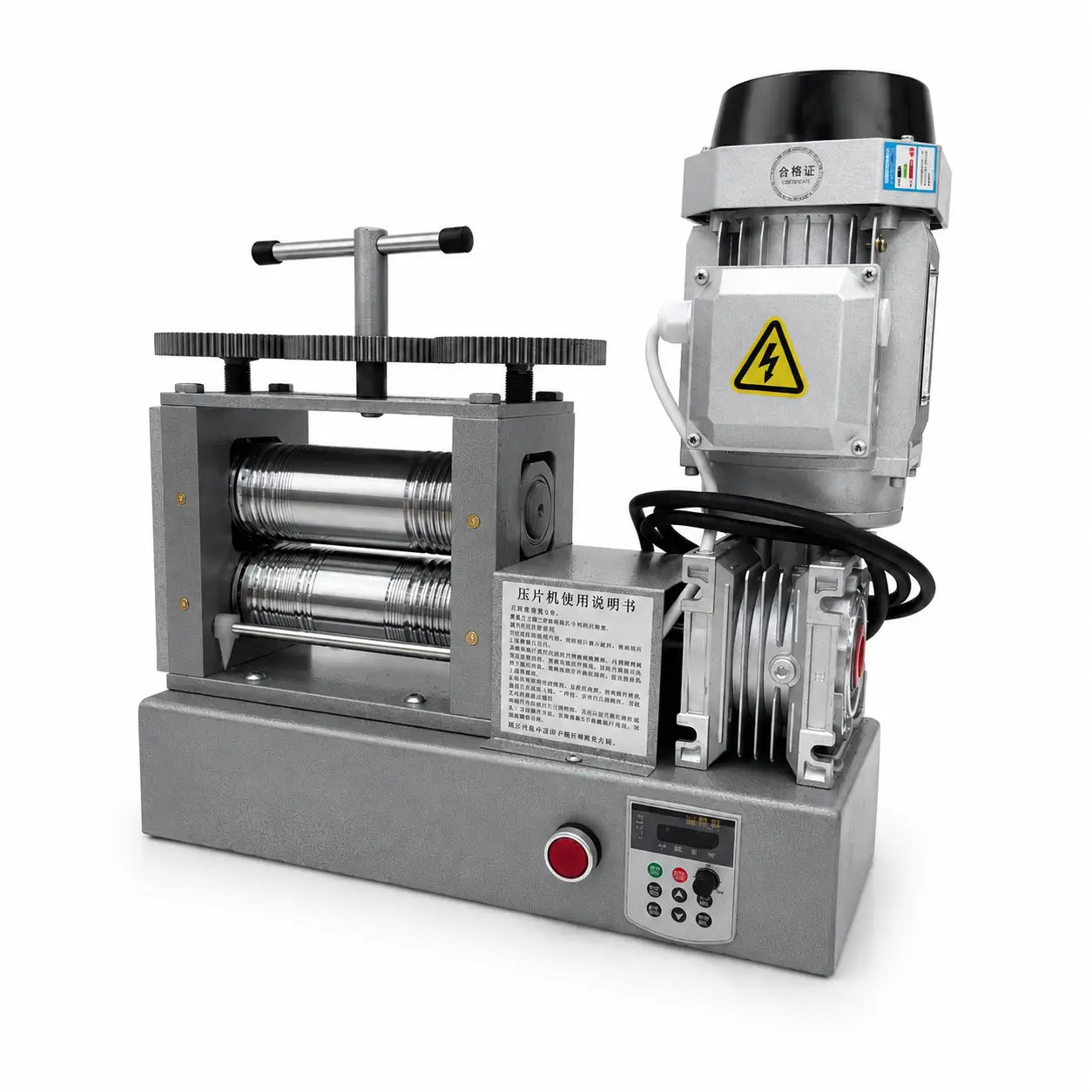

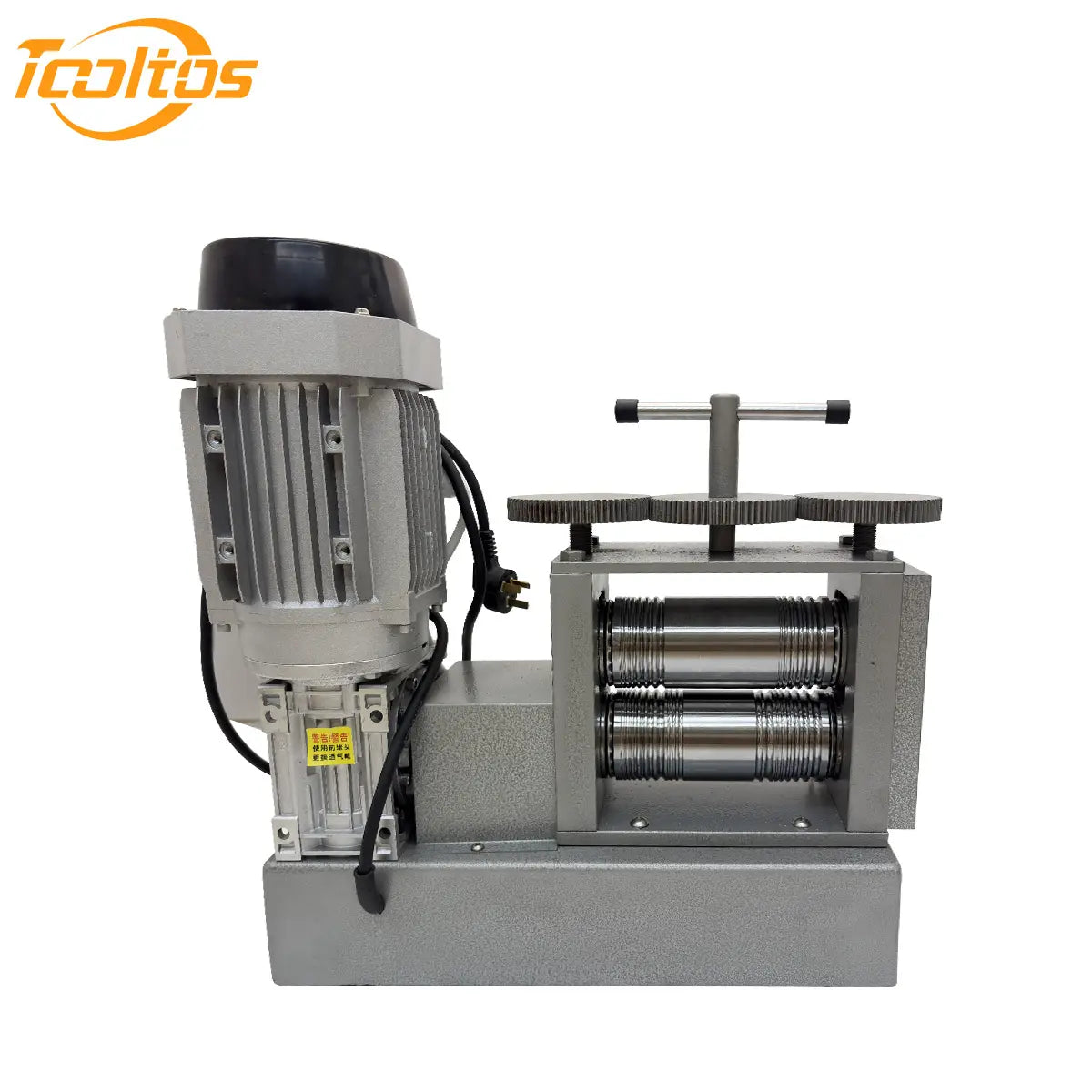

Tooltos 550W Variable Speed 4-in-1 Electric Jewelry Rolling Mill
- 99 in stock
Description
550W Variable Speed 4-in-1 Electric Jewelry Rolling Mill
The Tooltos 550W Variable Speed Electric Jewelry Rolling Mill is designed for professional jewelers, goldsmiths, silversmiths, and jewelry workshops that need a more efficient and controlled way to prepare precious metal materials.
Unlike traditional manual rolling mills that require continuous physical effort, this electric rolling mill uses a powerful 550W motor to provide smoother operation, reduce operator fatigue, and improve consistency during repeated rolling tasks.
With variable speed control and a versatile 4-in-1 combination roller system, this machine allows you to create flat sheet, round wire, half-round wire, and square wire using one professional jewelry forming solution.
Solve Common Jewelry Workshop Challenges
Challenge 1: Manual rolling becomes tiring during long working sessions.
Solution: The 550W electric drive reduces repetitive hand cranking and helps jewelers focus on material control instead of physical effort.
Challenge 2: Different jewelry designs require different wire shapes.
Solution: The 4-in-1 roller system combines multiple forming functions in one machine, reducing the need for separate rolling equipment.
Challenge 3: Fixed-speed machines provide limited control.
Solution: Variable speed adjustment allows operators to choose a slower speed for precision positioning and a faster speed for repeated production.
Challenge 4: Uneven adjustment can affect rolling consistency.
Solution: The synchronized three-gear adjustment system helps maintain balanced roller movement for more consistent results.
Why Choose Tooltos Variable Speed Rolling Mill?
- Electric Power Instead of Manual Effort: Improve workshop efficiency while reducing operator fatigue.
- Adjustable Working Speed: Gain better control for different materials, profiles and production stages.
- Multiple Forming Functions: One machine handles common jewelry rolling applications.
- Professional Workshop Design: Built for jewelers who require reliable daily metal preparation.

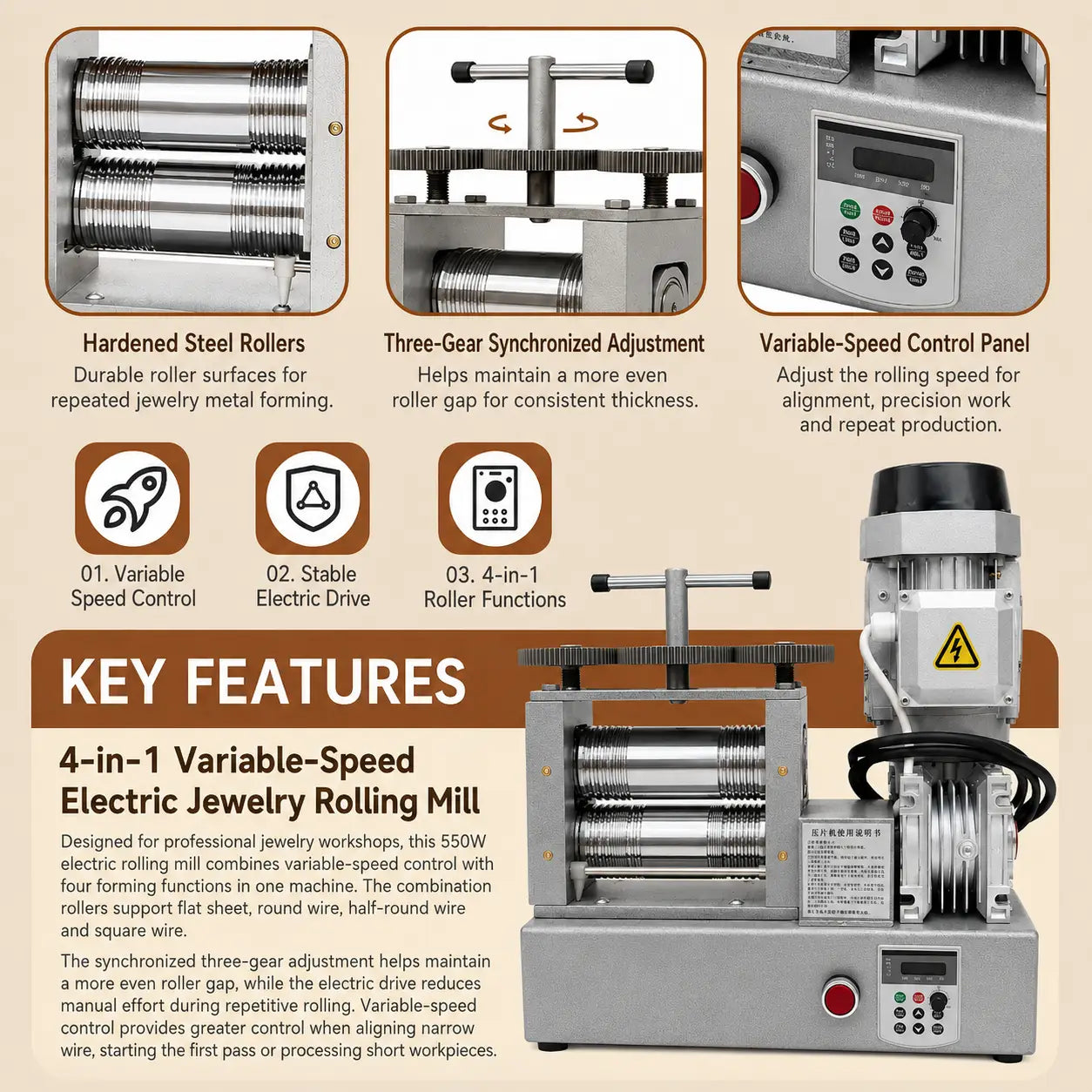

Key Features and Benefits
Variable Speed Control
Different jewelry operations require different levels of control. The variable-speed system allows slower operation when aligning narrow wire, starting the first pass, or working with delicate materials.
Higher speeds can be selected for repeated rolling operations after the material has been properly aligned, improving overall workshop productivity.

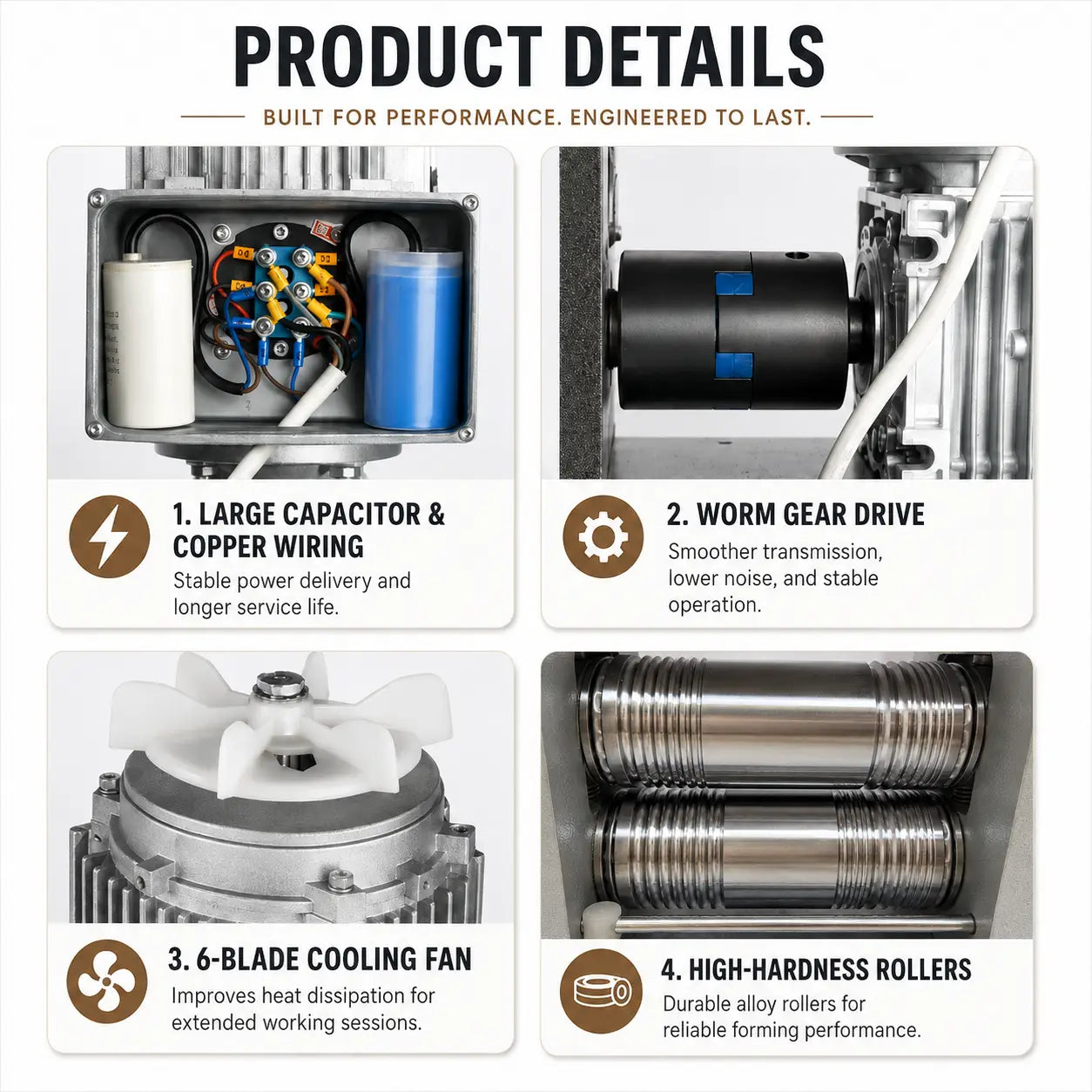

550W Electric Drive System
The powerful electric motor provides stable rolling force and reduces the physical workload compared with manual rolling mills. This makes it suitable for workshops that frequently prepare sheet and wire materials.

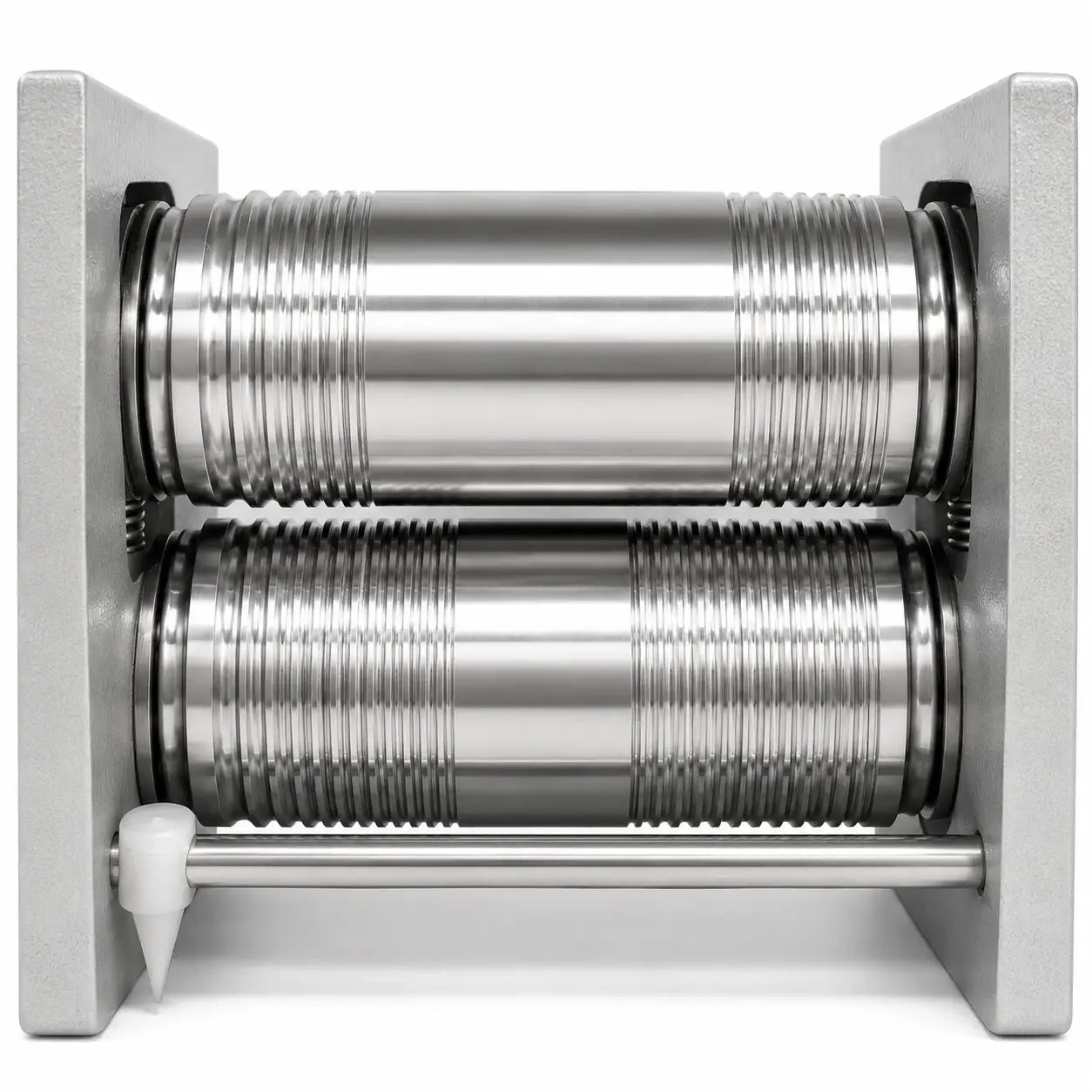

70mm Large Diameter Rollers
The 70mm roller diameter provides stable material engagement and smoother pressure distribution during rolling. The larger roller design helps improve operating stability during repeated passes.
160mm Extended Roller Length
The 160mm roller length provides a wider working area for processing jewelry sheet and strip materials, helping reduce repeated repositioning during fabrication.

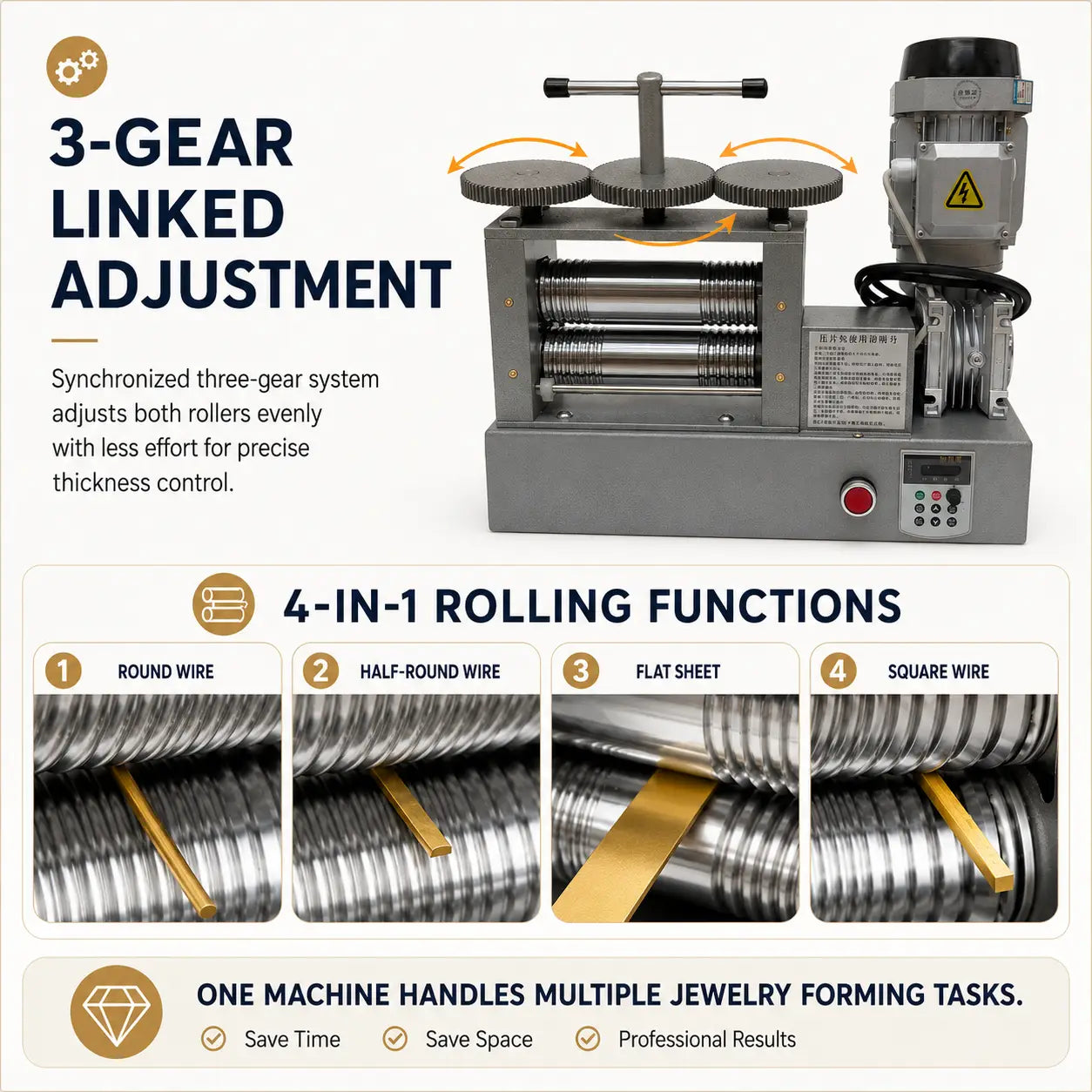

Three-Gear Synchronized Adjustment System
The synchronized gear mechanism helps both sides of the roller adjustment move together. This design improves adjustment consistency and helps reduce uneven material thickness caused by incorrect manual adjustment.
4-in-1 Jewelry Forming Capability
One machine provides four essential jewelry rolling functions:
- Flat Rolling: Reduce sheet thickness for rings, bracelets, pendants and general fabrication.
- Round Wire Rolling: Create round wire profiles for jewelry components and decorative designs.
- Half-Round Wire Rolling: Produce professional half-round profiles commonly used in jewelry manufacturing.
- Square Wire Rolling: Form square wire for custom jewelry structures and artistic designs.
Multiple Groove Sizes for Jewelry Wire Production
The combination rollers provide commonly used jewelry wire sizes for different fabrication requirements.
| Square Groove Sizes | 1 / 1.5 / 2 / 3 / 4 / 5 / 6 mm |
| Half-Round Groove Sizes | 2 / 3 / 4 / 5 / 6 mm |
| Round Groove Sizes | 1.5 / 2 / 3 / 4 / 5 / 6 mm |
| Flat Rolling Width | 50 mm / 1.97 in |
Groove dimensions indicate nominal sizes. Actual finished dimensions may vary depending on material hardness, annealing condition and rolling process.
Ideal Applications
- Professional jewelry workshops
- Goldsmith and silversmith studios
- Jewelry repair shops
- Custom jewelry makers
- Jewelry schools and training centers
- Small-batch jewelry production
Compatible Materials
Designed for soft and annealed non-ferrous jewelry metals:
- Gold
- Silver
- Copper
- Brass
- Other similar jewelry alloys

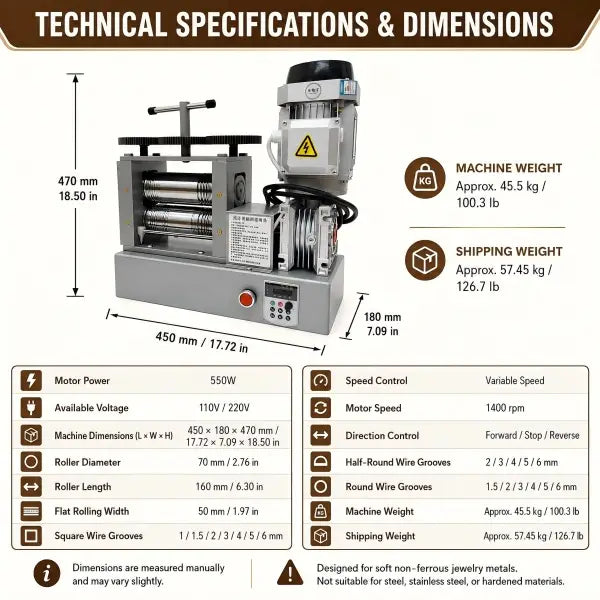

Technical Specifications
| Motor Power | 550W |
| Voltage Options | 110V / 220V |
| Speed Control | Variable Speed |
| Rated Motor Speed | 1400 r/min |
| Roller Diameter | 70 mm |
| Roller Length | 160 mm |
| Machine Dimensions | 450 x 180 x 470 mm / 17.72 x 7.09 x 18.50 in |
| Net Weight | Approx. 45.5 kg / 100.3 lb |
What's Included
- 1 x Tooltos 550W Variable Speed 4-in-1 Electric Jewelry Rolling Mill
- 1 x Power Cable
FAQ
Can this machine roll gold and silver?
Yes. It is designed for soft jewelry metals including gold, silver, copper and brass.
What makes this model different from a standard electric rolling mill?
The variable-speed control provides better control during different rolling operations, especially for alignment and precision work.
Can it produce different wire shapes?
Yes. The 4-in-1 roller system supports flat sheet, round wire, half-round wire and square wire forming.
Is it suitable for stainless steel?
No. This machine is designed for non-ferrous jewelry metals and is not intended for hardened or ferrous materials.
