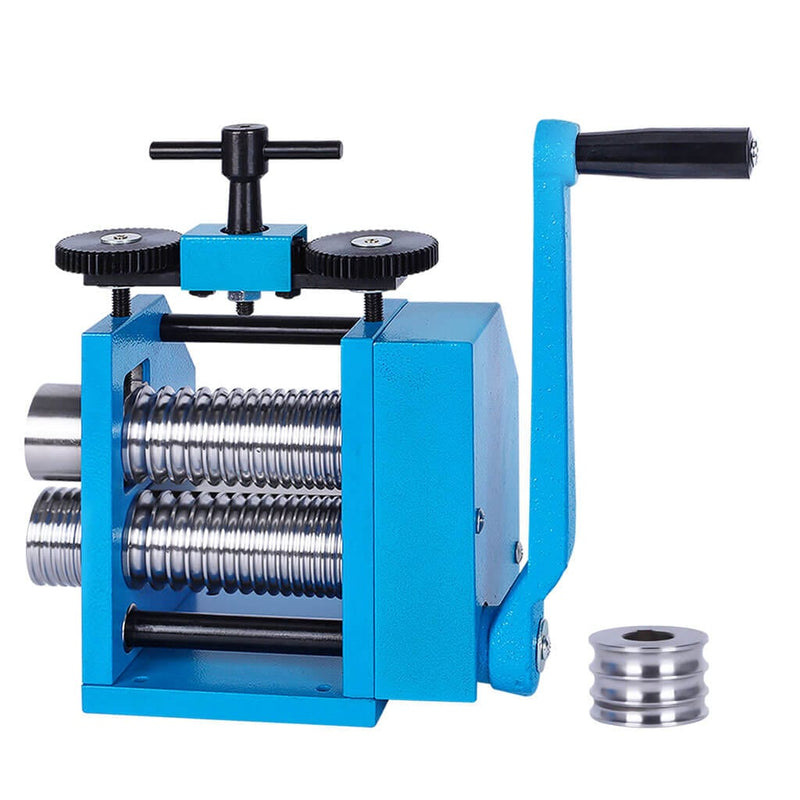

Tooltos 2-in-1 Manual Jewelry Rolling Mill | Flat Sheet and Wire 0.1-7mm Gold Silver
- 93 in stock
Description
- 2-in-1 Flat and Wire Rolling — Flat rollers for sheet metal reduction and texture transfer, plus interchangeable wire groove rollers for round and half-round wire forming in one machine.

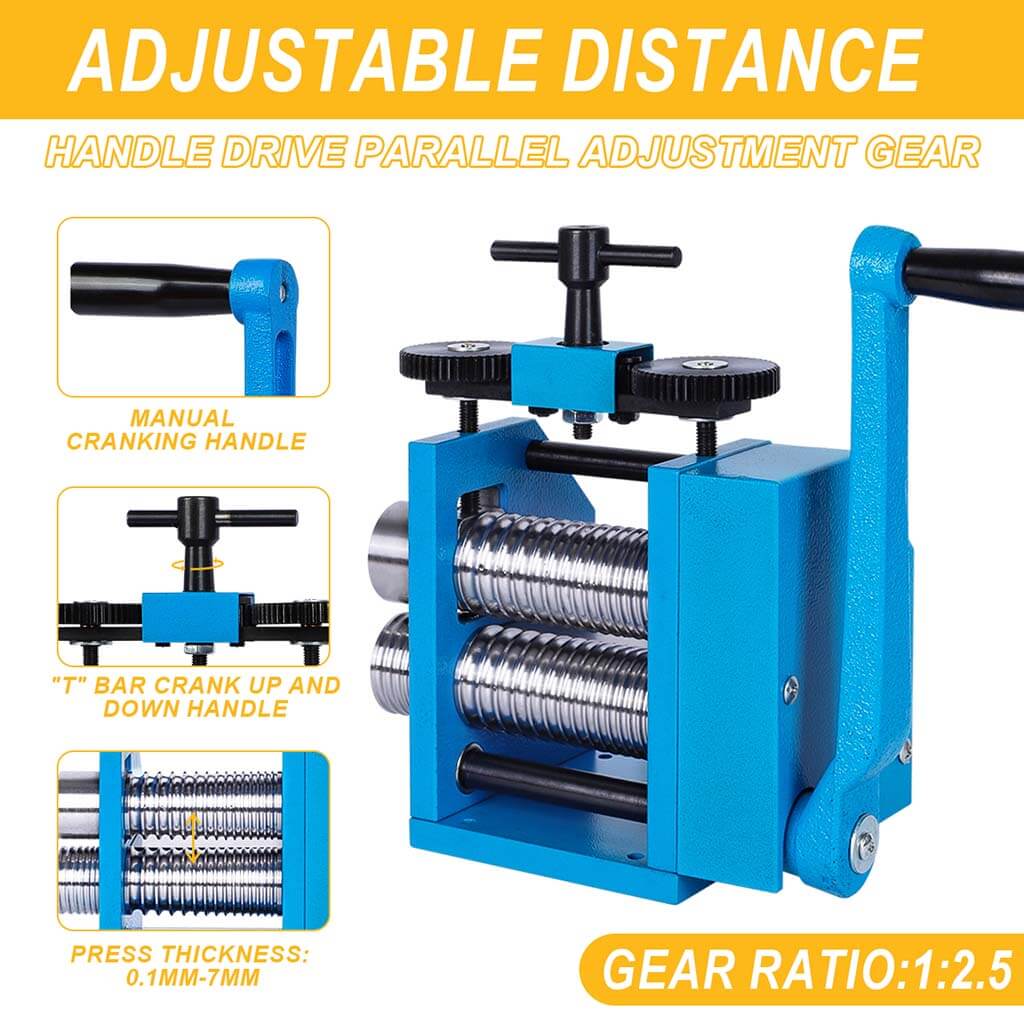

- 0.1–7mm Adjustable Press Thickness — Precise thickness control via T-bar adjustment for consistent results across different metal gauges.
- 1:2.5 Gear Ratio — Reduced gear ratio means one full roller turn per 2.5 handle turns, significantly reducing the force needed to roll metal.

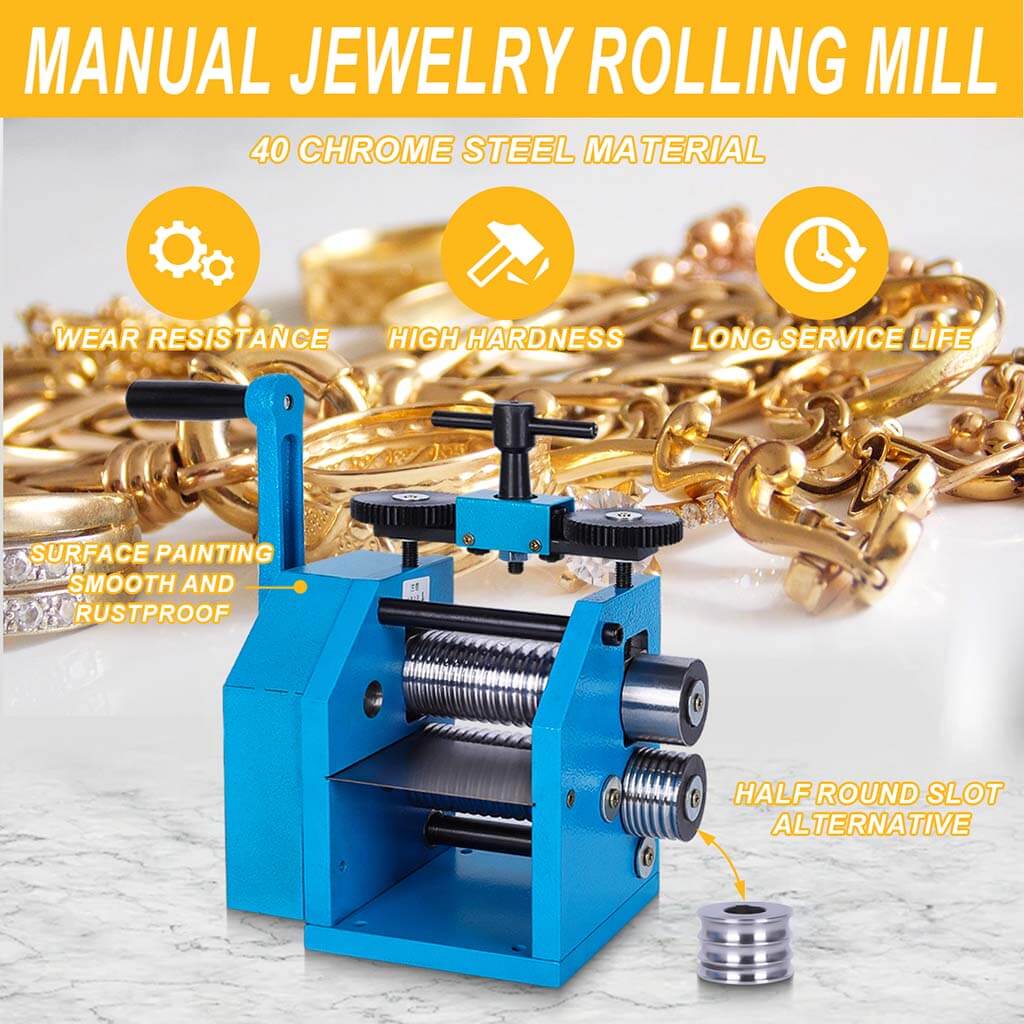

- Cast Iron Frame and Chrome Steel Rollers — Heavy-duty construction for long service life and stable rolling under repeated use.

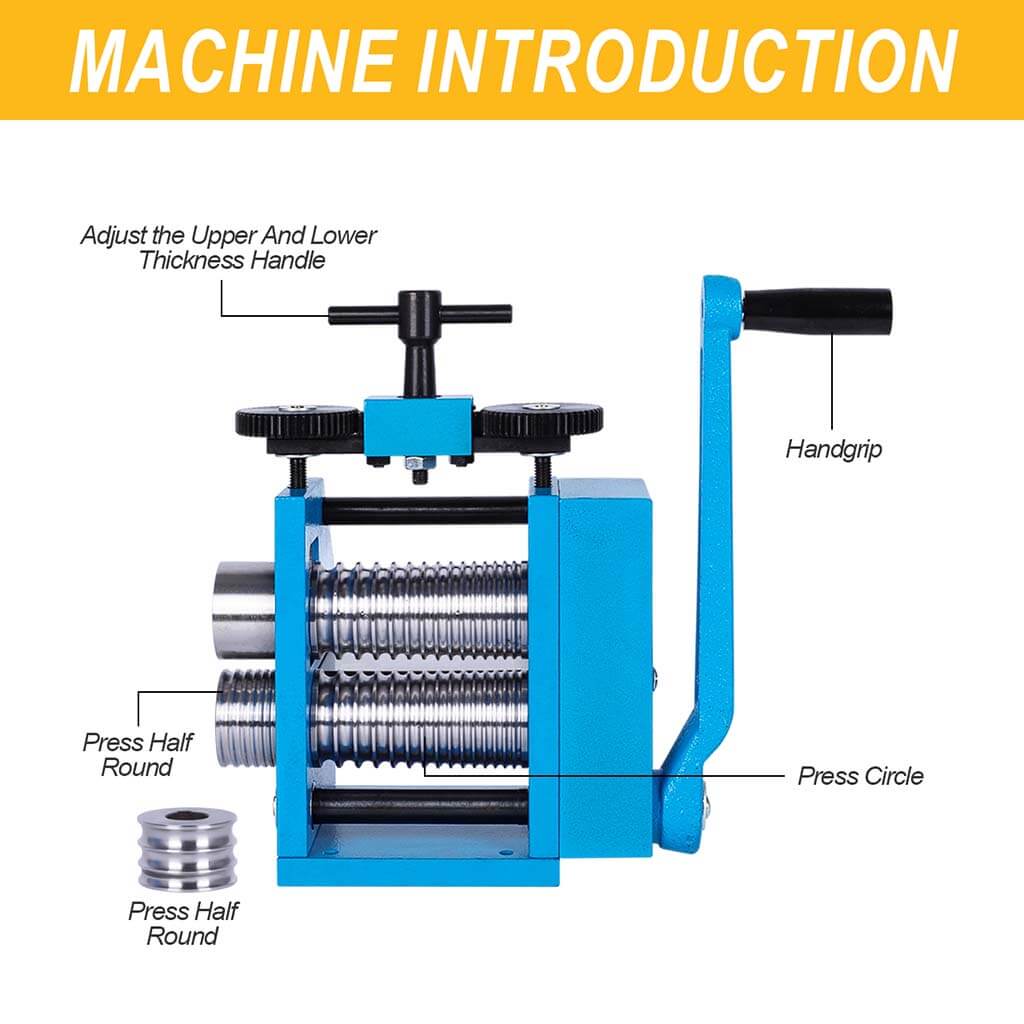

- Interchangeable Rollers — Swap between flat and wire groove rollers to handle different forming tasks without a second machine.
The Tooltos 2-in-1 Manual Jewelry Rolling Mill is built for jewelers and metalworkers who need precise, consistent sheet metal reduction and wire forming without an electric motor. The 1:2.5 gear ratio reduces handle effort significantly, while the cast iron frame and chrome steel rollers deliver the rigidity needed for accurate, repeatable results on gold, silver, copper, and brass.
Best For / Not For
| Best For | Not For |
|---|---|
| Sheet metal reduction (gold, silver, copper, brass) Round and half-round wire forming Texture transfer to sheet metal Individual jewelers and small studios Cold rolling non-ferrous metals |
Ferrous metals (iron, steel) High-volume production (choose electric rolling mill) Hot rolling applications Materials exceeding 7mm starting thickness |
Manual vs Electric Rolling Mill
| Feature | Manual (this machine) | Electric Rolling Mill |
|---|---|---|
| Power Required | None — hand operated | 110V / 220V |
| Best For | Small batches, occasional use, portability | High volume, frequent use, thicker stock |
| Price | Lower | Higher |
| Noise | Minimal | Motor noise |

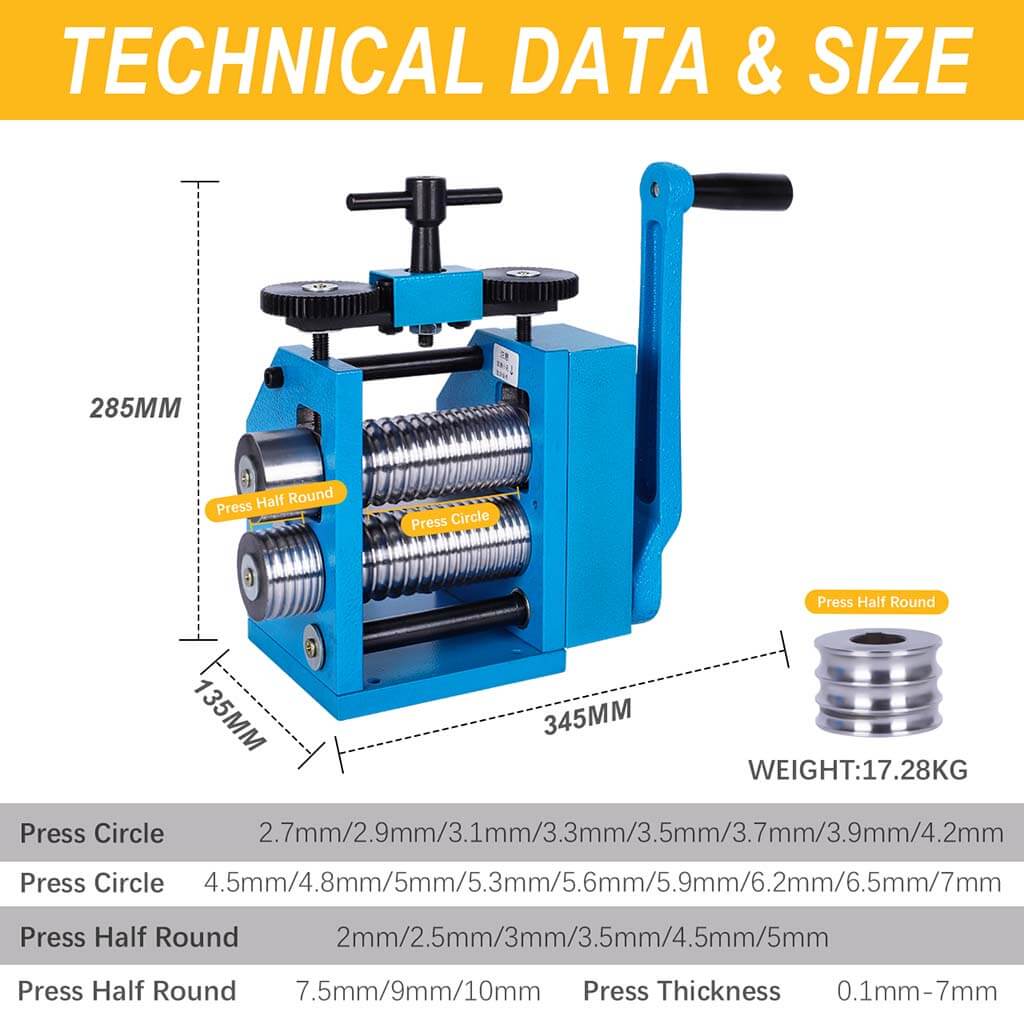

Technical Specifications
| Gear Ratio | 1:2.5 |
| Press Thickness Range | 0.1–7mm |

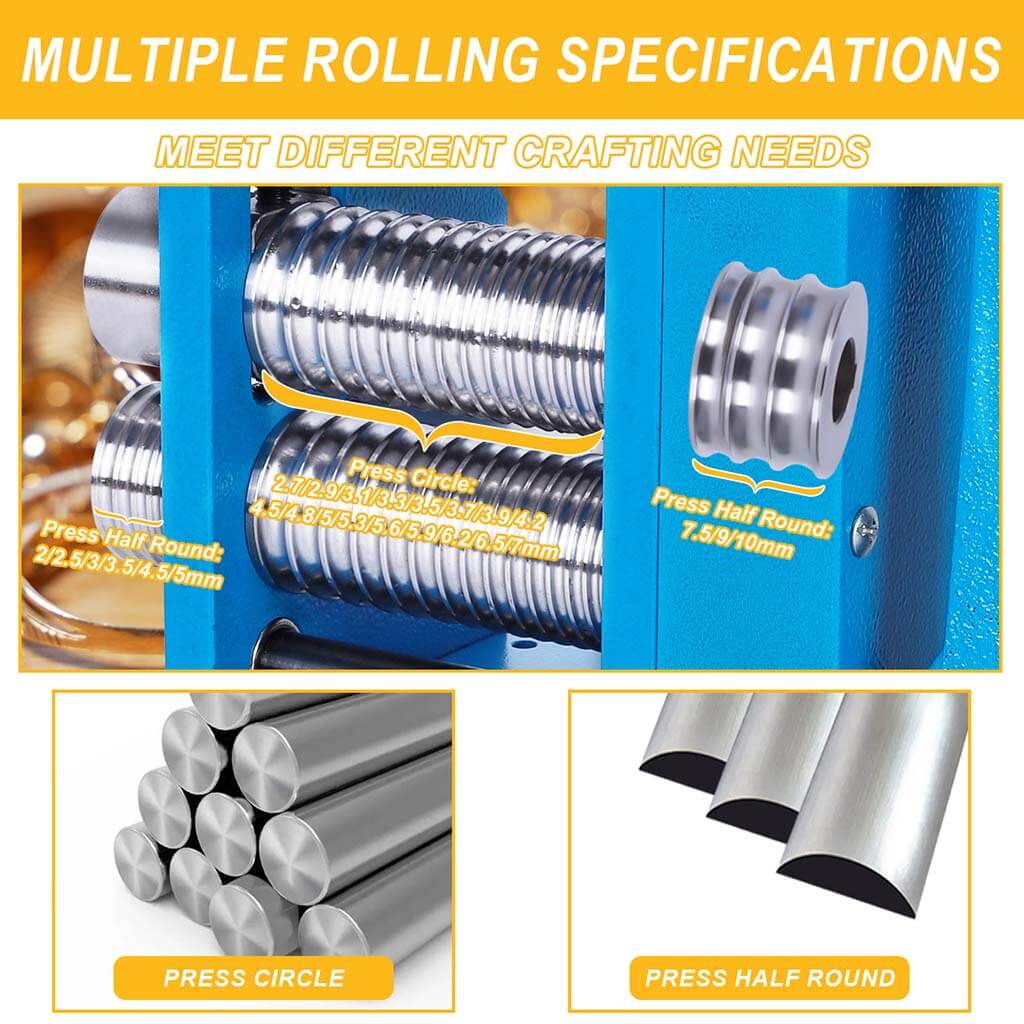

| Round Wire Grooves | 2.7 / 2.9 / 3.1 / 3.3 / 3.5 / 3.7 / 3.9 / 4.2 / 4.5 / 4.8 / 5.0 / 5.3 / 5.6 / 5.9 / 6.2 / 6.5 / 7.0 mm |
| Half-Round Grooves (Large) | 7.5 / 9.0 / 10.0 mm |
| Half-Round Grooves (Small) | 2.0 / 2.5 / 3.0 / 3.5 / 4.5 / 5.0 mm |
| Frame Material | Cast Iron with Blue Powder Coating |
| Roller Material | Chrome Steel (Forged) |
| Machine Dimensions | 345 × 135 × 285 mm / 13.6 × 5.3 × 11.2 in |
| Machine Weight | 17.28 kg / 38.1 lb |
| Operation | Manual (hand-operated, no power required) |
| Suitable Metals | Gold, silver, copper, brass and other non-ferrous metals |
Workshop Applications
| Application | Description |
|---|---|
| Sheet Metal Reduction | Reduce gold, silver or copper sheet to precise thickness for rings, pendants and earrings |
| Wire Forming | Form round and half-round wire in multiple sizes using the interchangeable groove rollers |
| Texture Transfer | Roll textures and patterns into sheet metal for decorative jewelry surfaces |
| Metal Hardening | Work-harden annealed metal through repeated rolling passes |
Pro Tips
- Anneal metal before rolling to reduce cracking and make each pass easier on the rollers.
- Reduce thickness gradually — no more than 10–15% per pass for best results and longer roller life.
- Keep rollers clean and lightly oiled to prevent surface marks on your metal.
- Mount the machine securely to a sturdy bench before use — the mounting holes allow fixed installation for stable operation.
Frequently Asked Questions
Can this rolling mill handle steel or iron?
No. This machine is designed for non-ferrous metals only — gold, silver, copper, brass and similar soft metals. Ferrous metals will damage the rollers.
What is the difference between this and an electric rolling mill?
This is a hand-operated manual rolling mill requiring no power. It is ideal for small batches and occasional use. For high-volume or frequent rolling, an electric rolling mill provides more consistent speed and less physical effort.
Can I change the rollers?
Yes. The rollers are interchangeable, allowing you to switch between flat rollers and wire groove rollers for different forming tasks.
What is the minimum thickness I can roll to?
The press thickness adjusts down to 0.1mm, suitable for very thin sheet metal work.
Does it need to be bolted to a bench?
It is strongly recommended. The machine has mounting holes for bench installation. Securing it prevents movement during rolling and improves accuracy and safety.

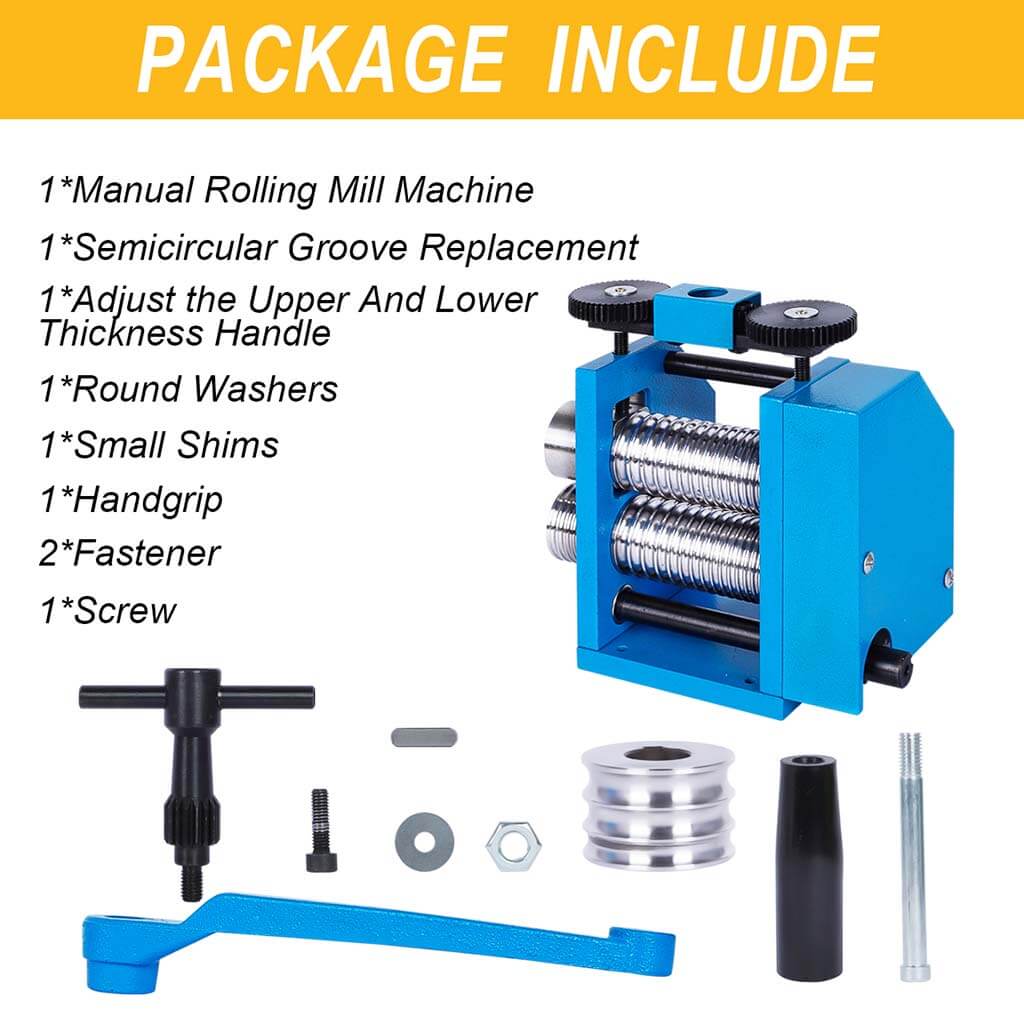

What is included in the package?
1 x Manual Jewelry Rolling Mill Machine and 1 x Semicircular Groove Roller Replacement. The silver cloth, silver bar and agate knife shown in some images are accessories for metal finishing and may not be included — contact sales@tooltos.com to confirm current package contents.
What's Included
- 1 x Tooltos 2-in-1 Manual Jewelry Rolling Mill Machine
- 1 x Semicircular Groove Roller Replacement
Support
For technical questions or order support, contact the Tooltos team at sales@tooltos.com. We typically respond within 24 hours.
