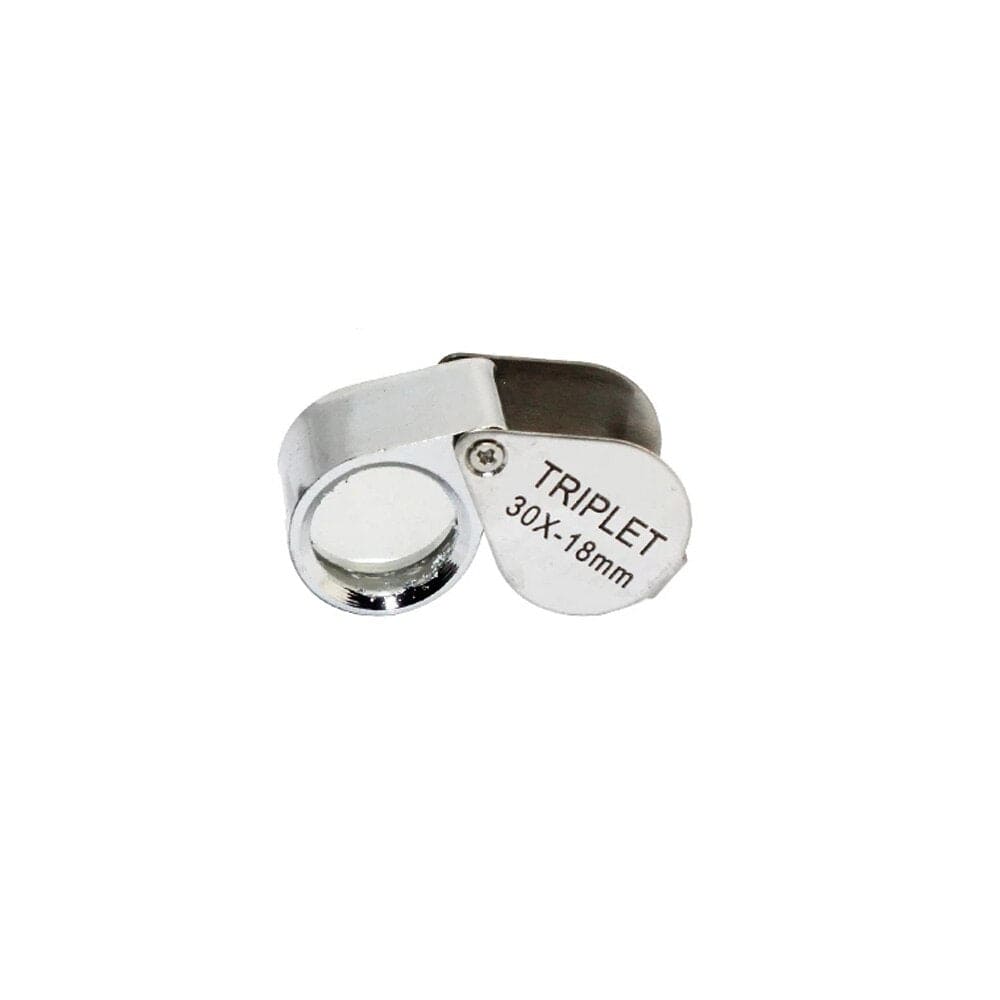

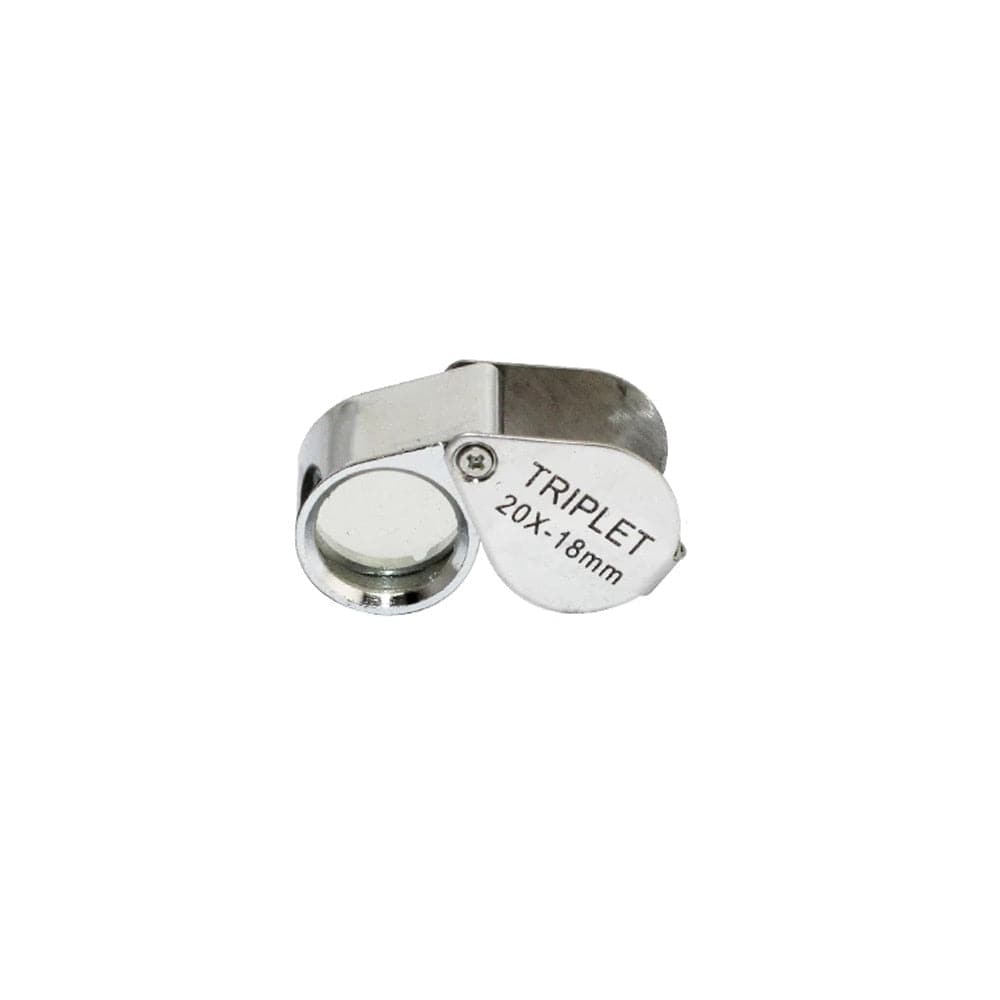

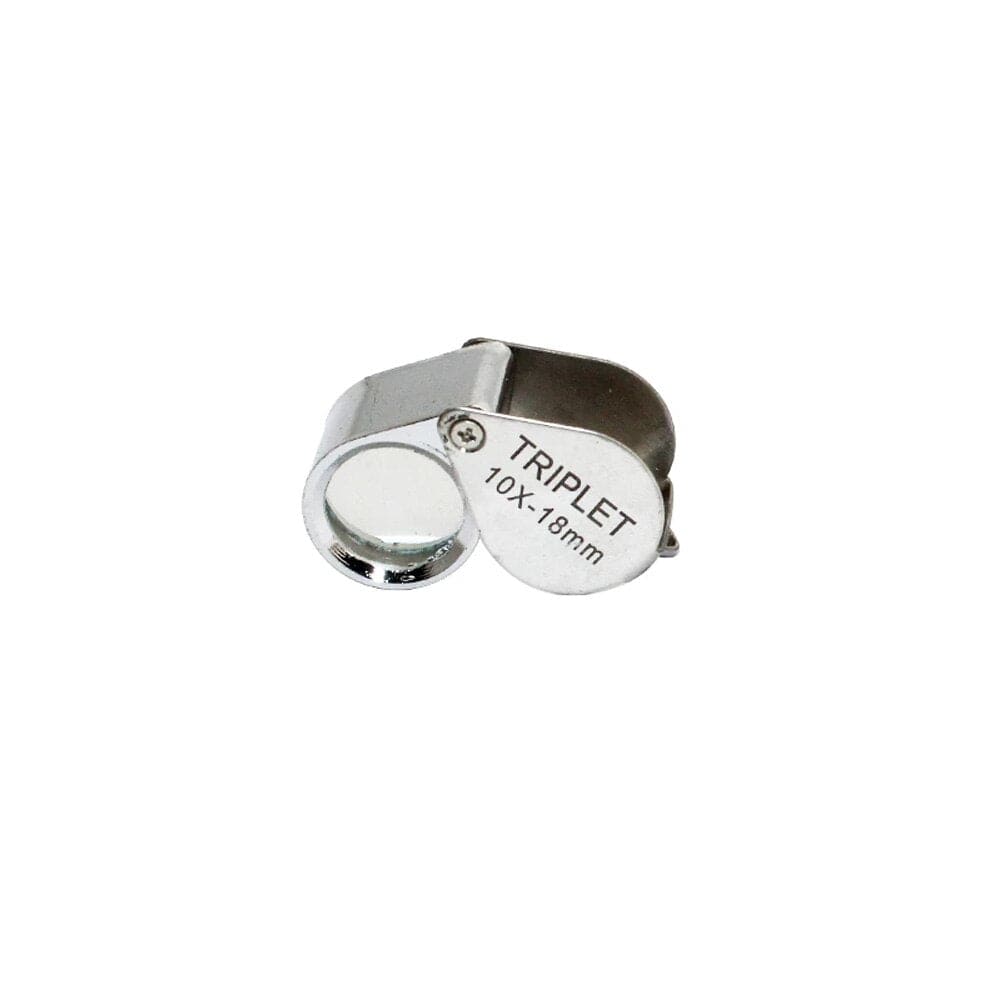

Tooltos Triplet Lens Loupe Magnifier with Case | 10X, 20X, or 30X, 18mm
- 88 in stock
Description
Key Selling Points
- Triplet lens construction uses three bonded optical elements to correct chromatic aberration and spherical distortion — produces a sharper, color-accurate image than single or doublet lens loupes at the same magnification
- Available in 10X, 20X, and 30X magnification with 18mm lens diameter — choose based on the level of detail your work requires
- Foldable design protects the lens when not in use and reduces the overall size for pocket or case storage

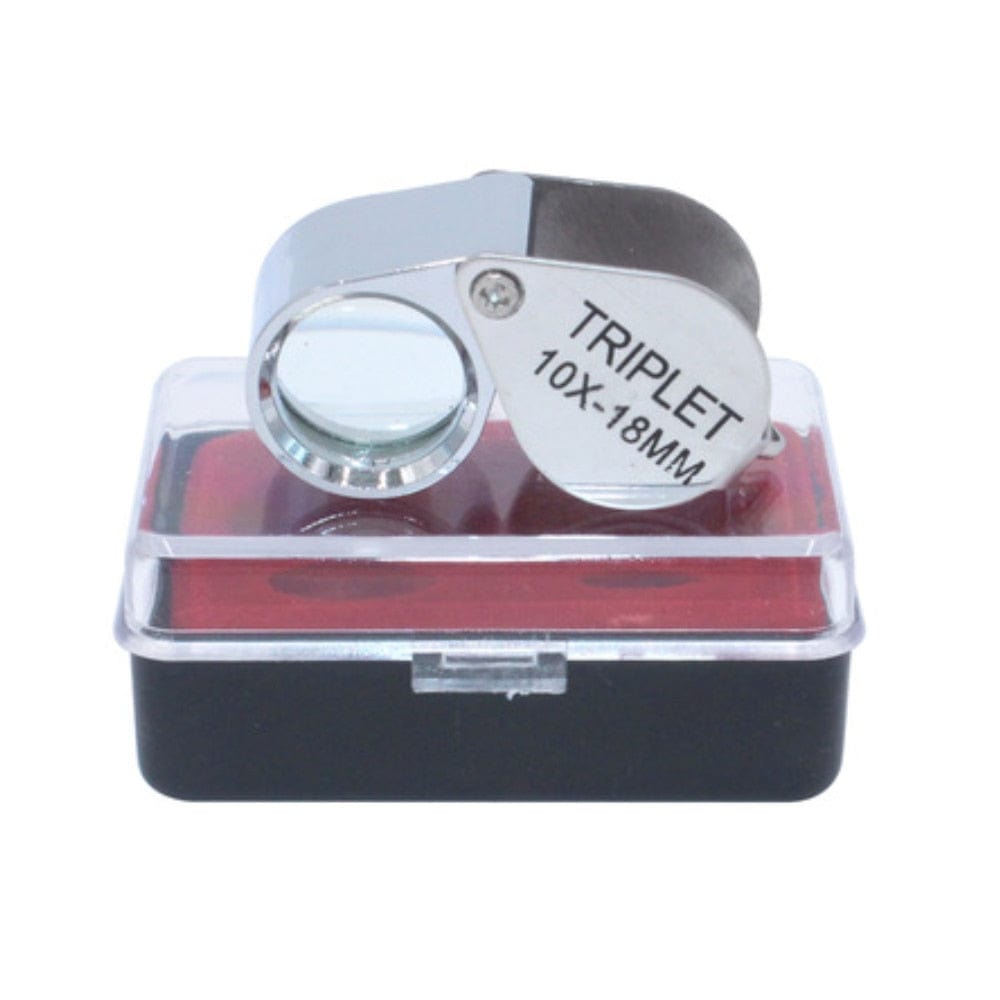

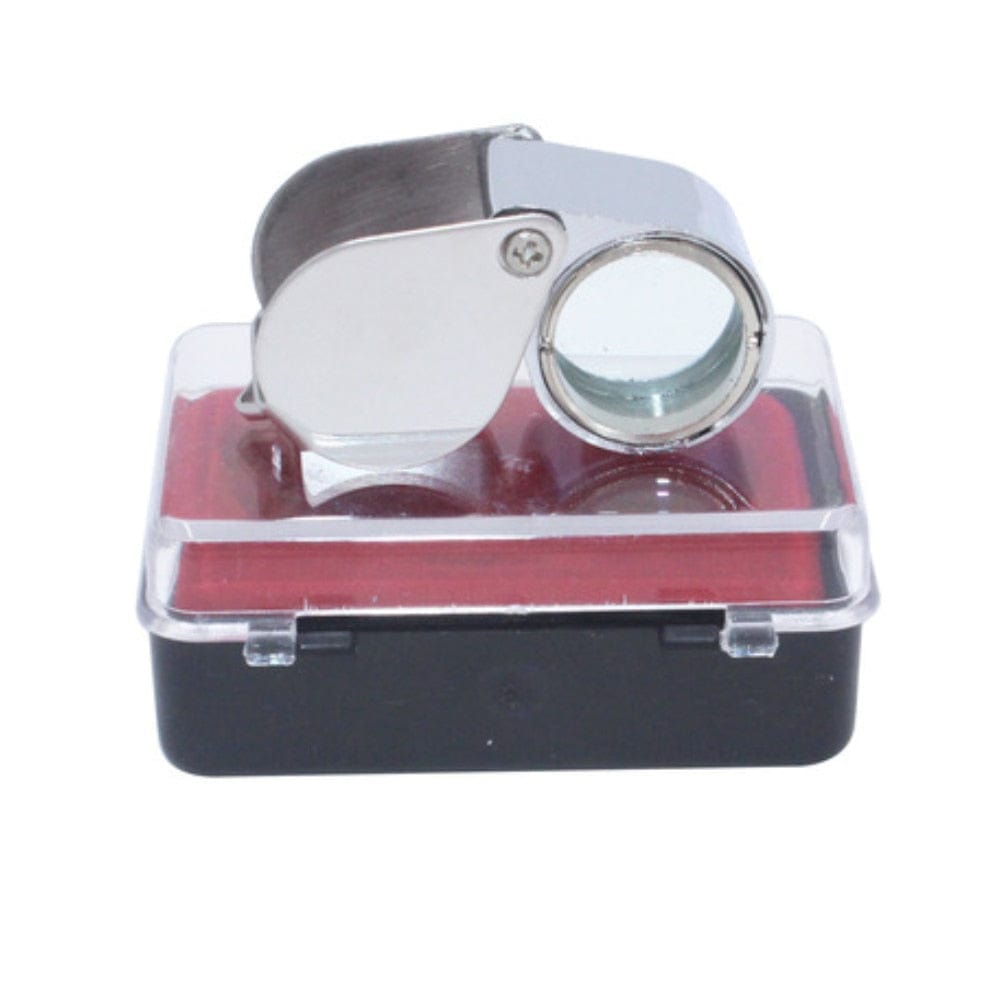

- Includes a carrying case — protects the lens from scratches and dust during transport and storage
- Lightweight at approximately 45g — comfortable for extended use during jewelry inspection, gemstone grading, and watch repair sessions
About This Loupe
A triplet lens loupe is the standard magnification tool used by professional jewelers, gemologists, and watch repair technicians. The triplet construction — three optical elements bonded together — corrects the color fringing and edge distortion that single-lens loupes produce at higher magnifications. The result is a flat, sharp image across the full field of view, which matters when you are examining inclusions in a gemstone, checking hallmarks on a piece of jewelry, or inspecting fine watch components.
The 10X magnification is the standard for gemstone grading and jewelry appraisal — it is the magnification specified by the GIA for grading diamond clarity. The 20X and 30X options provide higher magnification for more detailed inspection work, though the field of view narrows as magnification increases. All three versions use the same 18mm lens diameter and foldable body design.
Choosing Your Magnification
| Magnification | Best For | Typical Use |
|---|---|---|
| 10X | Gemstone grading, jewelry appraisal, hallmark inspection | GIA standard for diamond clarity grading |
| 20X | Detailed inclusion examination, fine engraving inspection | Watch component inspection, coin and stamp examination |
| 30X | Maximum detail inspection, surface defect analysis | Fine surface finish inspection, antique authentication |
Best For / Not For
| Best For | Not For |
|---|---|
| Jewelers and gemologists inspecting gemstones, inclusions, and hallmarks | Hands-free magnification — this is a handheld loupe requiring one hand to hold |
| Watch repair technicians inspecting fine movement components | Extended reading or document work — designed for short-duration close inspection, not prolonged reading |
| Coin, stamp, and antique appraisers needing portable, high-quality magnification | Very high magnification at 30X narrows the field of view significantly — if you need a wider view, choose 10X or 20X |
Technical Specifications
| Lens Type | Triplet (three bonded optical elements) |
| Magnification Options | 10X, 20X, 30X (select at checkout) |
| Lens Diameter | 18mm |
| Body Design | Foldable |
| Weight | Approx. 45g (1.6 oz) |
Pro Tips
- Hold the loupe close to your eye and bring the object toward the lens until it comes into focus — this is the correct technique for a jeweler's loupe and gives a wider, clearer field of view than holding the loupe at arm's length.
- Use good lighting when inspecting gemstones — a bright, diffuse light source positioned to illuminate the stone from the side reveals inclusions more clearly than overhead lighting.
- Clean the lens with a soft, lint-free cloth before use — fingerprints and dust on the lens reduce image clarity significantly at higher magnifications.
- Store the loupe in the included carrying case when not in use — the lens surface scratches easily if left loose in a tool drawer or pocket.
Frequently Asked Questions
What is a triplet lens and why does it matter?
A triplet lens uses three bonded optical elements rather than a single lens. The multi-element construction corrects chromatic aberration (color fringing at edges) and spherical distortion that single-lens loupes produce, especially at higher magnifications. The result is a sharper, flatter, more color-accurate image across the full field of view.
Which magnification should I choose?
10X is the standard for gemstone grading and jewelry appraisal — it is the magnification specified by the GIA for diamond clarity grading. Choose 20X or 30X if you need to examine finer detail, but note that higher magnification narrows the field of view and requires steadier hands to use effectively.
Is this suitable for reading or general use?
This loupe is designed for short-duration close inspection of small objects such as gemstones, jewelry, coins, and watch components. It is not designed for extended reading or document work.
What if I have questions after receiving the loupe?
Contact the Tooltos team at sales@tooltos.com. We respond within 24 hours on business days.
What's Included
- 1 x Triplet lens loupe magnifier (10X, 20X, or 30X as selected)
- 1 x Carrying case
