Tooltos 130mm Manual Jewelry Rolling Mill 4:1 Gear Ratio
- 99 in stock
Description
Product Overview
The Tooltos 130mm Manual Jewelry Rolling Mill is designed for jewelers, goldsmiths, metal artists, and professional craftsmen who require precise and reliable metal forming equipment for jewelry fabrication and small-scale metalworking.
Featuring a 4:1 gear ratio, 130mm wide steel rollers, and 65mm diameter rollers, this rolling mill provides smooth manual operation and consistent pressure control for flattening metal sheets, preparing strips, and adjusting material thickness.
Available in Black and Silver finishes, both versions share the same specifications, structure, and rolling performance, making it suitable for different workshop styles and personal preferences.

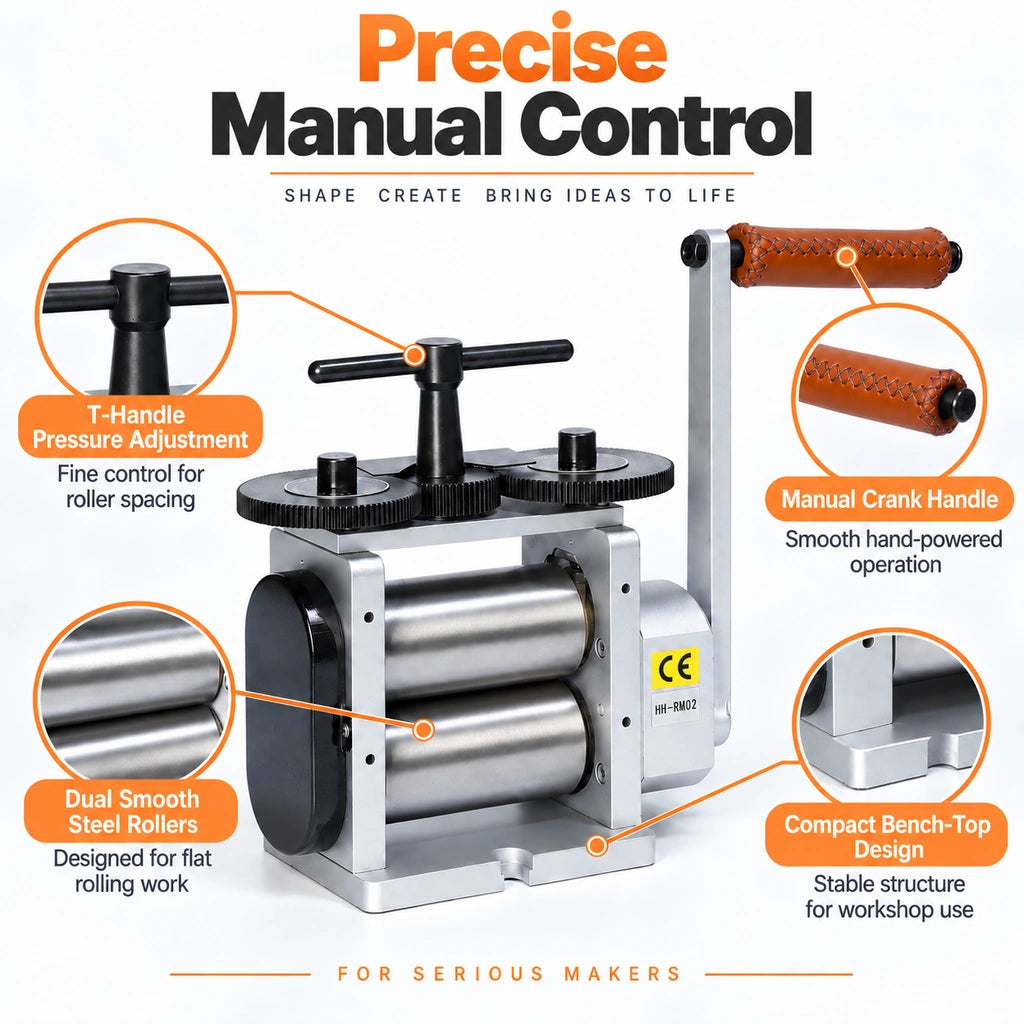

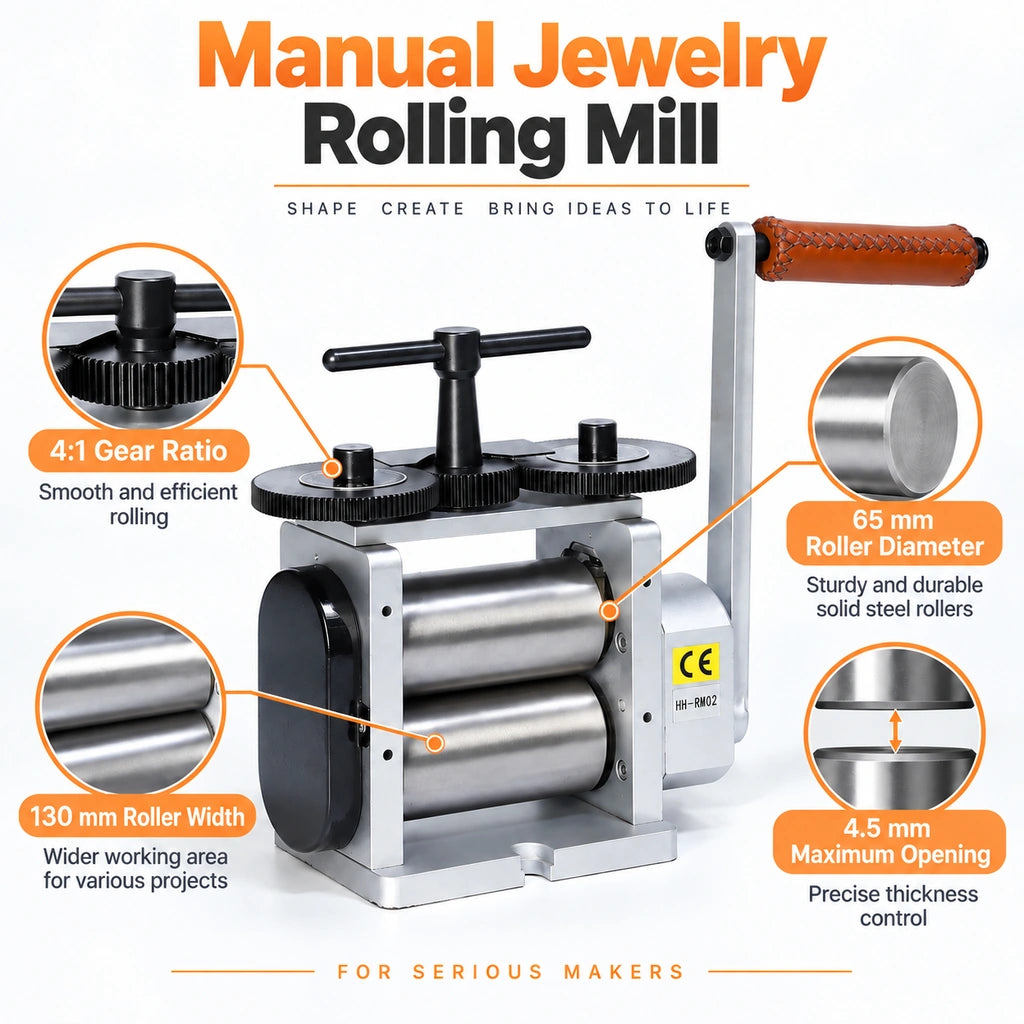

Key Features
4:1 Gear Ratio for Smooth Power Transmission
The integrated 4:1 gear ratio system provides efficient mechanical advantage during manual operation, helping users apply steady rolling pressure with reduced effort for smoother and more controlled metal forming.
130mm Wide Rolling Area
The 130mm wide steel rollers provide a larger working surface for preparing metal sheets and flat strips, allowing users to process various jewelry materials while maintaining consistent thickness across the working area.
65mm Hardened Steel Rollers
The large 65mm diameter steel rollers provide a stable and durable rolling surface with a smooth finish that supports consistent material contact and uniform results during repeated jewelry making operations.
Adjustable Roller Opening 0.1–4.5mm
The roller gap adjusts from 0.1mm to 4.5mm, giving users precise control over material thickness for sheets, strips, and other flat metal components across different project requirements.
Ergonomic Leather-Wrapped Crank Handle
The manual crank handle features a comfortable leather-wrapped grip designed for improved handling and better control while manually feeding materials through the rollers during extended operation.
Available in Black and Silver Finishes
Both the Black and Silver versions feature the same professional structure, specifications, and rolling performance, allowing users to choose the appearance that best fits their workspace.
Stable Benchtop Construction
The compact solid metal frame is designed for jewelry benches and workshop environments, providing stability with minimal footprint while maintaining reliable performance during manual rolling operations.

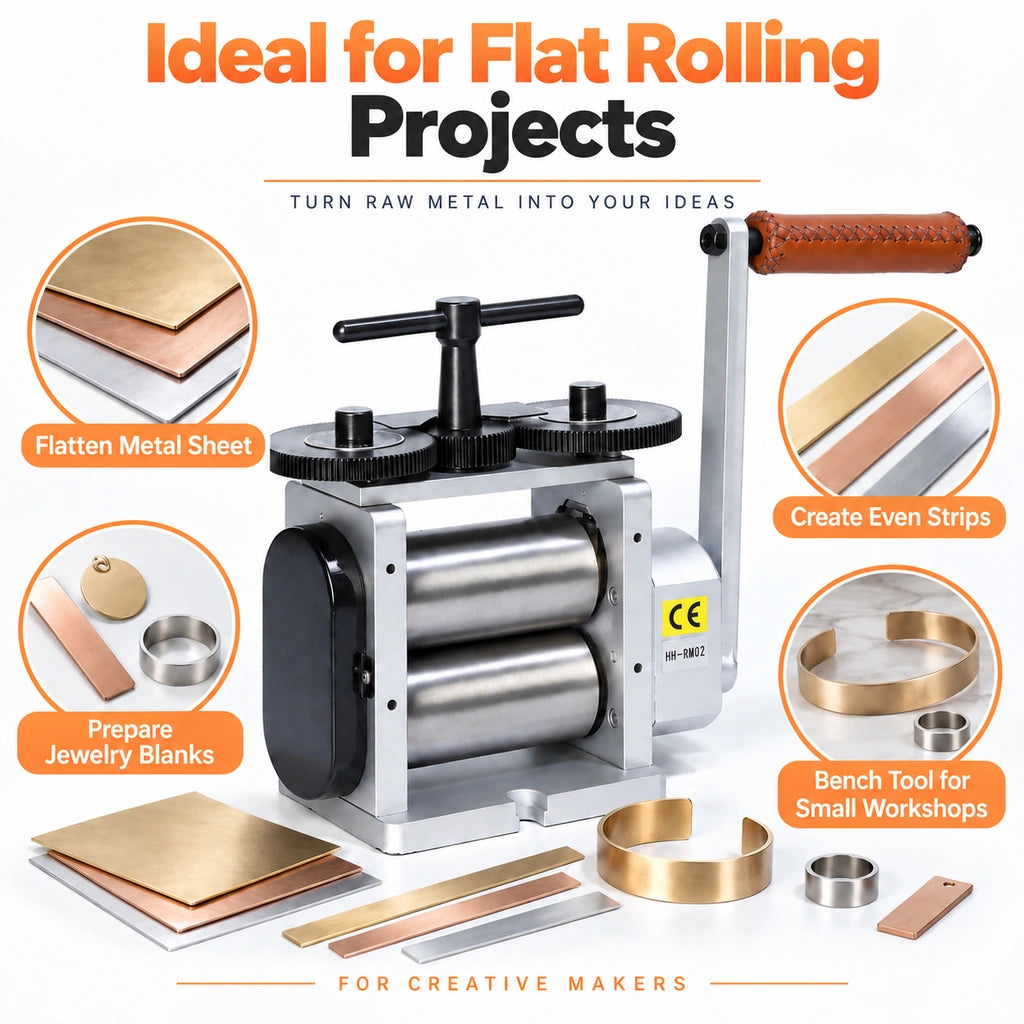

Suitable Applications
- Jewelry sheet preparation and metal thickness reduction
- Goldsmith and silversmith fabrication
- Copper and brass forming
- Bracelet and pendant strip preparation
- Handmade jewelry projects and repair workshops
- Small metalworking studios and craft applications
Important Function Clarification
This rolling mill is designed for manual metal forming and jewelry fabrication. It is not intended for:
- Electric or motorized operation — this is a manual hand crank model only
- Heavy industrial or high-volume production use
- Wire drawing or patterned rolling without appropriate accessories
- Processing extremely hard or oversized metal stock

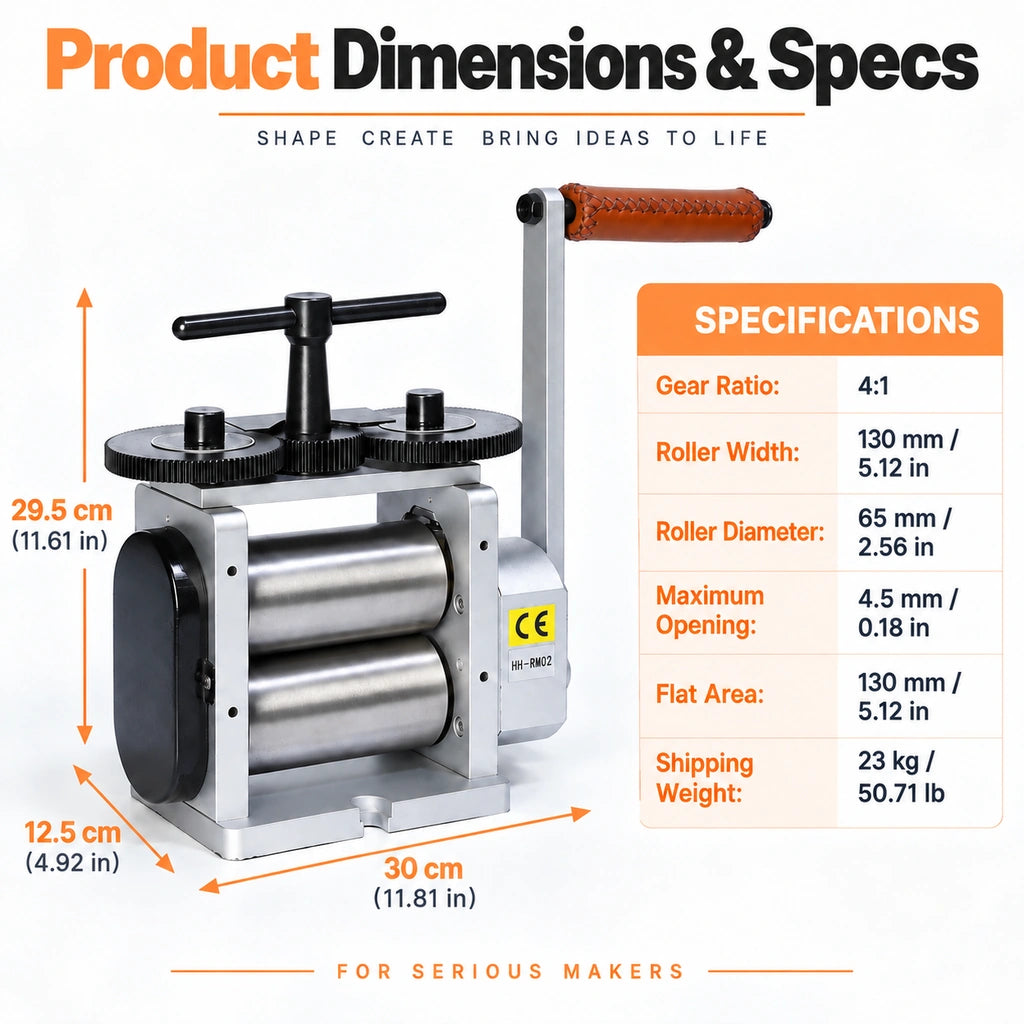

Technical Specifications
| Specification | Details |
|---|---|
| Gear Ratio | 4:1 |
| Roller Width | 130 mm / 5.12 in |
| Roller Diameter | 65 mm / 2.56 in |
| Maximum Opening | 0.1–4.5 mm / 0–0.18 in |
| Product Dimensions | 30 × 12.5 × 29.5 cm / 11.81 × 4.92 × 11.61 in |
| Shipping Dimensions | 34 × 33.5 × 20 cm / 13.39 × 13.19 × 7.87 in |
| Shipping Weight | 23 kg / 50.71 lb |
| Operation Type | Manual Hand Crank |
| Roller Material | Steel |
| Handle Type | Leather-Wrapped Hand Crank |
| Available Colors | Black / Silver |
Package Contents
- 1 × Tooltos 130mm Manual Jewelry Rolling Mill
- 1 × Leather-Wrapped Hand Crank Handle
Note: Only the items listed above are included. Metal materials, jewelry pieces, and other accessories shown in product images are for demonstration purposes only and are not included.
130mm vs 110mm Model — Which Should You Choose?
We offer two roller width options. Use this comparison to find the best fit for your workshop.
| Feature | 110mm Model | 130mm Model (This) |
|---|---|---|
| Roller Width | 110 mm | 130 mm |
| Roller Diameter | 55 mm | 65 mm |
| Maximum Opening | 0.1–4 mm | 0.1–4.5 mm |
| Roller Sets Included | Flat sheet only | Flat sheet only |
| Machine Weight | 18.5 kg | 23 kg |
| Best For | Standard studio work, compact workspaces | Larger sheet work, higher volume, professional bench |

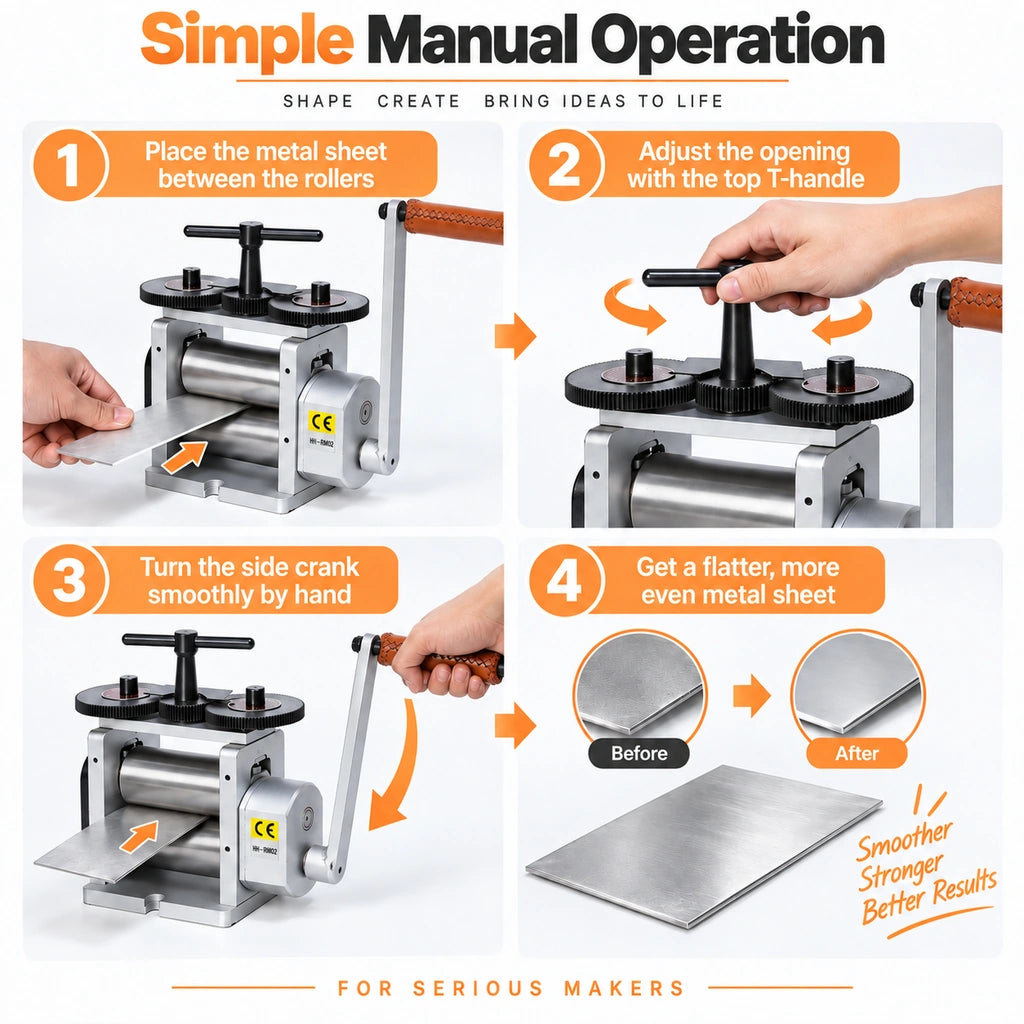

Basic Operating Steps
- Place the rolling mill on a stable, level workbench and secure if needed.
- Adjust the roller gap using the adjustment knob to match the desired starting thickness.
- Insert the metal sheet or strip between the rollers.
- Turn the crank handle smoothly to feed the material through the rollers.
- Re-adjust the roller gap and repeat as needed to reach the target thickness.
- Clean the roller surfaces and store the mill properly after use.
Safety Information
- Always place the rolling mill on a stable, vibration-free workbench before use.
- Keep fingers clear of the roller gap area during operation.
- Do not exceed the maximum roller opening or force oversized materials through the rollers.
- Inspect the equipment for damage before each use.
- Keep the roller surfaces clean and lightly lubricated to maintain smooth operation.
- Store in a dry, clean environment when not in use.
Frequently Asked Questions
What can this jewelry rolling mill be used for?
It is designed for flattening metal sheets, preparing strips, and adjusting metal thickness during jewelry fabrication and small-scale metalworking.
Is this rolling mill electric?
No. This is a manual hand crank model and does not require electrical power.
What is the maximum roller opening?
The roller opening ranges from 0.1mm to 4.5mm (0 to 0.18 inches).
What is the roller width?
The roller width is 130mm (5.12 inches).
What colors are available?
Available in Black and Silver finishes. Both versions have the same specifications, functions, and performance.
Are the Black and Silver versions different?
No. The only difference is the exterior finish. Both versions use the same rolling structure, components, and specifications.
What metals can be rolled?
Suitable for common jewelry and craft metals including gold, silver, copper, and brass, depending on material hardness and thickness.
