Tooltos 3-in-1 Manual Jewelry Rolling Mill | 76mm Sheet 0.1-7mm 1:2.5 Gear
- 98 in stock
Description
Key Selling Points
- 3-in-1 Rolling Capability — Flat sheet (up to 76mm wide), square wire (7 sizes) and half-round wire (9 sizes) in one machine with interchangeable rollers
- 0.1-7mm Thickness Range — Wide opening accommodates thicker starting stock and fine gauge reduction down to 0.1mm
- 1:2.5 Gear Ratio — One roller turn per 2.5 handle turns, reducing the force required for each rolling pass
- 76mm Sheet Capacity — Wider flat rolling surface than standard models; suitable for bangles, cuffs and wider sheet stock
- Cast Iron Frame and Forged Chrome Steel Rollers — Heavy-duty construction with powder-coat finish for rigidity, corrosion resistance and long service life
- Texture Transfer Ready — Flat rollers accept texture sheets for pattern pressing directly into annealed metal
- Manual Operation — No electricity required; hand crank gives full control over rolling speed and pressure
About This Rolling Mill

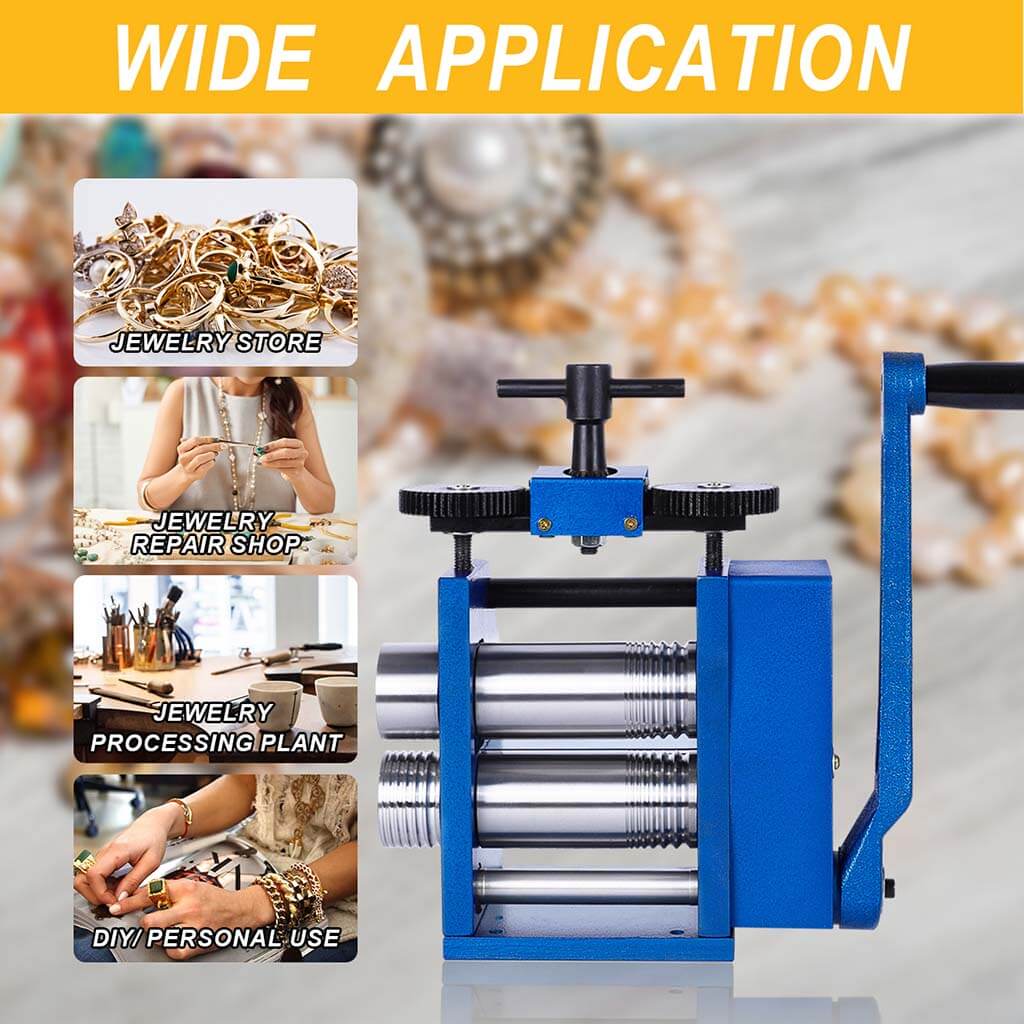

The Tooltos 3-in-1 Manual Jewelry Rolling Mill handles flat sheet, square wire and half-round wire in a single cast iron frame. The 76mm flat sheet capacity is wider than standard models, making it suitable for bangles, cuffs and wider sheet preparation. The 1:2.5 gear ratio reduces handle effort for each pass, and the 0.1-7mm opening accommodates a wide range of starting stock thicknesses. Suitable for goldsmiths, silversmiths, jewelry students and studio bench jewelers working with gold, silver, copper, brass and other non-ferrous metals.
Tooltos Manual Rolling Mill Comparison
| Feature | 3-in-1 76mm — This Model | 4-in-1 40mm | 2-in-1 112mm |
|---|---|---|---|
| Sheet width | 76mm | 40mm | 112mm |
| Wire profiles | Square + Half-Round | Round + Square + Half-Round | Half-Round only |
| Max opening | 7mm | 7mm | 7mm |
| Gear ratio | 1:2.5 | 1:2.5 | 1:2.5 |
| Best for | Wider sheet + square and half-round wire | Most wire profiles including round wire | Widest sheet work |
Best For / Not For
| Best For | Not For |
|---|---|
| Flat sheet rolling up to 76mm wide for bangles, cuffs, and sheet stock | Steel or hardened metals — will damage the rollers |
| Square wire forming in 7 sizes (1-6mm) | Round wire drawing — requires the 4-in-1 model which includes round wire grooves |
| Half-round wire forming in 9 sizes (2-10mm) | Sheet wider than 76mm — use the 2-in-1 112mm model for wider sheet work |
| Texture transfer and pattern pressing into annealed sheet metal | High-volume continuous production — this is a manual studio tool |
| Gold, silver, copper, brass, and bronze in jewelry studios and goldsmith workshops | Use without secure bench mounting — must be bolted to a stable workbench before use |
Technical Specifications
| Gear Ratio | 1:2.5 |
| Thickness Range | 0.1 - 7mm (0.004 - 0.28 in) |
| Sheet Capacity | 1 - 76mm wide (up to 3.0 in) |
| Square Wire Sizes | 1, 1.5, 2.5, 3, 4, 5, 6mm (7 sizes) |
| Half-Round Wire Sizes | 2, 2.5, 3, 3.5, 4.5, 5, 7.5, 9, 10mm (9 sizes) |
| Frame Material | Cast iron with powder-coat finish |
| Roller Material | Forged chrome steel |
| Overall Dimensions | 355 x 135 x 295mm (14.0 x 5.3 x 11.6 in) |
| Weight | 17.3kg (38.1 lb) |
| Power Required | None — fully manual |
| Compatible Metals | Gold, silver, copper, brass, bronze and non-ferrous alloys |
Pro Tips
- Anneal metal before rolling and between passes to prevent cracking, especially for multiple thickness reductions.
- Reduce by no more than 0.5mm per pass on precious metals for best surface quality and longer roller life.
- Apply light machine oil to rollers before and after use to reduce friction and extend roller life.
- Mount the machine securely to a sturdy bench — the mounting holes allow fixed installation for stable, accurate rolling.
- For texture transfer, place annealed metal and a texture sheet between the flat rollers and make a single slow pass.
- Always roll metal in the same direction as the previous pass to avoid surface distortion.
Frequently Asked Questions
What metals can this rolling mill handle?
Gold, silver, copper, brass and bronze. Not recommended for hardened steel or titanium — these will damage the rollers.
Can this mill roll round wire?
No. This model handles flat sheet, square wire and half-round wire. For round wire rolling, the Tooltos 4-in-1 model includes round wire grooves.
What is the maximum sheet width?
Up to 76mm (3.0 in) wide. For wider sheet work, the 112mm 2-in-1 model supports up to 112mm sheet width.
Does it need to be bolted to a bench?
Strongly recommended. The 17.3kg (38.1 lb) frame must be securely mounted to a stable workbench for safe and accurate rolling.
Is a power source required?
No. This is a fully manual rolling mill operated by hand crank. No electricity is required.
How much can I reduce per pass?
Reduce by 0.5mm maximum per pass on precious metals. Gradual reduction produces better surface quality and prevents cracking.
Can I use it for texture pressing?
Yes. Place annealed metal and a texture sheet between the flat rollers and make a single slow pass to transfer the pattern.
What's Included
- 1 x Tooltos 3-in-1 manual jewelry rolling mill (main unit)
- 1 x Semicircular groove replacement roller set (9 sizes)
- 1 x T-shape precision adjustment bar
- 1 x Ergonomic handle
- 1 x Mounting hardware kit
