Tooltos Ceramic Welding Plate | 1200°C Quartz, 4 Styles
- 88 in stock
Description
Key Selling Points
- 1200°C Maximum Rating — Handles direct torch flame without cracking, warping, or degrading over repeated use.
- High-Purity Quartz Construction — Acid-resistant, fire-resistant, and non-flammable material built for professional workshop conditions.
- Elevated Leg Design — 4-leg or 6-leg support lifts the plate off the workbench, protecting surfaces from heat damage and allowing airflow underneath.

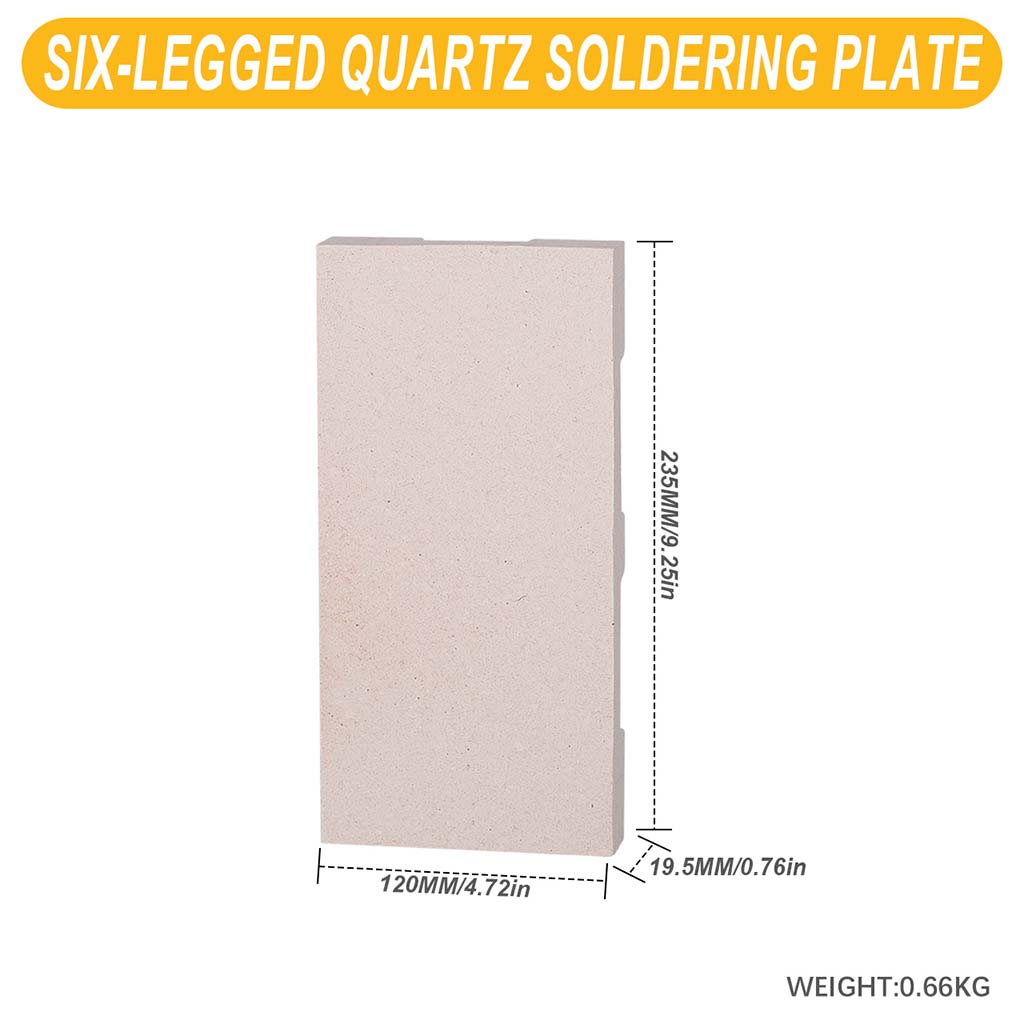

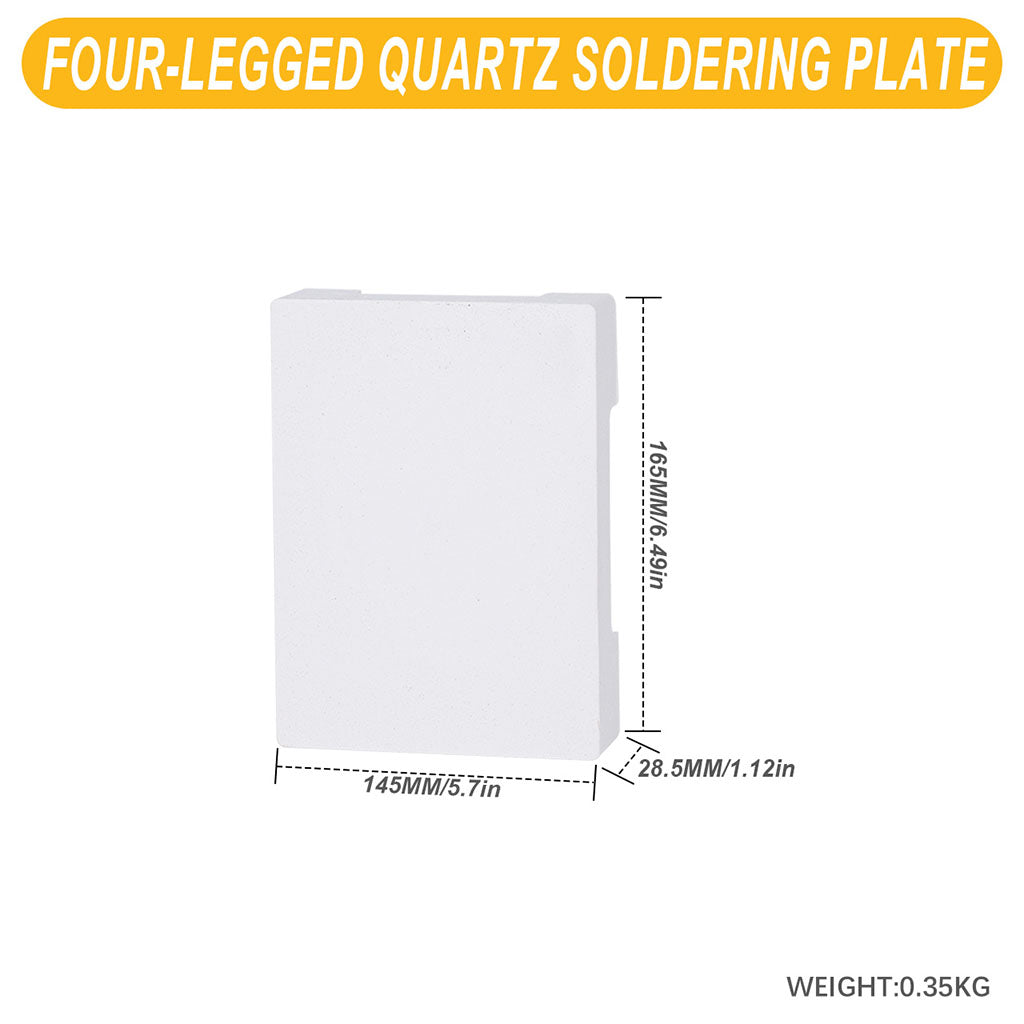

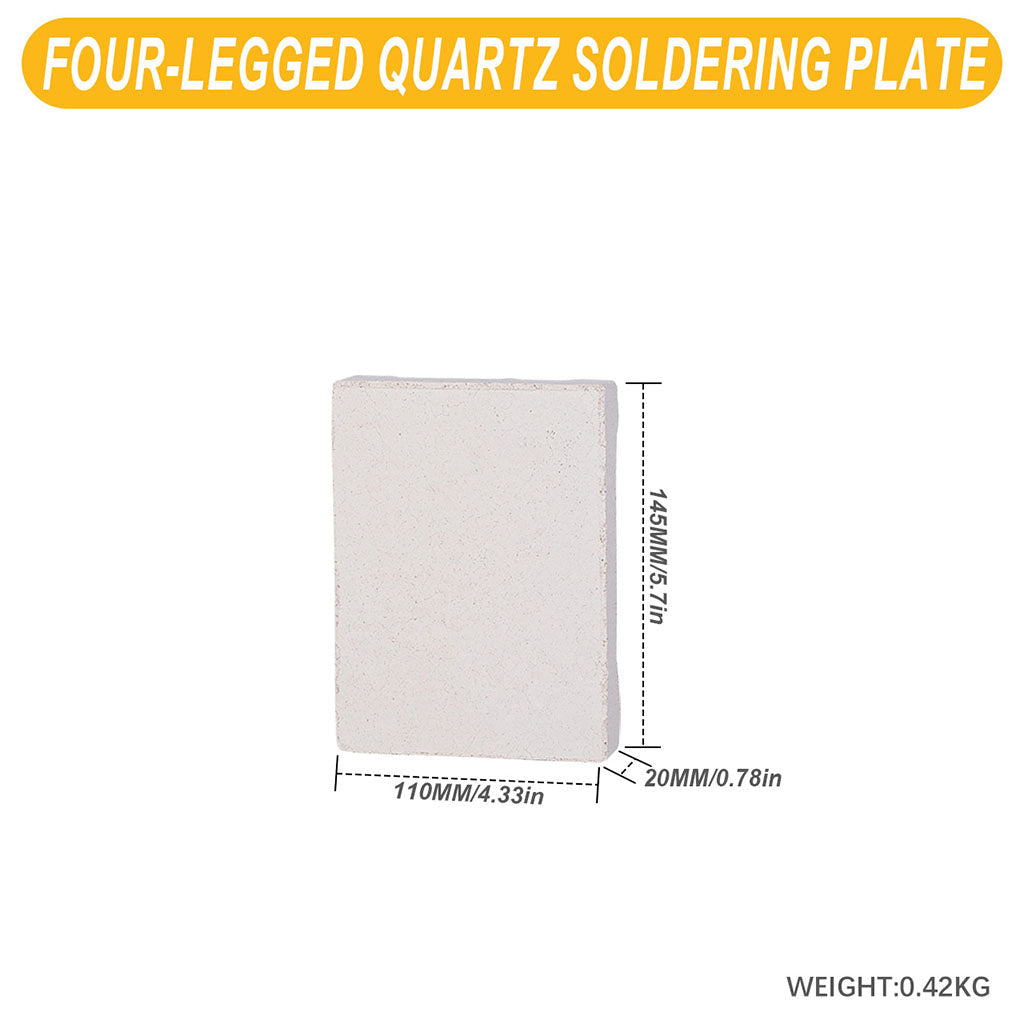

- Four Style Options — Choose Four-legged Small, Four-legged Large, Six-legged Small, or Six-legged Large to match your workpiece size and workflow.
- Workbench Protection — Safe for use on wooden and standard workbenches; the leg clearance prevents scorching and heat transfer.
- Easy Maintenance — Smooth quartz surface releases flux and metal residue with a wire brush after cooling.
About This Welding Plate

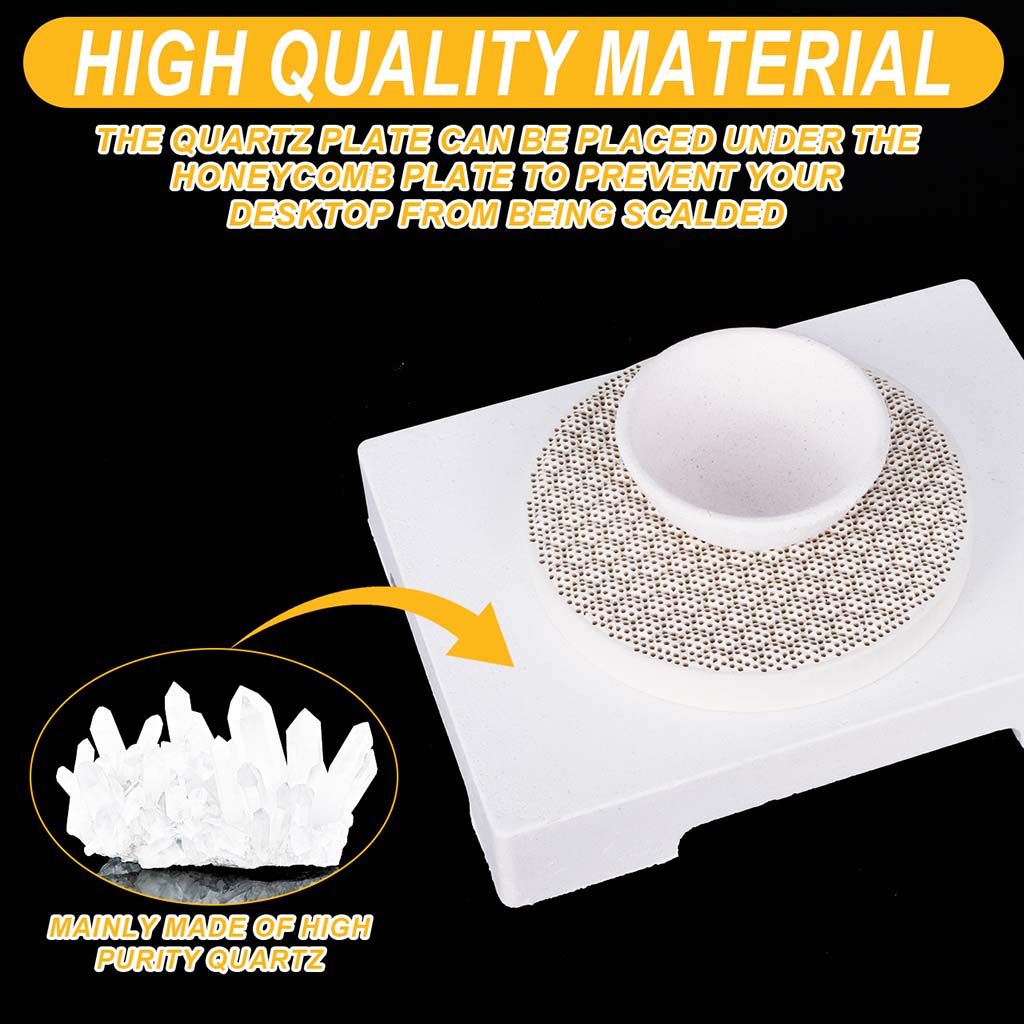

The Tooltos Square Ceramic Welding Plate is made from high-purity quartz processed using advanced ceramic technology. It provides a stable, heat-resistant work surface for jewelry soldering, gold and silver torch work, and high-temperature metalworking. The square shape gives you a consistent reference edge when positioning workpieces, and the elevated legs keep the plate clear of your bench surface at all times.

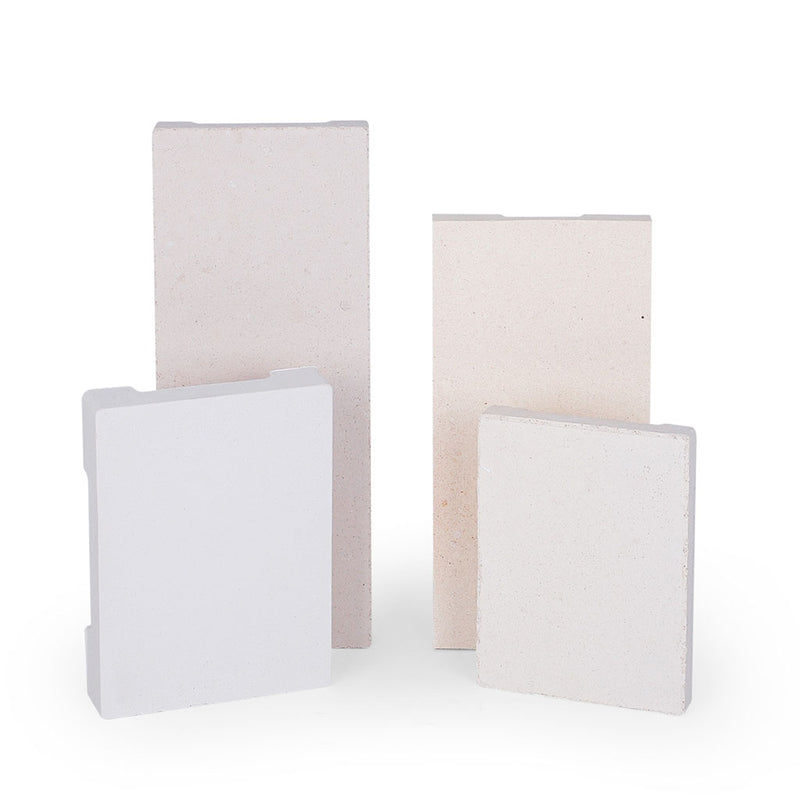

Available in four configurations — two leg counts (4-leg and 6-leg) and two sizes (small and large) — so you can match the plate to your typical workpiece dimensions and the amount of bench space you have available.
Style Selection Guide
| Style | Best For | Leg Count |
|---|---|---|
| Four-legged Small | Compact workspaces, small rings and pendants | 4 legs |
| Four-legged Large | Larger workpieces, bracelets and flat sheet work | 4 legs |
| Six-legged Small | Small pieces requiring extra stability | 6 legs |
| Six-legged Large | Heavy workpieces, production soldering sessions | 6 legs |
Best For / Not For
| Best For | Not For |
|---|---|
| Jewelry soldering with butane or propane torch | Quenching in water immediately after heating |
| Gold, silver, and copper torch work | Sustained temperatures above 1200°C |
| Protecting wooden workbenches from heat damage | Use as a casting mold or flask support (see Casting Supplies) |
| Professional jewelry studios and home workshops | Dropping or impact — ceramic will crack under mechanical shock |
Technical Specifications
| Material | High-Purity Quartz Ceramic |
| Maximum Temperature | 1200°C (2192°F) |
| Leg Options | 4-leg or 6-leg |
| Size Options | Small or Large |
| Properties | Acid-resistant, Fire-resistant, Non-flammable |
| Country of Origin | China |
Pro Tips
- Preheat gradually — Sweep the torch over a wide area first before concentrating heat on one spot. This prevents thermal shock cracking.
- Let it cool naturally — Never quench the plate in water after use. Allow it to cool to room temperature on its own.
- Rotate the plate — Rotating the plate between sessions distributes wear evenly and extends its service life.
- Clean after each session — Use a wire brush to remove flux and metal residue once the plate is fully cooled. Buildup can affect heat distribution over time.
- Choose large when in doubt — A larger plate gives you more repositioning room during complex soldering jobs and reduces the risk of accidentally heating the bench edge.
Frequently Asked Questions
What is the difference between 4-leg and 6-leg versions?
Both provide stable support. The 6-leg version distributes weight across more contact points, which is useful for heavier or irregularly shaped workpieces.
Can I use this with a butane micro torch?

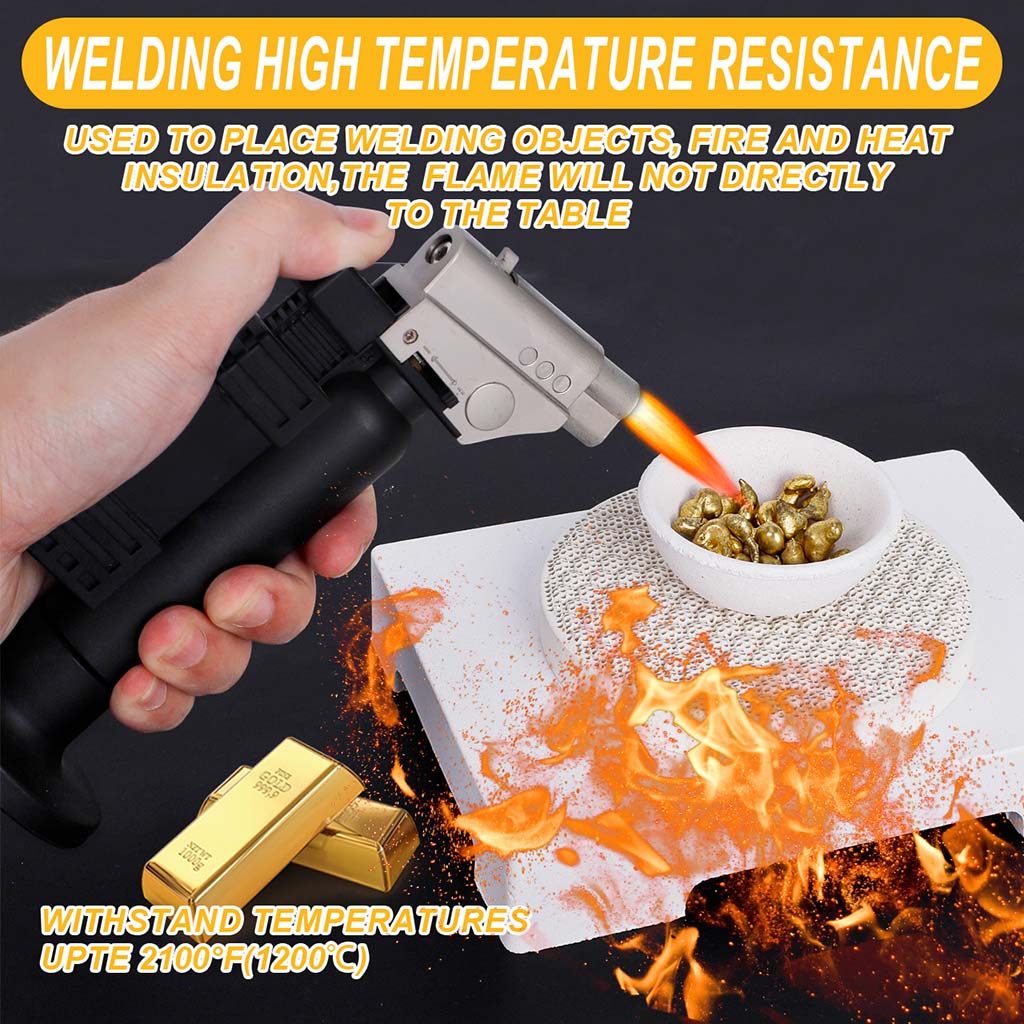

Yes. The plate works with butane, propane, and oxy-acetylene torches. It is rated for direct flame up to 1200°C.
Will it crack if I drop it?
Ceramic is brittle and will crack under mechanical impact. Handle with care and store it where it cannot fall or be knocked over.
Can I quench it in water to cool it faster?
No. Rapid cooling with water will cause thermal shock and crack the plate. Always allow it to cool naturally at room temperature.
Is this suitable for use as a casting flask support or mold?
No. This plate is designed as a flat soldering surface, not a casting support. For casting setups, see the Tooltos Casting Supplies range.
How do I contact Tooltos if I have a question about my order?
Email the Tooltos team at sales@tooltos.com. We respond within 24 hours on business days.
What's Included
- 1 x Square Ceramic Welding Plate (your selected style: Four-legged Small, Four-legged Large, Six-legged Small, or Six-legged Large)
Support
Questions about this welding plate or order status? Contact the Tooltos team at sales@tooltos.com. We respond within 24 hours on business days.
