Electric Micromotor for Jewelry Engraving and Polishing 35000 RPM
- 91 in stock
Description
Product Overview
Bring adjustable rotary control to your jewelry workbench with this 65W electric micromotor. Its carbon brush motor offers stepless speed adjustment from 0 to 35,000 RPM and forward and reverse rotation for compatible engraving, carving, and polishing tasks.
The control box, handpiece, and foot pedal switch provide the core equipment for a compact rotary setup. Select the voltage and Handpiece Size that match your power supply and tool-bit shanks.

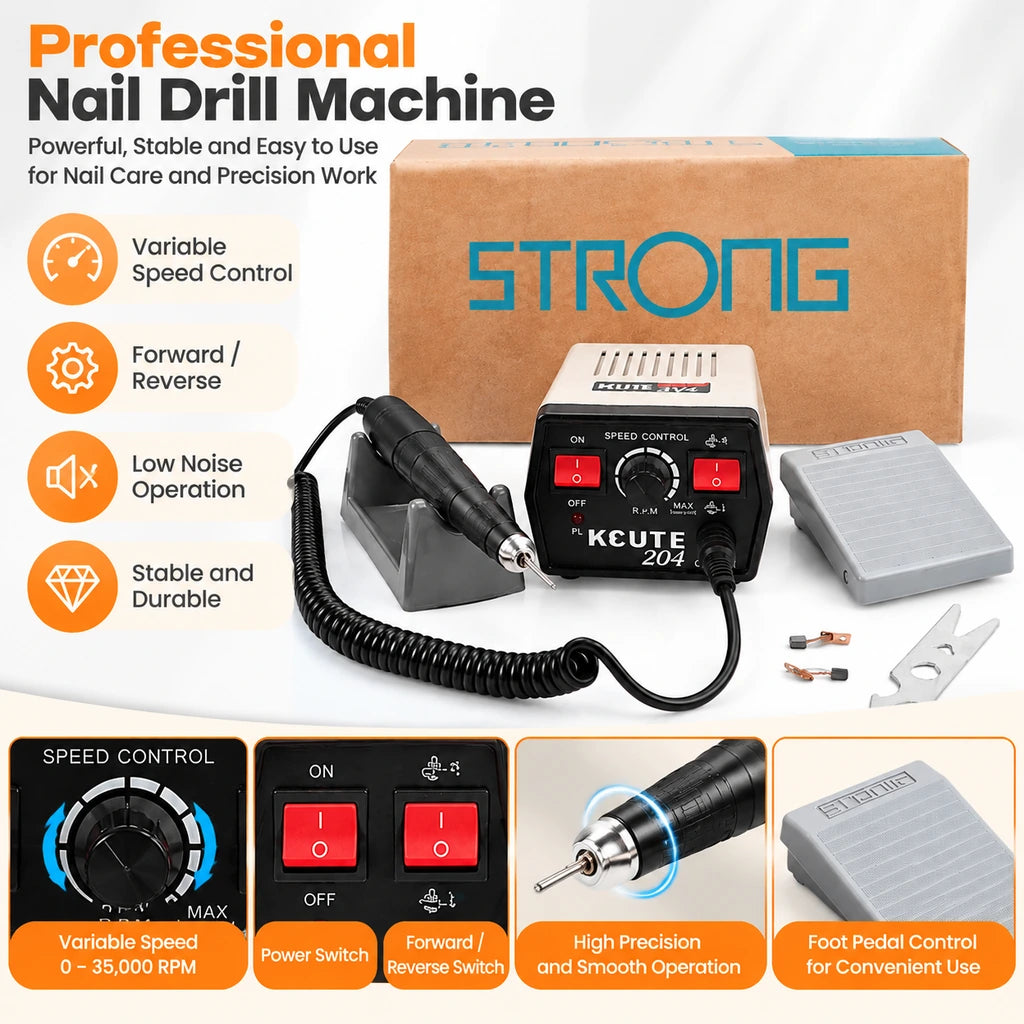

Key Features
Stepless Speed Adjustment
Adjust speed within the listed 0–35,000 RPM range to suit the operation. Use a speed appropriate to the material and the rotary accessory's rated limit.
Forward and Reverse Rotation
Selectable right and left rotation supports compatible rotary tasks. The unit also includes an on/off switch and a separate foot pedal switch.
Two Handpiece Size Options
Choose 2.35 mm or 3 mm. Handpiece Size identifies the supported tool-bit shank size, not the outside dimensions of the handpiece. Each selection is a separate configuration.
Suitable Applications
- Jewelry engraving and polishing with suitable rotary accessories
- Jade carving with compatible tools and appropriate material-handling precautions
- Workshop practice and small-part rotary work
Important Function Clarification
This micromotor drives compatible rotary accessories. Select the handpiece configuration to match your tool-bit shanks; one handpiece is not described as accepting both sizes. The included pedal is specified as a foot switch, not a confirmed variable-speed pedal. Finishing results depend on the accessory, material, speed, and technique.
Technical Specifications
| Motor | Carbon brush micromotor |
| Power | 65W |
| Speed | 0–35,000 RPM; stepless adjustment |
| Torque | 280 gf·cm |
| Rotation | Forward and reverse |
| Voltage options | 110V or 220V, selected when ordering |
| Handpiece Size | 2.35 mm or 3 mm tool-bit shank size, selected when ordering |
| Listed weight | 2.105 kg (approximately 4.64 lb) |
| Product dimensions | 130 × 100 × 88 mm (approximately 5.12 × 3.94 × 3.46 in) |
| Package dimensions | 320 × 193 × 114 mm (approximately 12.60 × 7.60 × 4.49 in) |

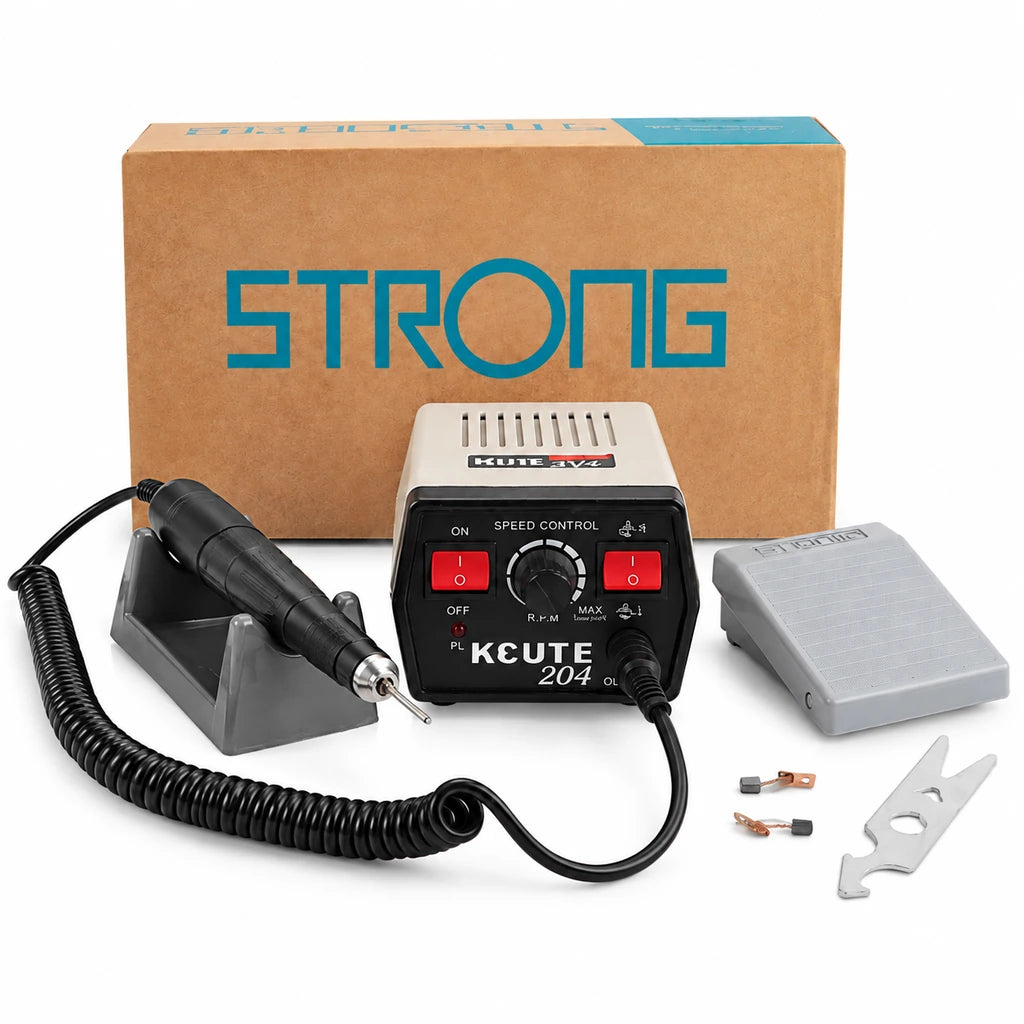

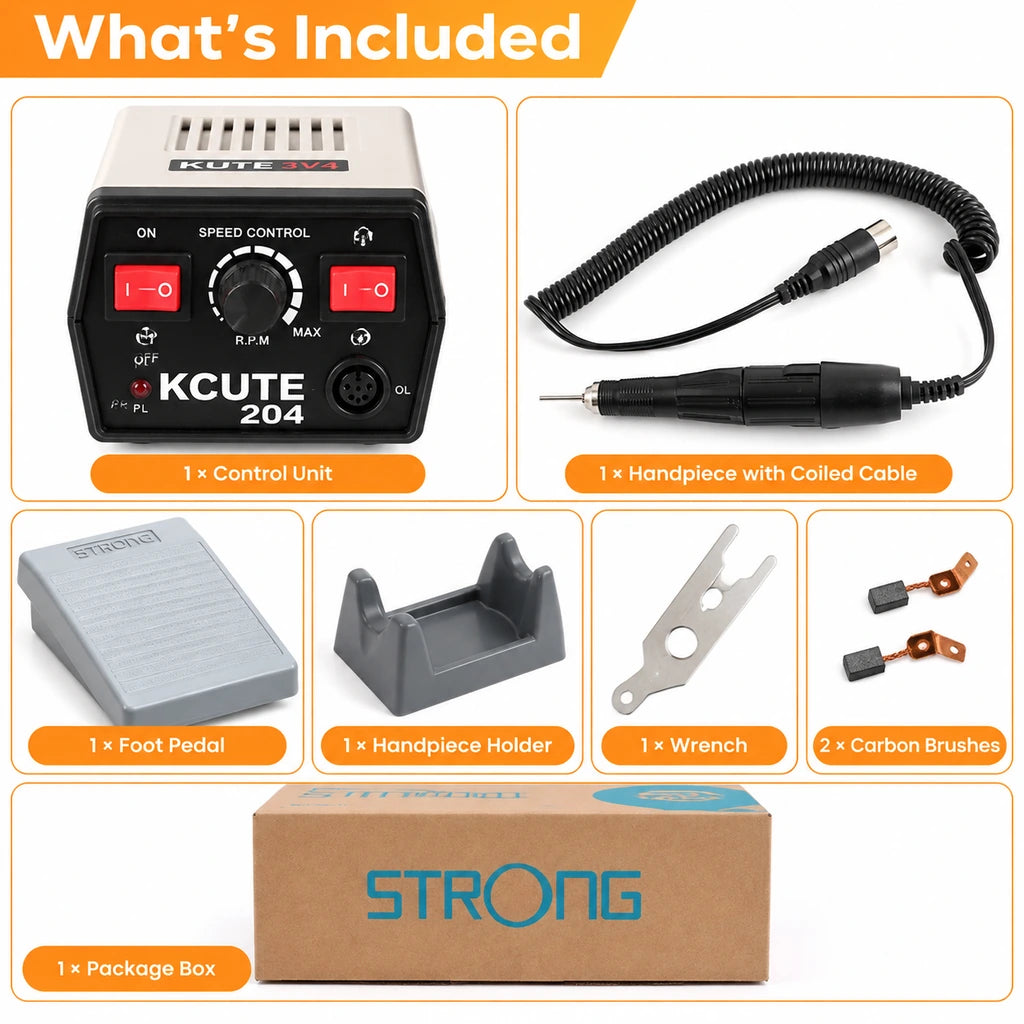

Package Contents
- 1 × High-speed handpiece in the selected size
- 1 × Foot pedal switch
- 1 × Control box in the selected voltage version
- 1 × Wrench
- 1 × Operation manual
Disclaimer: The package contains the selected configuration. Additional rotary accessories are not included unless expressly stated.
Basic Operating Steps
- Read the supplied manual and check the voltage label.
- With power disconnected, connect the components and secure a compatible rotary accessory as instructed.
- Start at a suitable low speed and adjust within the accessory's rated limit.
- Stop completely before changing direction or accessories. Disconnect power before maintenance.
Voltage and Plug Information
Select the 110V or 220V version for your supply. Confirm the frequency rating on the unit's label and the supplied plug type before use. Contact Tooltos if you need these details before ordering; do not assume automatic dual-voltage operation.
Safety Information
- Wear eye protection and use dust control suitable for the material.
- Keep hair and loose clothing away from rotating parts.
- Use undamaged accessories with the correct shank size and speed rating.
- Keep electrical components dry. Follow the supplied manual for operating limits and maintenance.
Frequently Asked Questions
Which handpiece size should I choose?
Match the 2.35 mm or 3 mm option to your rotary accessory's shank diameter.
What is included?
One handpiece, one control box, a foot pedal switch, a wrench, and an operation manual.
Support
For product questions, compatibility assistance, or order support, contact the Tooltos team at sales@tooltos.com. We respond during business days within 24 hours.
