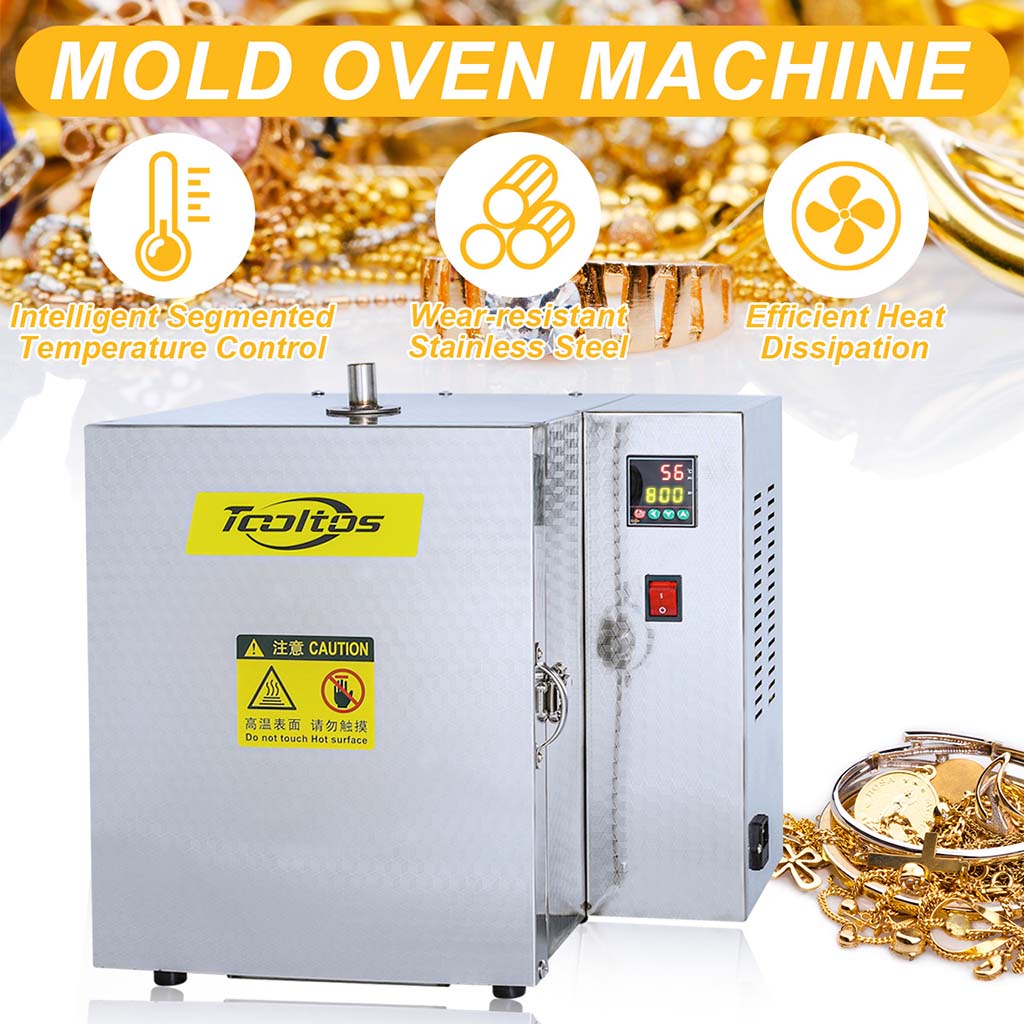

5-Stage Jewelry Burnout Furnace 800°C for Wax Casting
- 105 in stock
Description
The automated burnout furnace for small jewelry studios that want consistent results without constant monitoring. A built-in 5-stage PID program runs the wax burnout cycle from 180°C to 800°C automatically, while a wax drain and exhaust port support a cleaner and more controlled process.
See how the 5-stage burnout program, wax drain and exhaust design support a more controlled jewelry casting workflow.
- 5-Stage Segmented Burnout Program for wax burnout and flask preparation with less manual temperature adjustment.

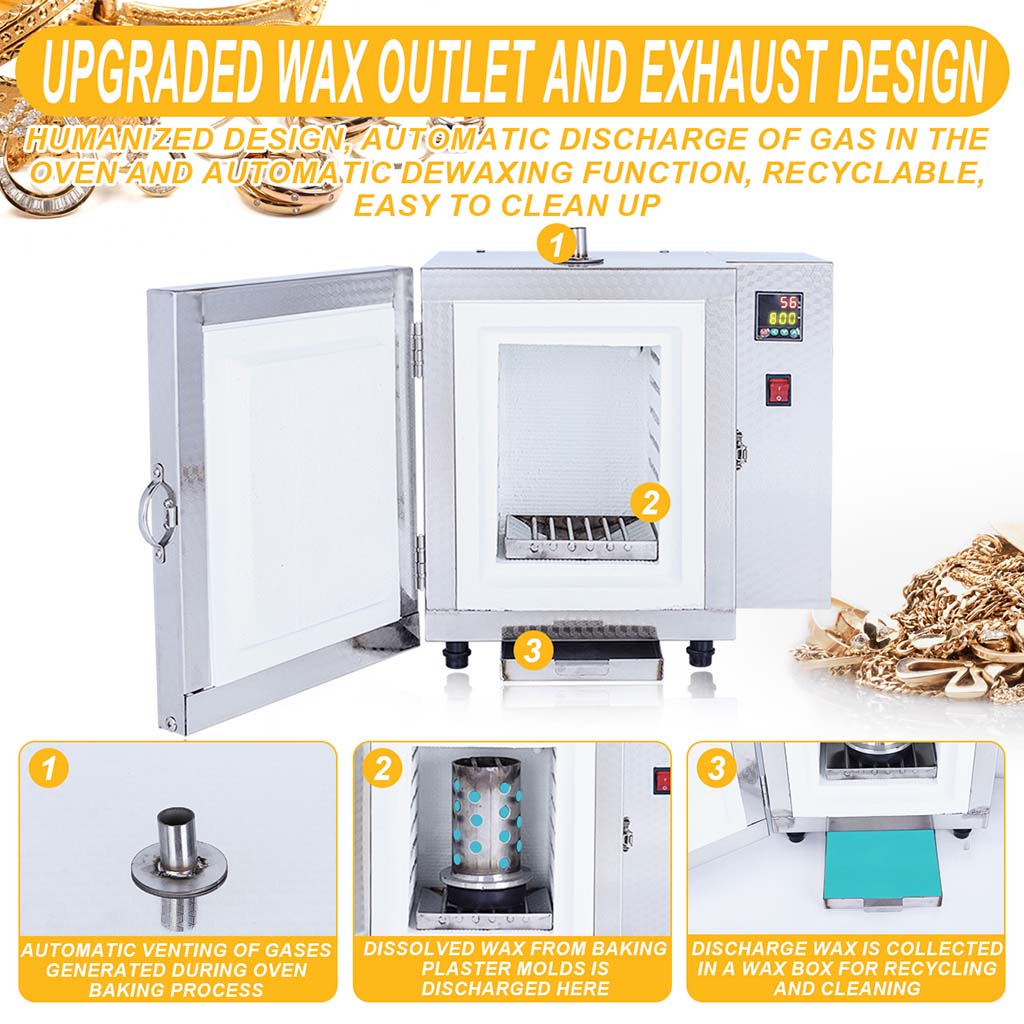

- Wax Drain and Exhaust Port Design to help release internal gases and collect melted wax.
- 800°C Max Temperature for wax burnout, plaster mold baking and flask preheating.
- 1500W Fast Heating System reaching 800°C in approximately 30 minutes.
- Fits Up to 4 inch × 7 inch Flasks with a 150 × 150 × 200 mm chamber.

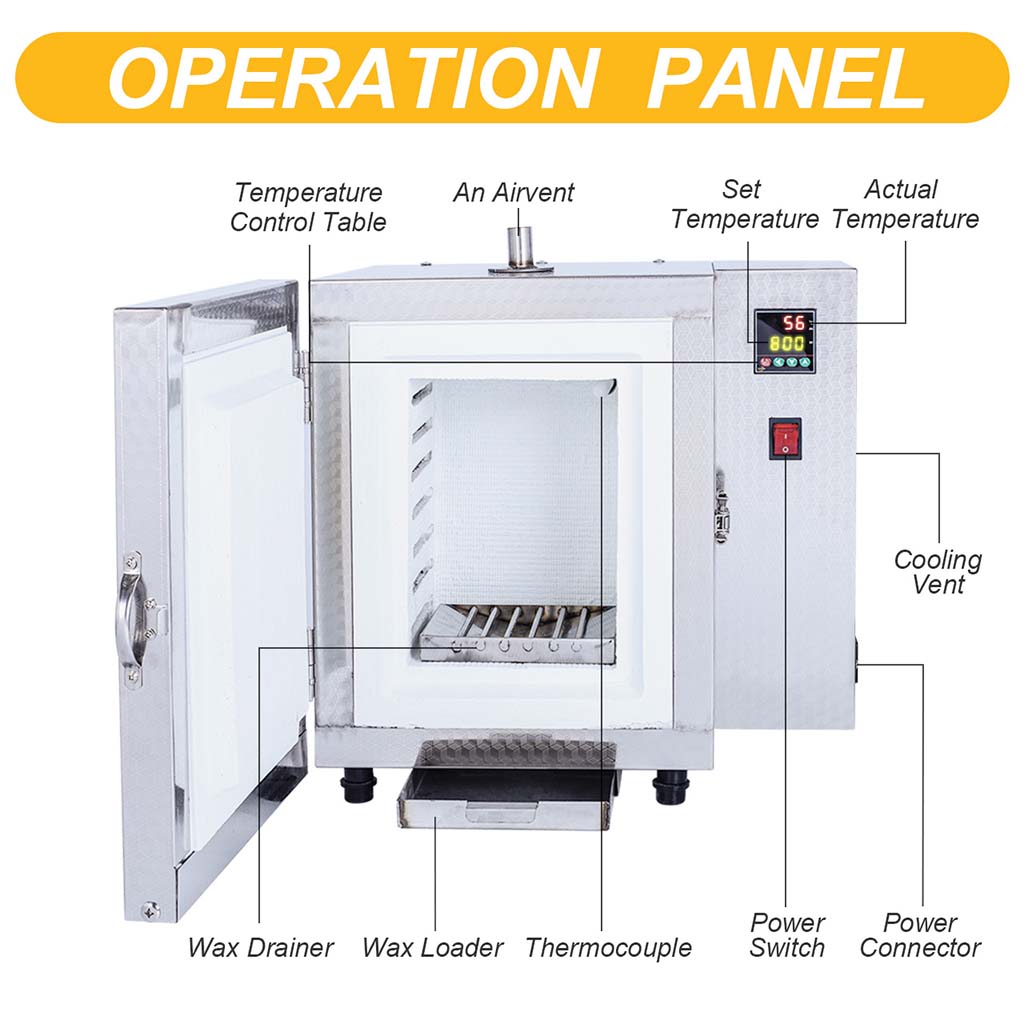

Key Features
- Segmented Temperature Control with a built-in multi-stage heating schedule.
- Wax Drain Design for easier collection and cleaner maintenance.
- Exhaust Port to help release internal gases during burnout.

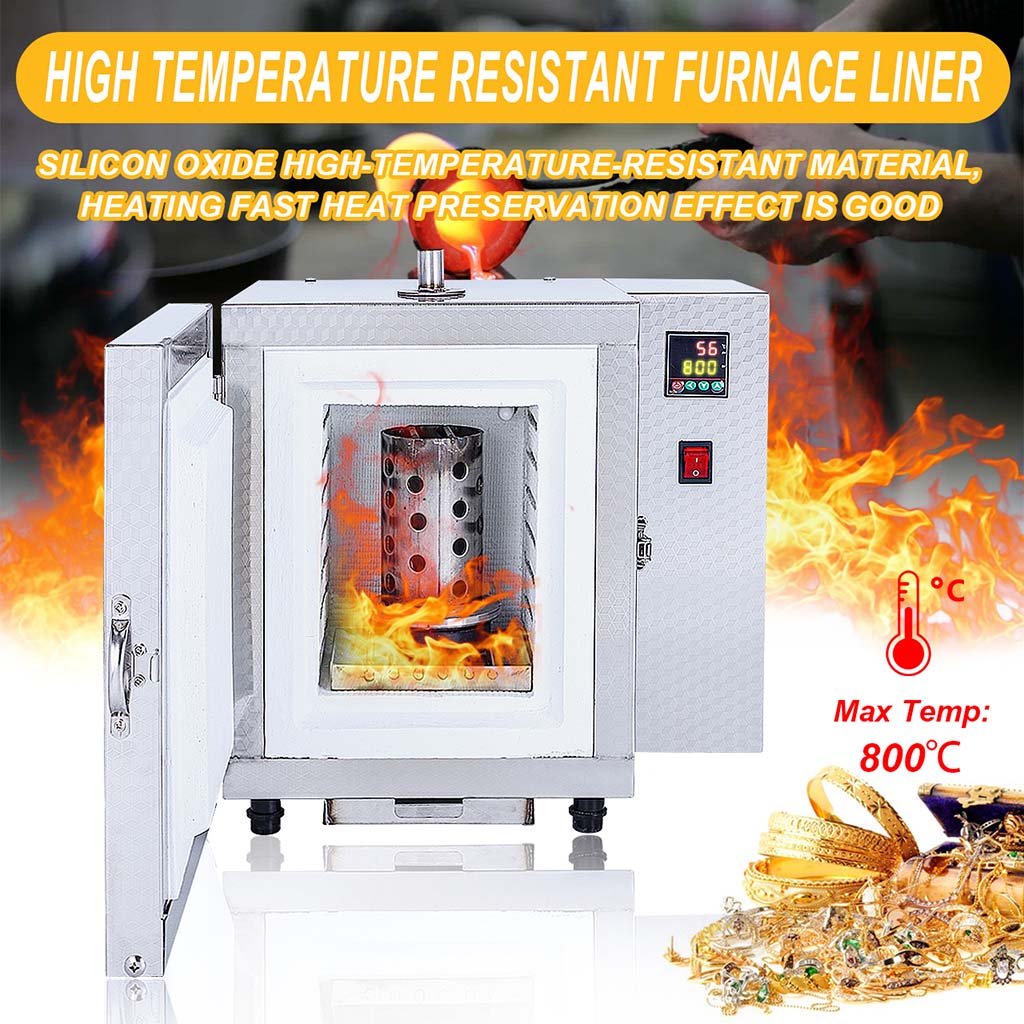

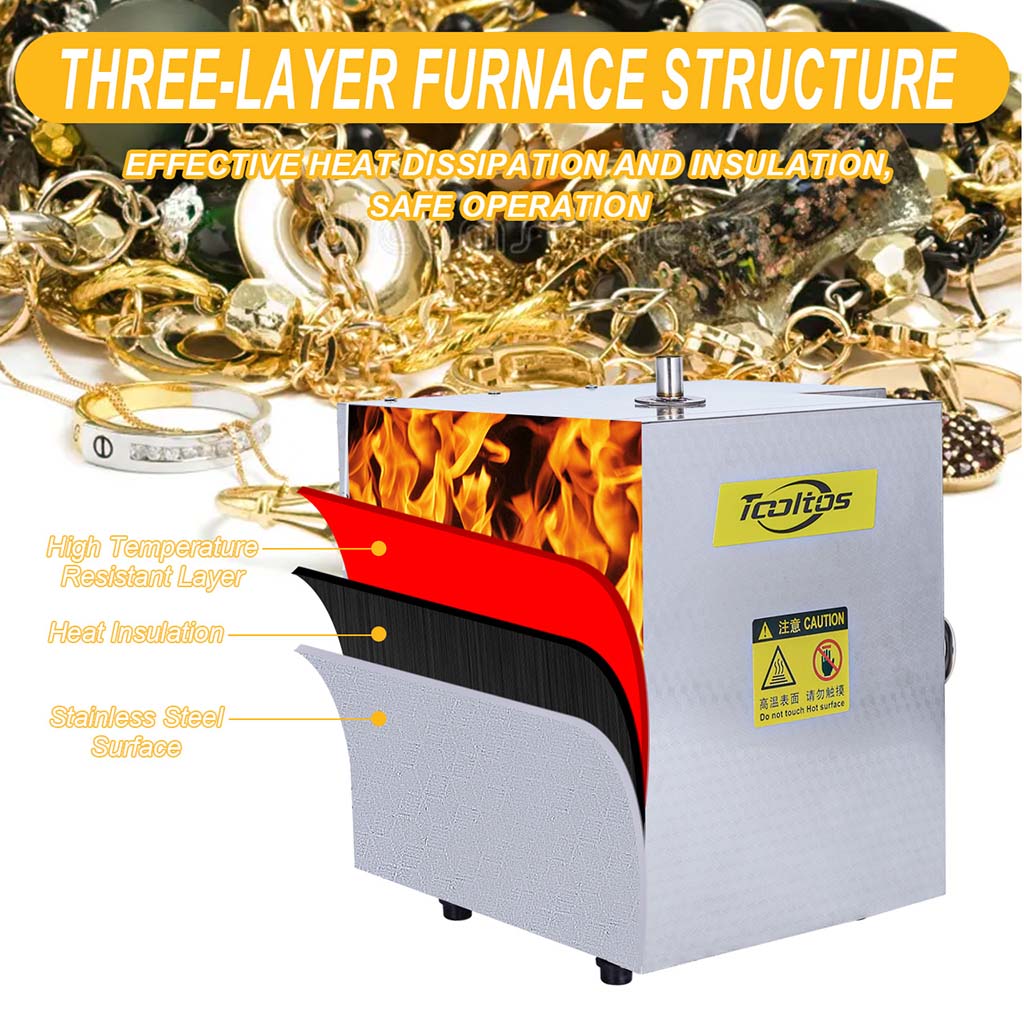

- Silicon Oxide Furnace Lining and three-layer insulation structure for heating and heat retention.
- Compact Studio Size suitable for individual jewelers, small studios and jewelry schools.

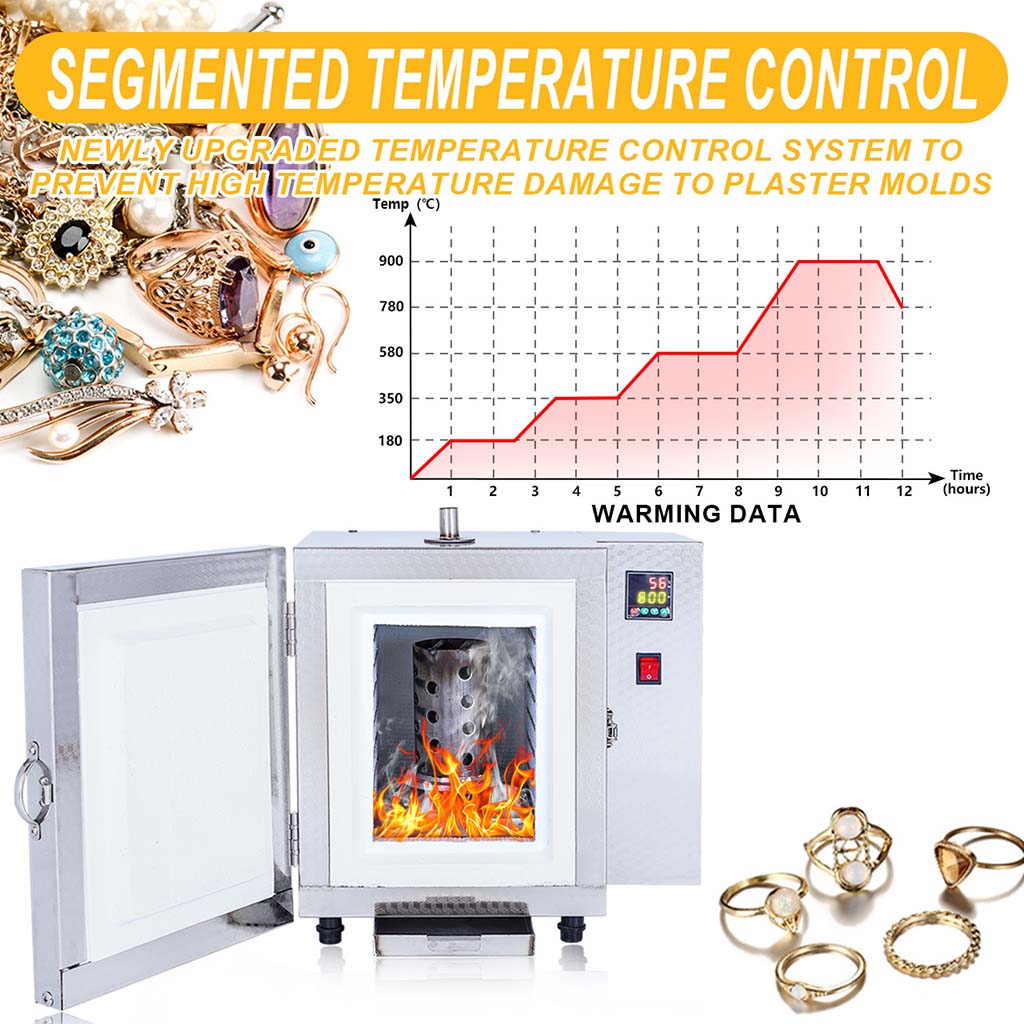

Built-In 5-Stage Burnout Program
The built-in schedule guides the burnout process through multiple heating stages to help users prepare molds consistently without constantly adjusting the temperature by hand.
| Stage 1 | 180°C, hold 90 minutes |
| Stage 2 | 350°C, hold 90 minutes |
| Stage 3 | 580°C, hold 120 minutes |
| Stage 4 | 800°C, hold 120 minutes |
| Stage 5 | Cool down to approximately 780°C for casting preparation |
Note: The built-in program is a general burnout schedule. Follow your investment material, flask size and casting workflow requirements.

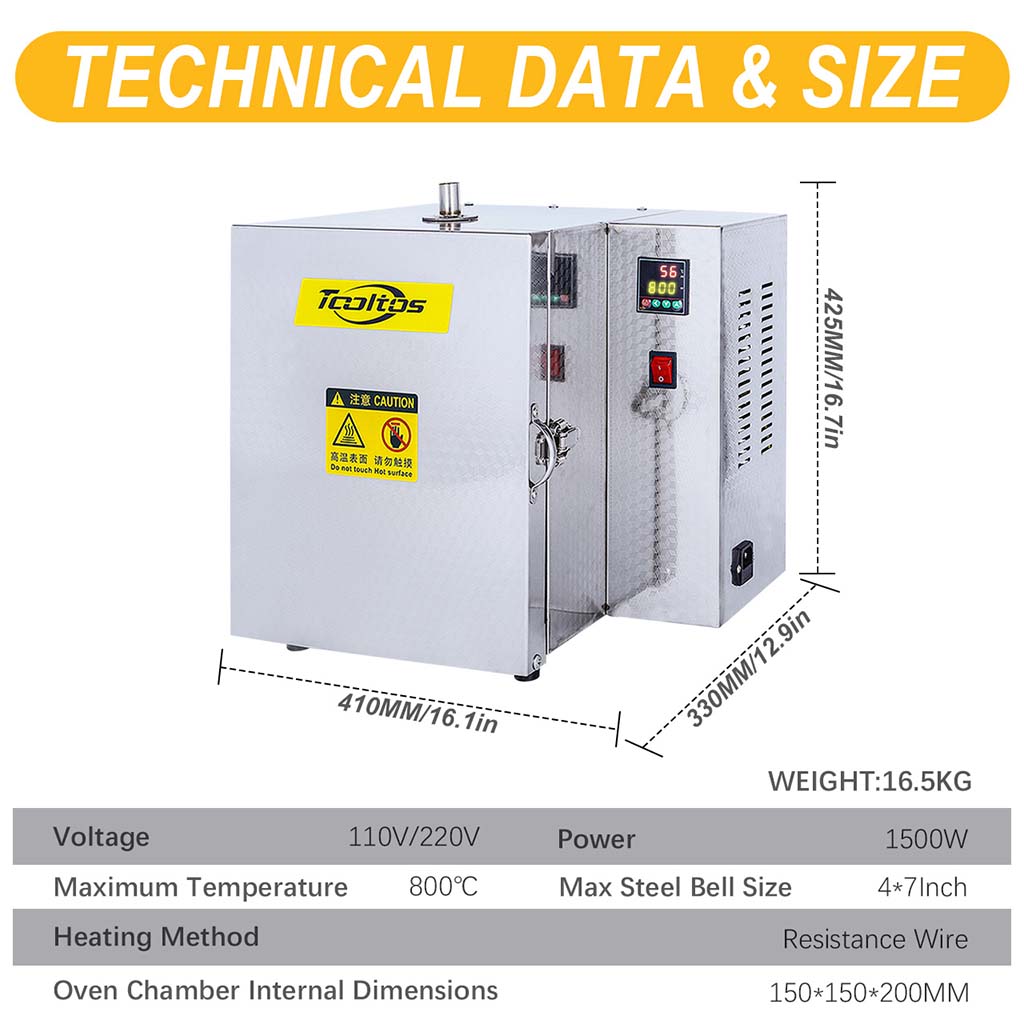

Technical Specifications
| Max Temperature | 800°C |
| Power | 1500W |
| Voltage | 110V / 220V, 50Hz / 60Hz |
| Temperature Control | PID segmented temperature control |
| Chamber Size | 150 × 150 × 200 mm |
| Max Flask Size | Approximately 4 inch × 7 inch |
| Machine Dimensions | 410 × 330 × 425 mm |
| Weight | Approximately 16.5 kg |
Suitable Applications
- Wax burnout and flask preheating
- Plaster mold baking and lost wax casting preparation
- Small jewelry studios, casting workshops and training spaces
Frequently Asked Questions
What makes this different from the standard 800°C model?
This model includes segmented temperature control, a 5-stage program, wax drain design and exhaust support.
Can it be used for lost wax jewelry casting?
Yes. It is designed for wax burnout, flask preheating and plaster mold preparation.
Can I melt metal directly in this furnace?
It is mainly designed for burnout and mold baking. A dedicated melting furnace is more suitable for direct metal melting.
Which voltage should I choose?
Choose 110V or 220V according to your local power supply.
Important Notes
- Use in a well-ventilated workspace and follow proper jewelry casting safety procedures.
- Do not touch or clean the wax drain while the furnace is hot.
- Allow the furnace to cool completely before maintenance.
- Burnout schedules may need adjustment for the investment material, wax volume, flask size and casting process.

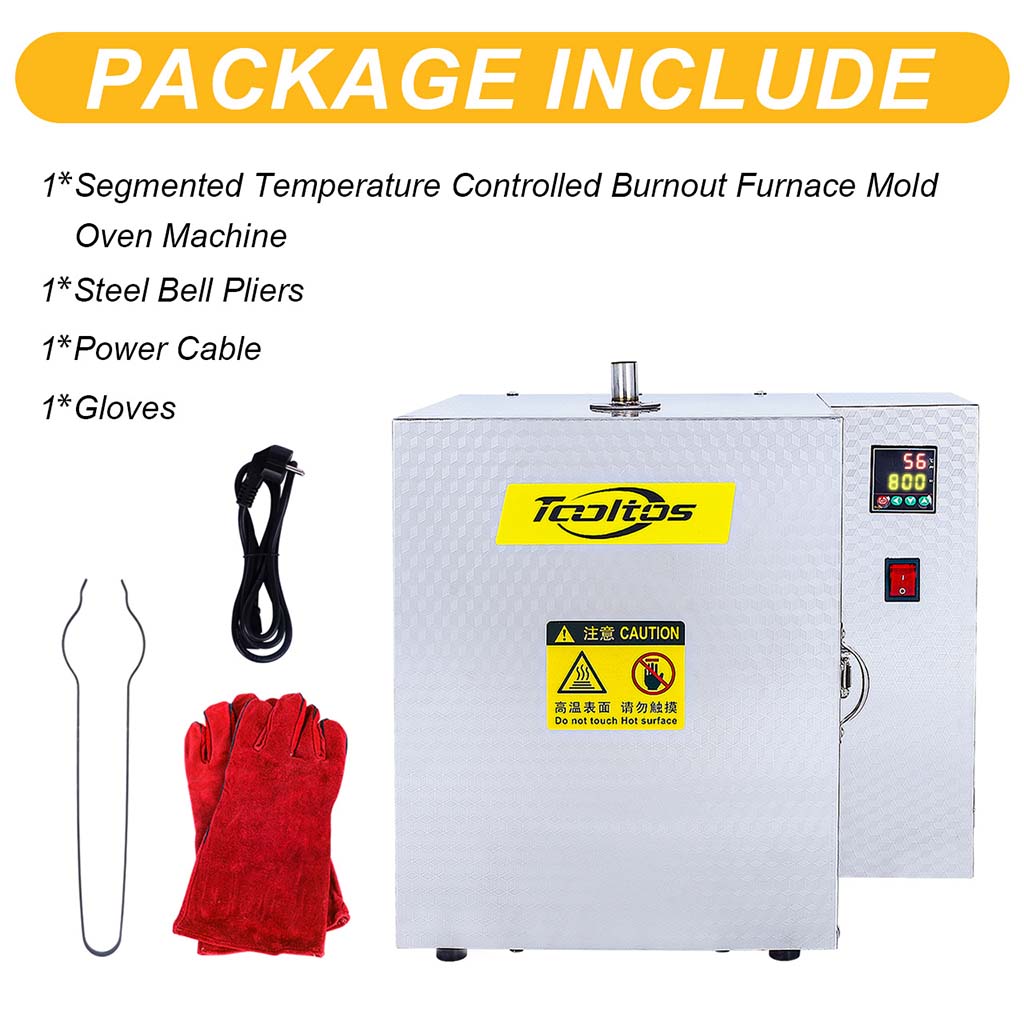

Package Contents
- 1 × Segmented Temperature Controlled Burnout Furnace
- 1 × Steel Bell / Flask Pliers
- 1 × Power Cable
- 1 × Pair of Heat-Resistant Gloves
Support
For technical questions or assistance, contact sales@tooltos.com.
