Tooltos IV Ring Bending Tool | Wooden Base 7 Molds 12-22mm Chrome Steel
- 104 in stock
Description
Key Selling Points
- 7 Precision Forming Molds — 12, 14, 16, 20, 22mm diameter molds plus 60-degree and 90-degree angle formers for round and angled ring profiles

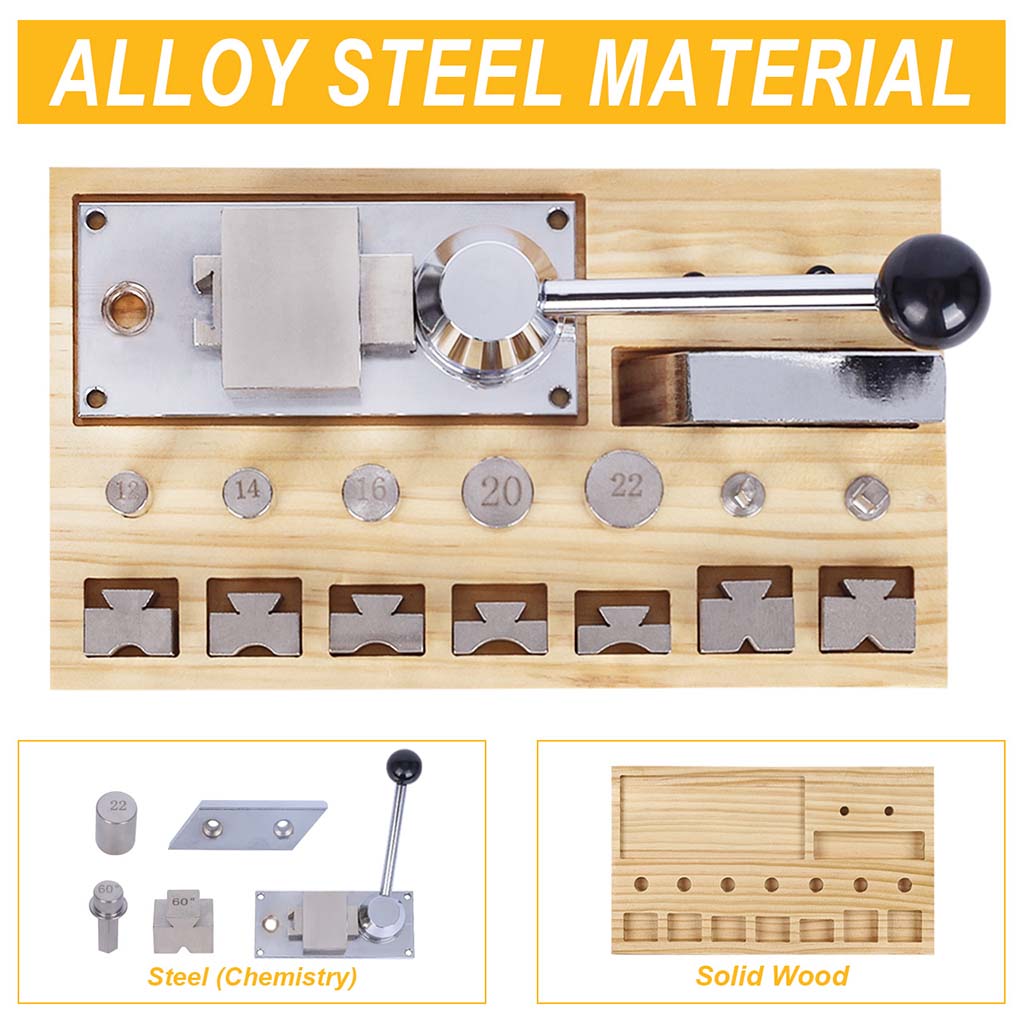

- Chrome Steel Frame — Durable chrome-plated steel construction built for long-term professional bench use
- 2.9kg Solid Wood Base — Heavy, stable base with integrated mold storage and vibration dampening during forming
- Workbench Mountable — Pre-drilled screw holes allow secure permanent installation on any jewelry workbench

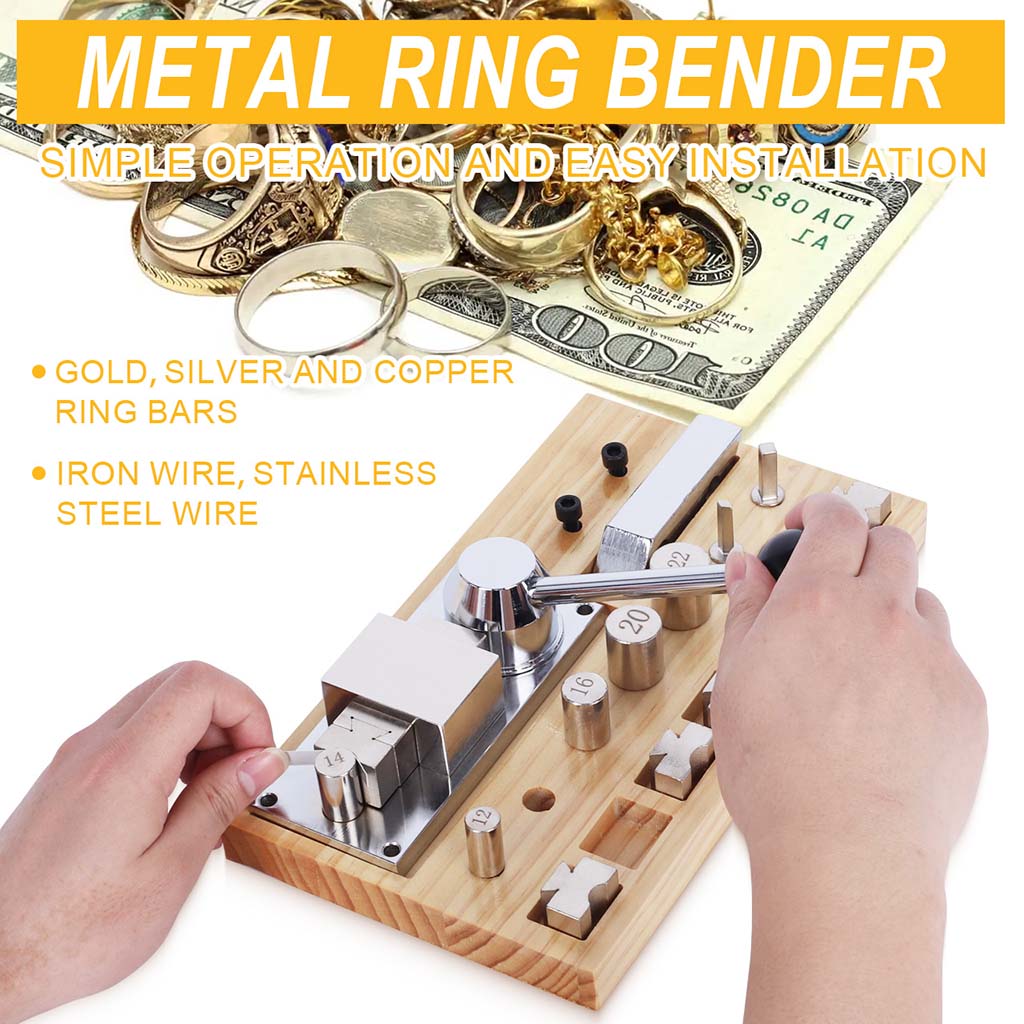

- Wide Metal Compatibility — Works with gold, silver, copper, brass and other non-ferrous alloys

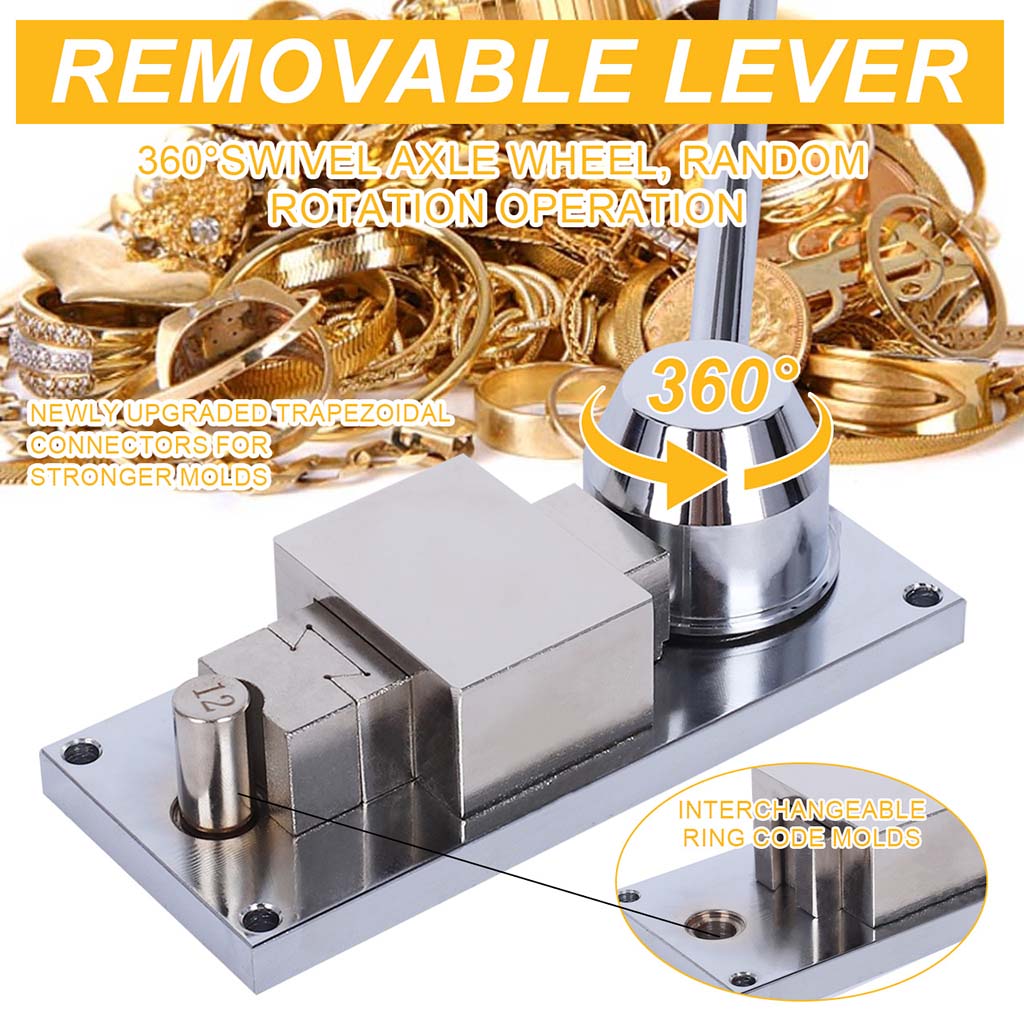

- Fully Manual Operation — No electricity or compressed air required; crank handle gives complete pressure control
- Handles Strip up to 2mm and Wire up to 3mm — Covers the most common jewelry metal gauges

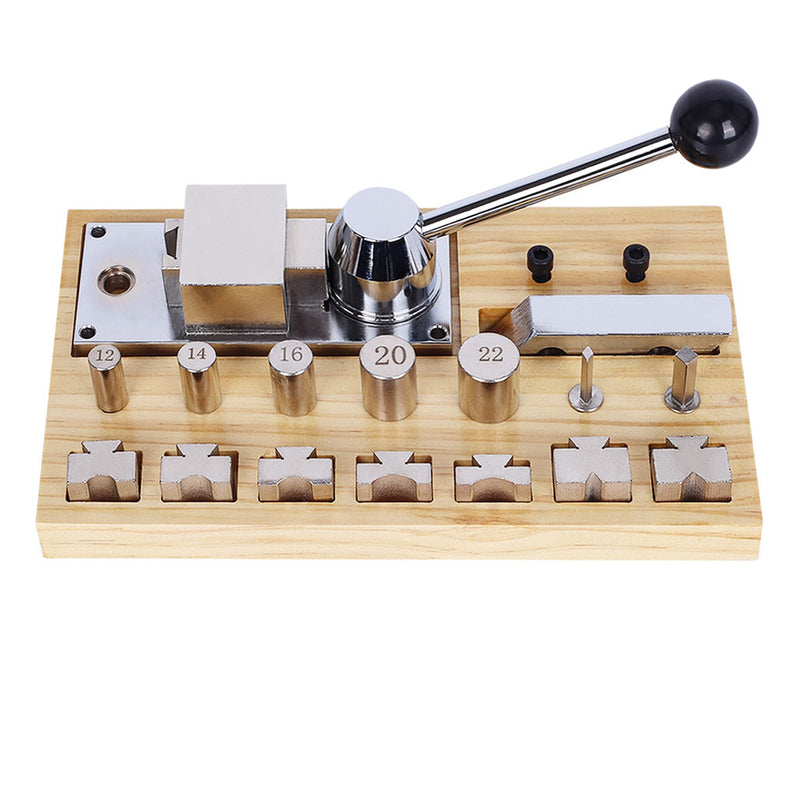

About This Ring Bending Tool

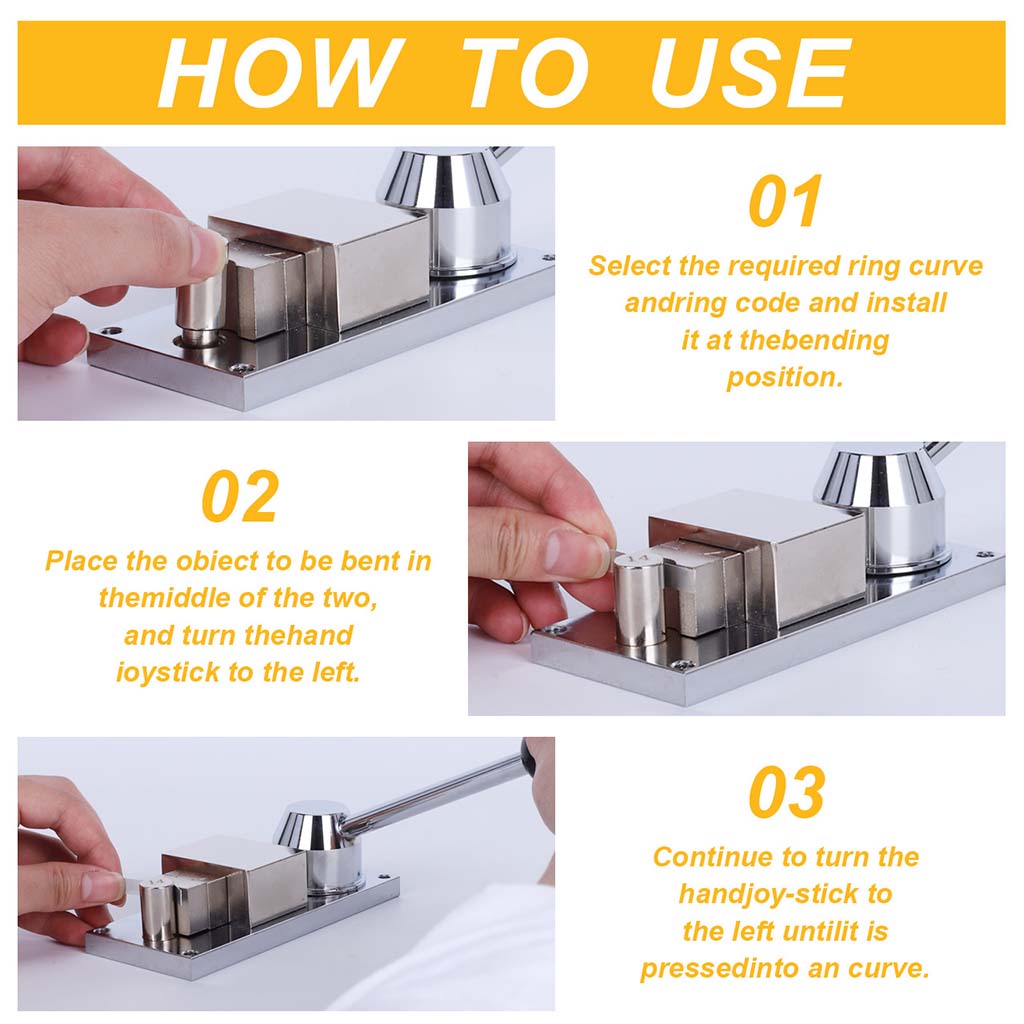

The Tooltos IV Wooden Base Ring Bending Tool is a professional-grade manual ring former built for jewelers, goldsmiths and jewelry students who need consistent, accurate ring shapes without electric machinery. The 2.9kg solid wood base provides exceptional bench stability and integrates storage for all seven molds, keeping your workspace organized. The chrome steel frame handles daily professional use across gold, silver, copper, brass and other non-ferrous metals. Select a mold, insert your metal, turn the crank — the tool delivers a precise ring profile every time.
Wooden Base vs Plastic Base
| Feature | Tooltos IV — Wooden Base | Plastic Base Version |
|---|---|---|
| Base weight | 2.9kg — more stable | Lighter — more portable |
| Mold storage | Integrated in base | Separate storage needed |
| Vibration dampening | Better — wood absorbs vibration | Standard |
| Best for | Permanent workshop bench setup | Portable or multi-location use |
| Moisture sensitivity | Keep dry — avoid water contact | Not sensitive |
Best For / Not For
| Best For | Not For |
|---|---|
| Forming round rings in 12-22mm diameters from gold, silver, copper, and brass | Steel or titanium — designed for non-ferrous metals only |
| 60-degree and 90-degree angled ring profiles for V-shaped and chevron band designs | Ring diameters outside the 12-22mm mold range |
| Permanent workshop bench installation with integrated mold storage | Portable or multi-location use — choose the plastic base version instead |
| Metal strips up to 2mm thick and wire up to 3mm diameter | High-moisture environments — keep the wooden base dry |

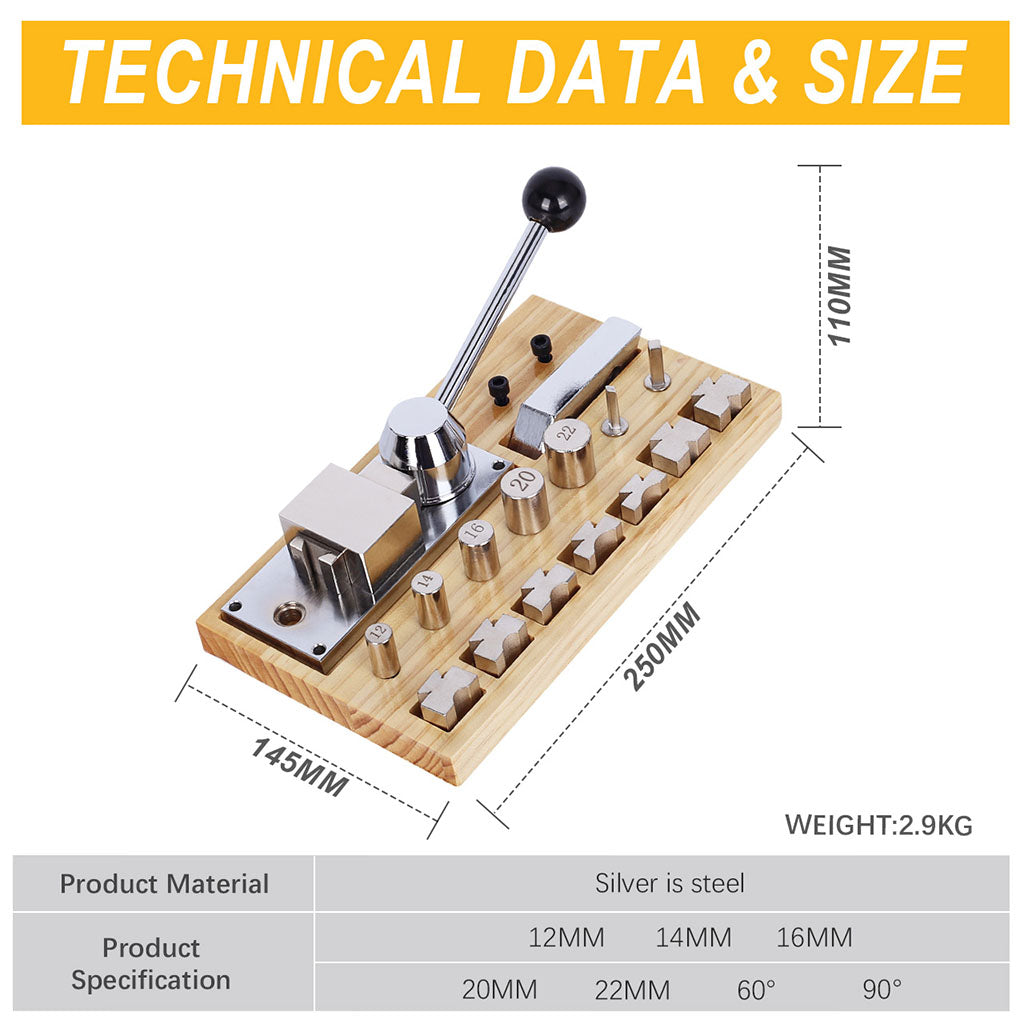

Technical Specifications
| Model | Tooltos IV Wooden Base |
| Frame Material | Chrome steel |
| Base Material | Solid wood |
| Mold Sizes | 12, 14, 16, 20, 22mm + 60-degree + 90-degree (7 molds total) |
| Overall Dimensions | 250 x 145 x 110mm (9.8 x 5.7 x 4.3 in) |
| Weight | 2.9kg (6.4 lb) |
| Max Strip Thickness | Up to 2mm (0.08 in) |
| Max Wire Diameter | Up to 3mm (0.12 in) |
| Compatible Metals | Gold, silver, copper, brass and non-ferrous alloys |
| Power Required | None — fully manual |
Pro Tips
- Anneal metal before bending to reduce springback and achieve cleaner curves, especially for thicker stock.
- For gauges above 3mm wire or 2mm strip, make two or three light passes rather than one heavy press.

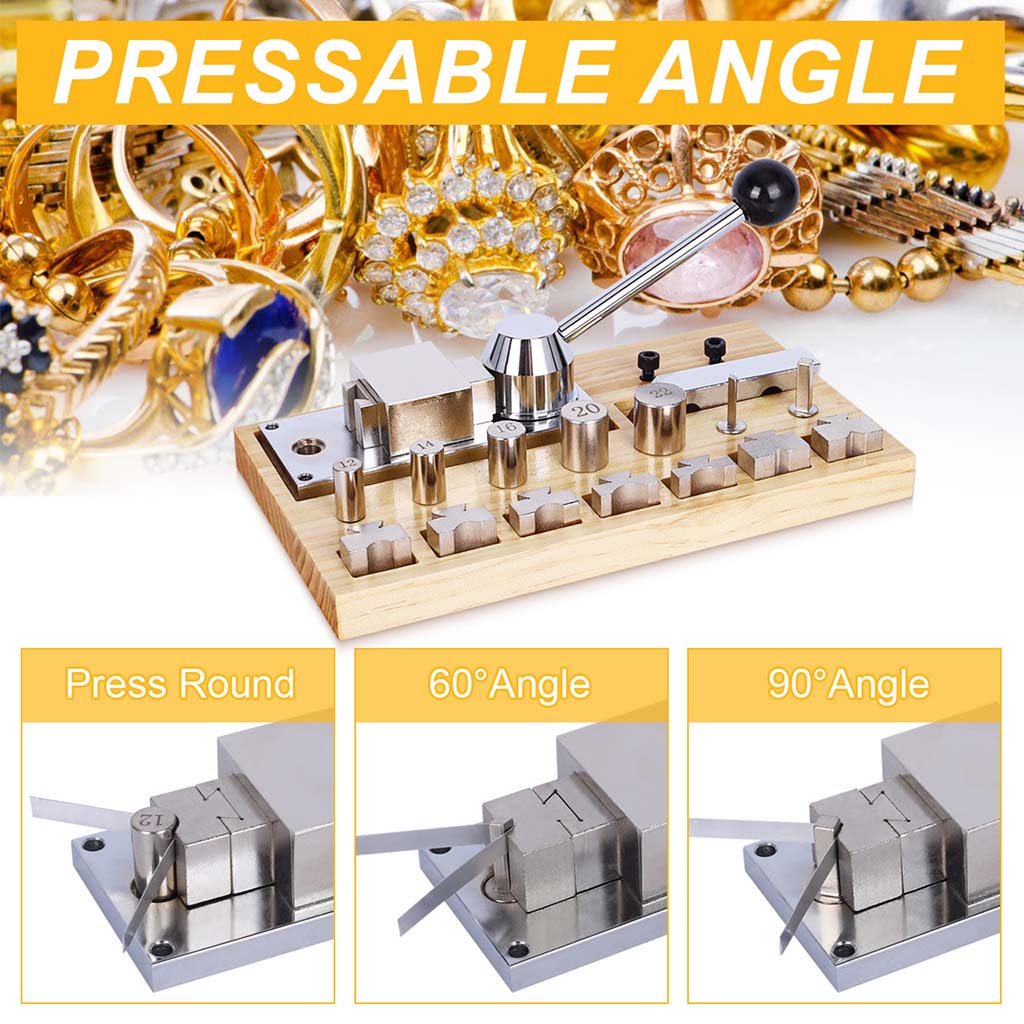

- Use the 60-degree die to form V-shaped prong settings and chevron-style band rings.
- Apply a small drop of machine oil to the crank pivot every 20-30 uses for smooth operation.
- Store in a dry environment — wipe the wooden base with a dry cloth and avoid prolonged moisture exposure.
- Keep molds in the integrated base slots to prevent nylon surfaces from chipping between uses.
Frequently Asked Questions
What is the advantage of the wooden base over a plastic base?
The wooden base provides greater weight (2.9kg) for better bench stability, integrated mold storage, and superior vibration dampening. It is best suited for permanent workshop setups. Choose the plastic base if you need portability.
Can I mount this permanently to my workbench?
Yes. The base includes pre-drilled screw holes for secure permanent mounting to any workbench surface.
What metal thickness can this tool handle?
Metal strips up to 2mm thick and wire up to 3mm diameter. Anneal the metal before bending for best results with thicker stock.
How do I care for the wooden base?
Keep the base dry and clean. Wipe with a dry cloth when needed. Avoid prolonged exposure to moisture or direct water contact.
Are the molds interchangeable with other Tooltos ring bending models?
Molds are designed specifically for the Tooltos IV model. Contact sales@tooltos.com to verify compatibility before purchasing additional molds.
What metals can this tool work with?
Gold, silver, copper, brass and other non-ferrous metal alloys. Not recommended for steel or titanium.
Is this tool electric?
No. This is a fully manual tool. No power source is needed — the crank handle gives you complete control over bending speed and pressure.

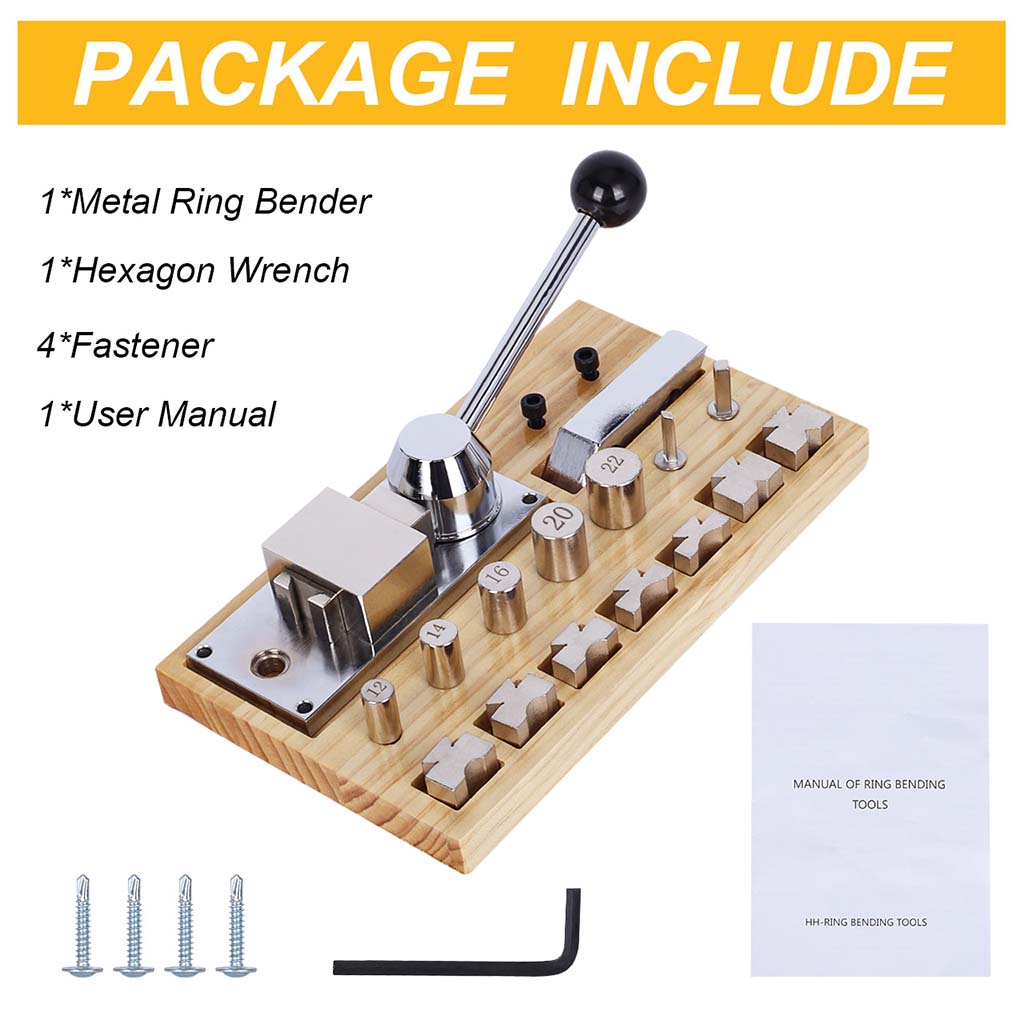

What's Included
- 1 x Tooltos IV wooden base ring bending tool (main unit)
- 7 x Precision forming molds (12, 14, 16, 20, 22mm + 60-degree + 90-degree)
- 1 x Hexagon wrench
- 4 x Fasteners for bench mounting
- 1 x User manual
Support
Questions about mold compatibility, metal gauge limits, or order status? Contact the Tooltos team at sales@tooltos.com. We respond within 24 hours on business days.
