Bead Threading Machine 6-Channel Bead Stringing Tool for Jewelry Making
- 99 in stock
Description
Product Overview
The G6 Bead Threading Machine is designed for jewelry makers, bead artists, DIY crafters, jewelry workshops, and small craft studios who need a more efficient way to organize and thread loose beads. Featuring 6 bead channels, the machine allows beads to be placed into the rotating channels, where continuous movement helps position and align bead holes along the threading path. Users can then directly guide the included threading needle through the aligned bead holes to collect multiple beads efficiently. The G6 supports bead sizes from 1.5–17 mm / 0.06–0.67 in and features adjustable speed control with forward and reverse rotation. Its compact 21 × 15 × 6 cm / 8.27 × 5.91 × 2.36 in desktop design makes it suitable for jewelry workbenches, craft tables, studios, and other small workspaces.

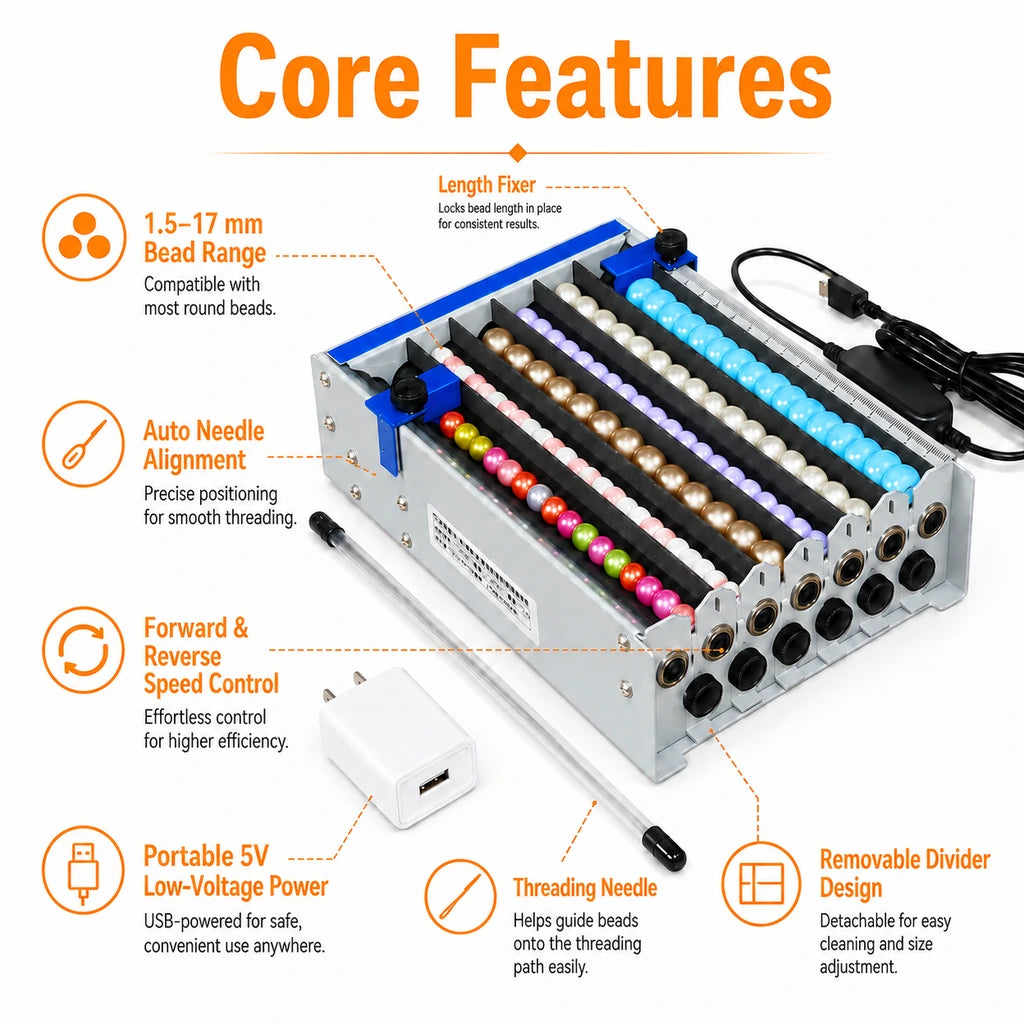

Key Features
6-Channel Bead Threading Design
The G6 features 6 independent bead channels, providing multiple threading paths for sorting and handling loose beads. Beads rotate and move within the channels during operation, helping bring bead holes into a more suitable position for threading.
Efficient Bead Alignment
As the channels rotate, beads are continuously moved and repositioned. This helps improve the alignment of bead holes and makes it easier for the user to guide the threading needle through the beads.
Direct Needle Threading
The included Threading Needle is designed to be guided directly through the rotating bead holes by the user. The machine assists with bead movement and positioning while the actual needle threading is controlled manually for better flexibility.
Adjustable Speed Control
The adjustable speed control allows users to select a suitable operating speed according to different bead sizes, shapes, and threading requirements. Lower speeds provide more control when working with smaller or more delicate beads.
Forward and Reverse Rotation
The machine supports both forward and reverse rotation, allowing users to adjust the bead movement direction according to their working position and threading requirements.
Length Fixer
The included Length Fixer helps maintain a more consistent threading length during bead stringing work. It provides a practical way to assist with positioning and organizing the threading process.
Compact Desktop Design
Measuring only 21 × 15 × 6 cm / 8.27 × 5.91 × 2.36 in, the G6 is designed for desktop use without taking up excessive workspace. Its approximately 1.7 kg / 3.75 lb weight provides a stable working presence on a craft or jewelry bench.
Suitable Applications
- Jewelry making and bead stringing
- Bracelet and necklace making
- DIY jewelry and bead craft projects
- Jewelry workshops and craft studios
- Small-scale and handmade jewelry production
- Bead sorting and threading work
Important Function Clarification
- The G6 is designed to assist with bead movement, positioning, and threading efficiency.
- The machine has 6 rotating bead channels for holding and moving beads.
- Beads rotate and reposition inside the channels during operation.
- The user guides the included Threading Needle through the bead holes to collect the beads.
- The machine does not automatically push the needle through the beads.
- Actual threading results may vary depending on bead shape, hole position, hole size, and bead surface.
- For best results, use beads within the recommended 1.5–17 mm size range that can rotate smoothly in the channels.
- Accessories shown in lifestyle images are for demonstration purposes only and are not included unless specifically listed in the package contents.

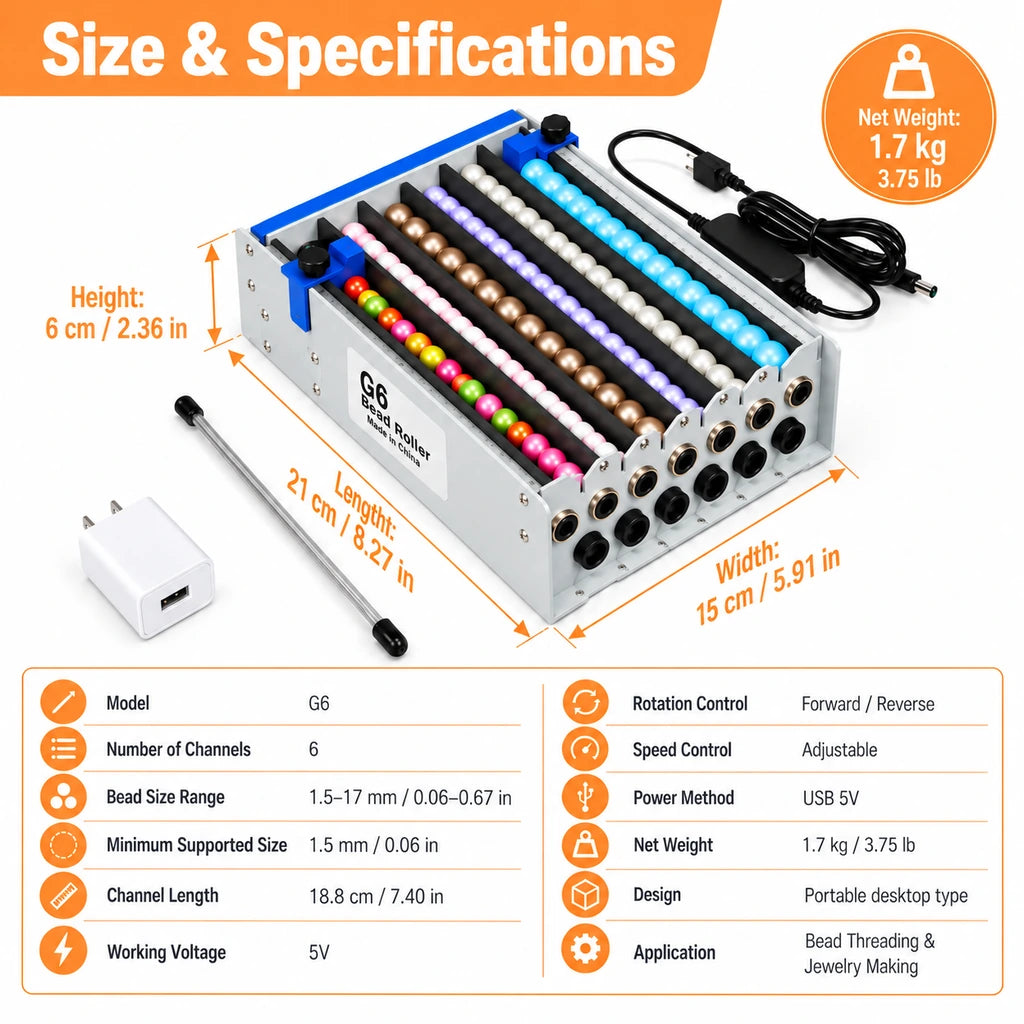

Technical Specifications
| Product Type | Bead Threading Machine |
| Model | G6 |
| Number of Channels | 6 |
| Bead Size Range | 1.5–17 mm / 0.06–0.67 in |
| Working Voltage | 5V USB |
| Rotation Control | Forward / Reverse |
| Speed Control | Adjustable |
| Machine Dimensions | 21 × 15 × 6 cm / 8.27 × 5.91 × 2.36 in |
| Net Weight | 1.7 kg / 3.75 lb |
| Design | Portable Desktop Type |
| Application | Bead Threading and Jewelry Making |

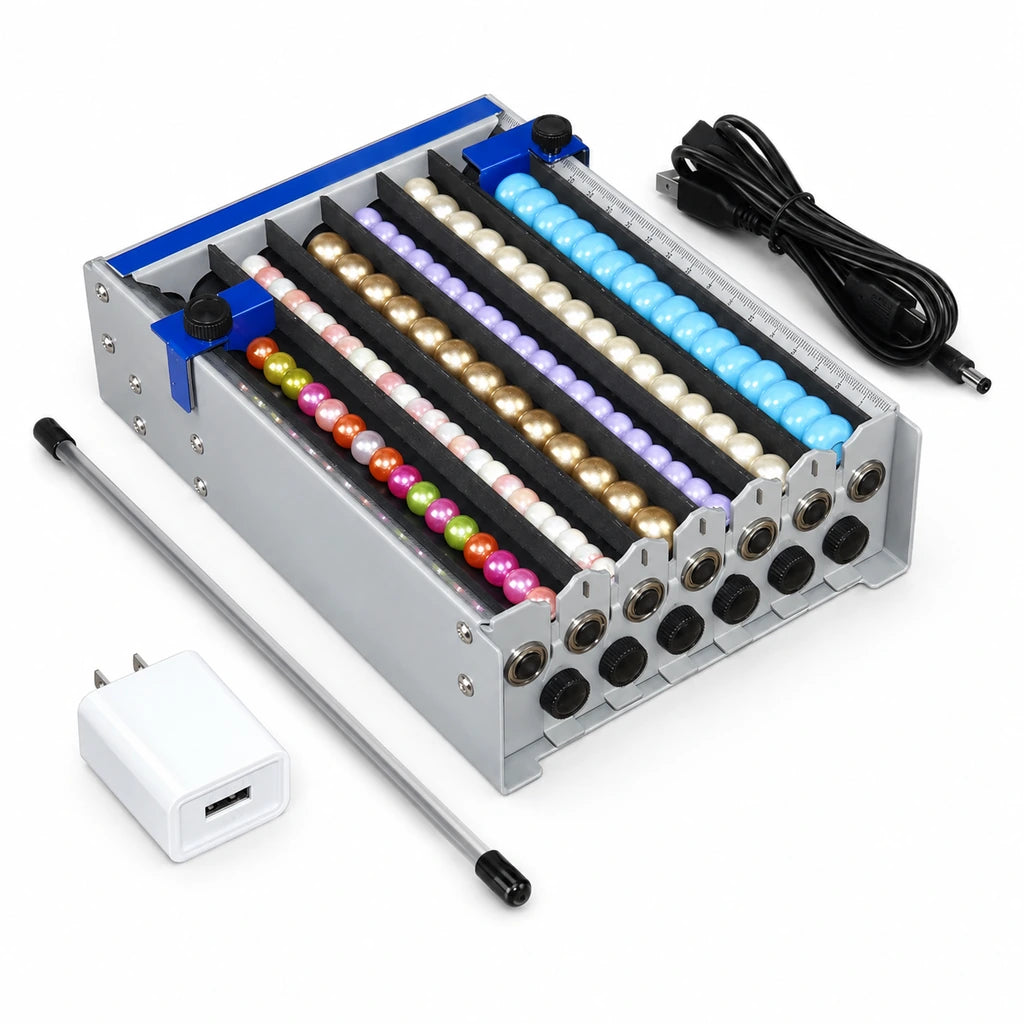

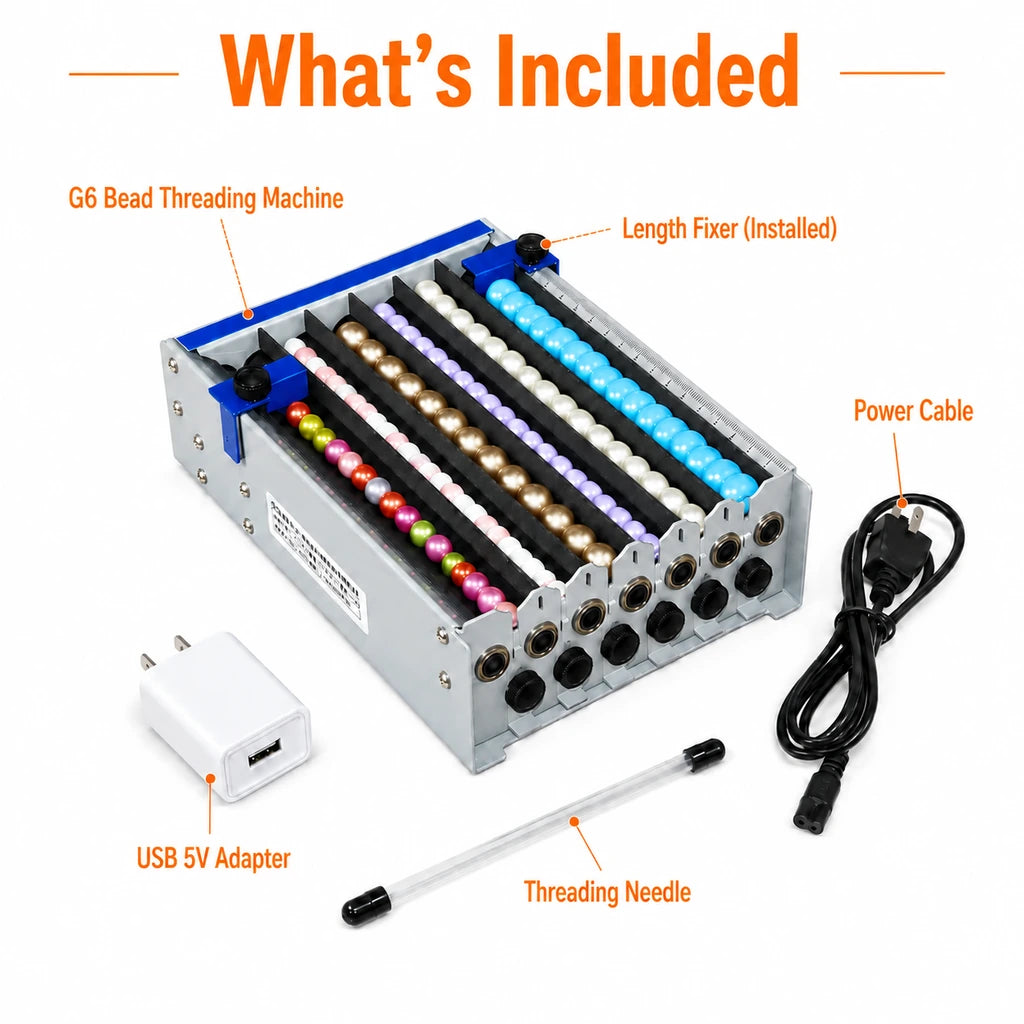

Package Contents
- 1 x G6 Bead Threading Machine
- 1 x Length Fixer
- 1 x Threading Needle
- 1 x Controller
- 1 x Power Cable
- 1 x USB 5V Adapter
Only the items listed above are included in the package. Beads, jewelry materials, thread, and other accessories shown in application images are for demonstration purposes only and are not included.

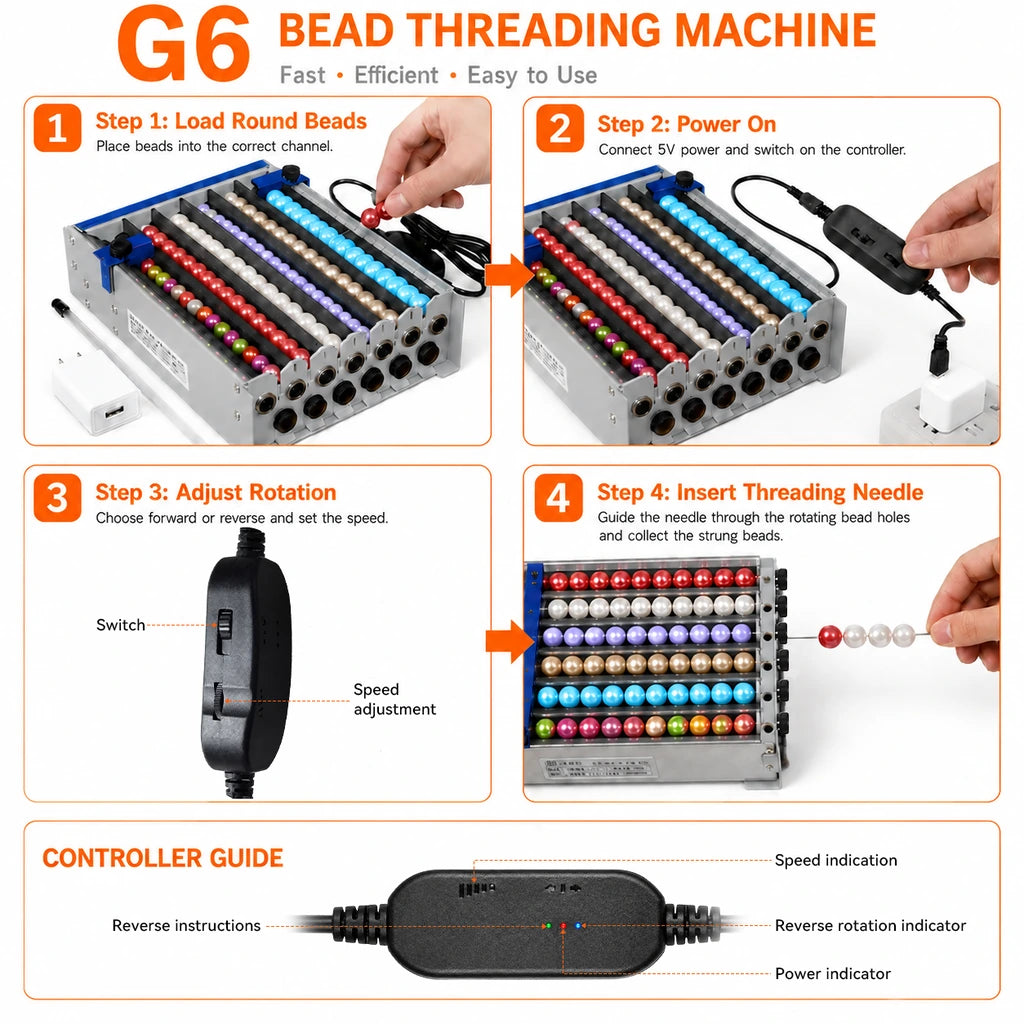

Basic Operating Steps
- Place the G6 machine on a stable and level workbench.
- Connect the controller and 5V power supply according to the setup instructions.
- Place suitable beads into the 6 bead channels.
- Turn on the machine and select the required rotation direction.
- Adjust the operating speed according to the bead size and threading requirements.
- Allow the beads to rotate and reposition within the channels.
- Guide the included Threading Needle directly through the aligned bead holes.
- Continue guiding the needle to collect the required number of beads.
- Use the Length Fixer when a consistent threading length is required.
- Turn off the machine and organize the beads and threading tools after use.
Voltage and Plug Information
The G6 Bead Threading Machine operates at 5V DC via USB power. It is compatible with standard USB 5V adapters and power banks. No regional plug adapter is required for the USB cable itself, though the included USB adapter plug type may vary by shipping destination. Please verify the included adapter is compatible with your local outlet, or use your own USB 5V power source.
Safety Information
- Always operate the machine on a stable, dry, and level surface.
- Keep fingers, loose clothing, hair, and other objects away from moving parts during operation.
- Do not place your hands directly into the rotating channels while the machine is running.
- Use only a suitable 5V power supply.
- Do not force beads into the channels if they cannot move freely.
- Stop operation if unusual noise, vibration, or other abnormal conditions occur.
- Inspect the machine, threading needle, and accessories before use.
- Disconnect the power supply before cleaning or maintenance.
- Keep the machine and accessories away from children.
Frequently Asked Questions
What size beads can the G6 handle?
The G6 is designed for beads approximately 1.5–17 mm / 0.06–0.67 in in size. Actual suitability also depends on the bead shape, hole position, and whether the bead can rotate smoothly within the channel.
How many bead channels does the machine have?
The G6 features 6 bead channels for moving and positioning beads during threading.
Does the machine automatically thread the beads onto the needle?
No. The machine helps rotate and reposition the beads to make the holes easier to access. The user manually guides the included Threading Needle through the bead holes to collect the beads.
Can the rotation speed be adjusted?
Yes. The G6 features adjustable speed control, allowing users to select a suitable speed according to different bead types and working requirements.
Can the machine rotate in both directions?
Yes. The G6 supports both forward and reverse rotation.

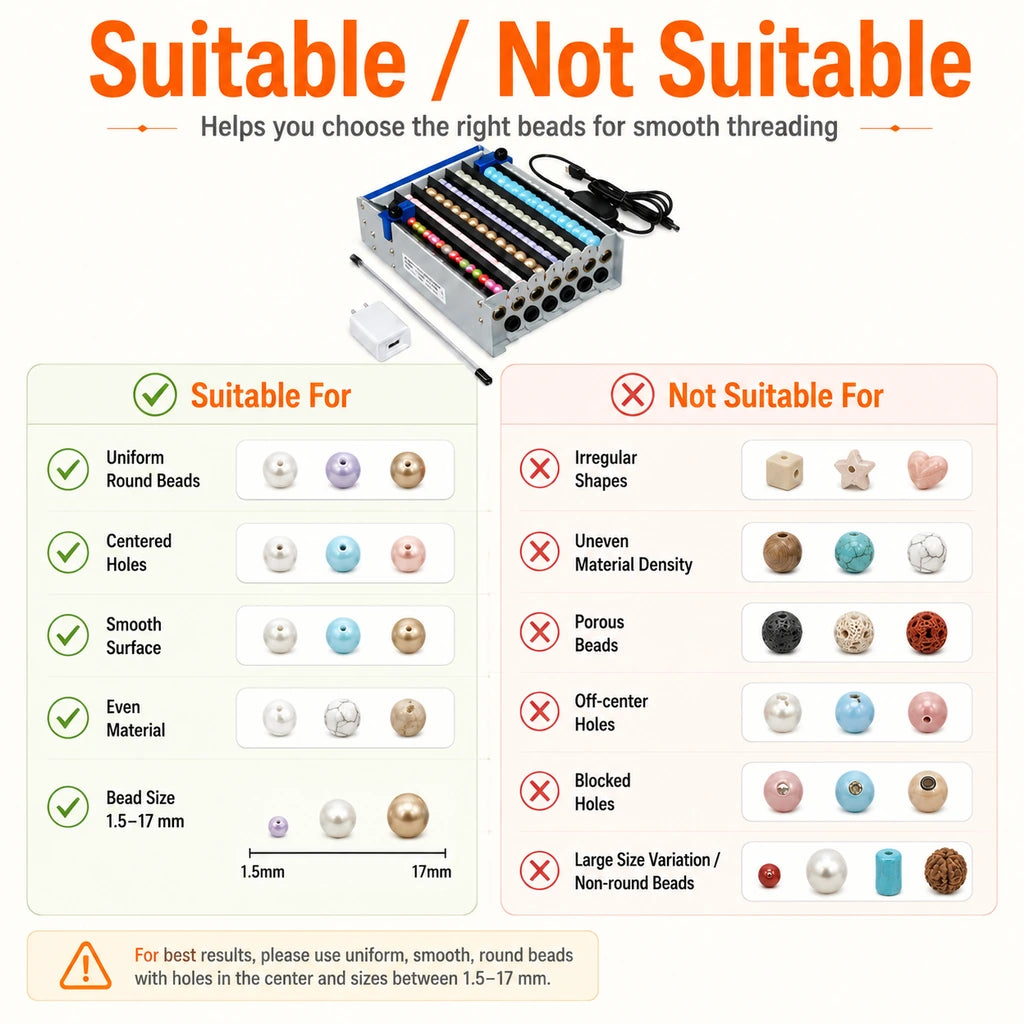

What types of beads work best?
Round, relatively uniform, smooth beads with centered and unobstructed holes generally provide the best results.
What is the machine size and weight?
The machine measures 21 × 15 × 6 cm / 8.27 × 5.91 × 2.36 in and weighs approximately 1.7 kg / 3.75 lb.
What voltage does the machine use?
The G6 operates at 5V and is designed for USB power.
Support
If you have any questions about the G6 Bead Threading Machine, bead compatibility, setup, or operation, please contact us at sales@tooltos.com. Our team responds within 24 hours on business days.
