Tooltos 160mm 750W 4-in-1 Electric Jewelry Rolling Mill
- 10 in stock
Description
- 4-in-1 Rolling Capability — Roll flat sheet, square wire, half-round wire and round wire profiles in one machine.
- 750W Electric Motor — Consistent motorized power with knob-controlled multi-gear speed adjustment. No manual cranking required.
- 160mm Wide Rollers — 70mm roller diameter with 6mm maximum opening for wider sheet and heavier stock.
- T-Shaped Parallel Adjustment Handle — Upper and lower handles adjust in parallel for easy, precise rolling thickness control.
- Wear-Resistant Alloy Rollers — Durable roller construction for long-term reliable performance on gold, silver, copper and brass.
- 110V / 220V Options — Select the correct voltage for your region before ordering.

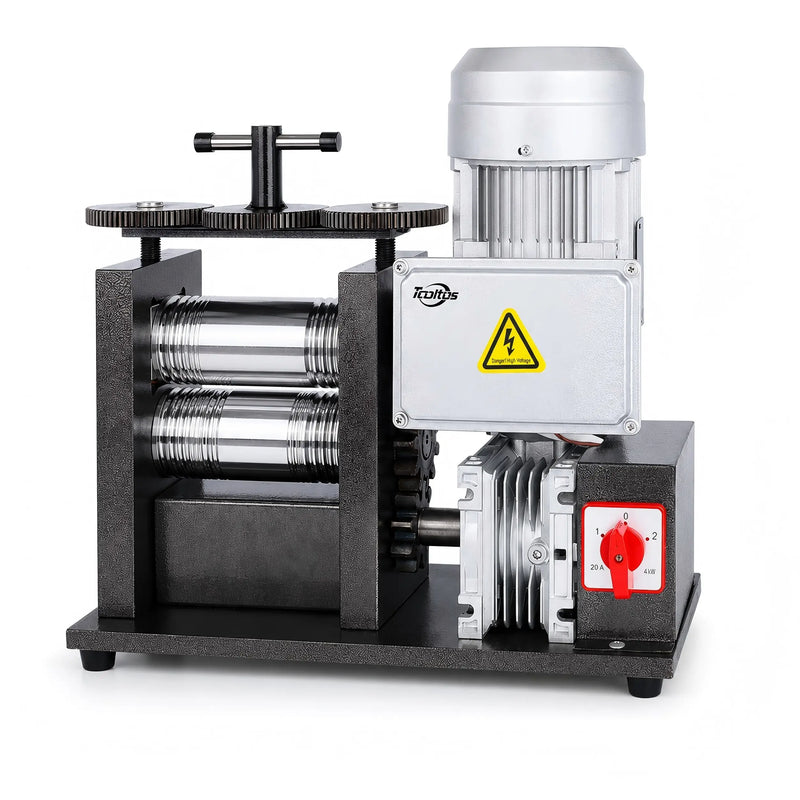

The Tooltos 4-in-1 Electric Jewelry Rolling Mill is a motorized rolling machine designed for jewelers, goldsmiths, and metalworking studios that need flat sheet rolling, square wire forming, half-round wire shaping and round wire rolling in a single bench-top machine. With a 750W motor, 160mm roller width, knob speed control and T-shaped parallel adjustment handle, it delivers consistent, repeatable results for jewelry fabrication and metalsmithing work.

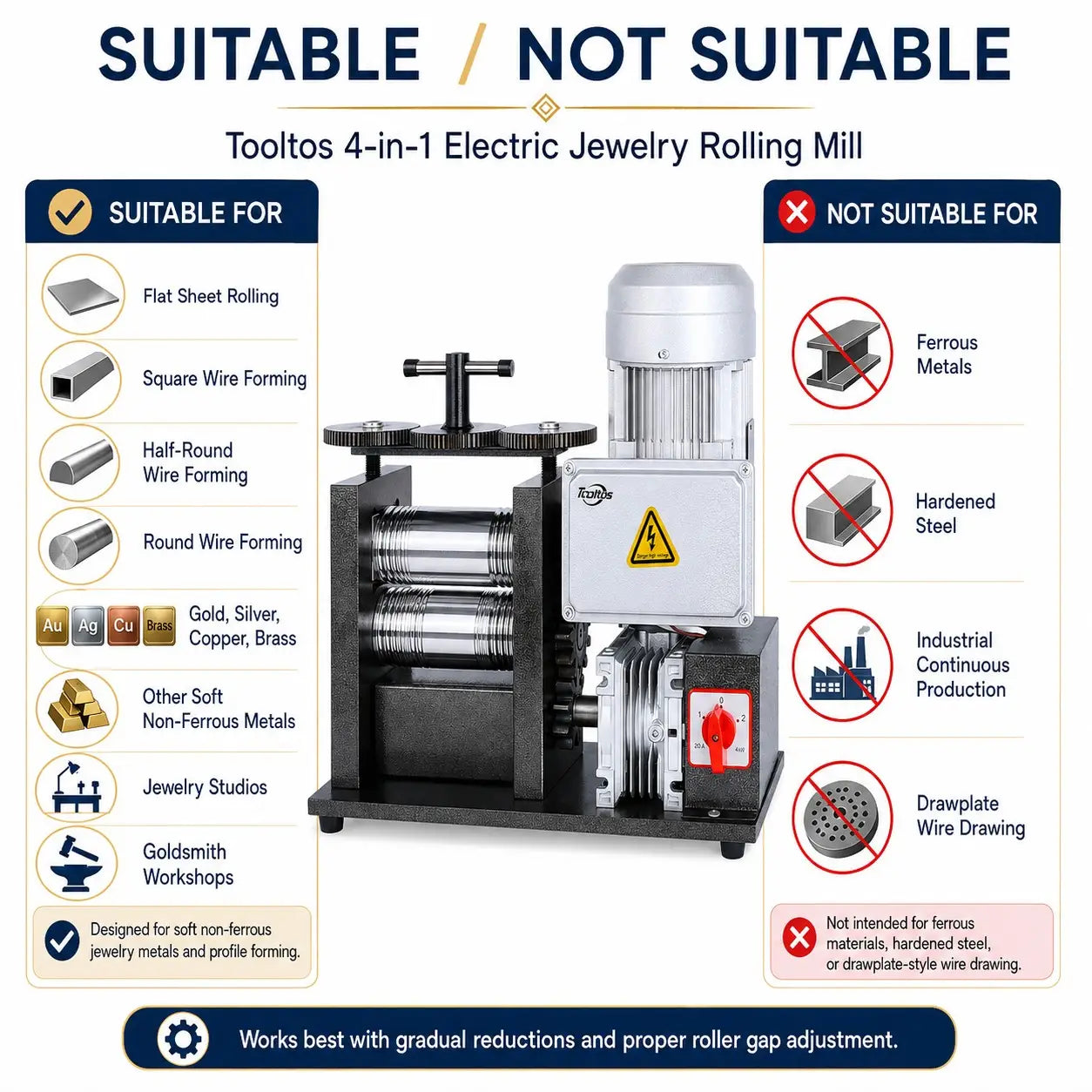

Best For / Not For
| Best For | Not For |
|---|---|
| Flat sheet rolling and gauge reduction Square wire forming Half-round wire shaping Round wire rolling Texture transfer to metal sheet Gold, silver, copper and brass Jewelry studios and metalwork workshops |
Wire drawing through drawplates (use 4-in-1 + Drawplates model instead) Ferrous metals and hardened steel Metal stock thicker than 6mm maximum opening Industrial-scale continuous production |

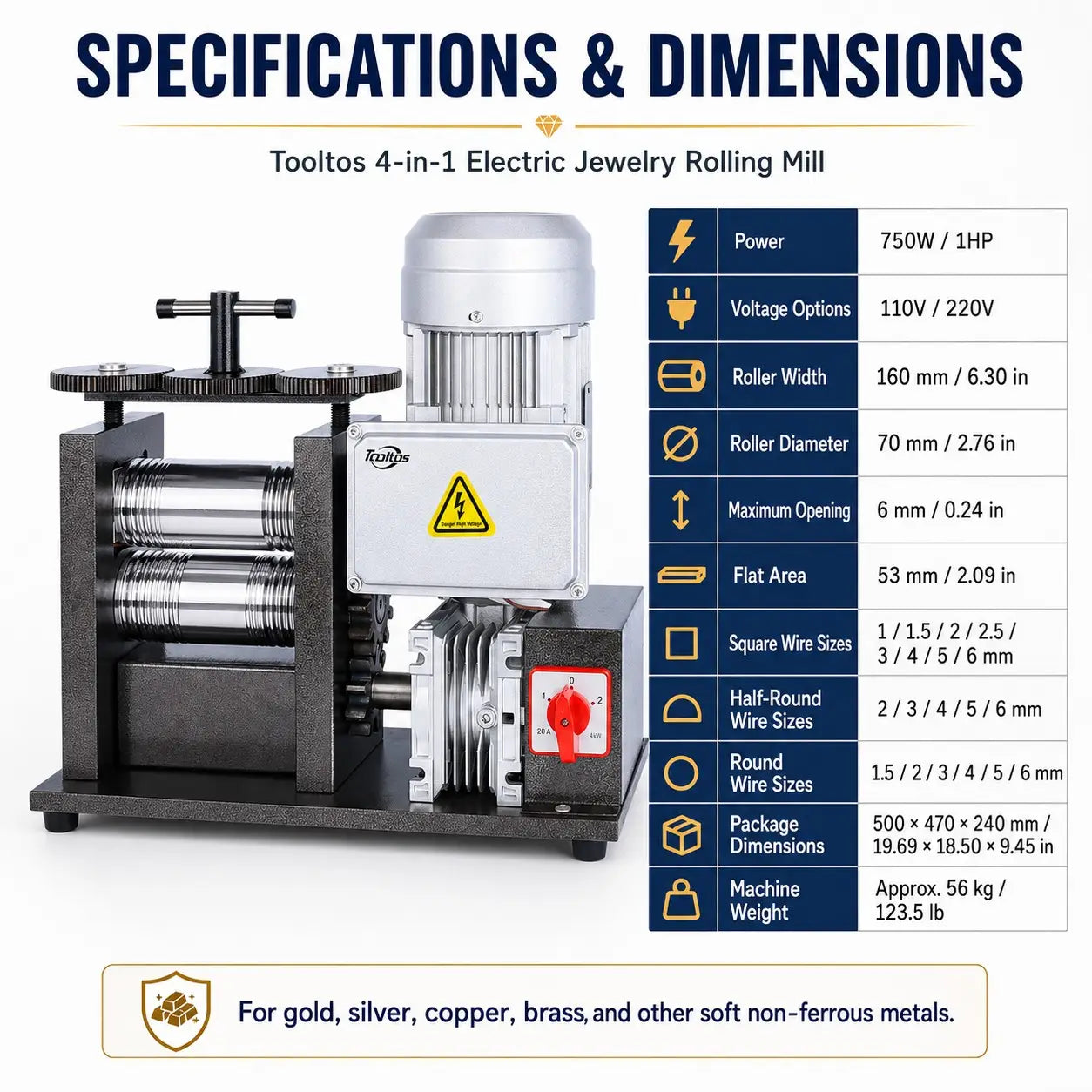

Technical Specifications
| Voltage | 110V / 220V |
| Power | 750W (1HP) |
| Roller Width | 160 mm / 6.30 in |
| Roller Diameter | 70 mm / 2.76 in |
| Maximum Opening | 6 mm / 0.24 in |
| Flat Rolling Area | 53 mm / 2.09 in |
| Square Wire Sizes | 1 / 1.5 / 2 / 3 / 4 / 5 / 6 mm |
| Half-Round Wire Sizes | 2 / 3 / 4 / 5 / 6 mm |
| Round Wire Sizes | 1.5 / 2 / 3 / 4 / 5 / 6 mm |
| Package Dimensions | 500 x 470 x 240 mm / 19.7 x 18.5 x 9.4 in |
| Machine Weight | approx. 56 kg / 123.5 lb |
Rolling Capability Summary
| Function | Details |
|---|---|
| Flat Sheet Rolling | 53 mm flat area, max 6 mm opening |
| Square Wire | 1 / 1.5 / 2 / 3 / 4 / 5 / 6 mm |
| Half-Round Wire | 2 / 3 / 4 / 5 / 6 mm |
| Round Wire | 1.5 / 2 / 3 / 4 / 5 / 6 mm |

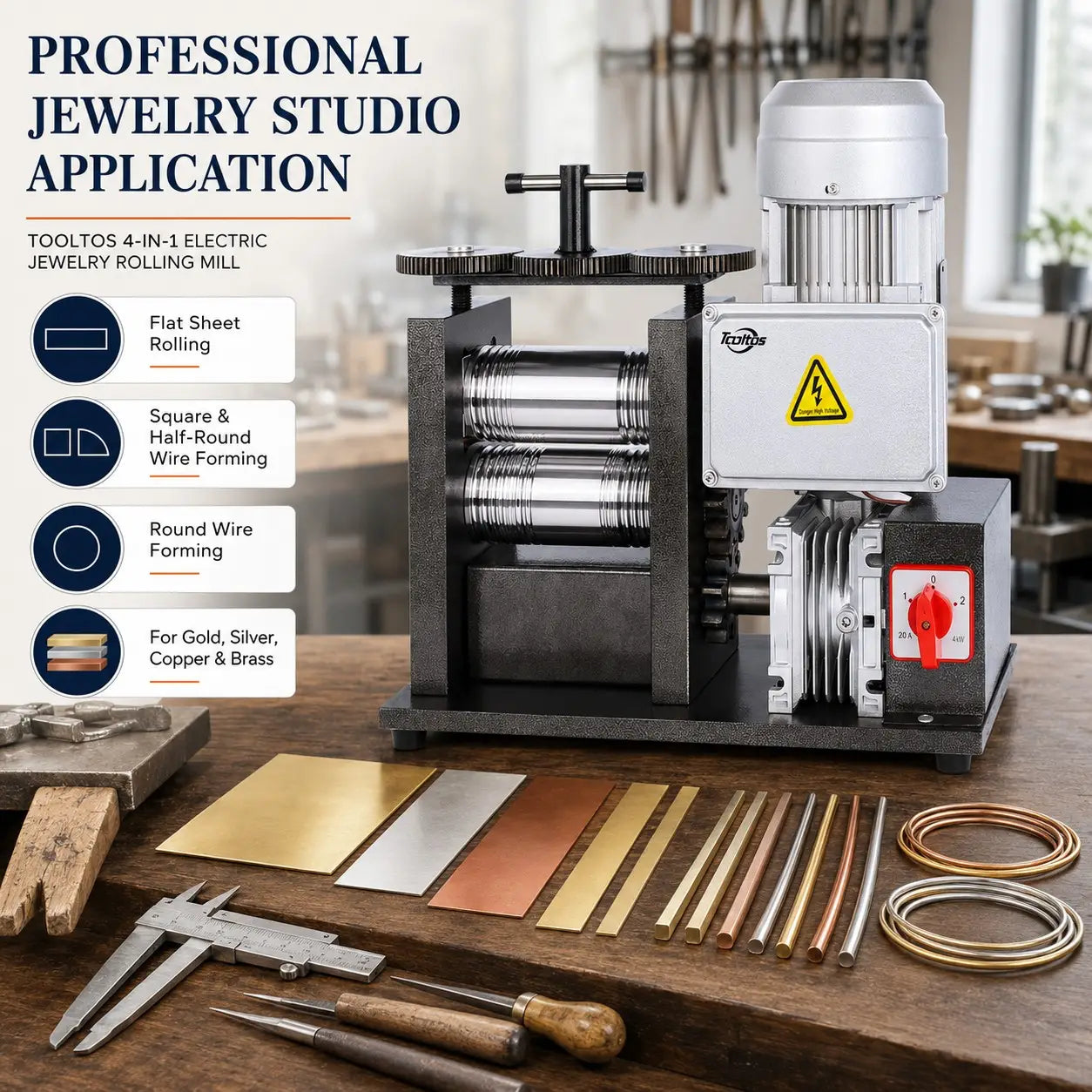

Workshop Applications
| Application | Description |
|---|---|
| Sheet Metal Rolling | Reducing gold, silver and copper sheet to precise gauge thickness for ring shanks, bezels and flat components |
| Square Wire Forming | Producing square wire profiles for rings, bangles and structural jewelry components |
| Half-Round Wire Shaping | Creating half-round wire profiles for channel settings, decorative borders and wire wrapping |
| Round Wire Rolling | Rolling round wire to consistent diameter for chains, rings and structural components |
| Texture Transfer | Pressing texture patterns into sheet metal by rolling with textured material between the rollers |
This Model vs 4-in-1 with Drawplates
| Feature | This Model | 4-in-1 + Drawplates |
|---|---|---|
| Flat Sheet Rolling | ✓ | ✓ |
| Square Wire Forming | ✓ | ✓ |
| Half-Round Wire Shaping | ✓ | ✓ |
| Round Wire Rolling | ✓ | ✓ |
| Wire Drawing (Drawplates) | ✗ | ✓ |
| Tungsten Carbide Drawplates | ✗ | ✓ |
Frequently Asked Questions
What is the difference between this model and the 4-in-1 with Drawplates?
This model covers all four rolling functions (flat sheet, square wire, half-round wire, round wire). The 4-in-1 with Drawplates adds tungsten carbide square drawplates and a drawing roller for wire drawing capability. If you need wire drawing, choose the Drawplates model.
What metals can this rolling mill handle?
Gold, silver, copper, brass and most soft non-ferrous metal alloys. Not suitable for ferrous metals or hardened steel.
Can I use this for texture transfer?
Yes. Place a textured material between the metal and the roller, then pass through at a controlled gap to transfer the pattern to the metal surface.
Which voltage should I select?
110V for USA and Canada. 220V for Europe, UK, Australia and most of Asia. Please confirm your local voltage before ordering.
How heavy is the machine?
Approximately 56 kg (123.5 lb). A stable, reinforced workbench is recommended for installation.

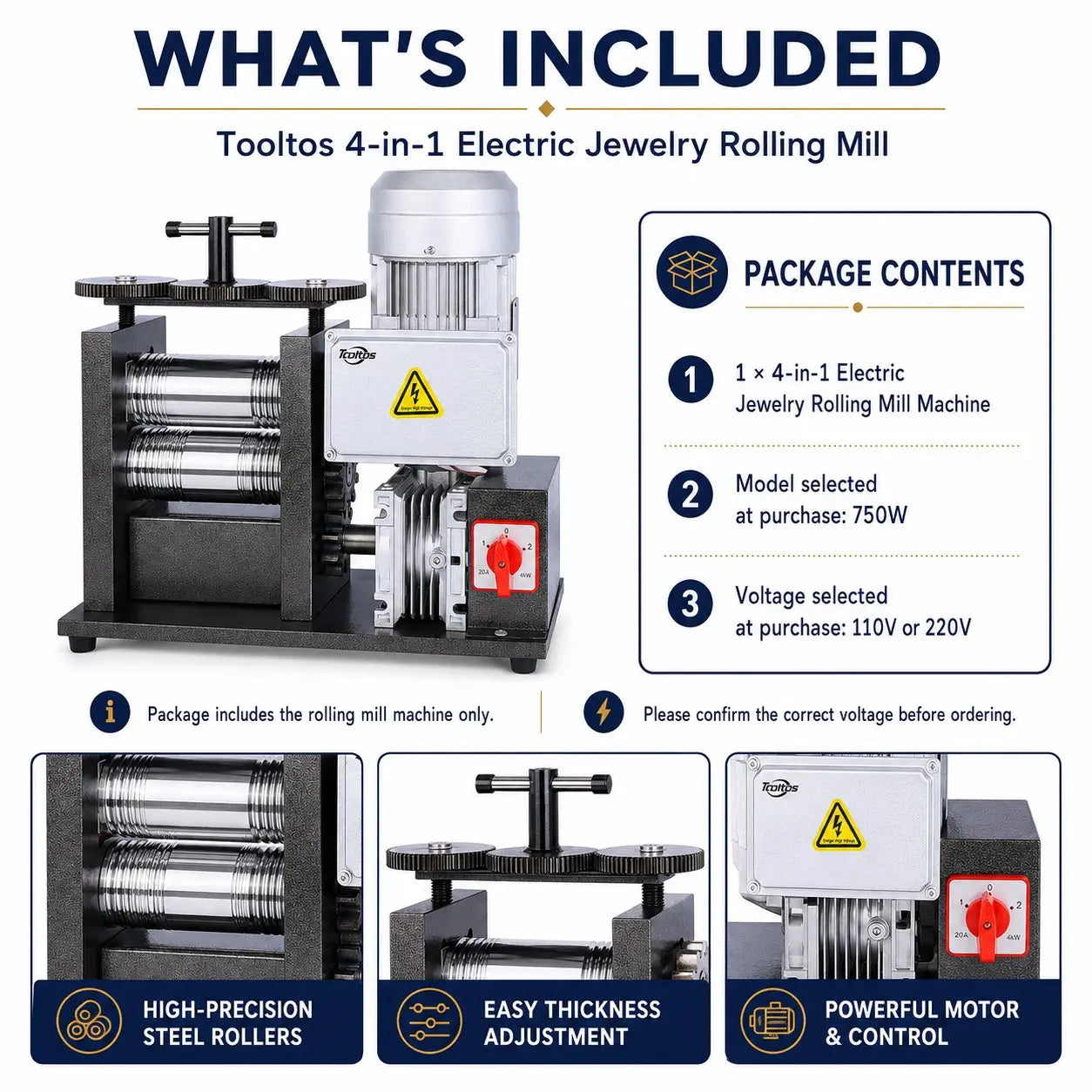

What's Included
- 1 x Tooltos 4-in-1 Electric Jewelry Rolling Mill Machine (750W, 110V or 220V)
Why Choose Tooltos
Tooltos designs jewelry tools and machines for professional workshops and serious hobbyists. The 4-in-1 Electric Rolling Mill covers flat sheet, square wire, half-round wire and round wire rolling in a single machine — a practical choice for studios that need versatile forming capability without wire drawing. If you also need wire drawing, see the 4-in-1 model with Tungsten Carbide Drawplates, or contact sales@tooltos.com for model selection help.
Support
For technical questions, model selection or order support, contact the Tooltos team at sales@tooltos.com. We typically respond within 24 hours.
