Tooltos Manual Bracelet Bending Machine with Five Roller Options
- 99 in stock
Description
Product Overview

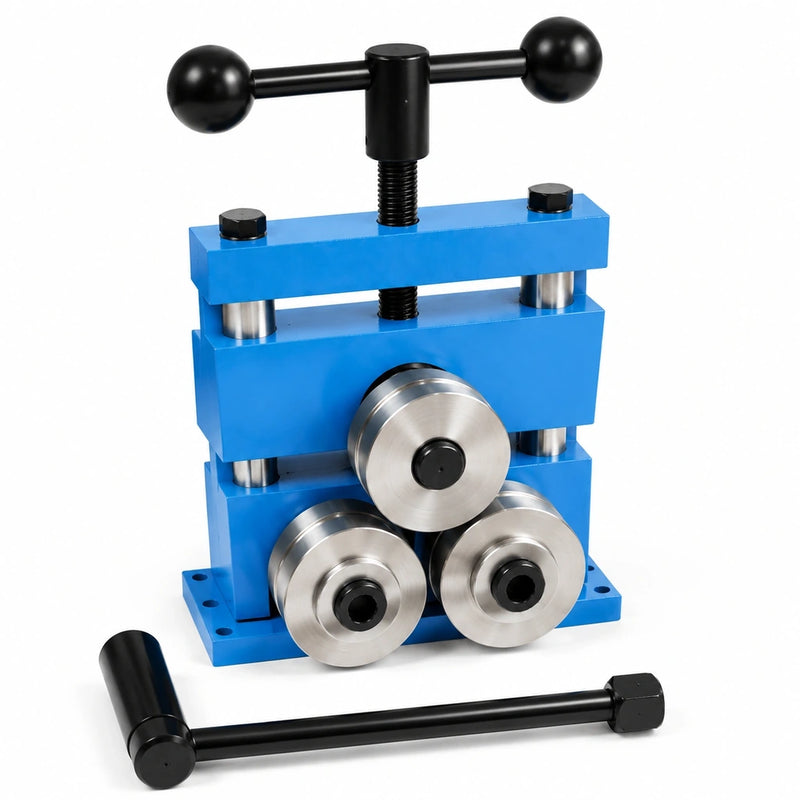

Bring controlled, hands-on forming to your jewelry bench with this manual bracelet bending machine. Its three-roller system guides compatible bracelet blanks, metal strips, and wire through the tool as you turn the side crank. Adjust the top T-handle gradually between passes to work toward the desired curve without electrical power.
Five roller configurations are described below: Hollow, Concave, Convex, Flat, and Rubber. Each has a different working profile or contact material, and dimensions and weight vary by configuration. Confirm the required configuration and material suitability before ordering. One machine does not include all five configurations.
Key Features
Adjustable Roller Gap
The top T-handle adjusts the distance between the rollers for a compatible workpiece. Make small adjustments and inspect the result between passes rather than forcing material through a tight opening.
Manual Three Roller Forming
The side crank drives the rollers by hand, keeping feed speed under operator control. The forming result depends on the selected roller profile, material hardness, and workpiece dimensions.
Five Roller Designs
- Hollow Roller: A circumferential groove runs around the middle of the working surface. The name does not mean the roller has an empty interior.
- Concave Roller: A concave working profile for forming tasks compatible with that geometry.
- Convex Roller: A convex working profile for forming tasks compatible with that geometry.
- Flat Roller: A flat roller configuration.
- Rubber Roller: Rubber-covered rollers for workpieces suited to that contact surface. This does not guarantee a mark-free finish.
Metal Frame with Mounting Base
The blue metal frame supports the roller assembly and adjustment mechanism. Base mounting holes allow the machine to be secured to a suitable workbench.
Suitable Applications
- Forming and bending compatible bracelet blanks
- Manual rolling of suitable metal strips
- Shaping compatible wire with an appropriate roller profile
- Handmade jewelry projects and small workshop forming tasks
Important Function Clarification
This is a manually operated bending and rolling tool, not a motorized or automatic production machine. The five configurations describe different roller geometries or contact materials; they are not a five-piece roller set included with every machine. Roller interchangeability has not been confirmed.
Maximum working thickness, supported material width, and minimum bend radius have not been confirmed. Overall machine dimensions are not working-capacity measurements. Suitability depends on material thickness, width, hardness, and roller geometry. Confirm compatibility and test a suitable sample before processing a finished piece.
Technical Specifications
| Tool type | Manual bracelet bending machine |
| Roller system | Three rollers with top T-handle gap adjustment |
| Drive and power | Manual side crank; no electricity required |
| Frame | Blue metal frame with base mounting holes |

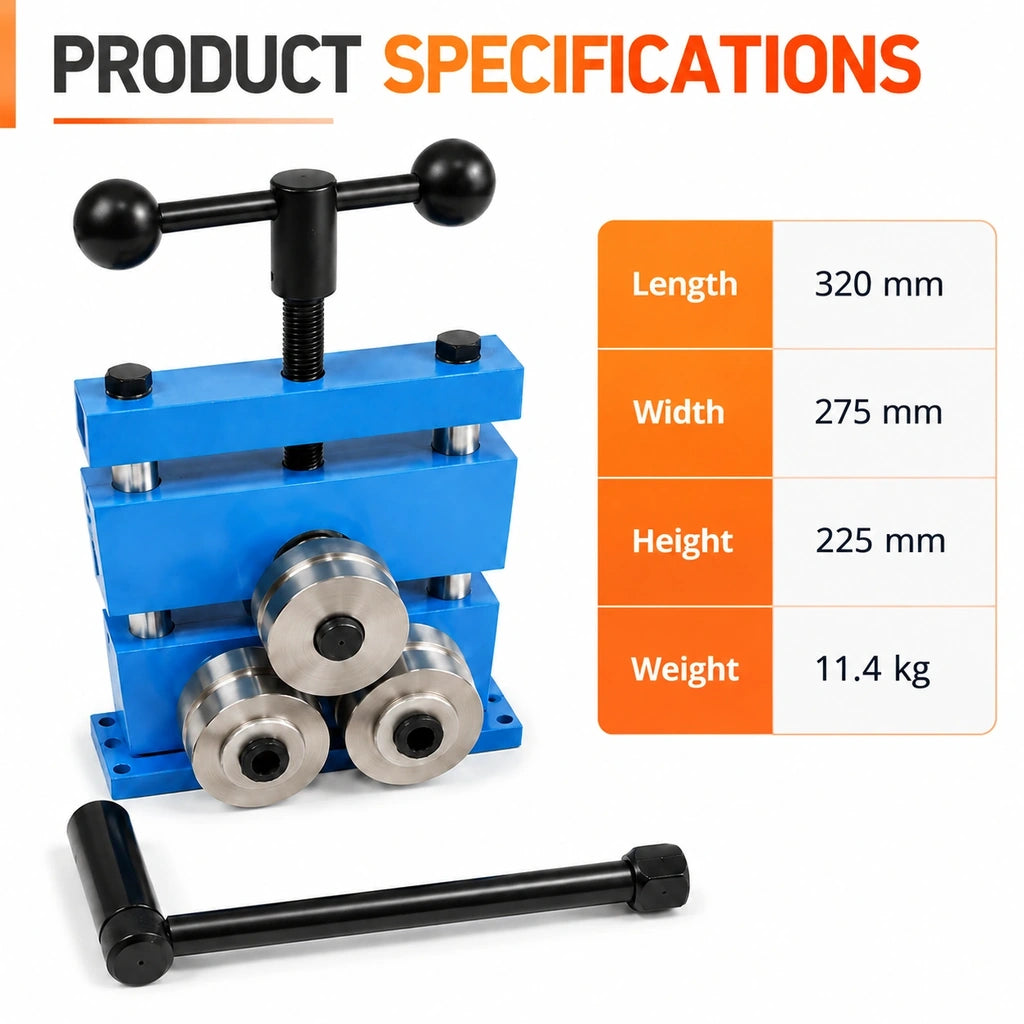

| Hollow Roller dimensions and weight | 32 × 27.5 × 22.5 cm / 12.60 × 10.83 × 8.86 in; 11.4 kg / 25.13 lb |
| Concave Roller dimensions and weight | 32 × 27.5 × 22.5 cm / 12.60 × 10.83 × 8.86 in; 9.7 kg / 21.38 lb |
| Convex Roller dimensions and weight | 32 × 27.5 × 22.5 cm / 12.60 × 10.83 × 8.86 in; 10.35 kg / 22.82 lb |
| Flat Roller dimensions and weight | 32 × 27.5 × 22.5 cm / 12.60 × 10.83 × 8.86 in; 10.65 kg / 23.48 lb |
| Rubber Roller dimensions and weight | 27.5 × 24 × 15 cm / 10.83 × 9.45 × 5.91 in; 8.05 kg / 17.75 lb |
| Working capacity | Maximum thickness, working width, and minimum bend radius not confirmed |
Dimensions are listed as length × width × height. Refer to the required configuration when comparing size and weight.

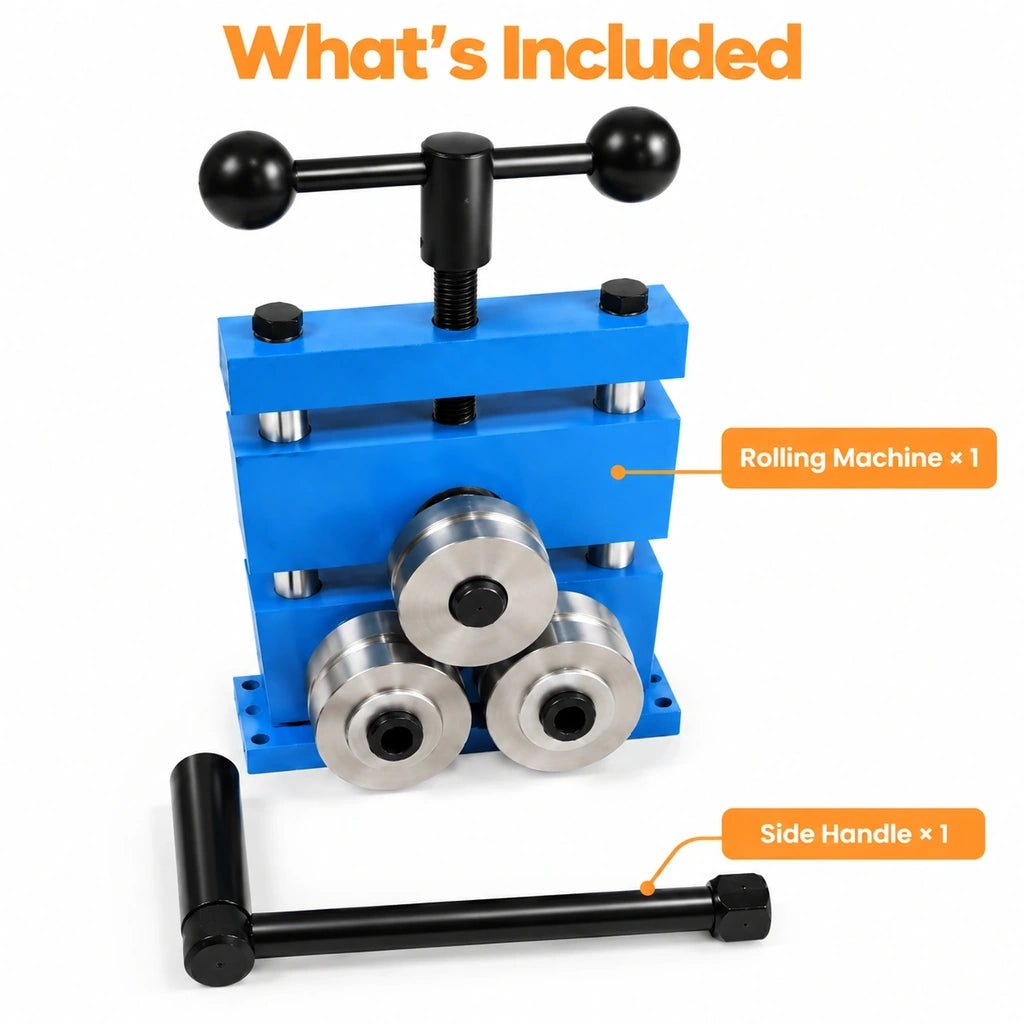

Package Contents
- 1 × Manual bracelet bending machine in the ordered roller configuration
- 1 × Side crank handle
Only the ordered configuration is supplied. Metal strips, wires, finished bracelets, and other demonstration materials are not included unless explicitly stated in the listing option. Confirm the configuration before ordering.

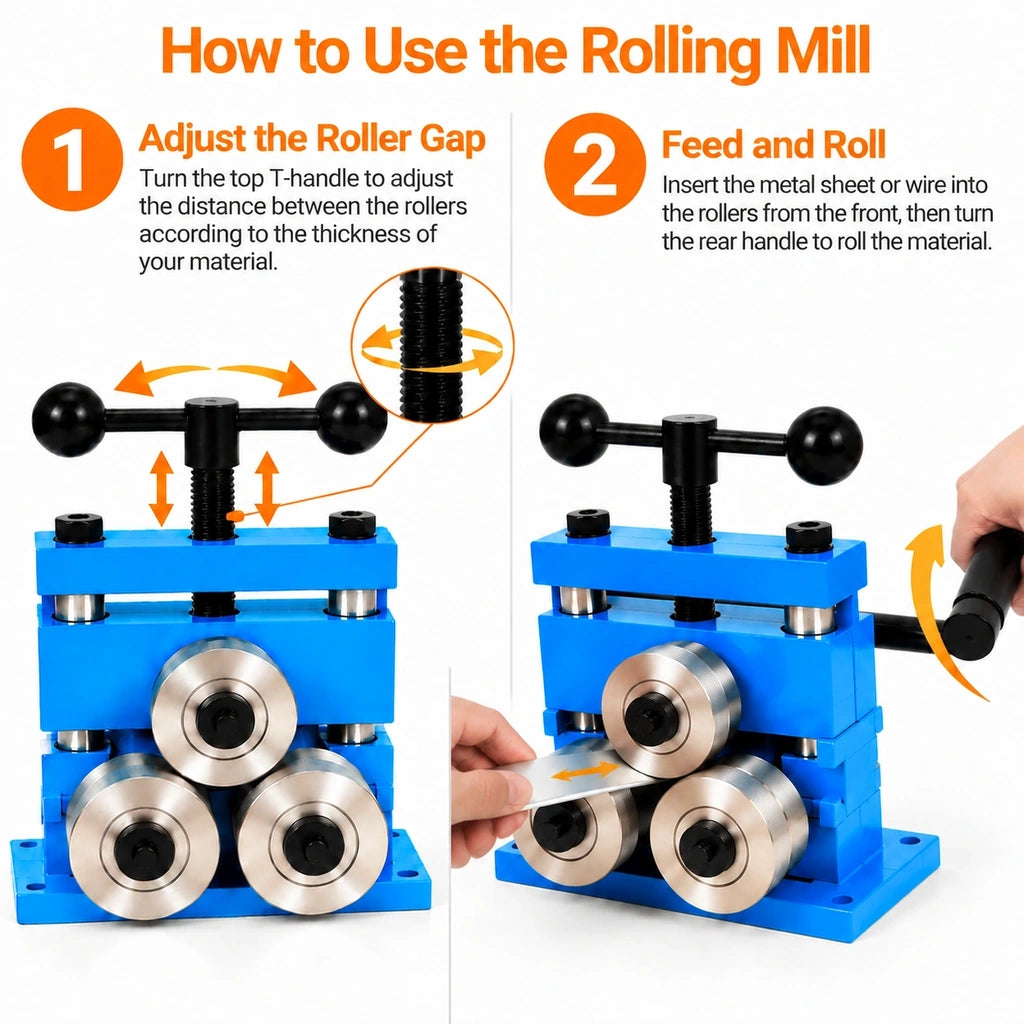

Basic Operating Steps
- Place the machine on a stable workbench and secure the base using appropriate mounting hardware.
- With the rollers stopped, adjust the top T-handle to a suitable initial gap for a compatible sample.
- Position the sample at the appropriate opening, keeping fingers clear of the roller contact points.
- Turn the side crank slowly to feed the material through the rollers.
- Stop and inspect the result. Adjust the gap gradually if needed.
- Repeat in controlled passes toward the desired shape. Stop if the material jams or excessive force is needed.
Safety Information
- Secure the machine before use and check for loose or damaged components.
- Keep fingers, loose clothing, and accessories away from the rollers and crank.
- Wear appropriate eye protection when working with metal.
- Stop the rollers before making adjustments or clearing material.
- Do not force unsuitable or overly hard material through the machine. Confirm working capacity before use.
Frequently Asked Questions
Are all five roller configurations included?
No. The package contains one machine in the ordered configuration and one side crank handle. The five designs are not supplied together as a set.
What does Hollow Roller mean?
It refers to the circumferential groove in the middle of the working surface, not an empty interior inside the roller.
Can it form both bracelet blanks and wire?
It can form compatible blanks, strips, or wire when the selected roller profile and material dimensions are suitable. No universal thickness or hardness capacity has been confirmed.
Does it need electricity or a plug?
No. Gap adjustment and roller operation are manual, so no voltage or plug selection is required.
Do all configurations have the same size and weight?
No. The Hollow, Concave, Convex, and Flat versions share the listed overall dimensions but differ in weight. The Rubber version has different dimensions and weight. See the specification table for each configuration.
