Tooltos AF3-6 Multi-function Gold Silver Jewelry Fusion Welding Machine

  • 99 in stock
  • Inventory on the way
$99.99 USD
$99.99 USD
Shipping calculated at checkout.
Voltage: 110V

Description

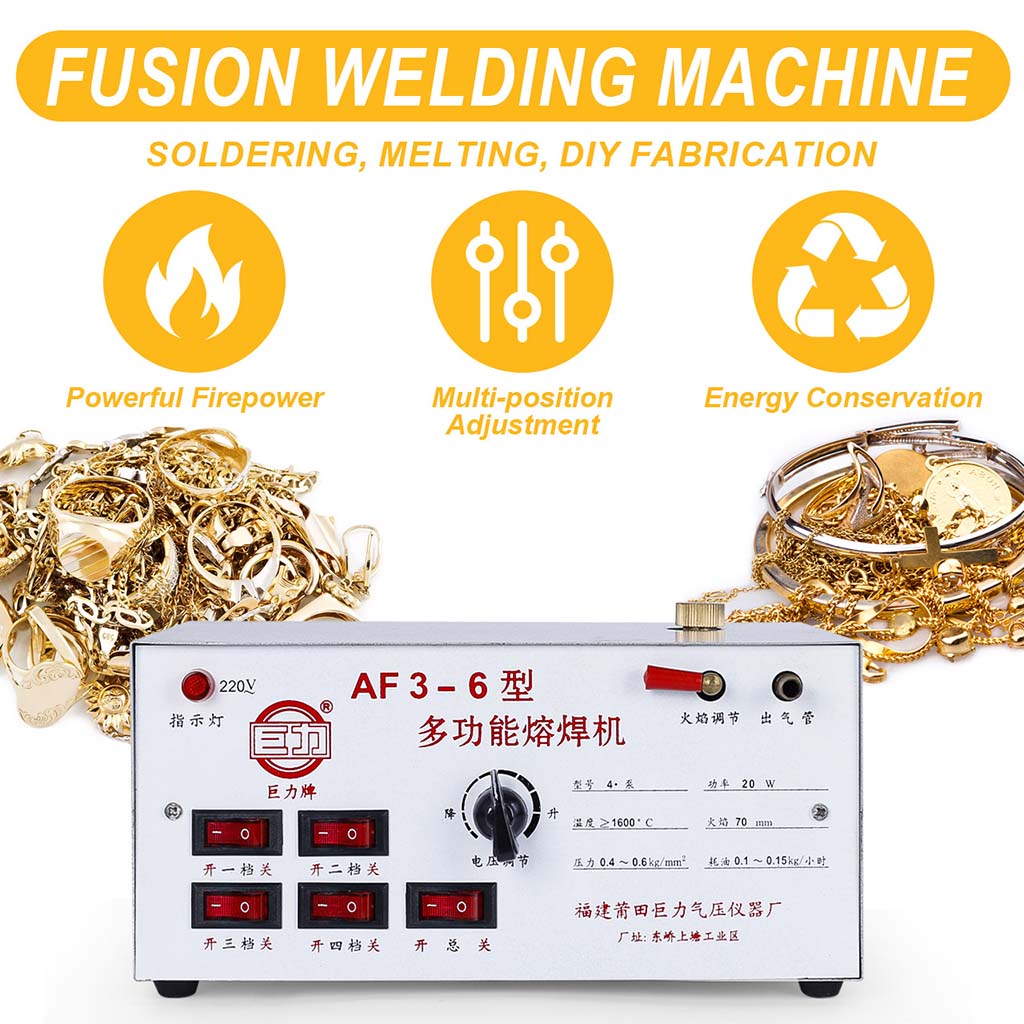

The Tooltos AF3-6 Jewelry Fusion Welding Machine uses white power oil or petroleum fuel to generate a powerful, rapid-heating flame reaching ≥1600°C — higher than the SH3-5 model and suitable for a wider range of precious metal welding and repair applications. With a 0.5L oil capacity and 70mm flame, it delivers more heat output while remaining compact at 4.5 kg.

Key Features

  • ≥1600°C Maximum Temperature — Higher output than SH3-5, suitable for more demanding precious metal welding applications.
  • 70mm Flame Length — Longer flame than SH3-5 for greater heat coverage.
  • 0.5L Oil Capacity — Longer operating time between refills compared to SH3-5.
  • Low Noise Operation — Suitable for studio and workshop environments.
  • Universal Voltage — Available in 110V and 220V for worldwide use.

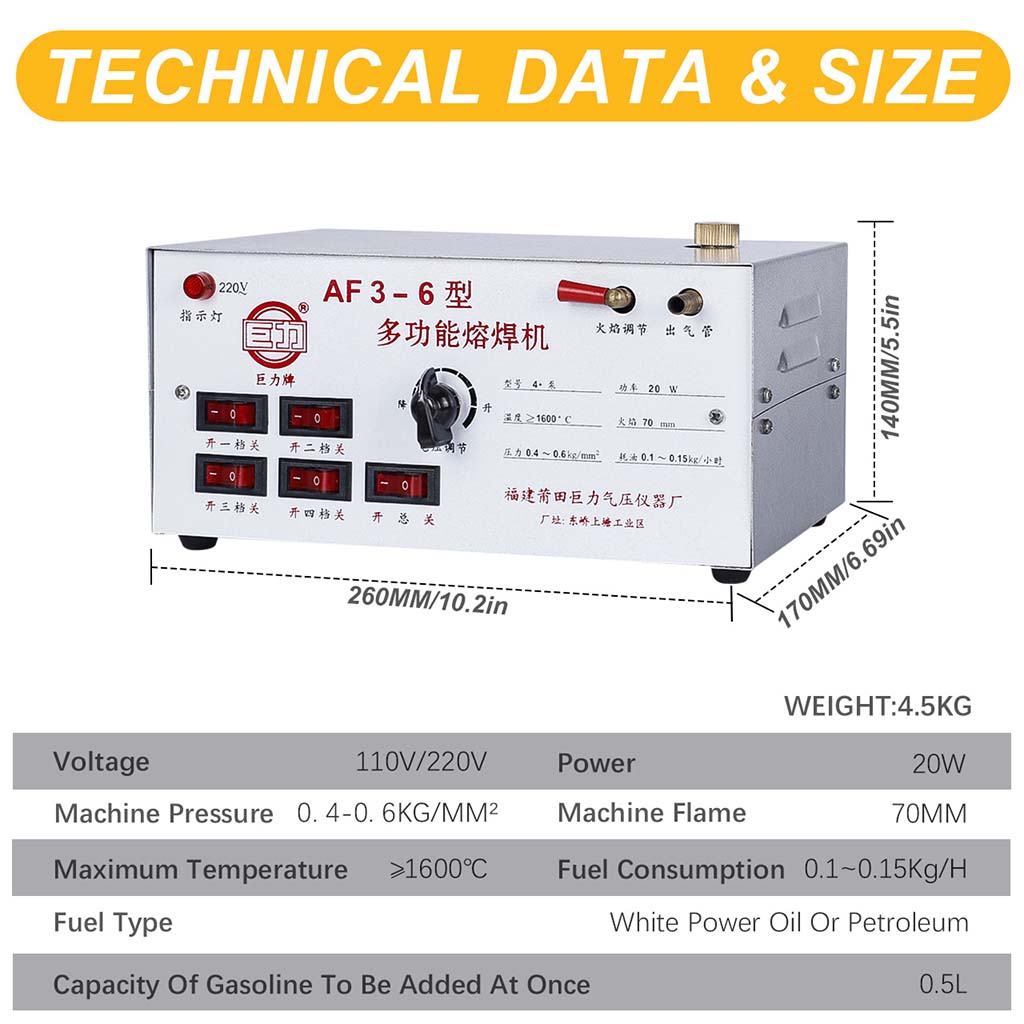

Technical Specifications

Voltage 110V / 220V
Power 20W
Maximum Temperature ≥1600°C (2912°F)
Flame Length 70 mm
Max Oil Capacity 0.5 L
Machine Pressure 0.4 – 0.6 KG/MM²
Fuel Consumption 0.1 – 0.15 KG/H
Fuel Type White power oil or petroleum
Machine Size 260 × 170 × 140 mm
Packing Weight approx. 4.5 kg

Fusion Welding Machine Model Comparison

Model Max Temp Oil Capacity Power Weight
SH3-5 ≥1300°C 0.4L 15W 3.9 kg
AF3-6 ≥1600°C 0.5L 20W 4.5 kg
JX5-8 ≥2000°C 0.6L 30W 5.5 kg
M500 2200°C 2L 115W 13.5 kg

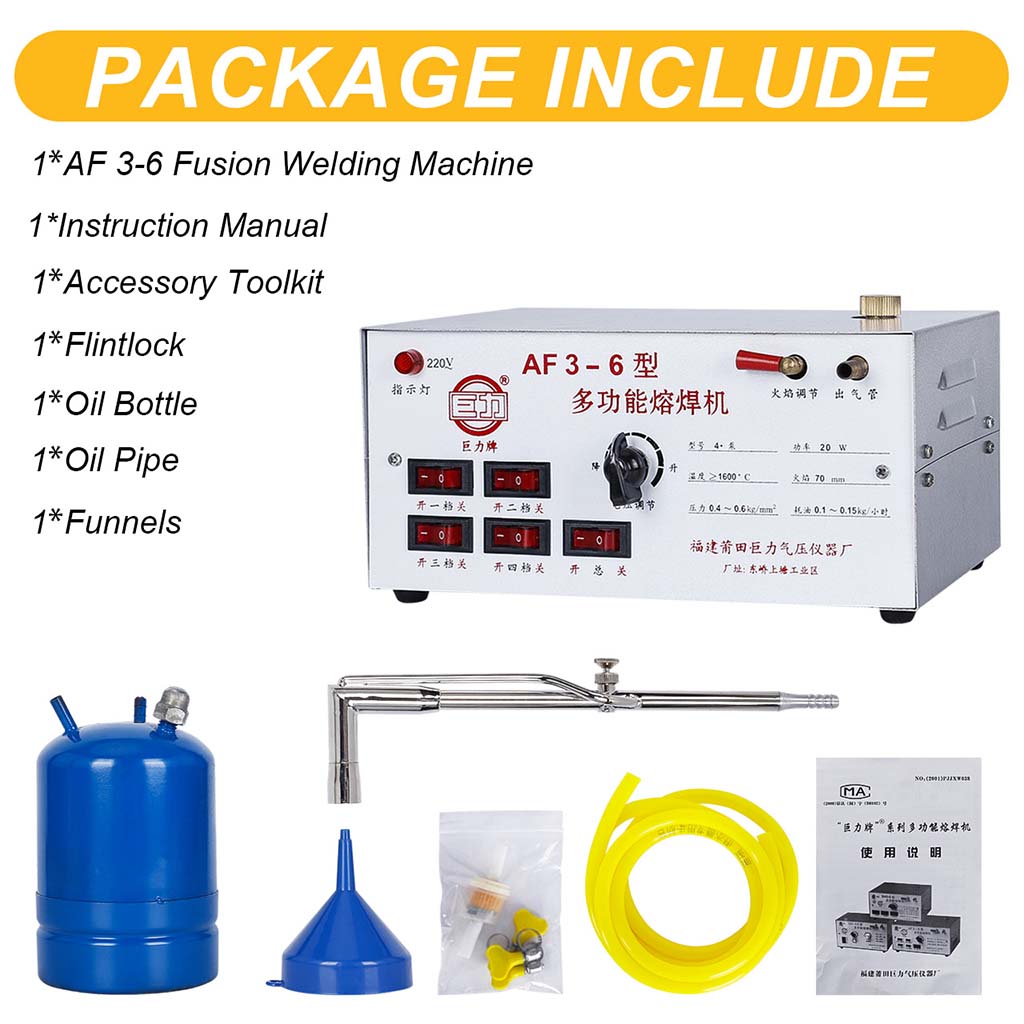

What's Included

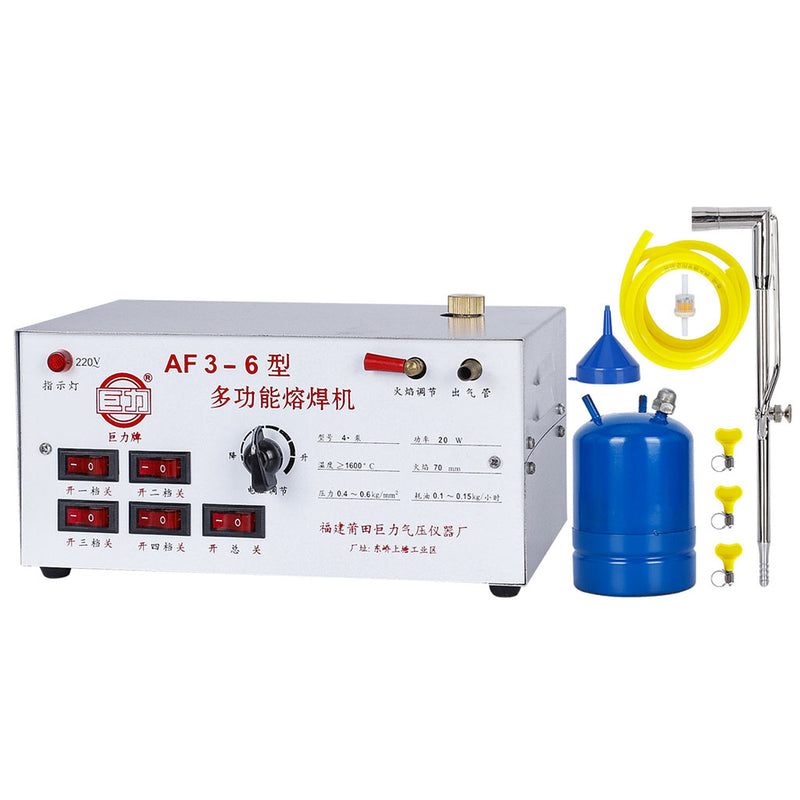

  • 1 × AF3-6 Fusion Welding Machine
  • 1 × Welding Torch
  • 1 × Oil Bottle
  • 1 × Oil Pipe
  • 1 × Funnel
  • 1 × Accessory Kit
  • 1 × Instruction Manual

Support

For technical questions or assistance, contact the Tooltos support team at sales@tooltos.com or via live chat at www.tooltos.com. Responses are typically provided within 2 hours.
