Tooltos Jewelry Electric Wax Welder | Adjustable 50-150C
- 86 in stock
Description
Key Selling Points
- Adjustable temperature from 50 to 150C (122 to 302F) lets you match the heat precisely to your wax type and task without overmelting or underheating

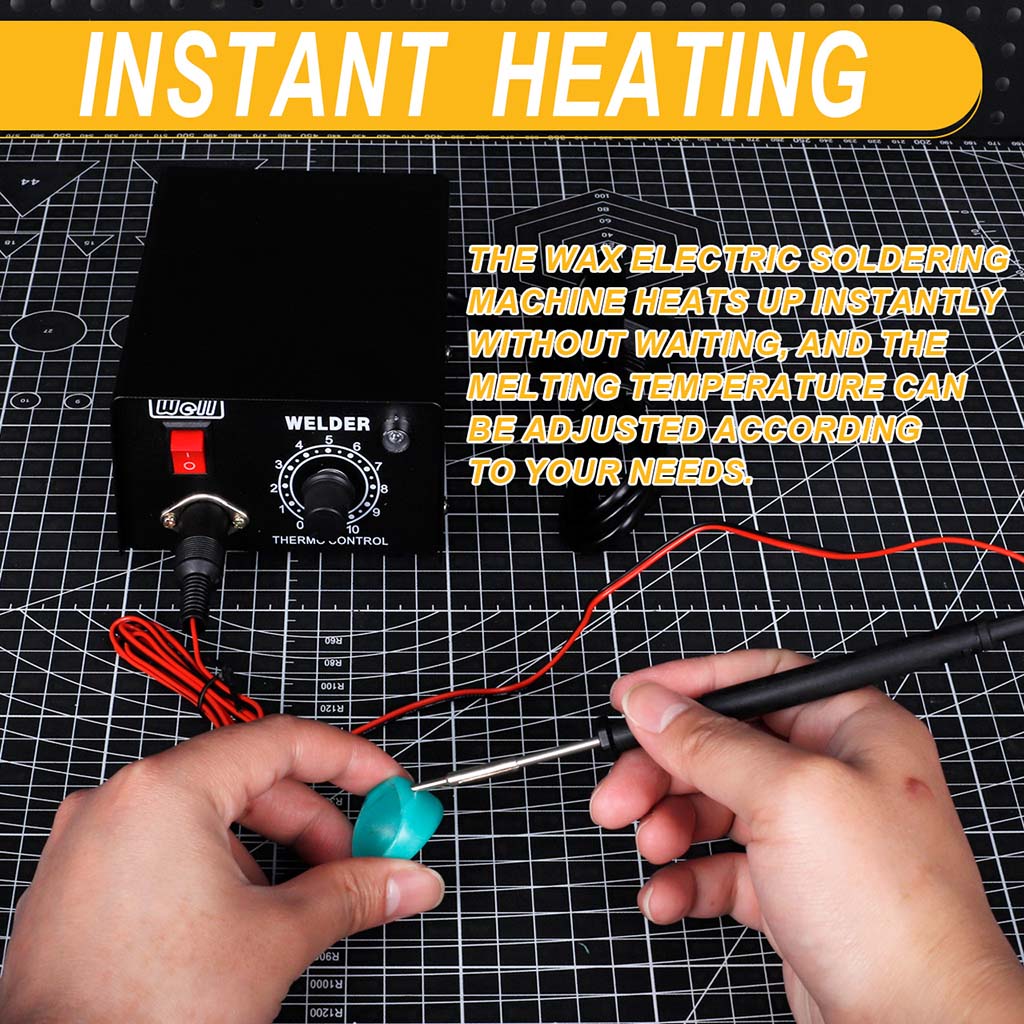

- Instant heat-up — no waiting for the tip to reach working temperature, ready to use within seconds of switching on

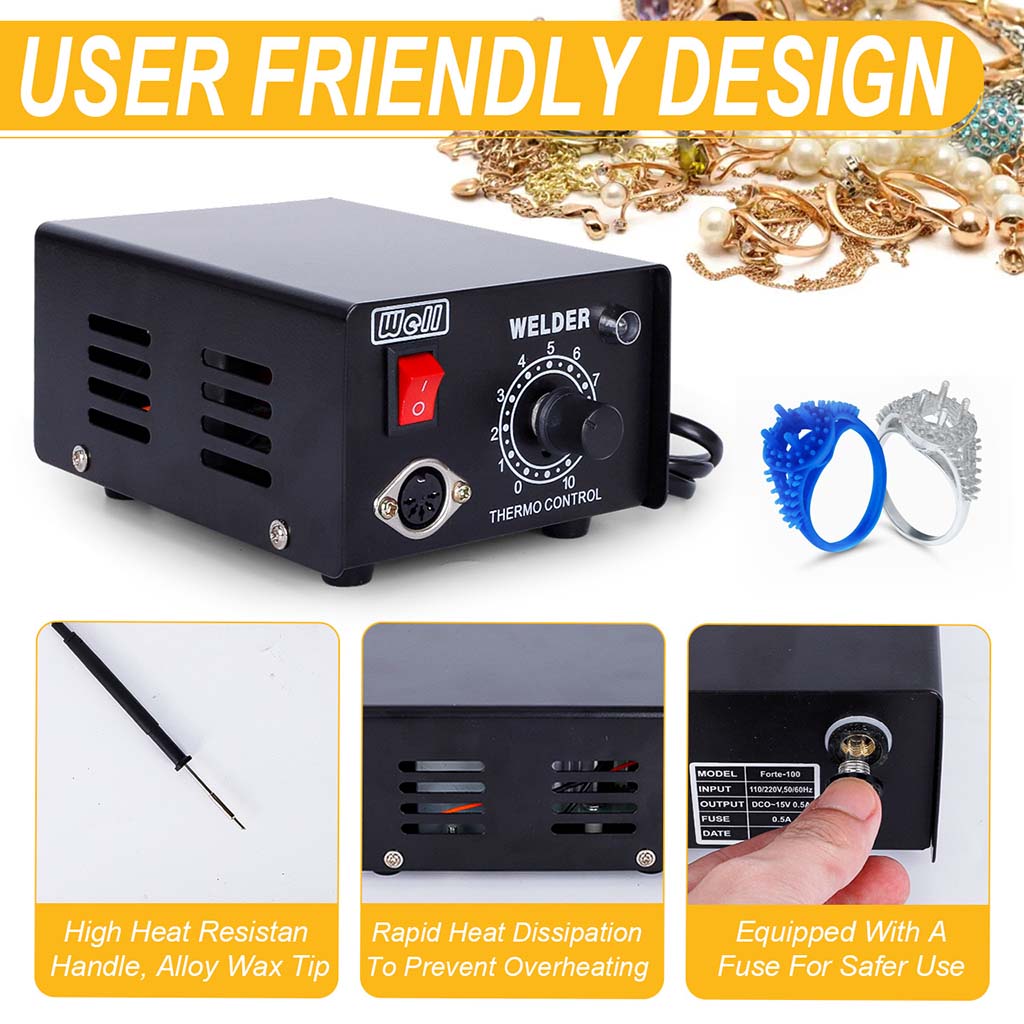

- Insulated handle keeps the grip cool during extended wax carving and repair sessions, reducing hand fatigue
- Alloy welding tip provides reliable heat transfer and long service life compared to standard wire-tip wax pens
- Low-voltage DC output (0-15V, 0.5A) makes this a safe, controlled tool for fine wax work on the jeweler's bench
- Available in both 110V and 220V — select the voltage that matches your local power supply at checkout
About This Wax Welder
The Tooltos Jewelry Electric Wax Welder is a bench-top wax pen designed for jewelers who work with wax models, wax molds, and wax carving in the casting and stone-setting workflow. The adjustable temperature dial gives you precise control over the tip heat — use lower settings for joining delicate wax sections without distortion, and higher settings for filling gaps, smoothing seams, or working with harder wax types.
The compact unit (100 x 160 x 70mm / 3.9 x 6.3 x 2.8 in) sits stably on the bench and the insulated crayon handle makes one-handed operation comfortable during detailed wax work. This is a wax-specific tool operating at a maximum of 150C (302F) — it is not designed for soldering or welding metal.
Best For / Not For
| Best For | Not For |
|---|---|
| Jewelers repairing and joining wax mold sections before casting | Soldering or welding metal — this tool reaches a maximum of 150C (302F) and is designed for wax only |
| Wax carvers who need precise, adjustable heat for shaping and smoothing wax models | High-temperature applications — for metal soldering, a dedicated jewelry soldering station is required |
| Stone setters using wax to temporarily secure stones during setting work | Electronic circuit soldering — while technically possible at low temperatures, this tool is optimized for jewelry wax work |
| Dental lab technicians and oral carving professionals working with dental wax | Users who need a cordless or battery-powered wax pen — this tool requires a mains power connection |

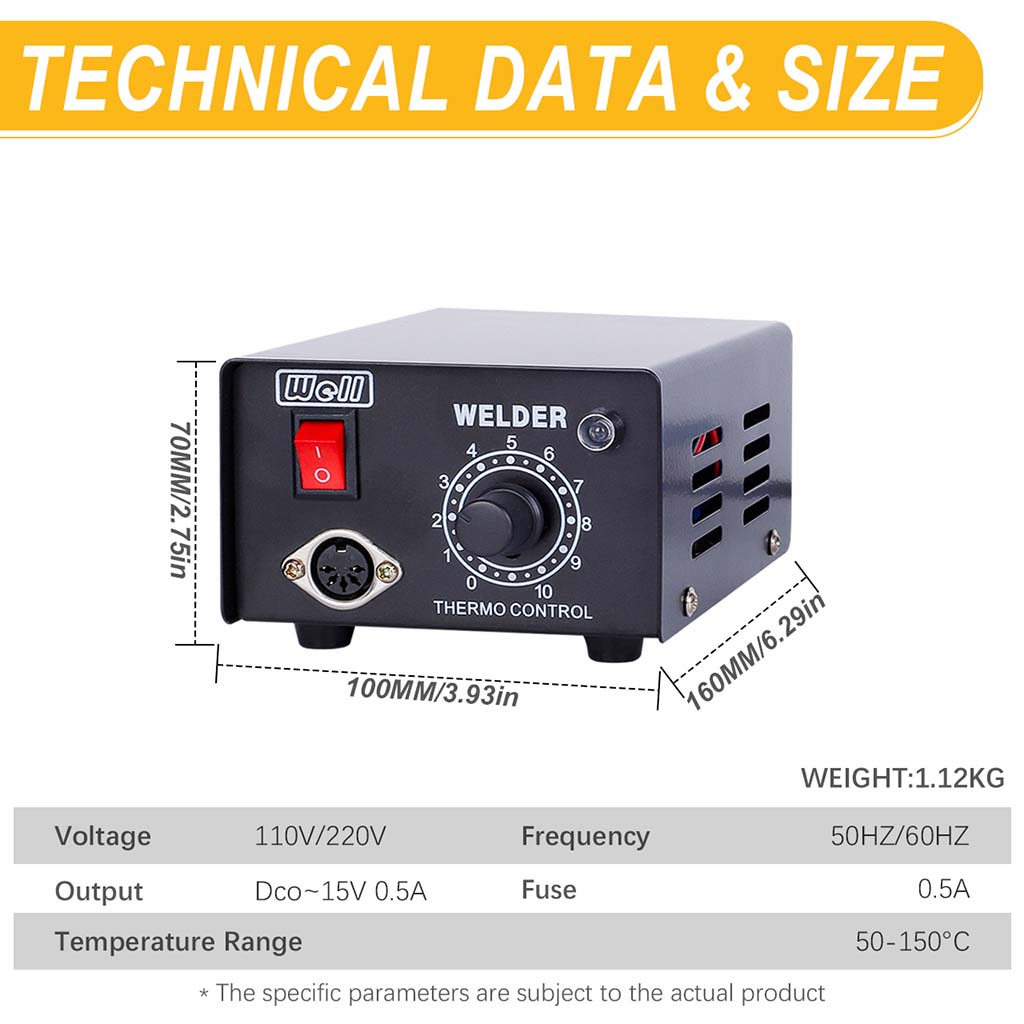

Technical Specifications
| Temperature Range | 50 - 150C (122 - 302F) |
| Output | DC 0-15V, 0.5A |
| Fuse | 0.5A |
| Voltage Options | 110V / 220V (select at checkout) |
| Frequency | 50Hz |
| Tip Material | Alloy |
| Machine Dimensions | 100 x 160 x 70mm (3.9 x 6.3 x 2.8 in) |
| Weight | Approx. 1.12kg (2.5 lb) |
Pro Tips
- Start at the lowest temperature setting and increase gradually — most jewelry wax types work well between 80 and 120C (176 and 248F). Higher temperatures can cause wax to bubble or discolor.
- Clean the tip regularly during use by wiping it on a folded piece of paper — wax residue on the tip can transfer color or impurities to your wax model.
- Use a light touch when joining wax sections — the tip transfers heat quickly, and pressing too hard can distort the surrounding wax before it has time to cool and set.
- Allow the joined area to cool fully before handling or carving — wax bonds are strongest once the material has returned to room temperature.
- When not in use, turn the temperature dial to the lowest setting rather than switching off and on repeatedly — this reduces thermal cycling stress on the tip and extends its working life.
Frequently Asked Questions
Can this tool be used to solder metal?
No. This is a wax-specific tool with a maximum temperature of 150C (302F). Metal soldering requires temperatures of 180C (356F) and above. For metal soldering, a dedicated jewelry soldering station is required.
Which voltage should I order — 110V or 220V?
Select the voltage that matches your local power supply. North America and most of the Americas use 110V. Europe, Asia, Australia, and most other regions use 220V. Check your workshop outlet if you are unsure.
What types of wax can this tool work with?
This wax welder is suitable for standard jewelry casting wax, carving wax, injection wax, and dental carving wax. The adjustable temperature range (50-150C / 122-302F) covers the working range of most wax types used in jewelry making and dental lab work.
How quickly does the tip heat up?
The tip heats up almost instantly after switching on. There is no significant warm-up wait time, which makes it practical for short tasks and intermittent use during a wax carving session.
Can the welding tip be replaced?
The alloy tip is designed for long service life. If the tip becomes worn or damaged, please contact us at sales@tooltos.com to confirm replacement tip availability for your unit.
What if I have questions after receiving the tool?
Contact the Tooltos team at sales@tooltos.com. We respond within 24 hours on business days and can assist with temperature settings, wax compatibility, and troubleshooting.

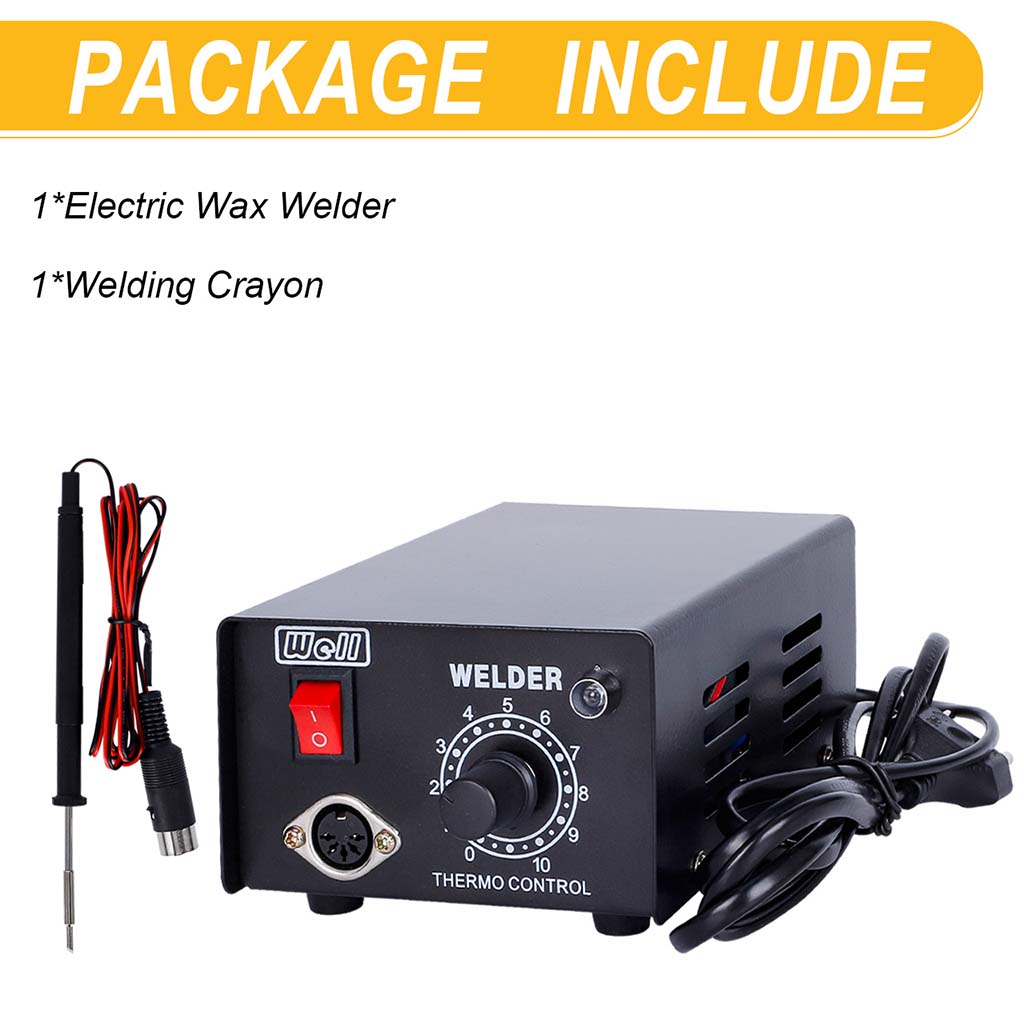

What's Included
- 1 x Electric wax welder unit
- 1 x Welding crayon (handpiece)
Support
Questions about wax compatibility, temperature settings, or order status? Contact the Tooltos team at sales@tooltos.com. We respond within 24 hours on business days.
