Tooltos Electric Wax Welder | 66-480C, Foot Pedal, 2 Tips
- 93 in stock
Description
The professional wax welder for jewelers who need both hands on the work — foot pedal control activates instant heat from 66 to 480°C without putting anything down, two alloy tips cover detail carving and seam filling, and dual control modes handle everything from wax mold repair to light circuit soldering.
Key Selling Points
- Wide temperature range 66-480C (151-896F) — covers everything from delicate wax carving at low heat to harder wax joining and light soldering at higher settings

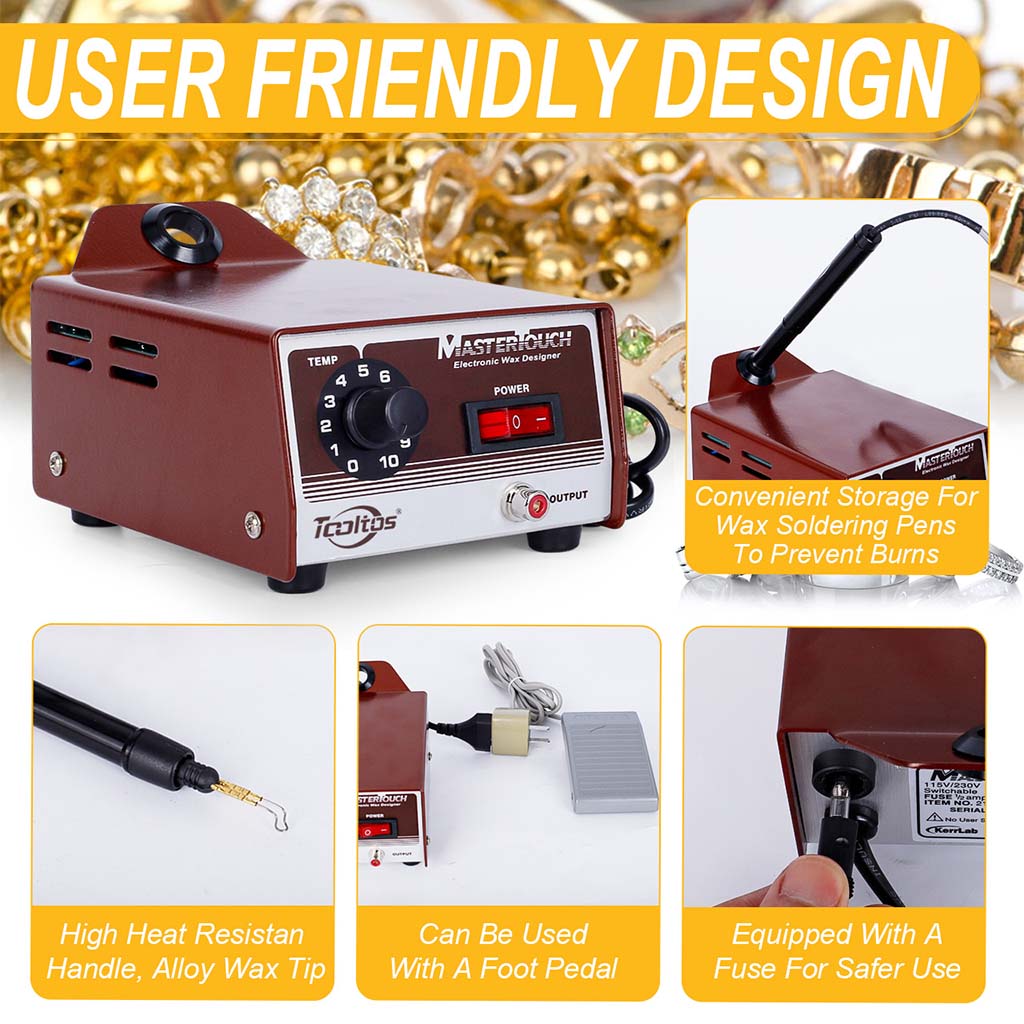

- Foot pedal control keeps both hands free to hold the wax model and guide the tip — switch the tool on and off without putting anything down
- Two alloy tips included — switch between tip shapes to match the task without waiting for a separate tool to heat up

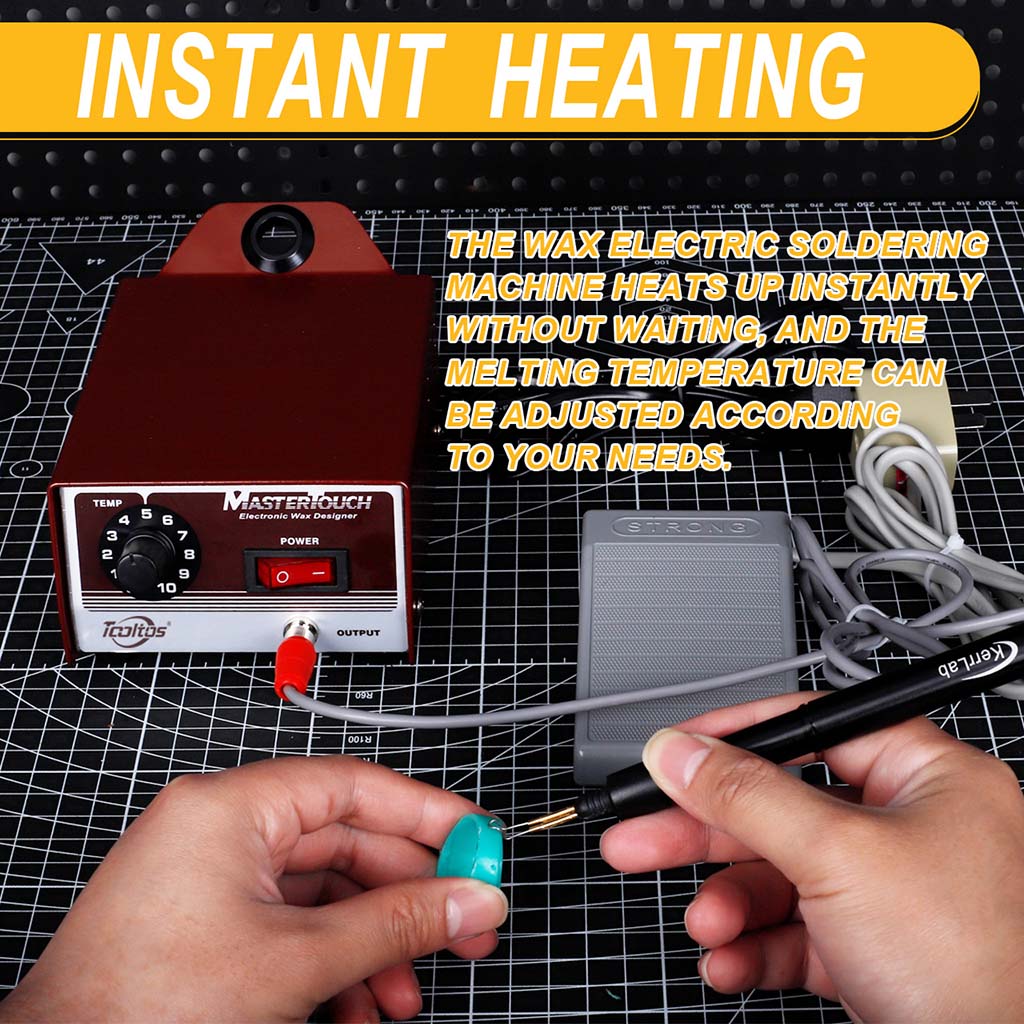

- Instant heating — reaches working temperature within seconds of activating, no warm-up wait between tasks
- Dual control modes: use the foot pedal for hands-free on/off during active work, or direct power mode for continuous heating during longer sessions
- Available in 110V and 220V — select the voltage that matches your workshop power supply at checkout
About This Wax Welder
Wax model repair is one of the most time-sensitive tasks in jewelry making. A crack in a wax tree, a broken sprue, or a misaligned section needs to be fixed quickly and cleanly — but the moment you pick up a standard wax pen, you lose a hand. You end up holding the model with one hand, the pen with the other, and there is nothing left to stabilize the join. The result is overheated wax, distorted details, and wasted time re-carving what you just damaged.

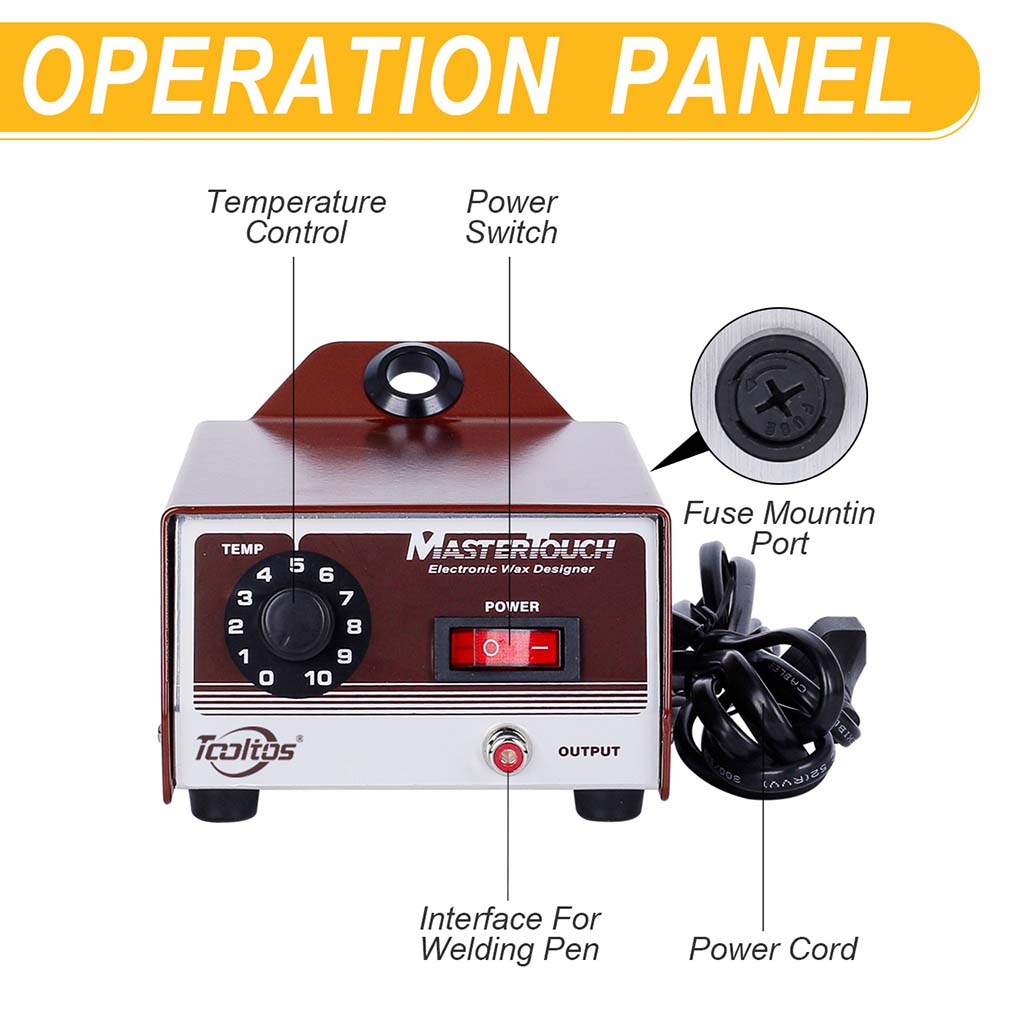

The Tooltos Electric Wax Welder solves this directly. The foot pedal puts on/off control under your foot, so both hands stay on the work. You hold the model steady with one hand, guide the tip precisely with the other, and activate heat only when you need it — no fumbling, no accidental overheating, no stopping to set the tool down. The adjustable temperature dial (66-480C / 151-896F) lets you set the exact heat level for your wax type before you start, so the tip is always at the right temperature the moment you press the pedal.
Two alloy tips are included so you can keep a fine-point tip for detail work and a broader tip for seam filling and joining, switching between them as the task changes. If you need a simpler single-tip wax welder without foot pedal control, see the Tooltos Jewelry Electric Wax Welder (50-150C).
Control Mode Guide
| Mode | How It Works | Best For |
|---|---|---|
| Foot Pedal | Press pedal to activate heat, release to stop. Temperature set by dial. | Wax model repair, joining sections, detail work requiring both hands |
| Direct Power | Tip heats continuously while powered on. Temperature set by dial. | Longer continuous wax carving sessions, circuit soldering, dental wax work |
Best For / Not For
| Best For | Not For |
|---|---|
| Jewelers repairing and joining wax mold sections before casting, where both hands need to be on the work | Soldering metal — while this tool reaches 480C (896F), it is designed for wax and light soldering only, not for hard soldering gold and silver which requires a torch above 600C (1112F) |
| Wax carvers who need precise temperature control across a wide range for different wax hardness levels | Users who only need low-temperature wax work (50-150C) — the simpler Tooltos Wax Welder is sufficient and lower cost for that use case |
| Dental technicians working with dental carving wax who need hands-free activation during model work | Cordless or battery-powered use — this tool requires a mains power connection |
| Light electronic circuit soldering where the foot pedal provides convenient hands-free control | High-volume production soldering — this is a precision bench tool for detail work, not a production soldering station |

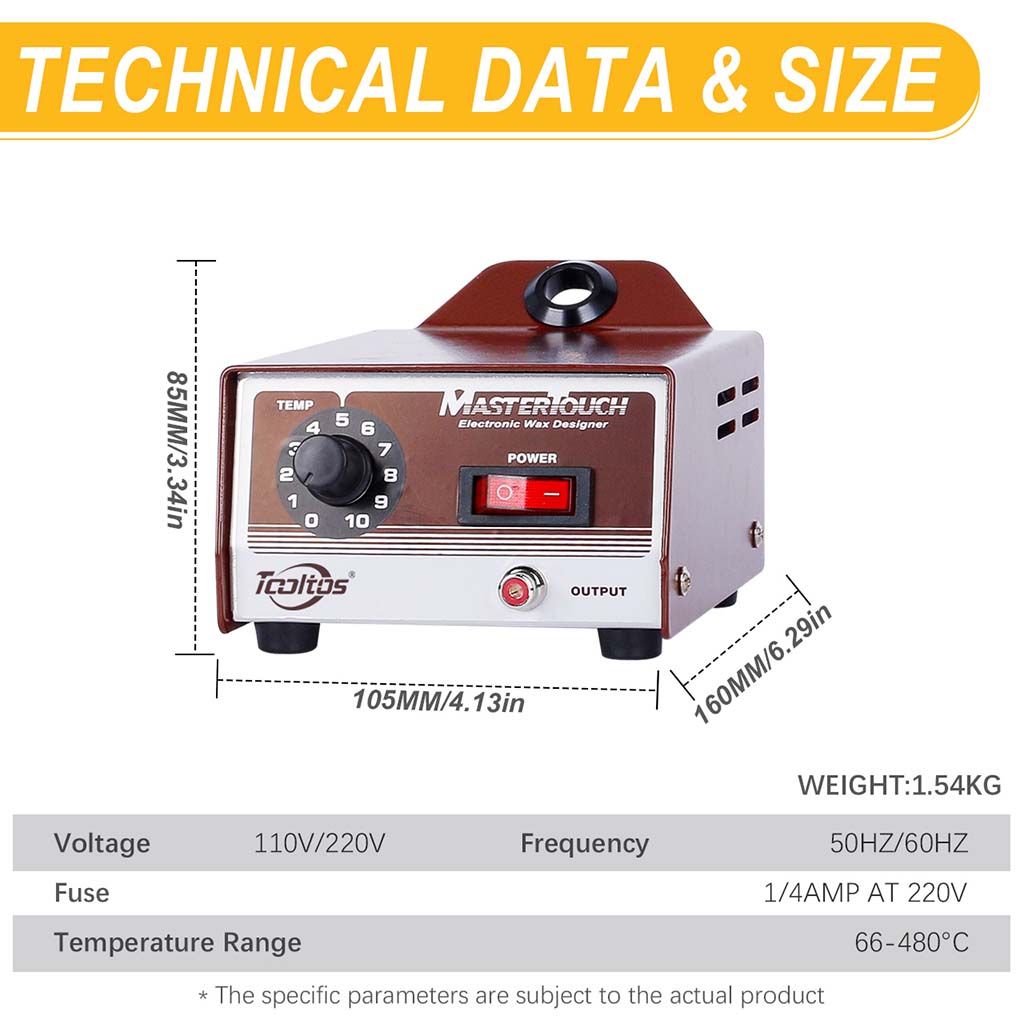

Technical Specifications
| Temperature Range | 66 - 480C (151 - 896F) |
| Heating Speed | Instant (seconds to working temperature) |
| Control Modes | Foot pedal (on/off) and direct power (continuous) |
| Tips Included | 2 x alloy heated crayon tips |
| Voltage Options | 110V / 220V (select at checkout) |
| Frequency | 50Hz |
| Fuse | 1/4 AMP (220V) |
| Machine Dimensions | 105 x 160 x 85mm (4.1 x 6.3 x 3.3 in) |
| Weight | 1.54kg (3.4 lb) |
Pro Tips
- Set your temperature dial before activating the foot pedal — the tip heats instantly, so having the correct temperature pre-set means you are ready to work the moment you press the pedal.
- For most jewelry casting wax repair, start at the lower end of the range (80-120C / 176-248F) and increase only if the wax is not flowing cleanly — higher temperatures increase the risk of distorting surrounding wax detail.
- Use the foot pedal mode for all wax model work — the ability to release heat instantly when the join is made prevents overheating the area around the repair.
- Switch to direct power mode for longer continuous tasks like dental wax carving or circuit soldering, where you need sustained heat without repeatedly pressing the pedal.
- Clean the tip on a folded piece of paper while it is warm — wax residue on the tip transfers color and impurities to the next join if not removed between tasks.
Frequently Asked Questions
Which voltage should I order — 110V or 220V?
Select the voltage that matches your local power supply. North America and most of the Americas use 110V. Europe, Asia, Australia, and most other regions use 220V. Check your workshop outlet if you are unsure.
Does the foot pedal control the temperature?
No. The foot pedal controls on/off activation only. Temperature is set by the dial on the unit before you start work. Press the pedal to activate the tip at your pre-set temperature, release to stop heating.
What temperature should I use for jewelry casting wax?
Most standard jewelry casting wax works well between 80 and 150C (176-302F) for joining and repair. Use the lower end for soft injection wax and the higher end for harder carving wax. The upper range (above 200C / 392F) is for light soldering and dental wax applications, not for standard casting wax.
What is the difference between this and the Tooltos Jewelry Electric Wax Welder?
This model offers a wider temperature range (66-480C vs 50-150C), foot pedal control, two tips, and dual control modes. The simpler Tooltos Wax Welder is a single-tip unit without foot pedal, designed for straightforward wax carving and mold repair at lower temperatures. Choose this model if you need foot pedal control or a wider temperature range.
Can I use this tool to solder metal jewelry?
This tool reaches up to 480C (896F), which is sufficient for light soft soldering. It is not designed for hard soldering gold and silver, which requires temperatures above 600C (1112F) and is typically done with a torch or dedicated high-temperature station.
What if I have questions after receiving the welder?
Contact the Tooltos team at sales@tooltos.com. We respond within 24 hours on business days and can assist with temperature settings, tip selection, and troubleshooting.

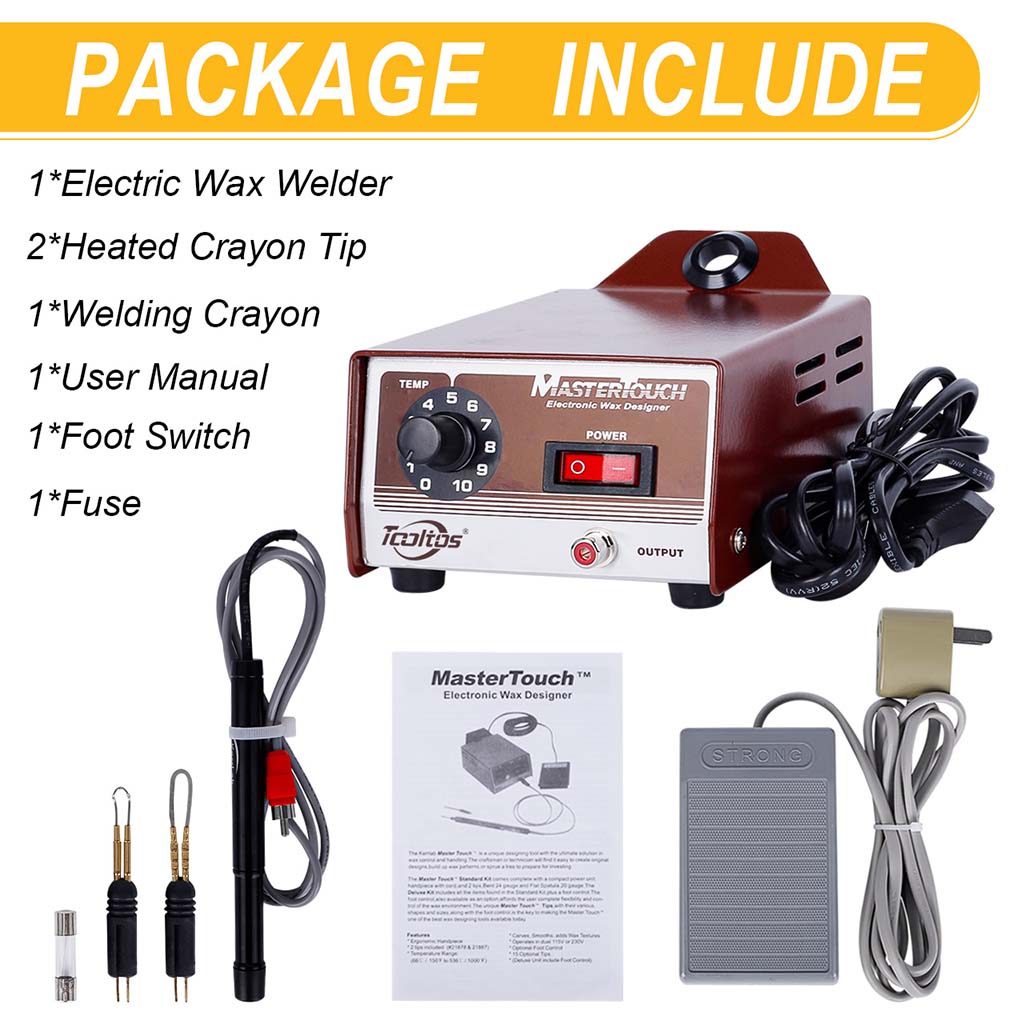

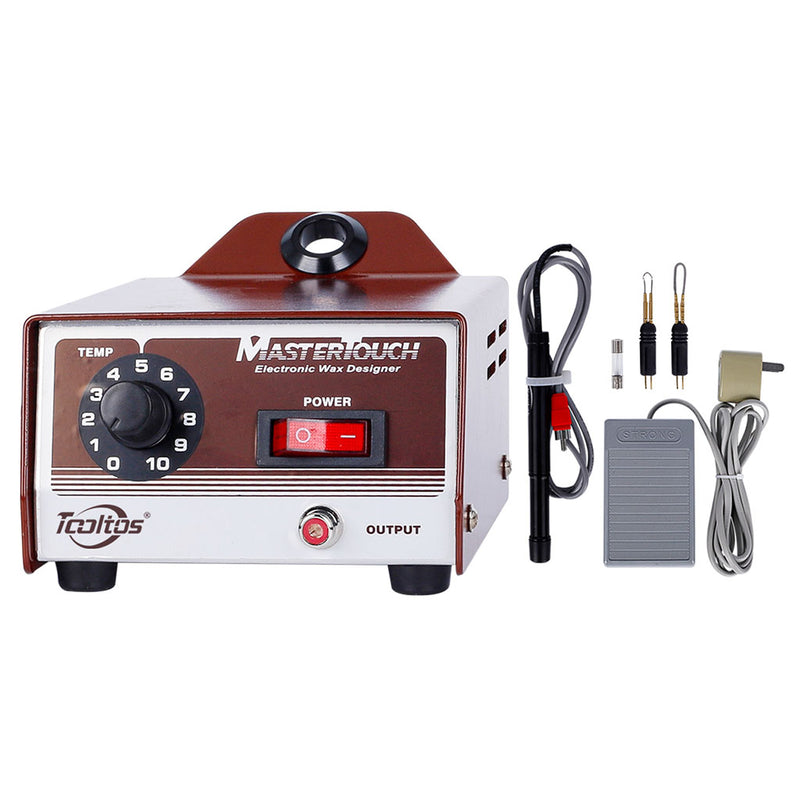

What's Included
- 1 x Electric wax welder unit
- 2 x Alloy heated crayon tips
- 1 x Welding crayon (handpiece)
- 1 x Foot pedal switch
- 1 x Spare fuse
- 1 x User manual
Support
Questions about temperature settings, wax compatibility, or order status? Contact the Tooltos team at sales@tooltos.com. We respond within 24 hours on business days.
