The Tooltos 80A Sparkle Pulse Jewelry Spot Welder uses plasma high-frequency discharge with high-quality capacitors for strong resistance to power grid fluctuation — delivering stable, consistent welding performance across platinum, gold, karat gold, silver, and copper. Dual coarse and fine adjustment knobs allow precise output control, and the thickened sheet metal shell with multiple cooling holes ensures reliable performance during extended operation.
Key Features
High-Quality Capacitors — Strong resistance to power grid fluctuation, good voltage stabilization, and more stable welding performance with reduced arc breakage.

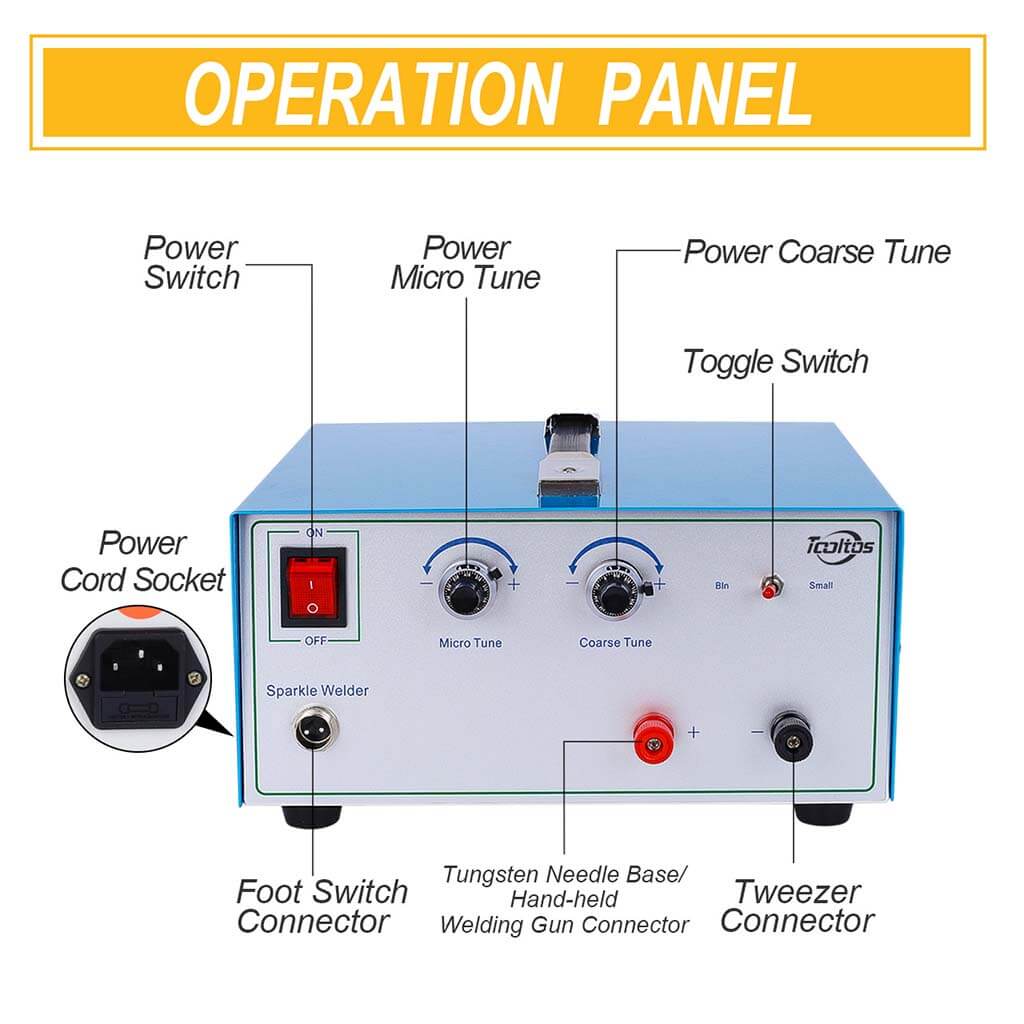

Dual Coarse and Fine Adjustment — Precise output power control based on workpiece size, weld joint size, and process requirements.
Thickened Sheet Metal Shell — Spray-painted, wear-resistant, rust-proof, and corrosion-resistant construction for long service life.

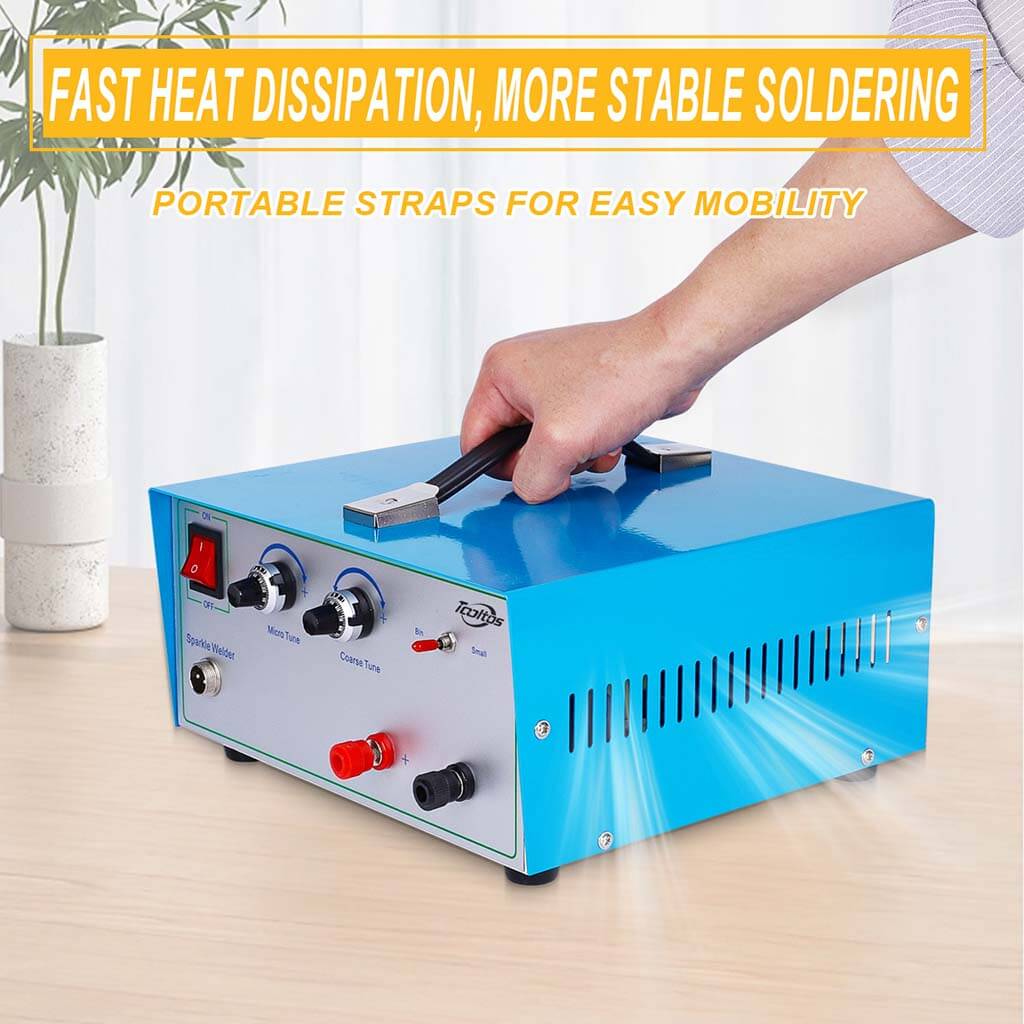

Multiple Cooling Holes — Ensures stable welding performance and prevents overheating during extended operation.
0.3–1.5 mm Welding Range — Wider lower limit than standard 80A model, suitable for very fine wire down to 0.3 mm.
Universal Voltage — Available in 110V and 220V for worldwide use.

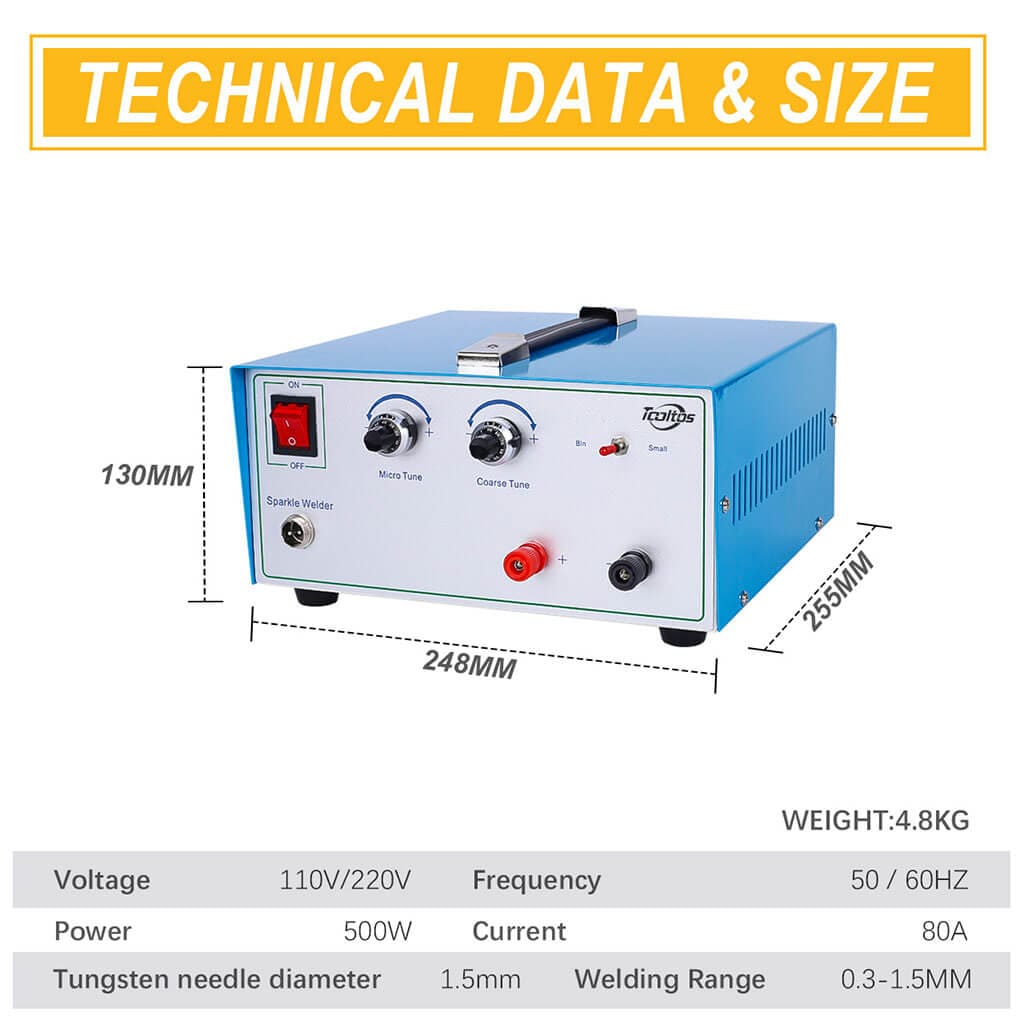

Technical Specifications
Voltage
110V / 220V, 50 / 60 Hz
Power
500W
Max Current
80A
Welding Range
0.3 – 1.5 mm
Tungsten Needle Diameter
1.5 mm
Machine Size
248 × 255 × 130 mm
Machine Weight
approx. 4.8 kg

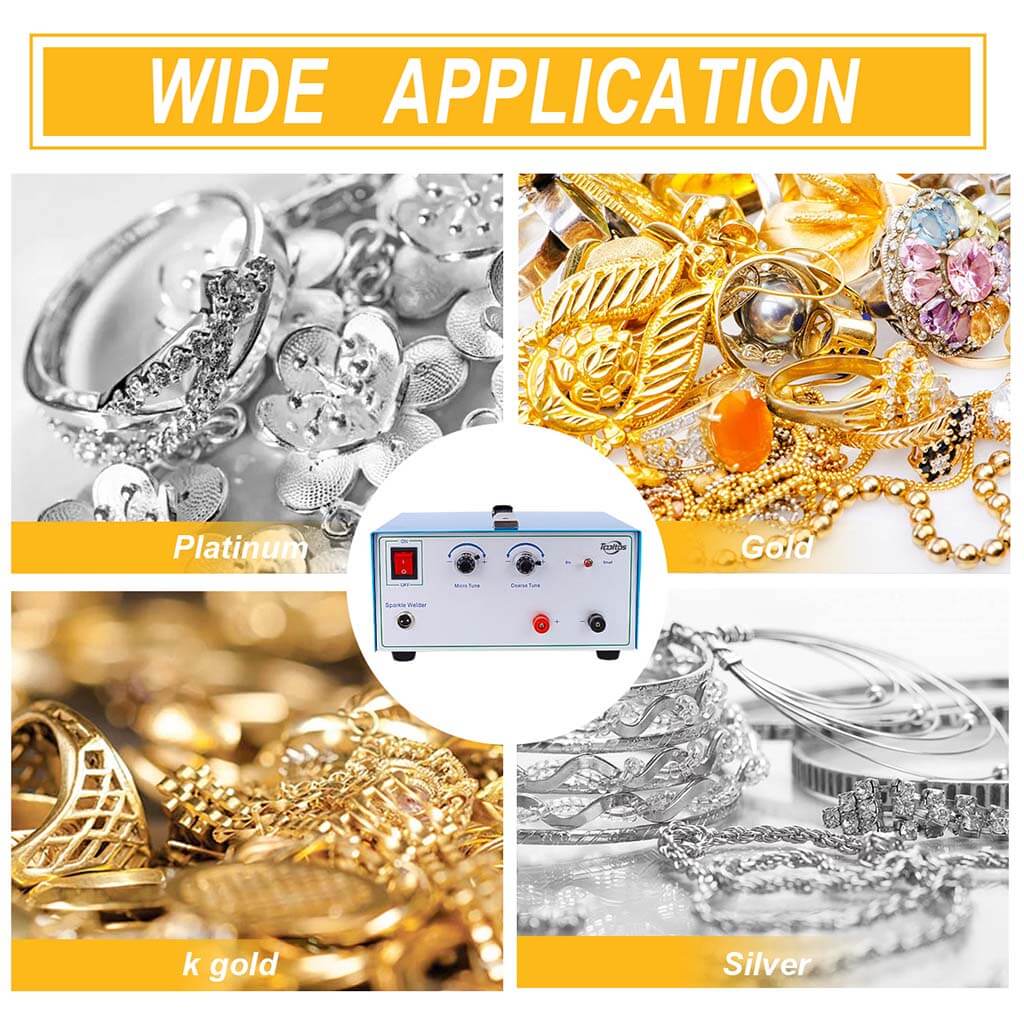

Suitable Applications
Platinum, gold, karat gold, silver, and copper jewelry welding
Ring clasps and melon buckle soldering
Glass repair, tin toys, handicrafts
Dental and orthodontic metal wire welding
DIY metalwork and fine wire applications
Safety Notes
Do not hold the foot switch down continuously — step and release immediately. Prolonged contact will damage internal circuits.
Welding flash is harmful to eyes. Use appropriate eye protection during operation.
Do not disassemble the machine — high voltage is present internally.

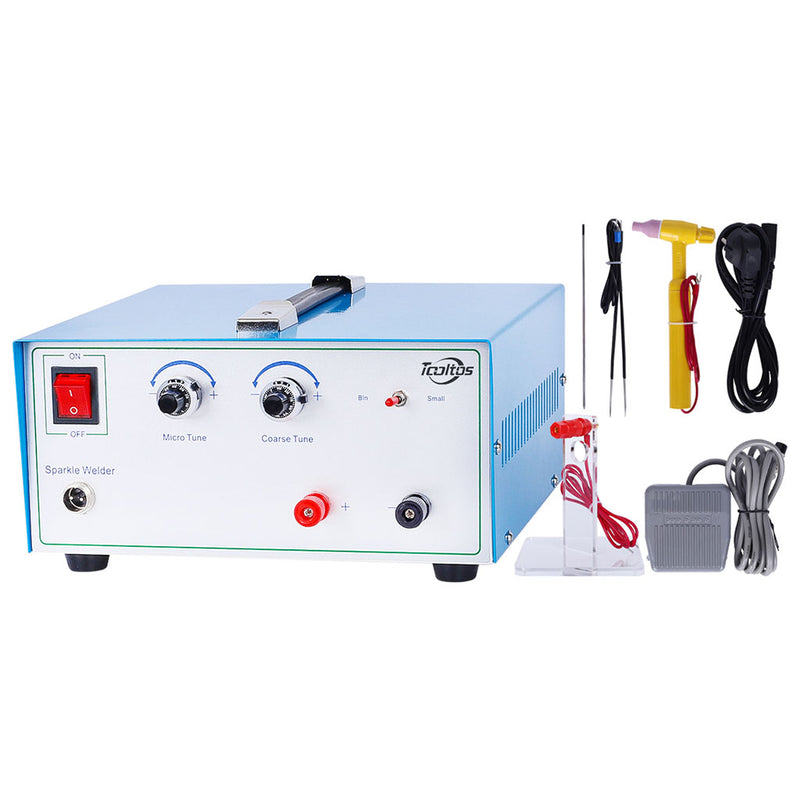

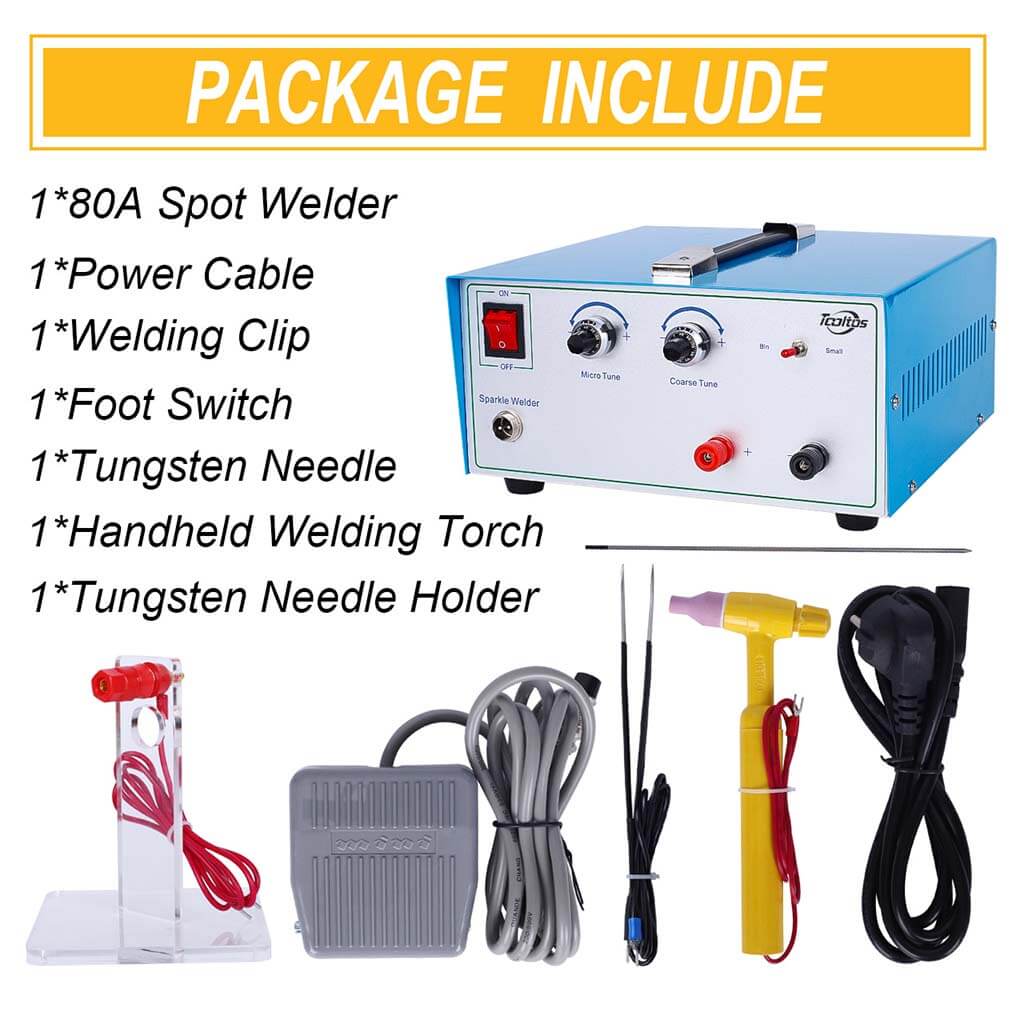

What's Included
1 × 80A Sparkle Jewelry Spot Welder
1 × Foot Switch
1 × Handheld Welding Torch
1 × Power Cable
1 × Welding Clip
1 × Tungsten Needle
1 × Tungsten Needle Holder
Support
For technical questions or assistance, contact the Tooltos support team at sales@tooltos.com or via live chat at www.tooltos.com. Responses are typically provided within 2 hours.
