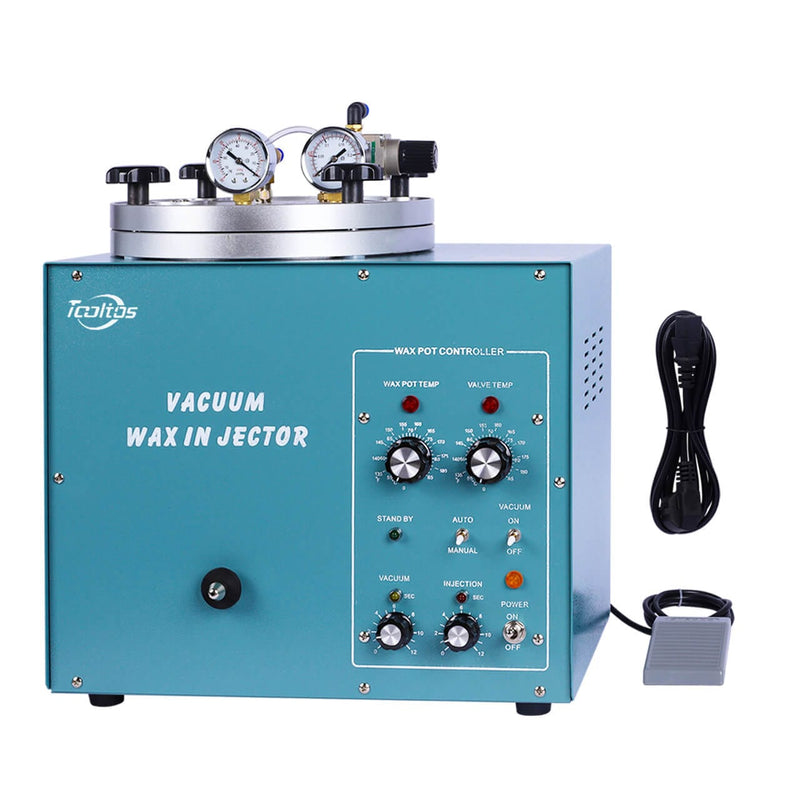

Tooltos 3KG Jewelry Vacuum Wax Injector Machine | Foot Pedal 220V 510W ±1°C
- 98 in stock
Description

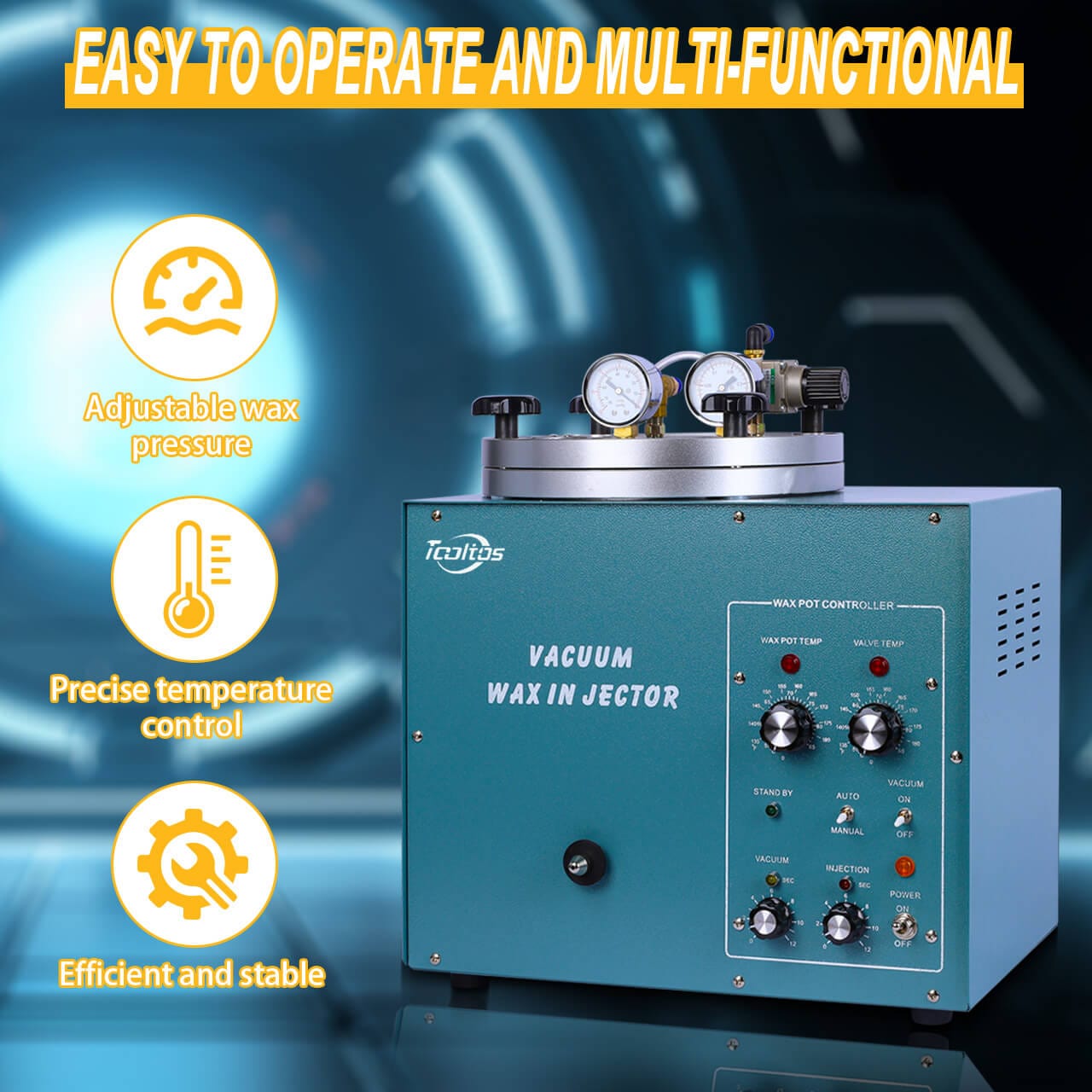

The Tooltos 3KG Jewelry Vacuum Wax Injector Machine delivers precise, bubble-free wax injection with foot pedal operation — keeping both hands free to position and hold the mold. With ±1°C temperature accuracy, a 3KG wax drum, and adjustable vacuum and injection cycle times, it is designed for consistent production of gold, platinum, K gold, silver, and stainless steel jewelry.
Key Features
- Foot Pedal Operation — Hands-free injection trigger allows both hands to hold and position the mold for accurate, consistent wax injection.
- Vacuum Technology — Strong, even suction prevents air bubbles and ensures smooth, consistent wax flow throughout the mold.
- ±1°C Temperature Accuracy — Precise independent control for wax pot (0–100°C) and valve (0–100°C) temperatures.
- Adjustable Injection Pressure — Freely adjustable within 0.4–0.7 MPa with real-time pressure gauge display.
- Extended Injection Distance — Greater injection reach under the same conditions, ideal for large bracelets, high-precision micro inserts, and ultra-thin large jewelry.
- 3KG Wax Drum Capacity — Reduces refill frequency during extended production runs.
Technical Specifications
| Voltage | 110V/220V, 50Hz |
| Power | 510W |
| Wax Drum Capacity | 3 KG |
| Fuse | 5A |
| Wax Pot Temperature Range | 0 – 100°C |
| Valve Temperature Range | 0 – 100°C |
| Operating Temperature Range | 55 – 85°C |
| Temperature Accuracy | ±1°C |
| Compressed Air Range | 0.4 – 0.7 MPa |
| Pressure Gauge Range | 0 – 0.2 MPa |
| Vacuum Time | 0 – 12 seconds (adjustable) |
| Wax Injection Time | 0 – 12 seconds (adjustable) |
| Machine Weight | approx. 19.55 kg |
Compatible Jewelry Types
Gold, platinum, K gold, silver, stainless steel jewelry. Particularly well-suited for large bracelets, high-precision micro-inset pieces, and ultra-thin large jewelry items.
Frequently Asked Questions
Does this machine include an air compressor and vacuum pump?
No. An air compressor and vacuum pump are required for operation but are not included. Please prepare these separately before use.
Is this machine 110V compatible?
No. This model is 220V / 50Hz only. For 110V compatibility, please see the Tooltos Digital Control Wax Injection Machine which supports both 110V and 220V.
What is the temperature accuracy?
±1°C, with independent control for both the wax pot and valve temperature.
What is the advantage of foot pedal operation?
The foot pedal triggers the injection cycle hands-free, allowing both hands to hold and position the mold for more accurate and consistent wax injection.

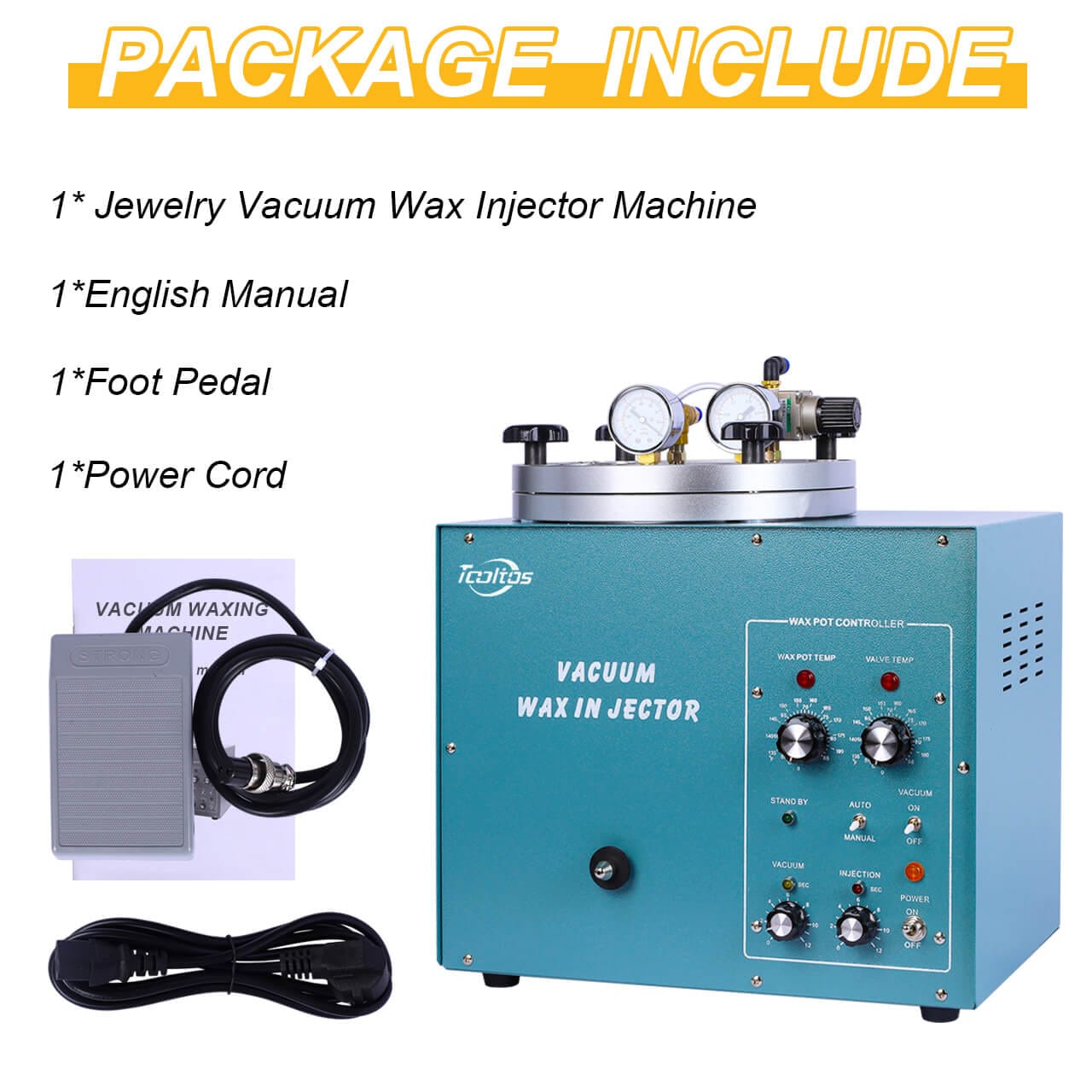

What's Included
- 1 × Jewelry Vacuum Wax Injector Machine
- 1 × English Manual
- 1 × Foot Pedal
- 1 × Power Cord
Important Note
This machine is 220V / 50Hz only. An external air compressor and vacuum pump are required for operation and are not included in the package.
