Tooltos 30A Pulse Jewelry Spot Welder For Gold, Silver And Platinum

The Tooltos 30A Pulse Jewelry Spot Welder uses plasma high-frequency discharge to instantly form a molten pool at the weld joint — delivering smooth, firm welds on platinum, gold, silver, and steel without welding powder. Foot switch operation keeps both hands free to position the workpiece, and coarse and fine power adjustment accommodates different wire sizes from 0.4 to 1.0 mm.

Key Features

• Plasma High-Frequency Discharge — Instantly forms a molten pool at the weld joint for smooth, firm, and efficient welding without welding powder.
• Foot Switch Operation — Hands-free trigger keeps both hands free to hold and position the workpiece during welding.
• Coarse and Fine Power Adjustment — Dual-knob adjustment for precise output control across different wire sizes and workpiece requirements.
• 0.4–1.0 mm Welding Range — Suitable for fine wire precision welding, ring mouths, melon buckles, and small jewelry components.
• Universal Voltage — Available in 110V and 220V for worldwide use.

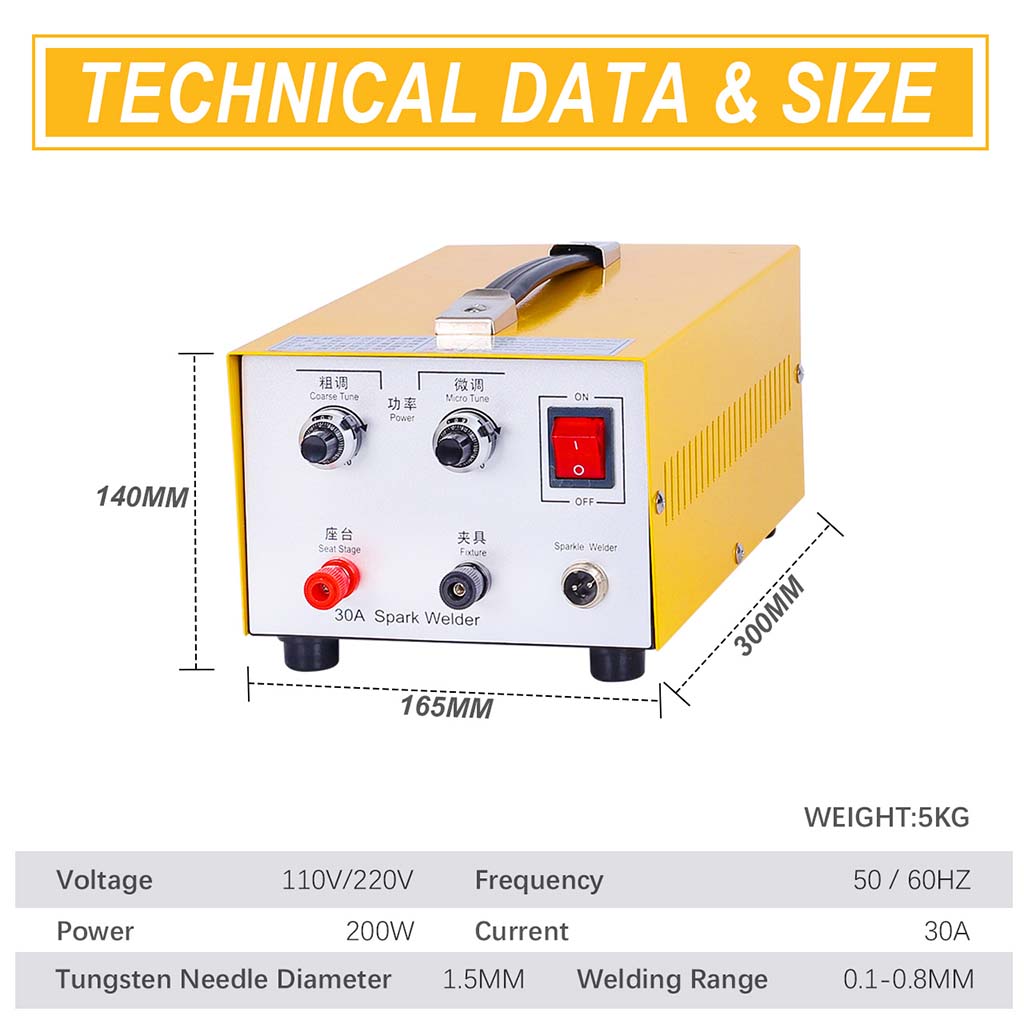

Technical Specifications

Spot Welder Model Comparison

Operation Steps

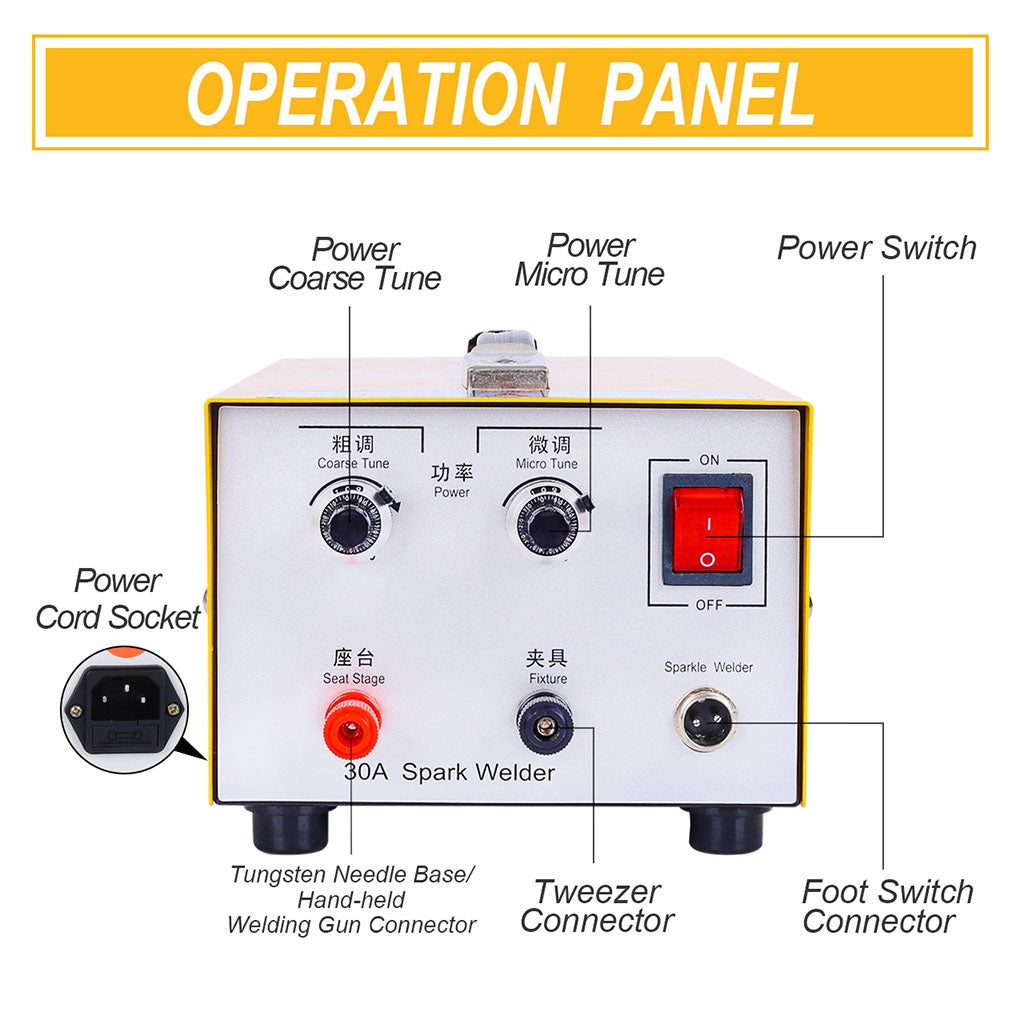

1. Connect the electrode clamp to the negative output pole and the electrode holder to the positive output pole. Turn on the power supply and power switch.
2. Adjust the power knob using coarse and fine adjustment to the required output level.
3. Use tweezers to clamp the workpiece and align the interface with the tungsten needle at approximately 5 mm distance. The workpiece must not contact the needle. The tungsten needle can be resharpened on a grinder.
4. Step on the foot switch briefly to complete the spot weld. Release immediately after each weld.

Safety Notes

• Do not hold the foot switch down continuously — step and release immediately. Prolonged contact puts the machine in short-circuit state and will damage internal circuits.
• Welding flash is harmful to eyes. Use appropriate eye protection during operation.
• Do not touch the metal parts of the tungsten needle and tweezers simultaneously while the foot switch is engaged.
• Do not disassemble the machine — high voltage is present internally.

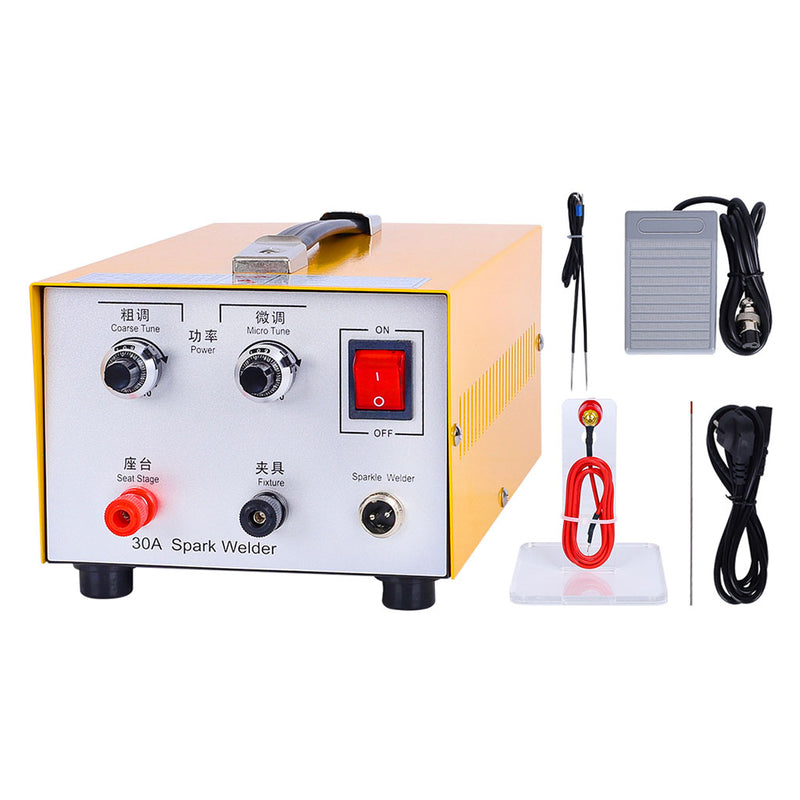

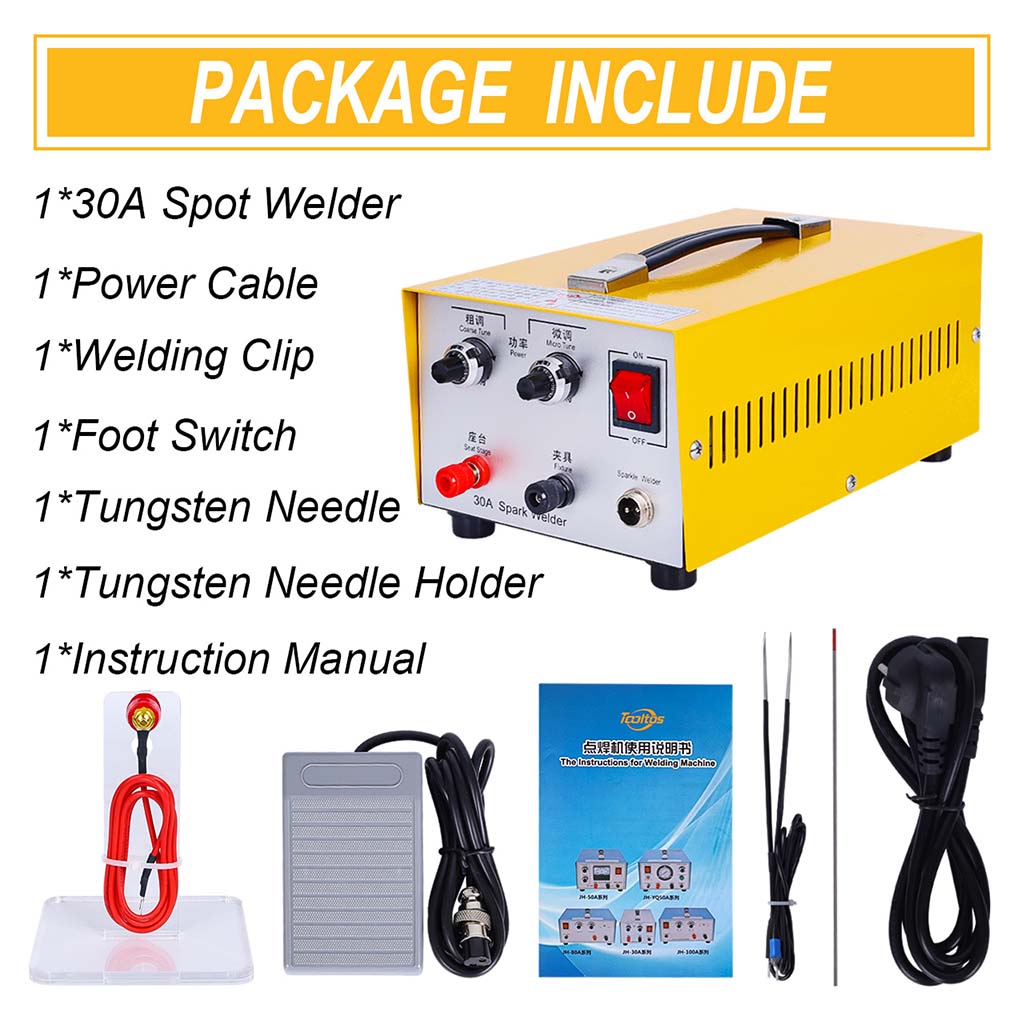

What's Included

• 1 × 30A Jewelry Spot Welder
• 1 × Foot Switch
• 1 × Power Cable
• 1 × Welding Clip
• 1 × Tungsten Needle
• 1 × Tungsten Needle Holder
