Tooltos 160mm 750W Electric Jewelry Rolling Mill with Square Drawplates
- Only 5 left in stock!

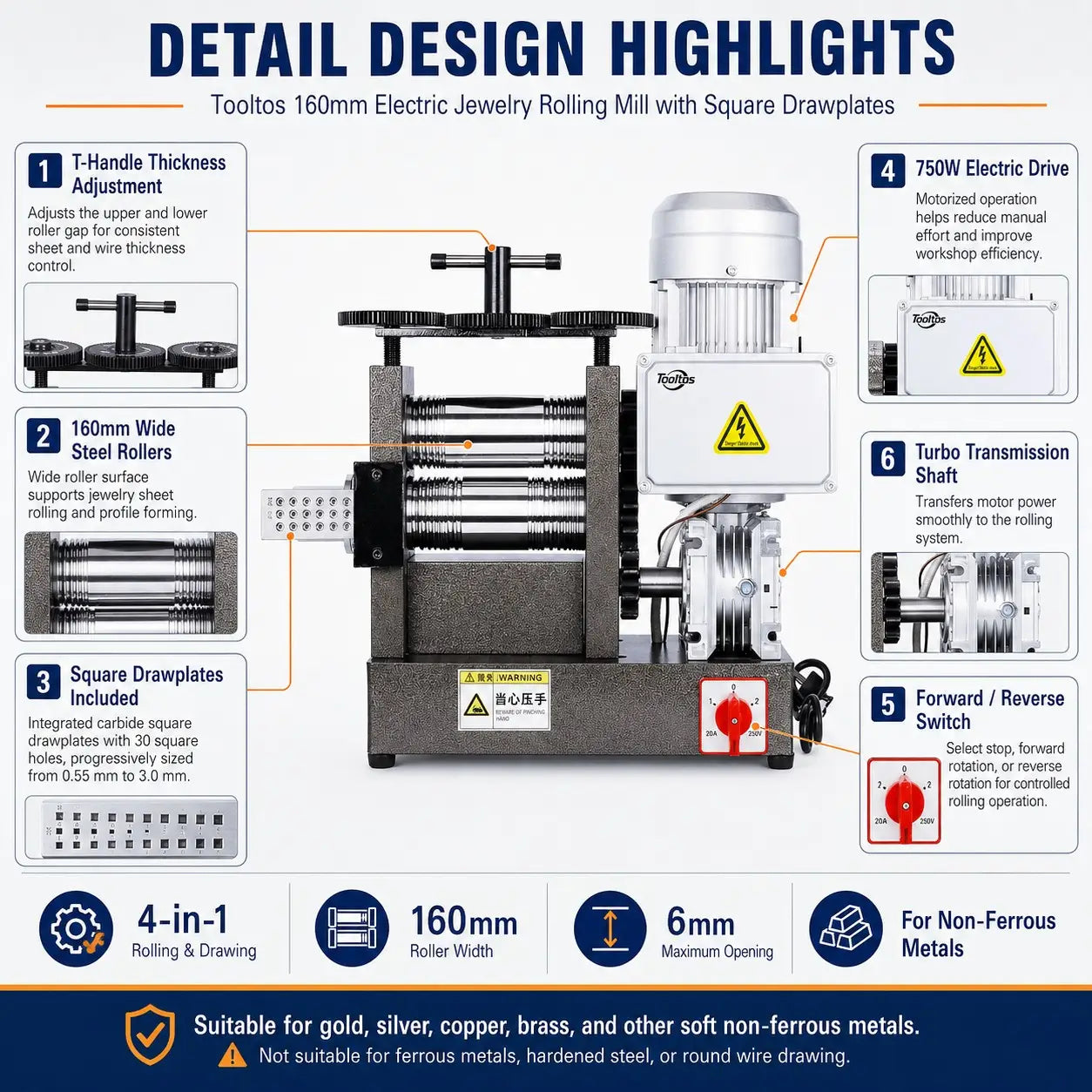

Description
- 4-in-1 Rolling and Drawing Capability — Roll flat sheet, square wire, half-round wire and round wire, plus wire drawing with included tungsten carbide drawplates — all in one machine.
- 750W Electric Motor — Consistent motorized power with knob-controlled multi-gear speed adjustment. No manual cranking required.
- Tungsten Carbide Square DrawPlates — Hole sizes from 0.55 to 3 mm for precise wire drawing across a wide range of gauges. Tungsten carbide provides excellent hardness and long service life.
- 160 mm Wide Rollers — 70 mm roller diameter with 6 mm maximum opening for wider sheet and heavier stock.
- T-Shaped Parallel Adjustment Handle — Upper and lower handles adjust in parallel for easy, precise rolling thickness control.
- Wear-Resistant Alloy Rollers — Durable roller construction for long-term reliable performance on gold, silver, copper and brass.
- 110V / 220V Options — Select the correct voltage for your region before ordering.

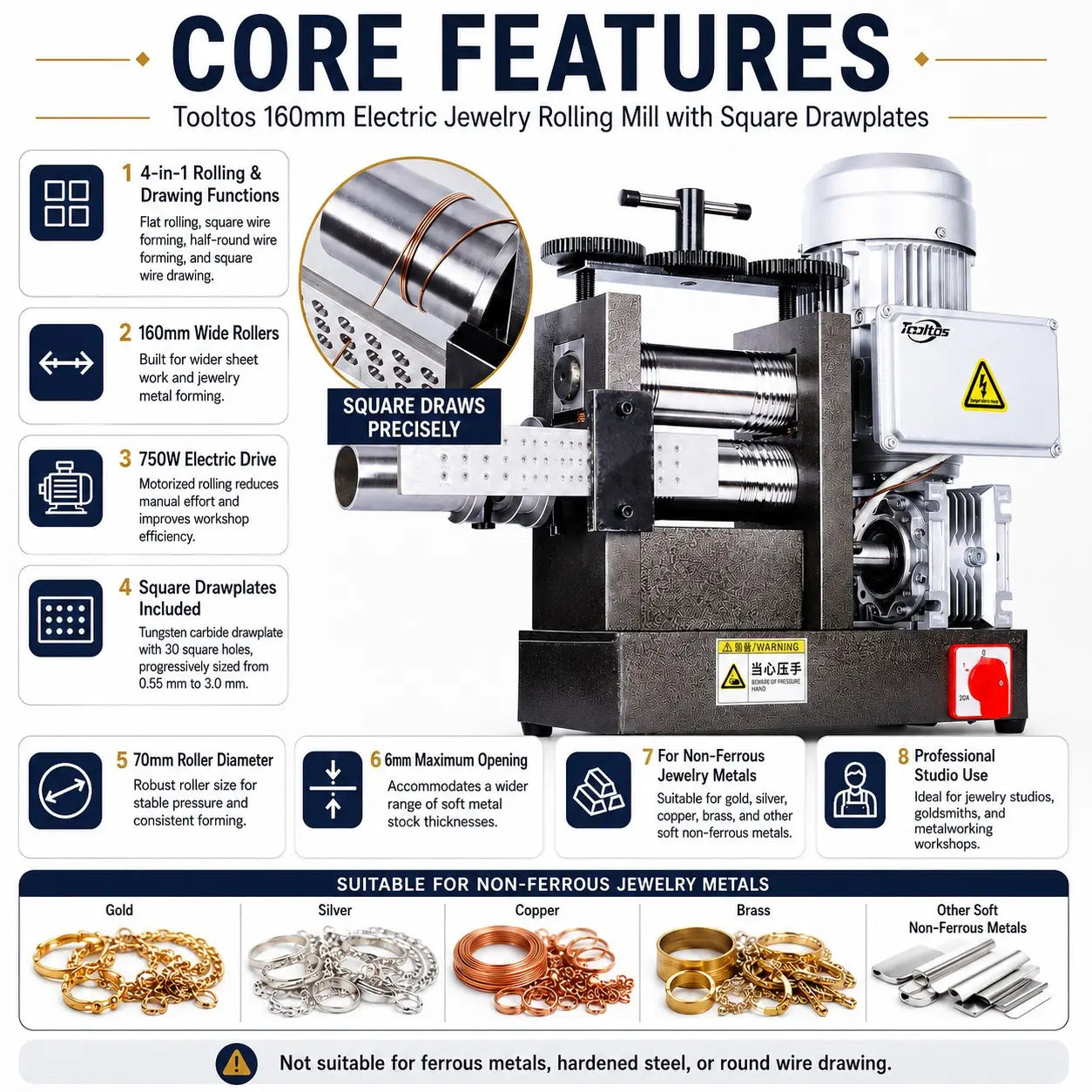

The Tooltos 4-in-1 Electric Jewelry Rolling Mill Machine combines a full-featured 750W rolling mill with integrated tungsten carbide square drawplates, adding wire drawing capability to flat sheet rolling, square wire forming, half-round wire shaping and round wire rolling. Designed for jewelry studios and metalsmithing workshops that need versatile metal forming and wire drawing in a single bench-top machine.

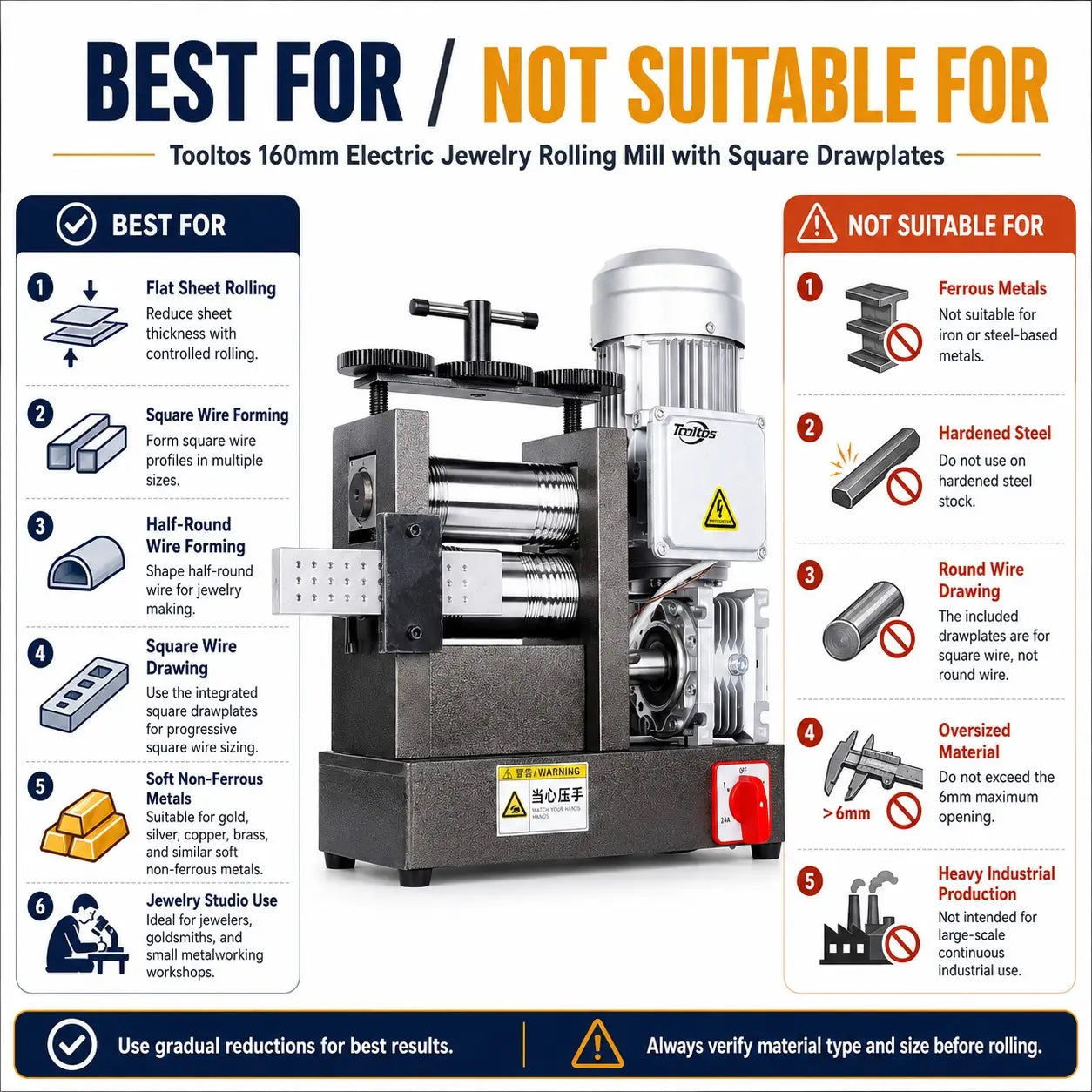

Best For / Not For
| Best For | Not For |
|---|---|
| Flat sheet rolling and gauge reduction Square, half-round and round wire forming Wire drawing with tungsten carbide drawplates Texture transfer to metal sheet Gold, silver, copper and brass Studios needing rolling and drawing in one machine |
Ferrous metals and hardened steel Metal stock thicker than 6 mm maximum opening Wire drawing below 0.55 mm (use dedicated drawbench) Industrial-scale continuous production |

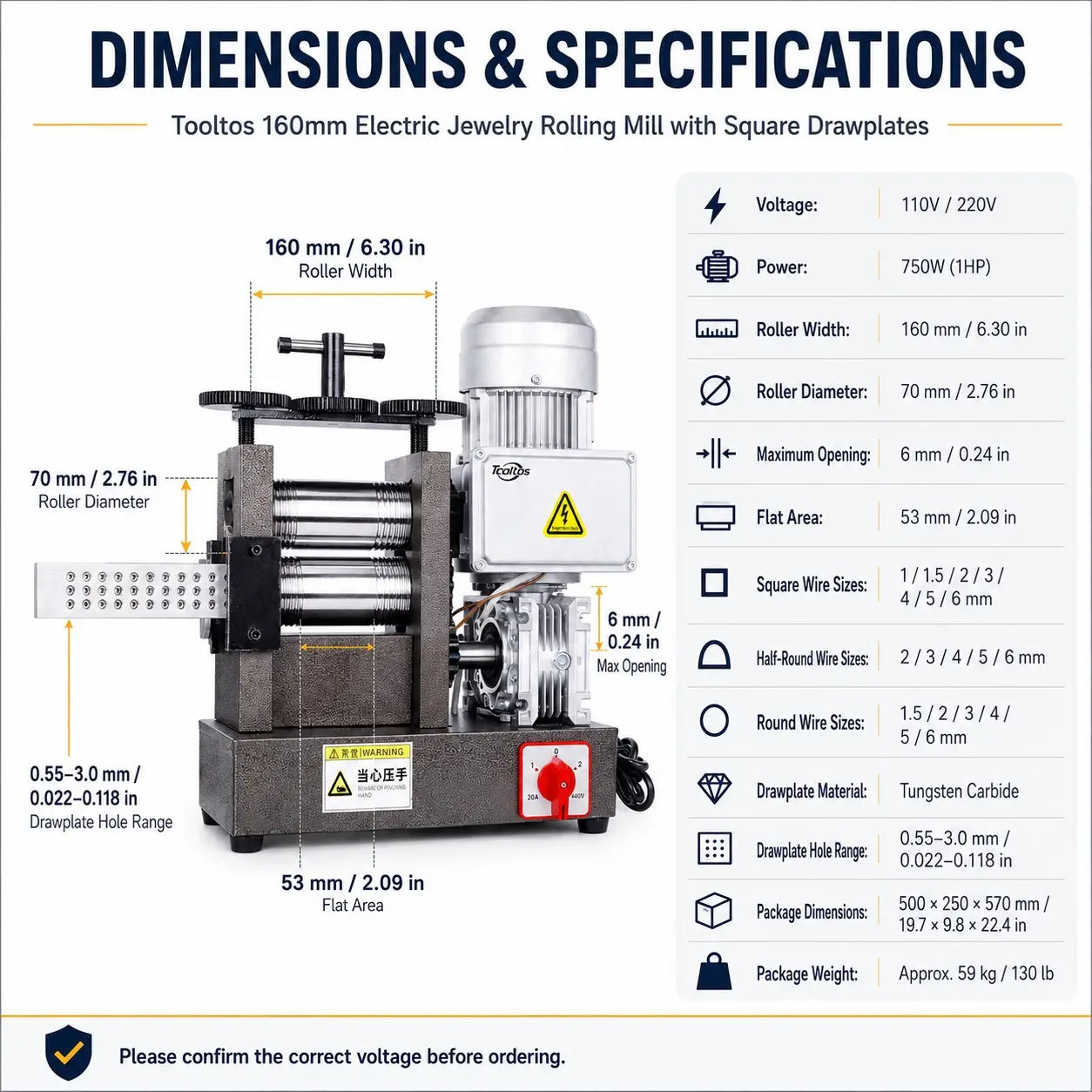

Technical Specifications
| Voltage | 110V / 220V |
| Power | 750W (1HP) |
| Roller Width | 160 mm / 6.30 in |
| Roller Diameter | 70 mm / 2.76 in |
| Maximum Opening | 6 mm / 0.24 in |
| Flat Rolling Area | 53 mm / 2.09 in |
| Square Wire Sizes | 1 / 1.5 / 2 / 3 / 4 / 5 / 6 mm |
| Half-Round Wire Sizes | 2 / 3 / 4 / 5 / 6 mm |
| Round Wire Sizes | 1.5 / 2 / 3 / 4 / 5 / 6 mm |
| DrawPlates Material | Tungsten Carbide |
| DrawPlates Hole Range | 0.55 – 3 mm |
| Package Dimensions | 500 x 250 x 570 mm / 19.7 x 9.8 x 22.4 in |
| Package Weight | approx. 59 kg / 130 lb |
Rolling and Drawing Capability Summary
| Function | Details |
|---|---|
| Flat Sheet Rolling | 53 mm flat area, max 6 mm opening |
| Square Wire | 1 / 1.5 / 2 / 3 / 4 / 5 / 6 mm |
| Half-Round Wire | 2 / 3 / 4 / 5 / 6 mm |
| Round Wire | 1.5 / 2 / 3 / 4 / 5 / 6 mm |
| Wire Drawing | Tungsten carbide square drawplates, 0.55–3 mm hole sizes |
Workshop Applications
| Application | Description |
|---|---|
| Sheet Metal Rolling | Reducing gold, silver and copper sheet to precise gauge thickness for ring shanks, bezels and flat components |
| Square Wire Forming | Producing square wire profiles for rings, bangles and structural jewelry components |
| Half-Round Wire Shaping | Creating half-round wire profiles for channel settings, decorative borders and wire wrapping |
| Round Wire Rolling | Rolling round wire to consistent diameter for chains, rings and structural components |
| Wire Drawing | Drawing wire through tungsten carbide drawplates to reduce diameter and improve surface finish for fine jewelry work |
| Texture Transfer | Pressing texture patterns into sheet metal by rolling with textured material between the rollers |
Frequently Asked Questions
What is the difference between this model and the standard 3-in-1 rolling mill?
This 4-in-1 combination model adds tungsten carbide square drawplates and a drawing roller, giving you wire drawing capability alongside the standard flat sheet, square wire and half-round wire rolling functions.
What material are the drawplates made from?
Tungsten carbide, providing excellent hardness and wear resistance for long-term wire drawing use across a wide range of gauges.
What is the drawplate hole size range?
0.55 to 3 mm, covering a wide range of wire gauges for jewelry fabrication. For wire drawing below 0.55 mm, a dedicated drawbench is recommended.
What metals can this rolling mill handle?
Gold, silver, copper, brass and most soft non-ferrous metal alloys. Not suitable for ferrous metals or hardened steel.
Which voltage should I select?
110V for USA and Canada. 220V for Europe, UK, Australia and most of Asia. Please confirm your local voltage before ordering.
How heavy is the machine?
The package weight is approximately 59 kg (130 lb). A stable, reinforced workbench is recommended for installation.

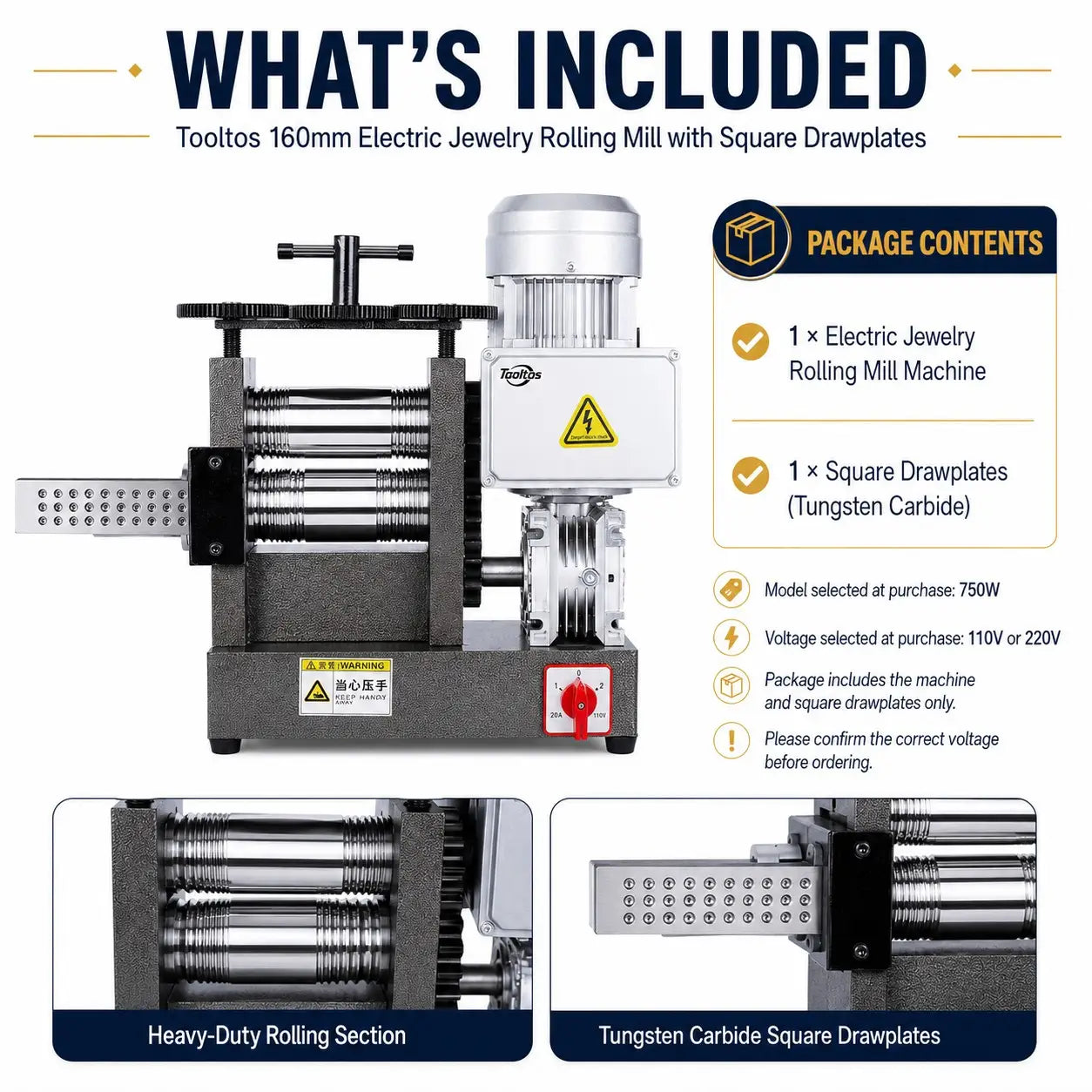

What's Included
- 1 x Tooltos 4-in-1 Electric Jewelry Rolling Mill Machine (750W, 110V or 220V)
- 1 x Tungsten Carbide Square DrawPlates (0.55–3 mm)
Why Choose Tooltos
Tooltos designs jewelry tools and machines for professional workshops and serious hobbyists. The 4-in-1 Combination Rolling Mill is built for studios that need both rolling and wire drawing in a single machine — reducing the need for separate equipment and giving you more forming options at the bench. If you need help choosing between the 3-in-1 and 4-in-1 models, contact our team at sales@tooltos.com before ordering.
Support
For technical questions, model selection or order support, contact the Tooltos team at sales@tooltos.com. We typically respond within 24 hours.
