Tooltos 150A Argon Pulse Intelligent Jewelry Spot Welding Machine With Magnifier
- 98 in stock
Description

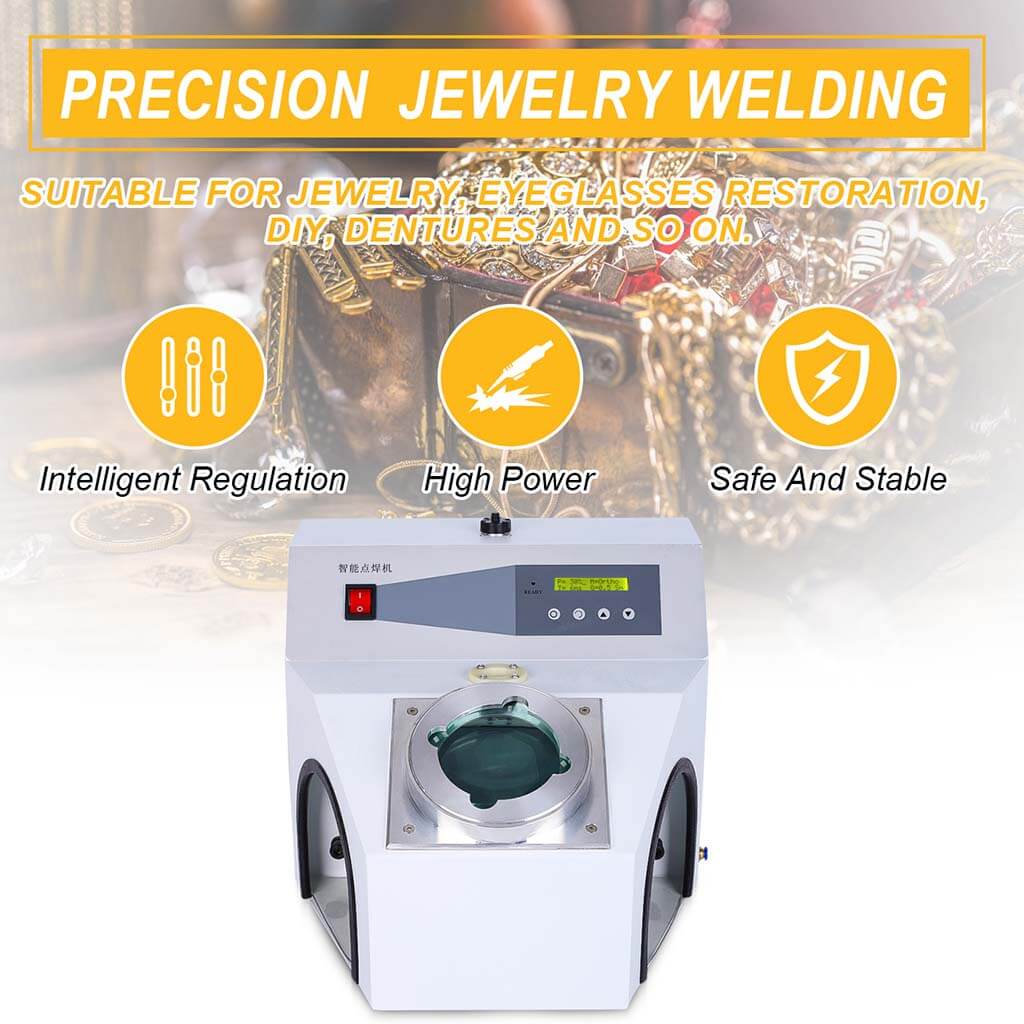

The Tooltos 150A Argon Pulse Intelligent Jewelry Spot Welding Machine combines high-current pulse welding with argon gas protection and an integrated magnifier — delivering clean, smooth weld joints without blackening, flux, or post-weld scaling. Four preset welding modes cover cobalt-chromium, hybrid, titanium, and orthodontic applications, making it a versatile choice for jewelry studios, dental labs, and precision metalworking operations.
Key Features
- Four Preset Welding Modes — Quick-select programs for cobalt-chromium (Co-Cr), hybrid welding (precious and non-precious), titanium (Ti), and orthodontic applications.

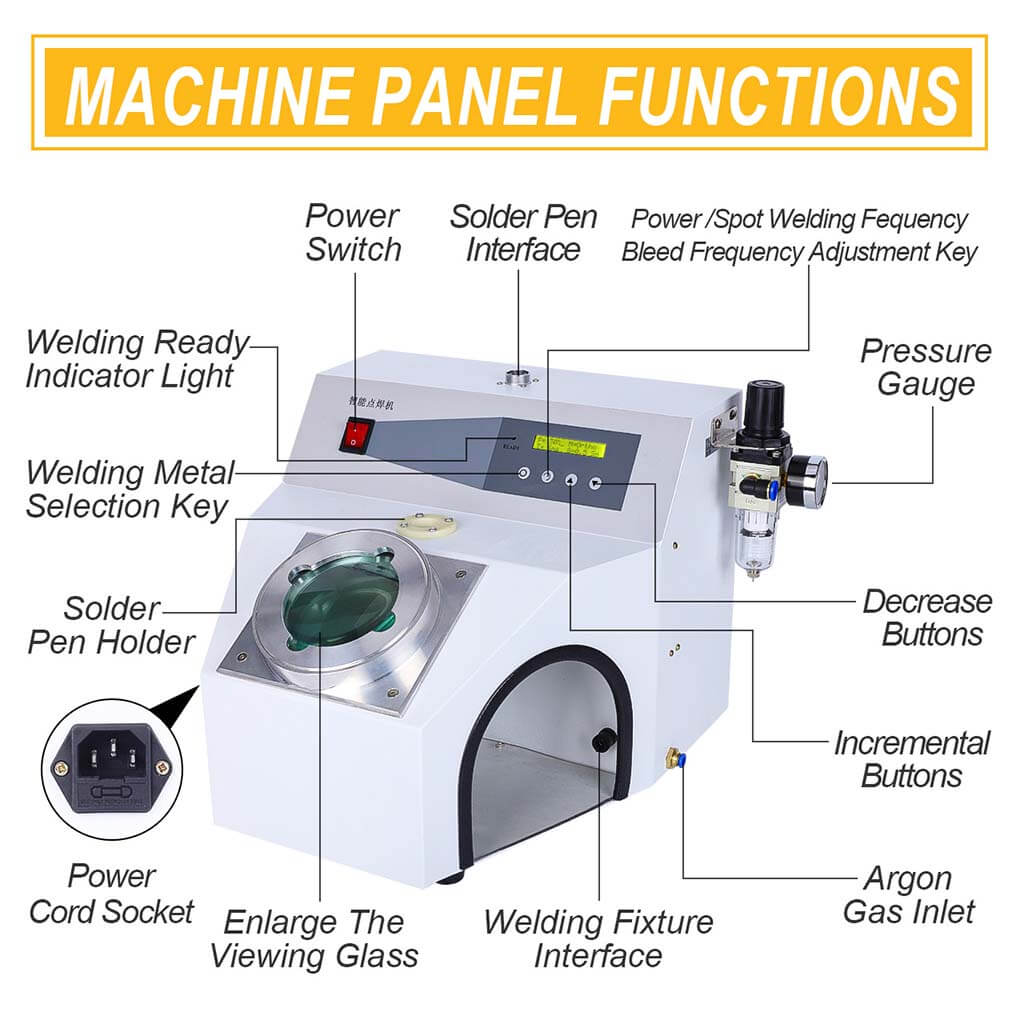

- LCD Status Display — Intelligent numerical control buttons allow precise adjustment of welding mode, output power, and welding time based on workpiece requirements.
- Integrated Magnifier — Enlarges the spot welding area for precision work while shielding against welding sparks and protecting eyewear.

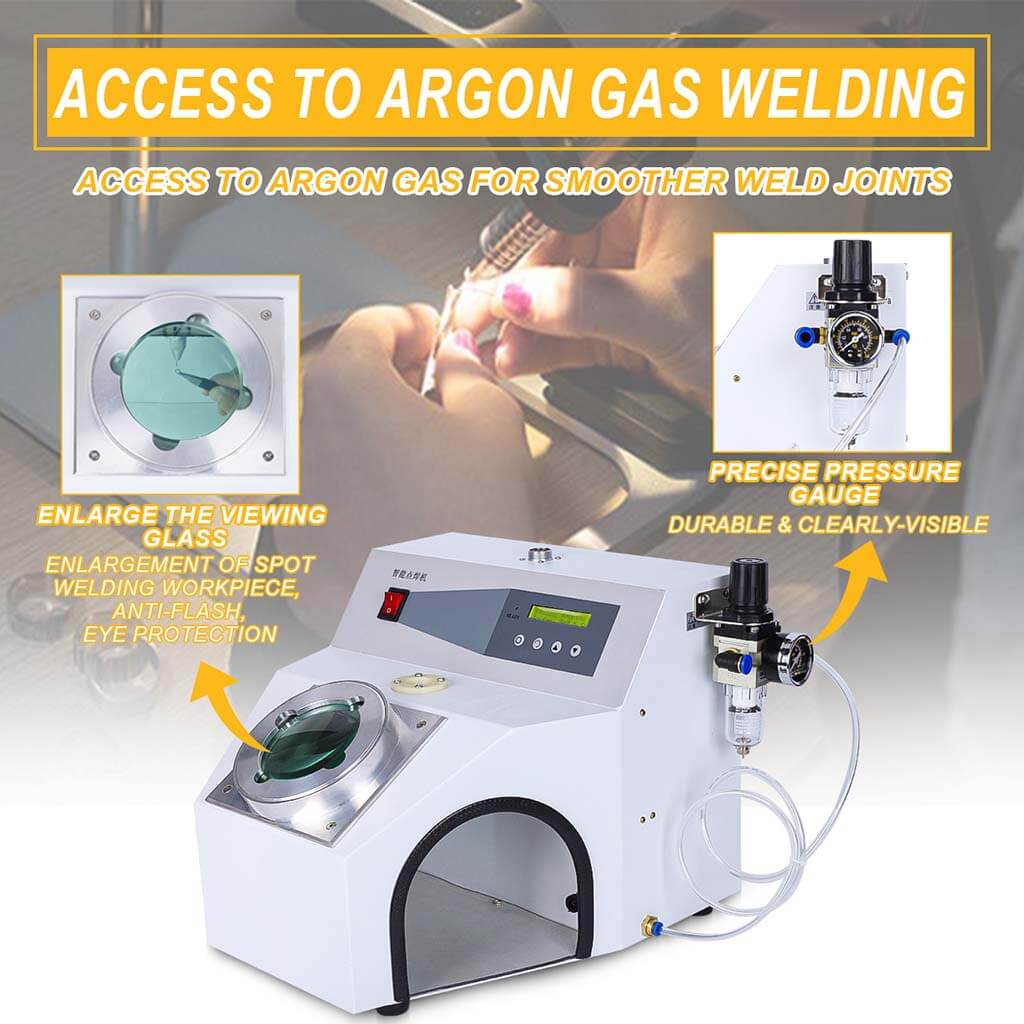

- Argon Gas Protection — Connect to argon gas for oxidation-sensitive alloys. Weld joints are smooth, not blackened, and require no flux, scaling, or descaling. Visual precision pressure gauge displays air pressure values in real time.
- 150A Output Current — High-current pulse capability handles a welding range of 0.6–2.5 mm across a wide range of metals.
- Universal Voltage — Available in 110V and 220V for worldwide use.
Technical Specifications
| Voltage | 110V / 220V |
| Frequency | 50 / 60 Hz |
| Power | 600W |
| Max Output Current | 150A |
| Welding Range | 0.6 – 2.5 mm |
| Argon Gas Time Adjustment | 0.5 / 1 / 1.5 seconds |
| Air Intake Pressure | 0.3 MPa |
| Machine Weight | approx. 17.6 kg |

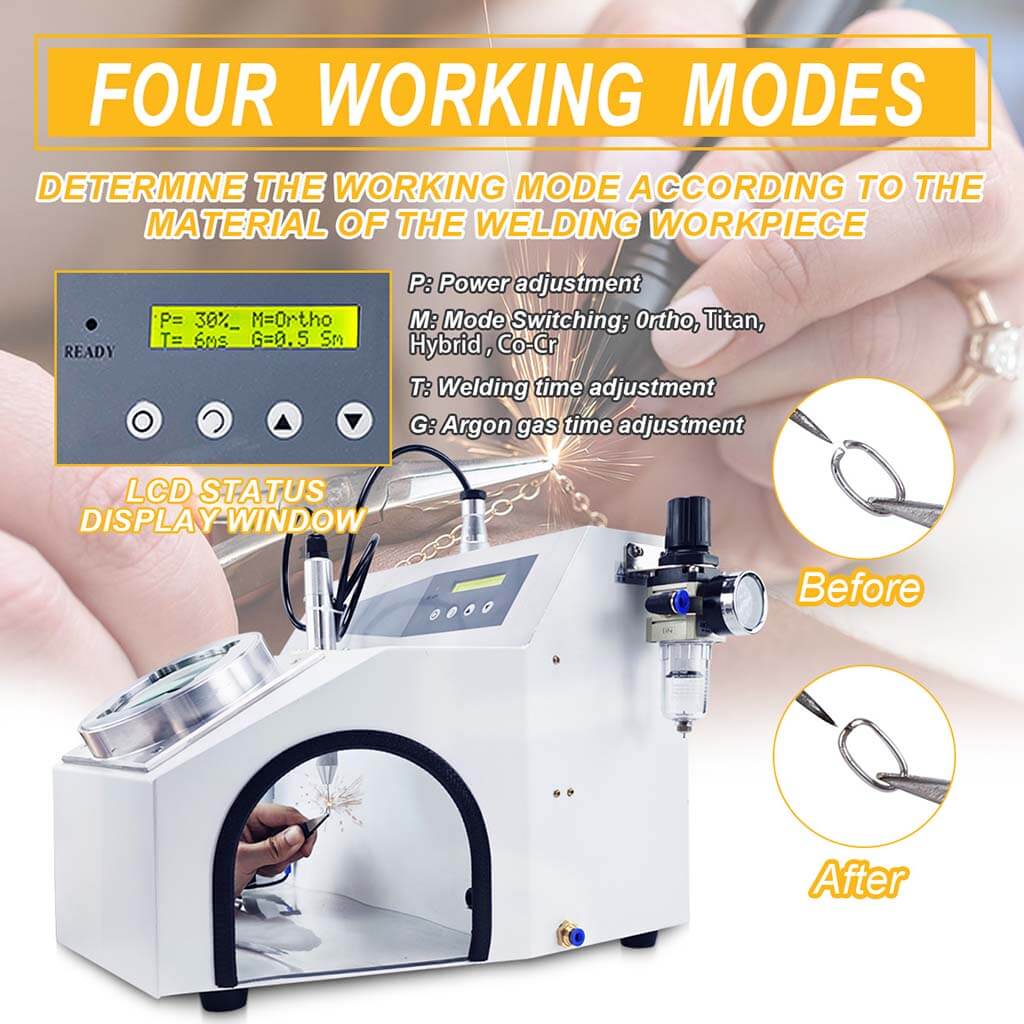

Welding Mode Reference
| Mode | Application |
|---|---|
| Mode 1 | Cobalt-chromium (Co-Cr) alloy welding |
| Mode 2 | Hybrid welding (precious and non-precious metals) |
| Mode 3 | Titanium (Ti) welding |
| Mode 4 | Orthodontic applications |
Suitable Applications
- Jewelry making and repair
- Dental lab welding
- Mold repair
- Pure gold welding
- Cobalt-chromium alloy welding
- Pure titanium welding
- Orthodontic hardware
- General hardware workpieces
Frequently Asked Questions
Is argon gas required to operate this machine?
No. The machine operates normally without argon gas. Connecting argon gas is recommended for oxidation-sensitive alloys to achieve cleaner, flux-free weld joints. Argon gas must be purchased separately.
What metals can this machine weld?
Suitable for gold, cobalt-chromium alloys, titanium, precious and non-precious metal combinations, and orthodontic hardware. Also suitable for general hardware workpieces and mold repair.
What is the welding thickness range?
The machine handles a welding range of 0.6–2.5 mm.
Does the magnifier protect against sparks?
Yes. The integrated magnifier enlarges the work area for precision viewing and shields against welding sparks, protecting the operator's eyes and eyewear.
What voltage options are available?
Available in 110V and 220V to suit different regional power standards.

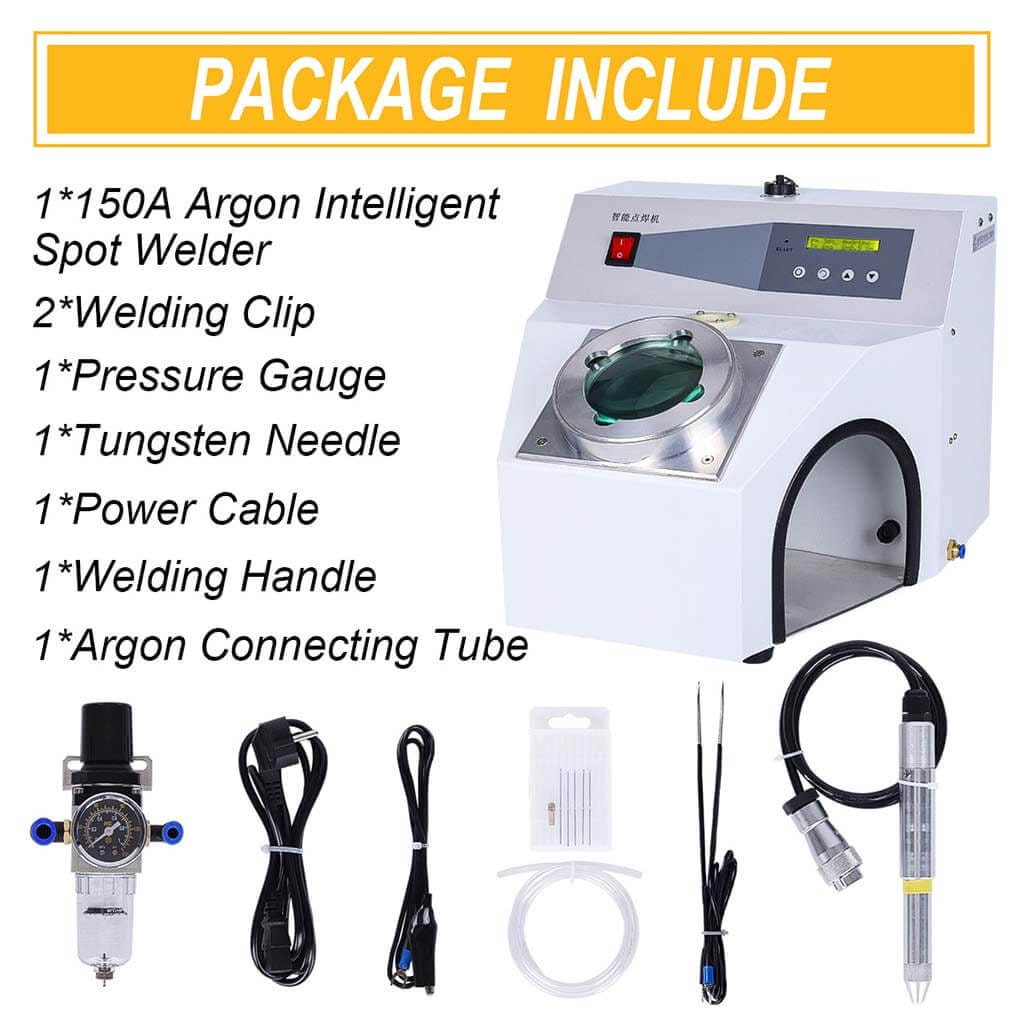

What's Included
- 1 × 150A Argon Intelligent Jewelry Spot Welder
- 1 × Power Cable
- 2 × Welding Clips
- 1 × Pressure Gauge
- 1 × Tungsten Needle
- 1 × Welding Handle
- 1 × Argon Connecting Tube
Important Note
Argon gas is not included. The machine functions without argon gas, but connecting argon is recommended for welding oxidation-sensitive alloys. Argon gas must be sourced separately.
Support
For technical questions or assistance, contact the Tooltos support team at sales@tooltos.com or via live chat at www.tooltos.com. Responses are typically provided within 2 hours.
