Tooltos Electric Flat Sheet Jewelry Rolling Mill | 120mm / 160mm
- Only 6 left in stock!

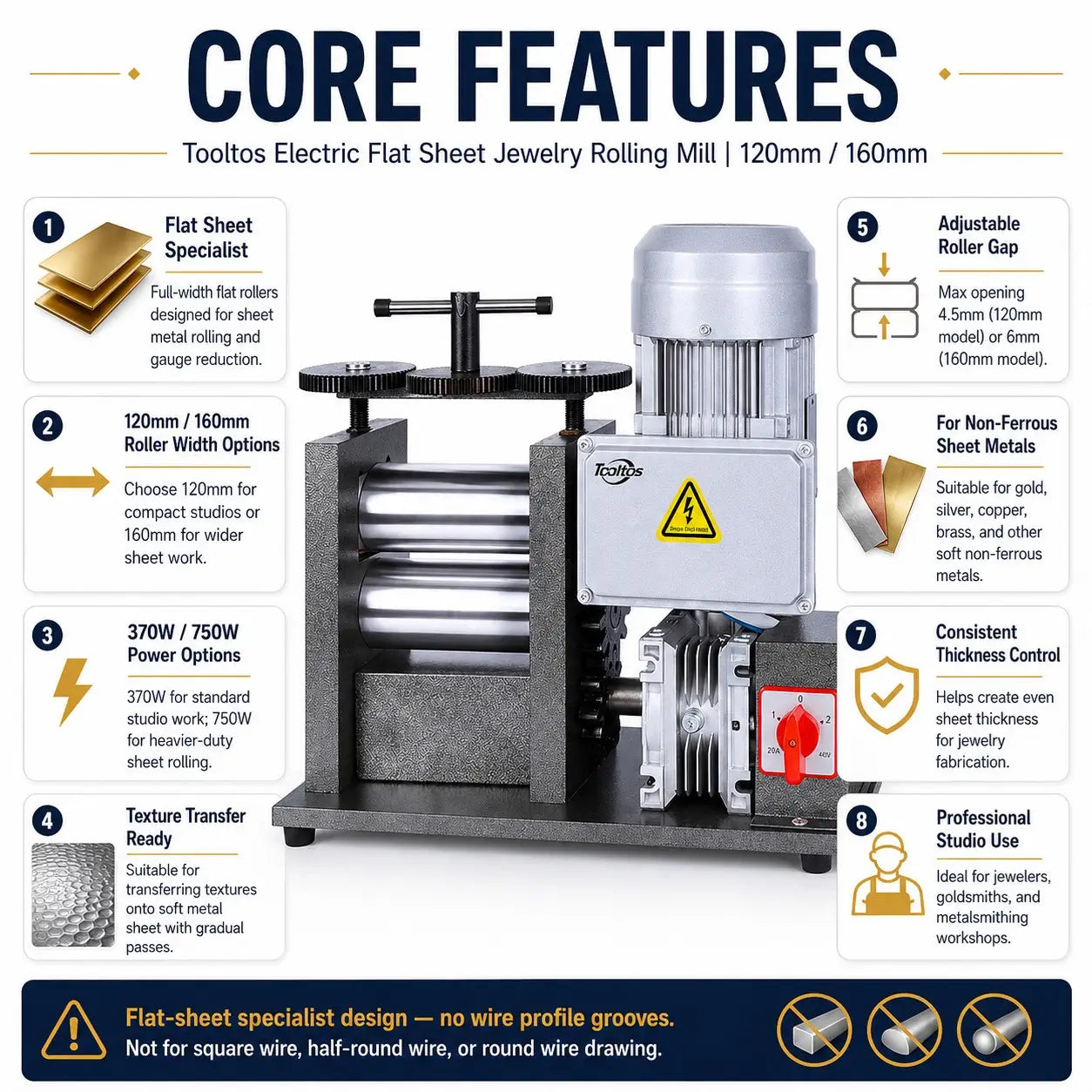

Description
- Full-Width Flat Roller Area — Dedicated flat sheet rolling with no wire grooves. 120mm or 160mm full-width flat surface for sheet metal rolling and texture transfer.
- 370W and 750W Models — 370W for compact studio use, 750W for wider sheet and higher-frequency studio work.

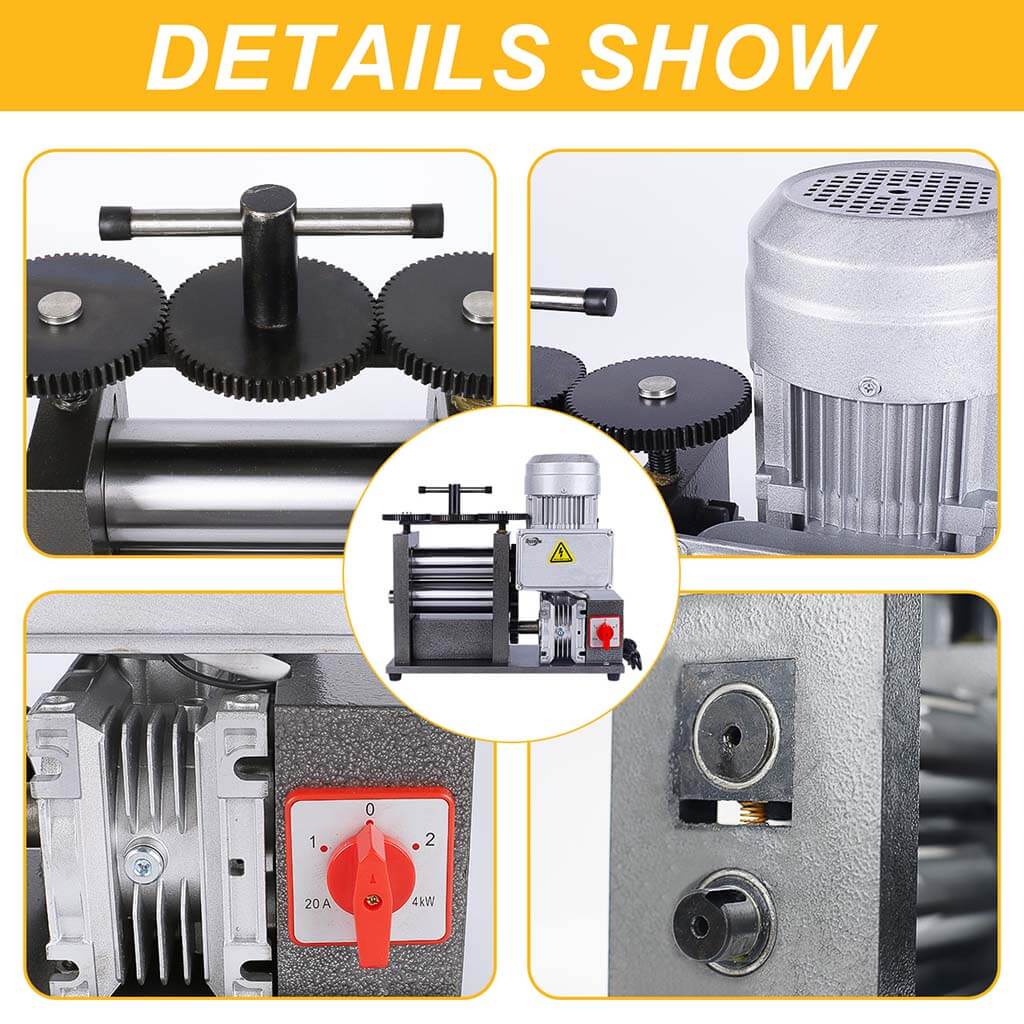

- Knob Speed Control — Multi-gear rotation speed adjustment for precise control over rolling thickness and metal flow.

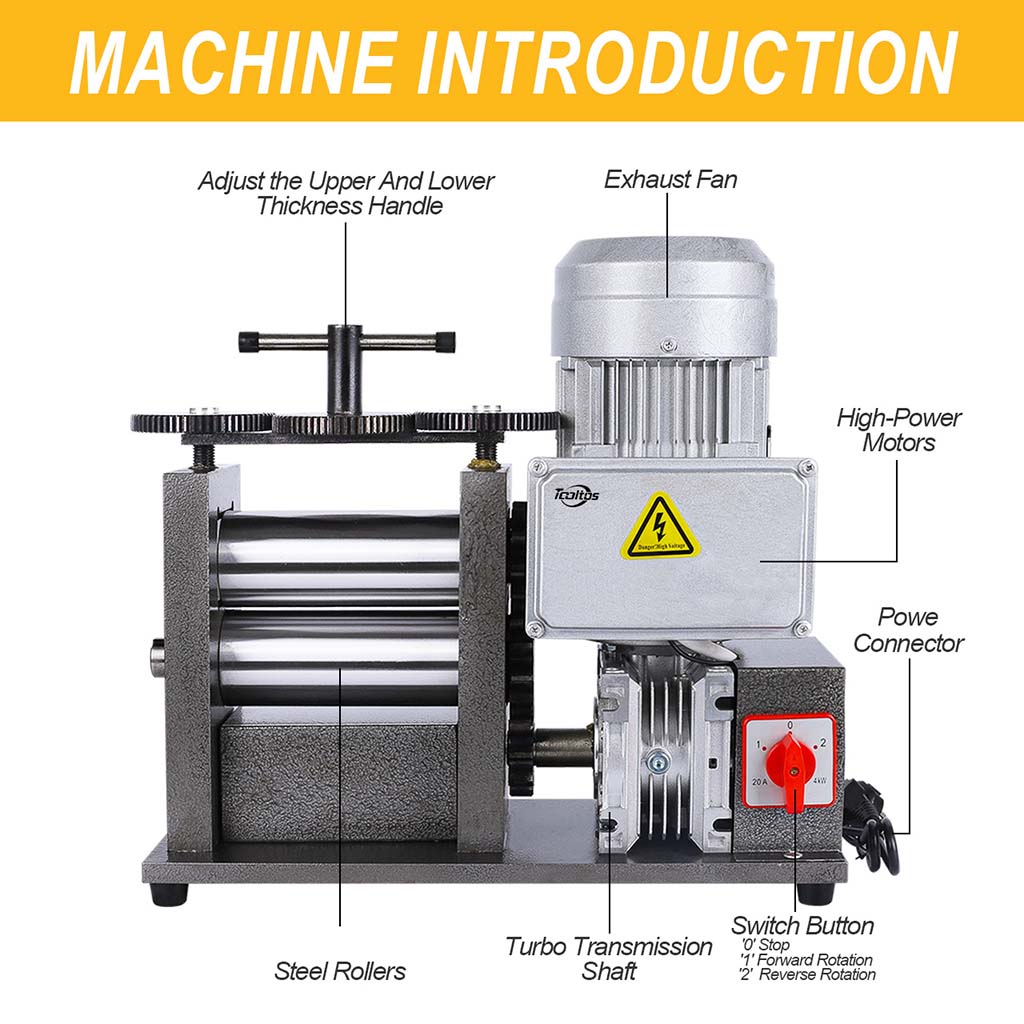

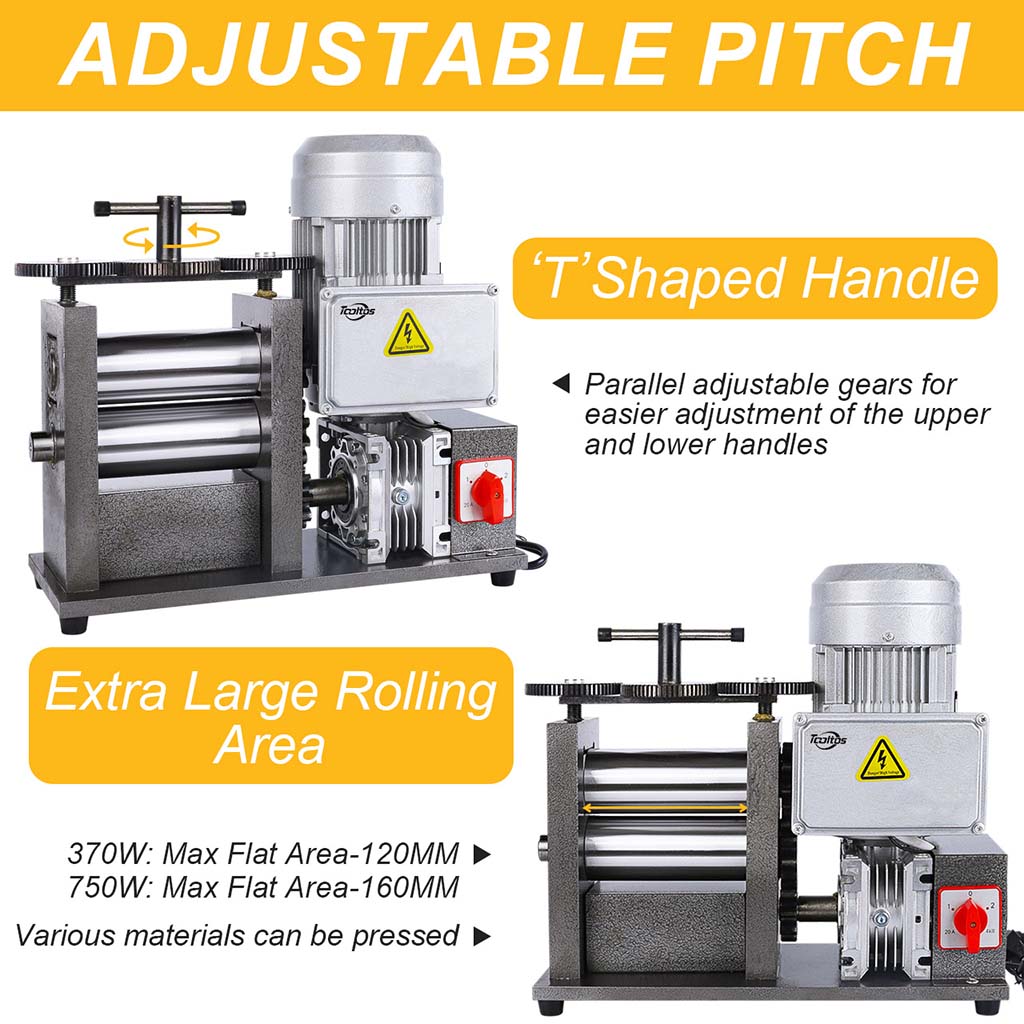

- T-Shaped Parallel Adjustment Handle — Upper and lower handles adjust in parallel for easy, consistent thickness control across the full roller width.

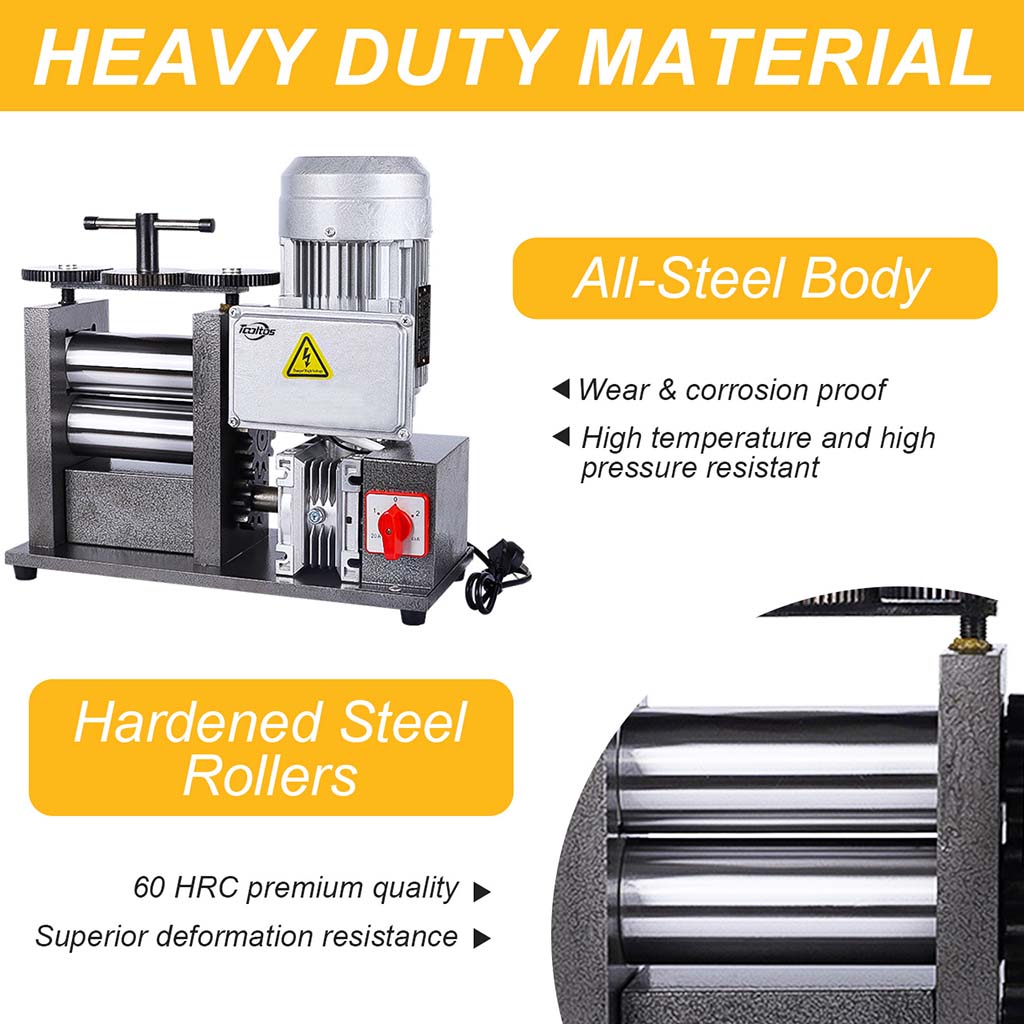

- Wear-Resistant Alloy Rollers — Durable roller construction for long-term reliable performance on gold, silver, copper and brass.
- 110V / 220V Options — Select the correct voltage for your region before ordering.
The Tooltos Flat Area Electric Jewelry Rolling Mill is a motorized flat sheet rolling machine designed for jewelers and metalworkers who need consistent gauge reduction and texture transfer without wire profile grooves. Available in 120mm / 370W and 160mm / 750W configurations, it delivers reliable electric-powered flat rolling for gold, silver, copper, brass and other soft non-ferrous metals.

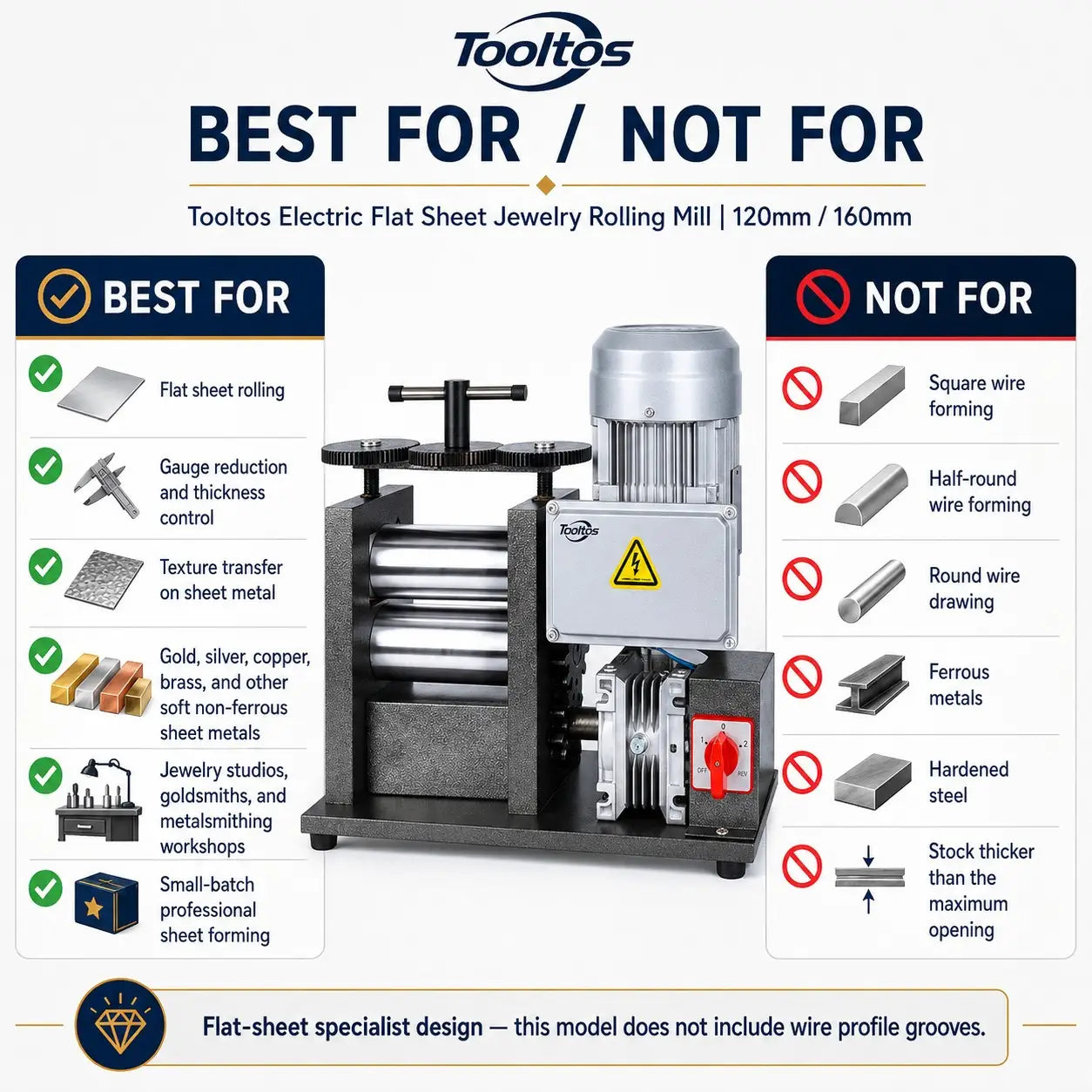

Best For / Not For
| Best For | Not For |
|---|---|
| Flat sheet rolling and gauge reduction Texture transfer to metal sheet Making sheet thickness uniform Gold, silver, copper and brass Jewelry fabrication and metalsmithing studios Studios needing a dedicated flat roller |
Square, half-round or round wire forming (use 3-in-1 or 4-in-1 rolling mill instead) Ferrous metals and hardened steel Metal stock thicker than maximum opening Industrial-scale continuous production |

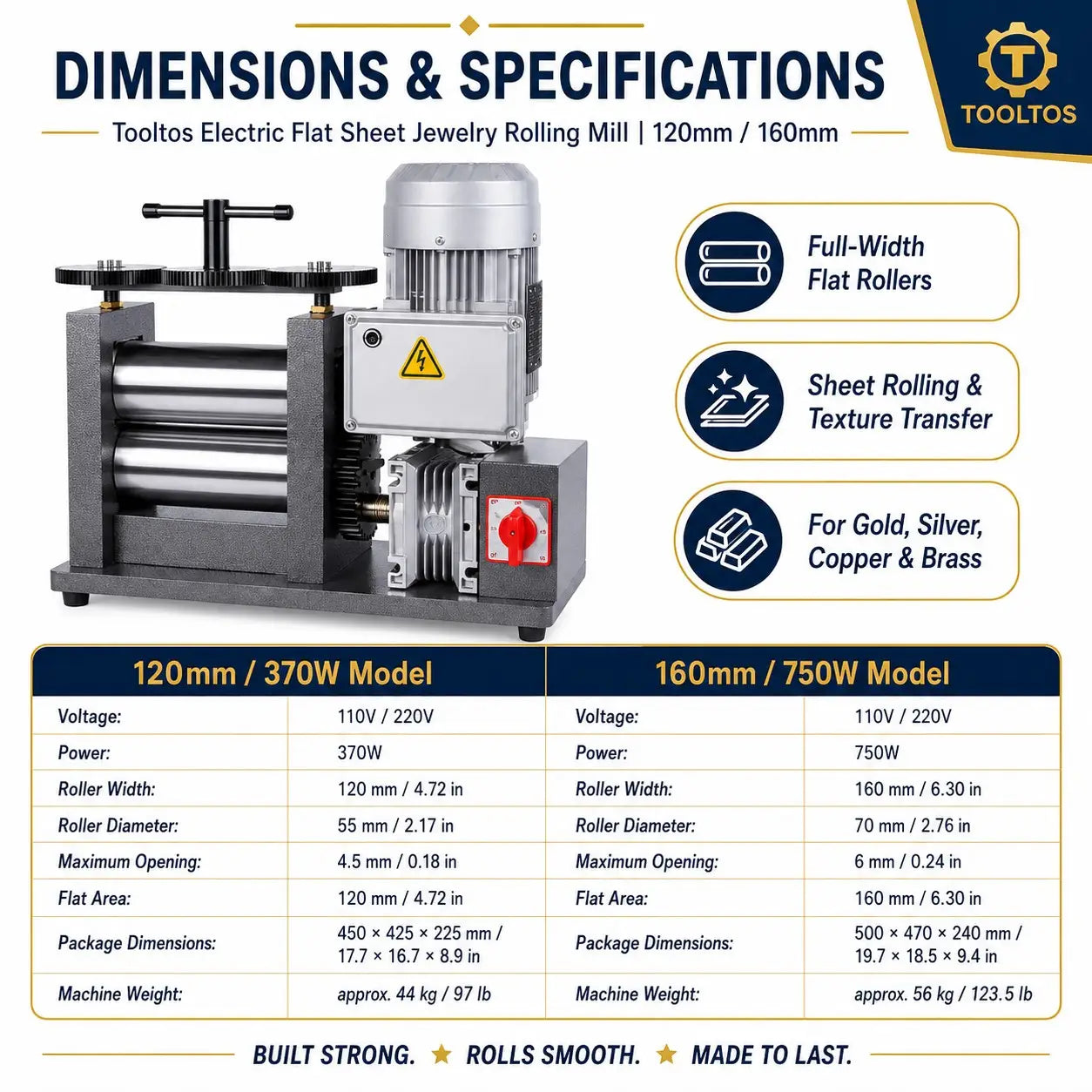

Model Comparison

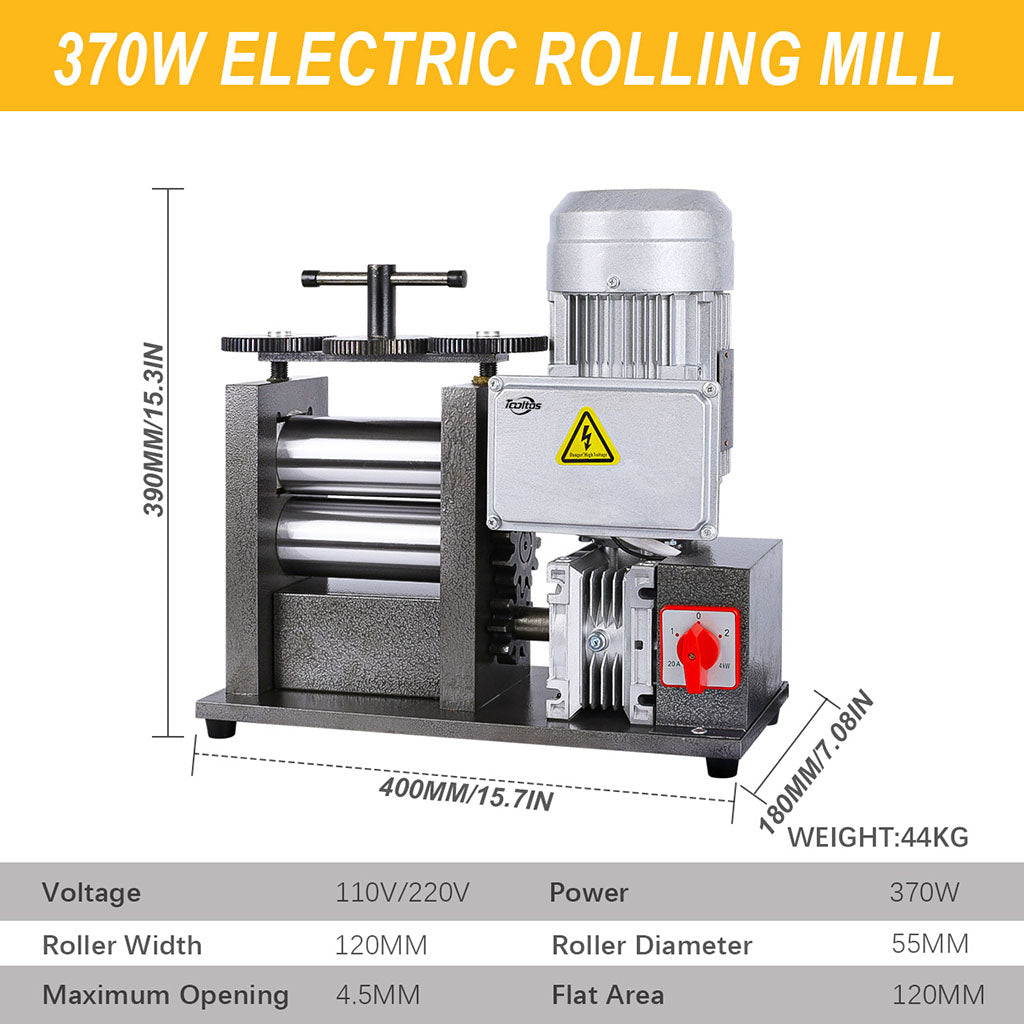

| Specification | 120mm Model | 160mm Model |
|---|---|---|
| Voltage | 110V / 220V | 110V / 220V |
| Power | 370W | 750W (1HP) |
| Roller Width | 120 mm / 4.72 in | 160 mm / 6.30 in |
| Roller Diameter | 55 mm / 2.17 in | 70 mm / 2.76 in |
| Maximum Opening | 4.5 mm / 0.18 in | 6 mm / 0.24 in |
| Flat Rolling Area | 120 mm / 4.72 in (full width) | 160 mm / 6.30 in (full width) |
| Package Dimensions | 450 x 425 x 225 mm 17.7 x 16.7 x 8.9 in |
500 x 470 x 240 mm 19.7 x 18.5 x 9.4 in |
| Machine Weight | approx. 44 kg / 97 lb | approx. 56 kg / 123.5 lb |

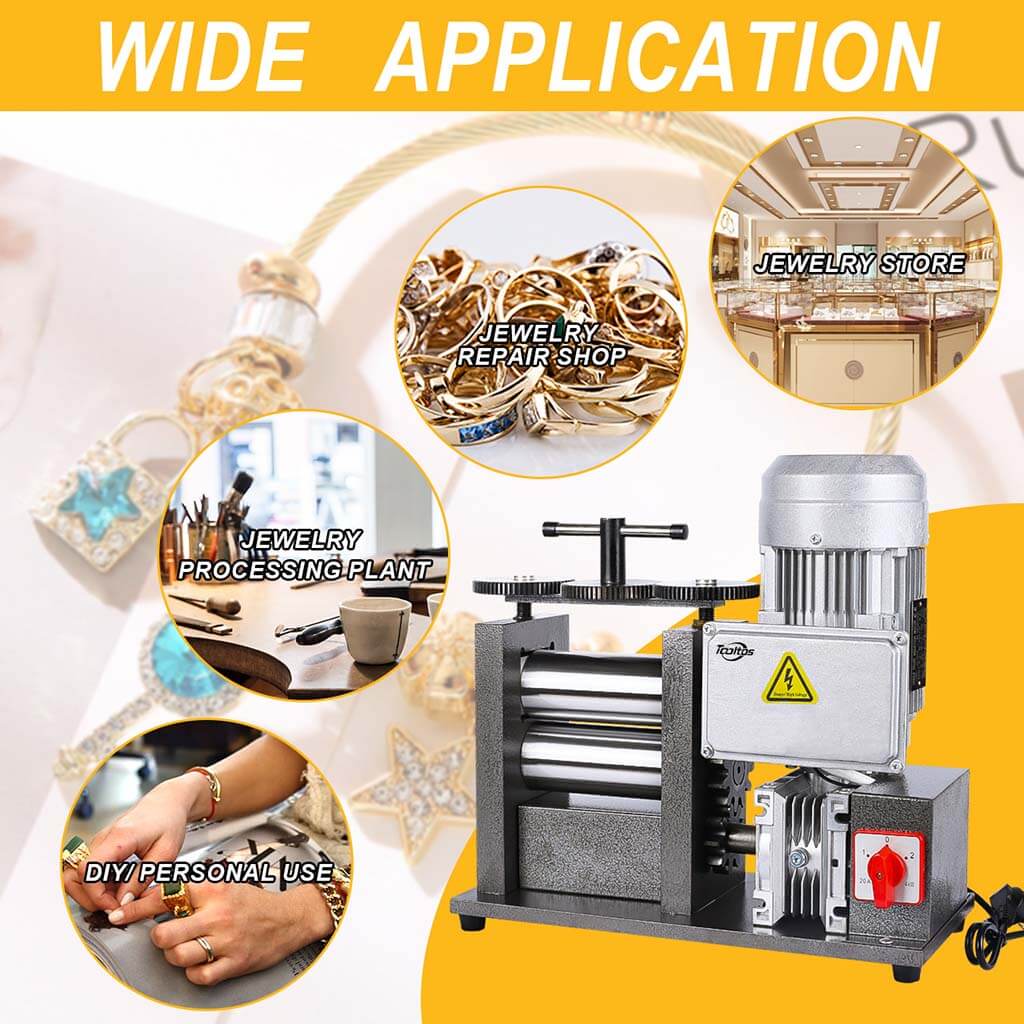

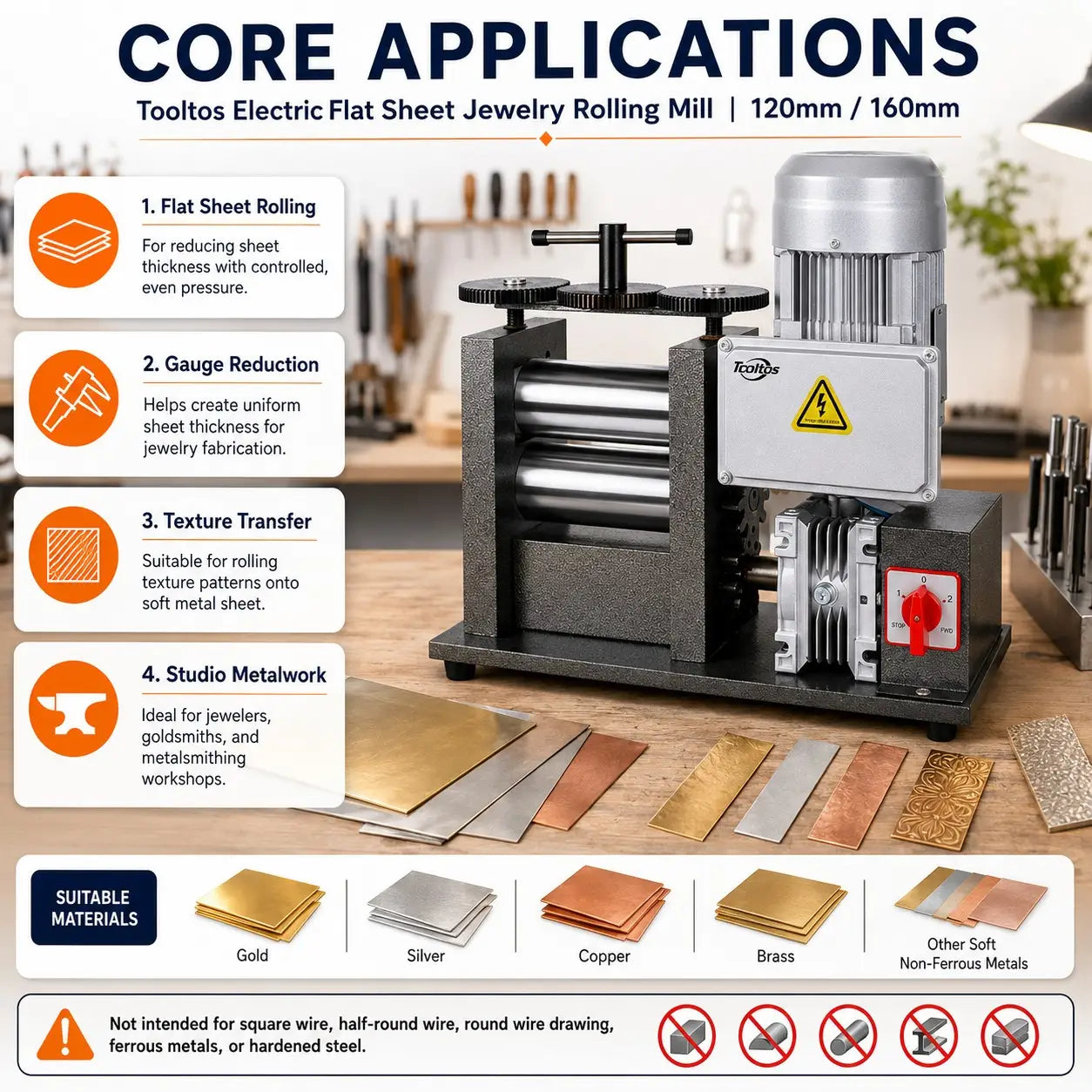

Workshop Applications
| Application | Description |
|---|---|
| Sheet Metal Rolling | Reducing gold, silver and copper sheet to precise gauge thickness for ring shanks, bezels and flat components |
| Texture Transfer | Pressing texture patterns into sheet metal by rolling with textured material between the rollers |
| Gauge Uniformity | Making metal thickness consistent across the full sheet width for precision fabrication work |
| Metal Hardening Control | Work-hardening soft metal sheet through controlled rolling passes for structural jewelry components |
How to Choose: 120mm vs 160mm
Choose the 120mm / 370W model if: You work primarily with standard jewelry sheet widths, your studio handles small to medium batch sizes, and a 120mm roller width covers your typical workpiece dimensions.
Choose the 160mm / 750W model if: You need a wider 160mm roller for larger sheet pieces, work with heavier metal stock up to 6mm opening, or require more motor power for higher-frequency studio use.
Frequently Asked Questions
Which model should I choose — 120mm or 160mm?
The 120mm / 370W model suits smaller studios and lighter workloads. The 160mm / 750W model is recommended for wider sheet work, heavier metal stock up to 6mm, and higher-frequency studio use.
Can this machine transfer textures to metal?

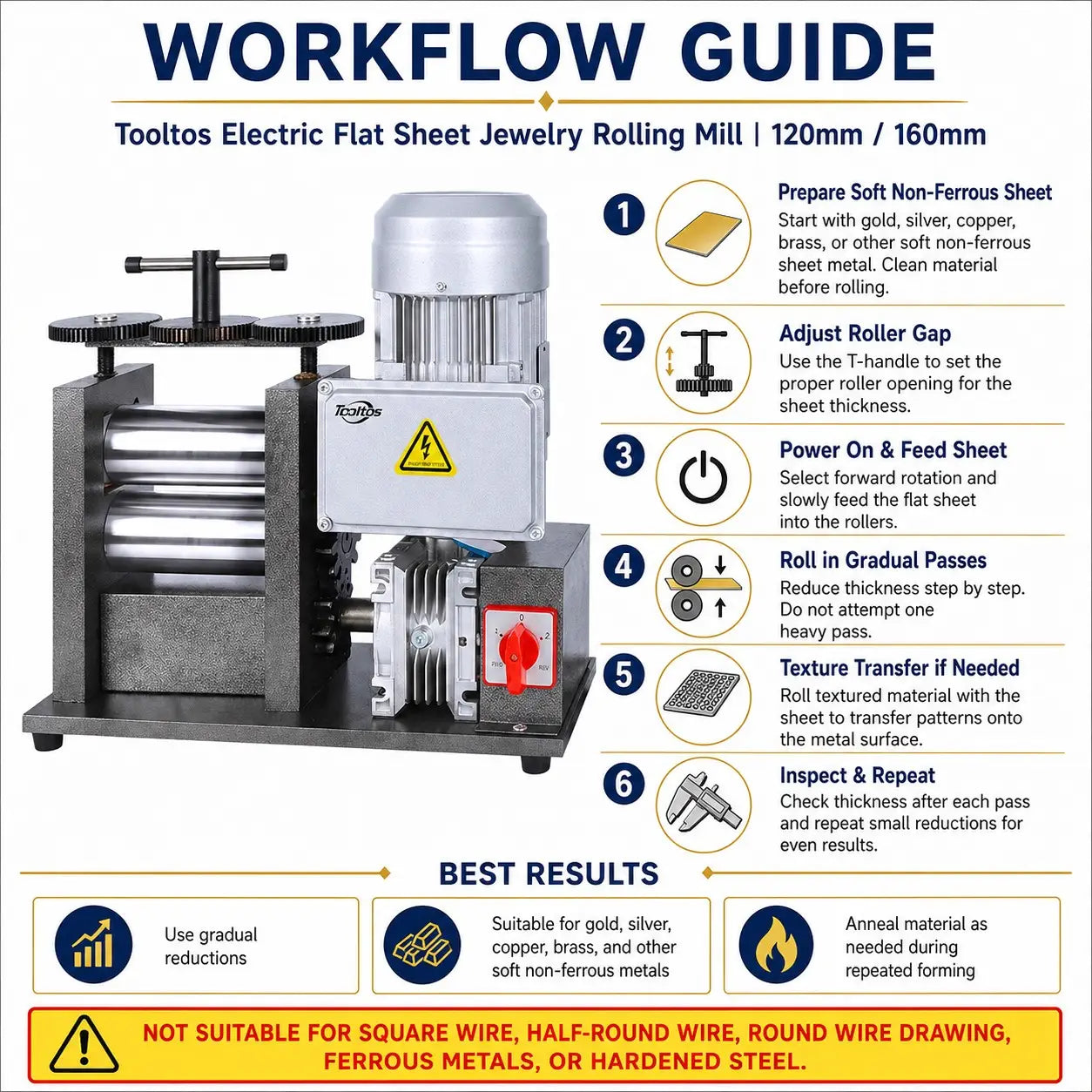

Yes. Place a textured material between the metal sheet and the roller, then pass through at a controlled gap to transfer the pattern to the metal surface.
Does this machine roll wire profiles?
No. This is a flat area specialist with no wire profile grooves. For square wire, half-round wire and round wire rolling, see the Tooltos 3-in-1 or 4-in-1 Electric Rolling Mill.
What metals can this rolling mill handle?
Gold, silver, copper, brass and most soft non-ferrous metal alloys. Not suitable for ferrous metals or hardened steel.
Which voltage should I select?
110V for USA and Canada. 220V for Europe, UK, Australia and most of Asia. Please confirm your local voltage before ordering.
How heavy is the machine?
The 120mm model weighs approximately 44 kg (97 lb) and the 160mm model approximately 56 kg (123.5 lb). A stable, reinforced workbench is recommended for installation.

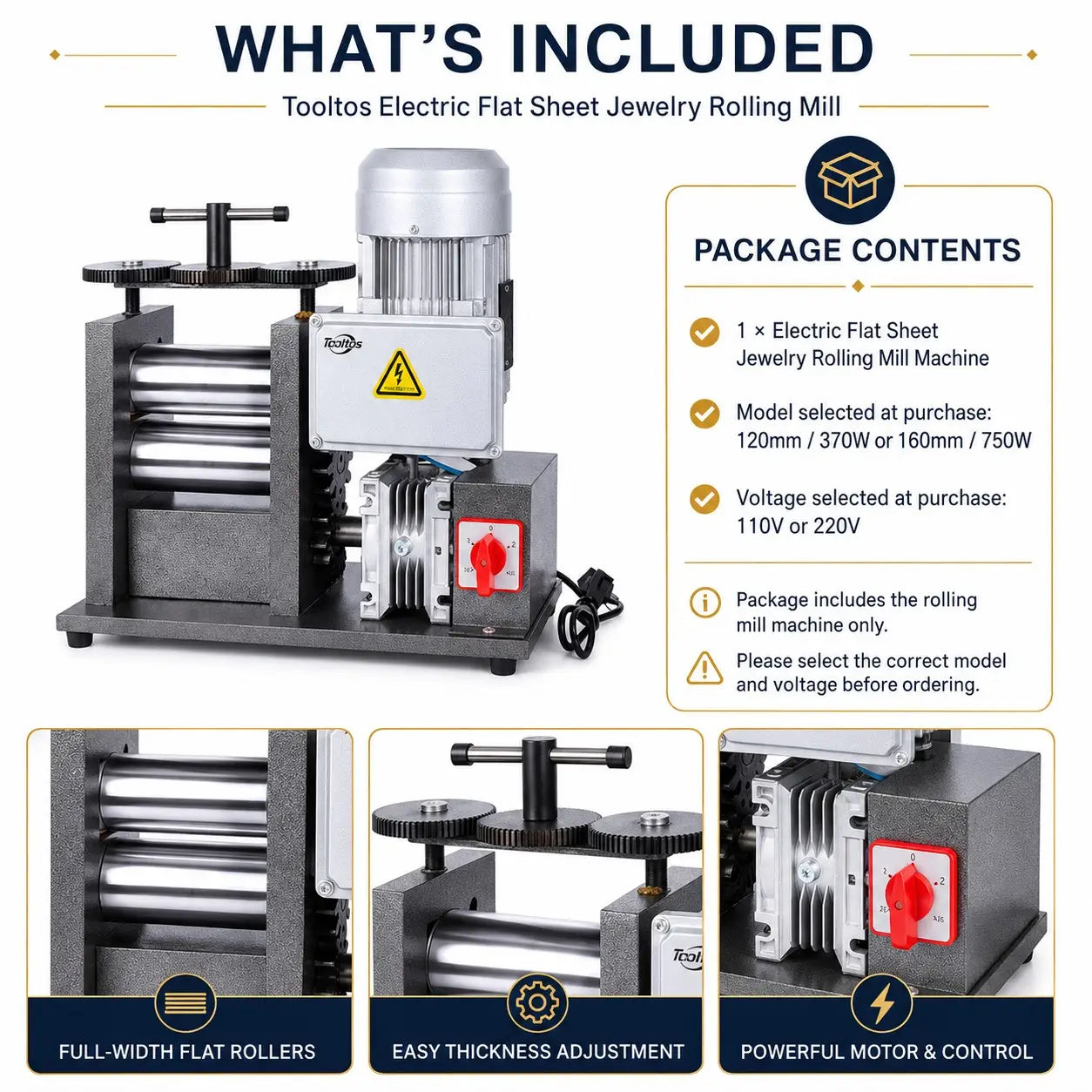

What's Included
- 1 x Tooltos Flat Area Electric Jewelry Rolling Mill Machine (120mm 370W or 160mm 750W, 110V or 220V)
Why Choose Tooltos
Tooltos designs jewelry tools and machines for professional workshops and serious hobbyists. The Flat Area Rolling Mill is built for studios that need a dedicated flat sheet roller — delivering consistent gauge reduction and texture transfer without the wire profile grooves of combination models. If you need help choosing between the flat area model and the 3-in-1 or 4-in-1 combination mills, contact our team at sales@tooltos.com before ordering.
Support
For technical questions, model selection or order support, contact the Tooltos team at sales@tooltos.com. We typically respond within 24 hours.
