When a lost wax casting shows incomplete fill, rough surfaces, or other defects, the burnout schedule is often the first suspect. It is an important part of the workflow, but it is not the only variable. Wax or resin choice, sprue layout, investment handling, flask preparation, metal volume, casting method, and cooling decisions can all affect the final result.
The useful response is to separate those variables rather than changing every setting at once. A controlled furnace helps make one part of the process repeatable. It does not turn an unsuitable model, investment, or casting setup into a reliable result by itself.
Start by identifying where the defect appears
Look at the defect before changing a program. An area that does not fill, a surface problem, and a structural crack may point to different stages of the workflow. Record the model material, investment type, sprue arrangement, flask size, available metal, and the settings used for that run. Compare the next test with one deliberate change, not a new set of guesses.
| What you observe | What to review | What to record |
|---|---|---|
| Incomplete fill | Sprue layout, available metal, casting setup, and mold preparation | Where filling stops and the settings used |
| Rough surfaces | Model surface, material compatibility, investment handling, and burnout instructions | The location and appearance of the surface problem |
| Cracks or structural defects | Investment preparation, curing, heating, and cooling instructions | When the defect was first noticed |
These are review prompts, not diagnoses. The same visible defect can have more than one cause.
If you use castable resin, follow the resin manufacturer’s instructions for investment and burnout rather than applying a wax schedule by default. The same principle applies to investment powder, flask size, and casting equipment: confirm compatibility before treating the furnace program as the cause.
Make the burnout stage repeatable

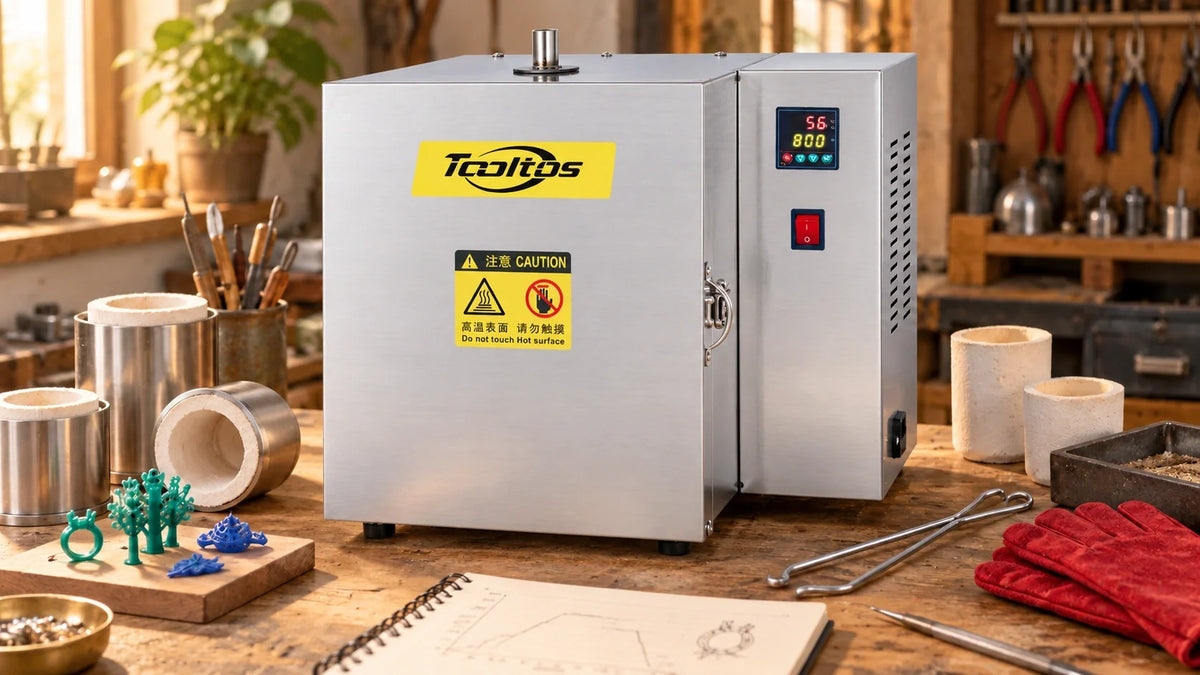

The 5-Stage Jewelry Burnout Furnace 800°C for Wax Casting is designed for wax casting workflows with a built-in multi-stage heating program, 1500 W heating power, an 800°C maximum temperature, wax drainage, and an exhaust port. Its 150 × 150 × 200 mm chamber is intended for flasks up to approximately 4 × 7 inches.
What programmed control supports
Repeatable heating stages and less reliance on manually changing settings at the right moment.
What it does not replace
Material compatibility checks, sprue planning, investment preparation, or a suitable casting setup.
For a small casting studio, programmed stages can reduce the chance of manually changing a setting at the wrong time. Treat the factory program as a reference, not a universal recipe. Confirm the instructions supplied with your furnace, investment, and model material before standardizing the process.
Maximum temperature is not a process recommendation
A furnace’s maximum temperature is not automatically the correct burnout or casting temperature for your materials. Use the compatible material and equipment instructions to establish the process.
Check the whole preparation sequence
Before blaming the furnace
- Confirm the model material is approved for the investment and casting route.
- Inspect the sprue placement and flow path before investing.
- Allow the investment to cure as required by its instructions.
- Verify flask size, chamber clearance, and the correct local voltage before heating.
- Keep the burnout record with the casting record so results can be compared later.
This record is especially useful after an incomplete casting. It helps you decide whether the next adjustment should concern mold preparation, the amount of metal, the casting setup, or the burnout cycle itself.
A simple casting test record
Copy these prompts into your workshop notes for each test.
- Baseline: model material, investment, sprue layout, flask size, metal amount, burnout cycle, casting settings, and cooling method.
- Observation: where the defect appears, with photographs where useful.
- Next test: the single variable you will change within the material and equipment instructions.
- Result: what improved, what stayed the same, and the next question to investigate.
Use automation to reduce variation, not skip checks
An automated heating program supports consistency when the same compatible materials and flask sizes are used repeatedly. It does not eliminate the need to inspect the flask, use appropriate ventilation, follow heat-safety procedures, or confirm that the mold is ready for the next stage. Do not use a burnout furnace as a metal melting furnace.
For repeated lost wax casting work, choose a furnace by the programmed control you need, maximum temperature, chamber capacity, voltage, and how it fits into the rest of the casting workflow. Explore Tooltos jewelry casting and wax equipment after those requirements are clear.
The takeaway
The goal is not to find one schedule that fixes every defect. It is to build a compatible, repeatable workflow and use each casting record to make the next test more informative.
